Graphite Digester GDA-10 GDA-20

Application:

Food, agriculture, forestry, environmental protection, chemical, biochemical and other industries as well as quality inspection institutions, universities, scientific research departments to soil. Sample digestion processing prior to chemical analysis of grain, feed, food, water, plants, seeds, ores, heavy metals, etc.

Features:

1. Infrared radiation graphite conduction heating method, fast heating speed, the temperature difference between the holes is small, and the sample digestion is consistent.

2. PID intelligent temperature control algorithm, accurate and stable control, adapt to different sample pretreatment.

3. Two heating methods of curve heating and linear heating, 200 groups of digestion programs can be edited and stored, and each group can be set up to 25 segments.

4. Temperature and time gradient to meet different experimental needs of users.

5. Special anti-corrosion treatment to avoid the corrosion of acidic liquid on the machine.

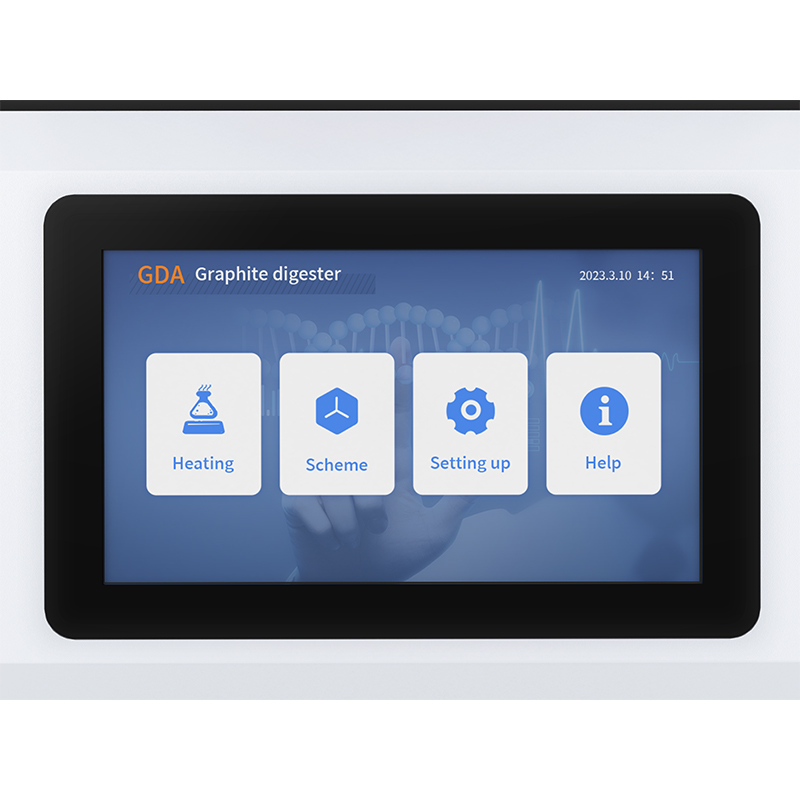

6. 7-inch high resolution LCD display, real-time display temperature curve.

7. Overvoltage, overcurrent, overheating and other alarm Settings and leakage protection.

8. New ceramic fiber insulation layer and air duct insulation technology.

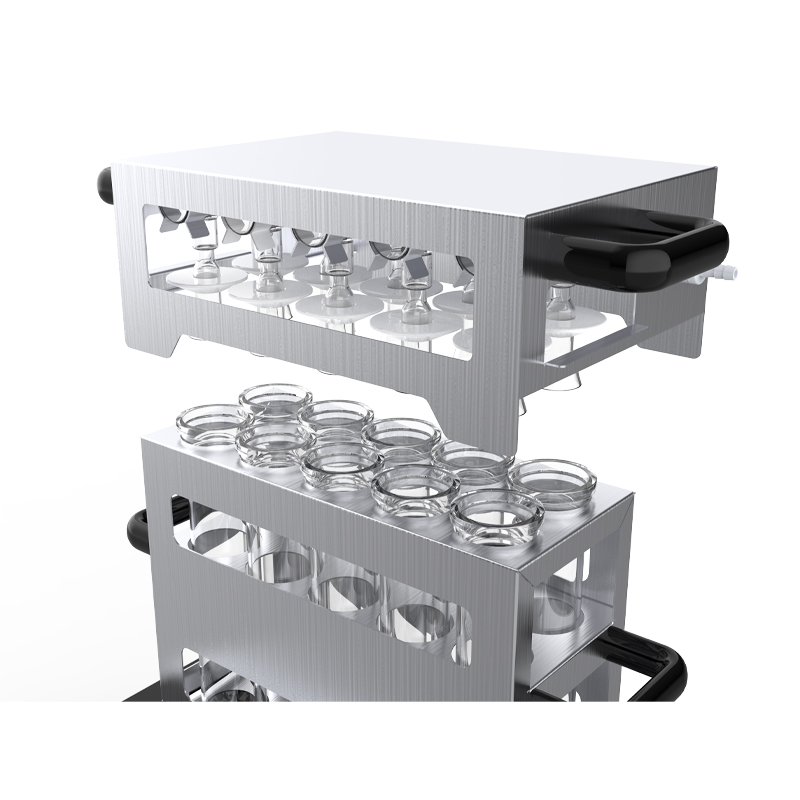

9. Standard digestive tube cooling rack and drip tray, the digestive tube can be cooled quickly.

10. Exhaust hood, PTFE sealing cap seal, prevent operators from inhaling harmful gases.



 Technical Parameters:

Model	GDA-10	GDA-20
Temp. Range	RT+5℃~450℃
Temp. Accuracy	±1℃
Capacity	10pcs	20pcs
Digestive Tube	Glass tube 300ml*10	Glass tube 300ml*20
Heating Mode	Infrared heating and high purity graphite conduction
Insulation Mode	Ceramic fiber, split air duct insulation
Display	7-inch high resolution color LCD screen
Consumption	1.8KW	3.4KW
Power Supply	Standard: 220V±10%, 50/60Hz Optional: 110V±10%, 50/60Hz
External Size	360*390*177mm	480*390*177mm
Package Size	620*500*560mm	700*610*770mm
Net Weight	20kg	26kg
Gross Weight	36kg	58kg



Graphite Digester GDA-10 GDA-20 — professional solution in the Graphite Digester category

Graphite Digester GDA-10 GDA-20 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Graphite Digester GDA-10 GDA-20

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Graphite Digester GDA-10 GDA-20 fits easily into existing process lines and IT infrastructure.

Areas of application Graphite Digester

Graphite Digester solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Graphite Digester GDA-10 GDA-20 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Graphite Digester GDA-10 GDA-20 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
