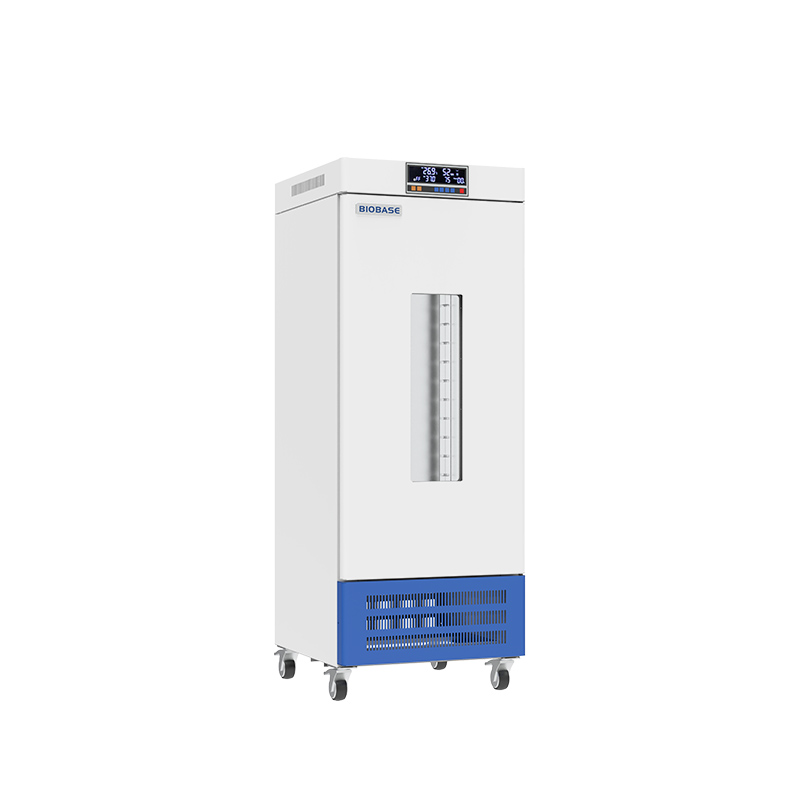

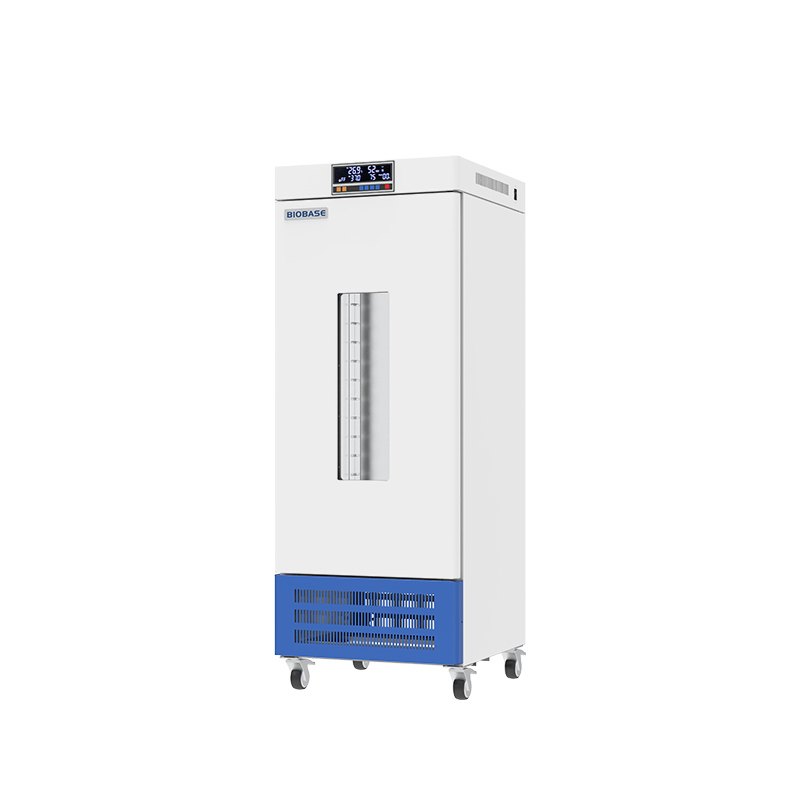

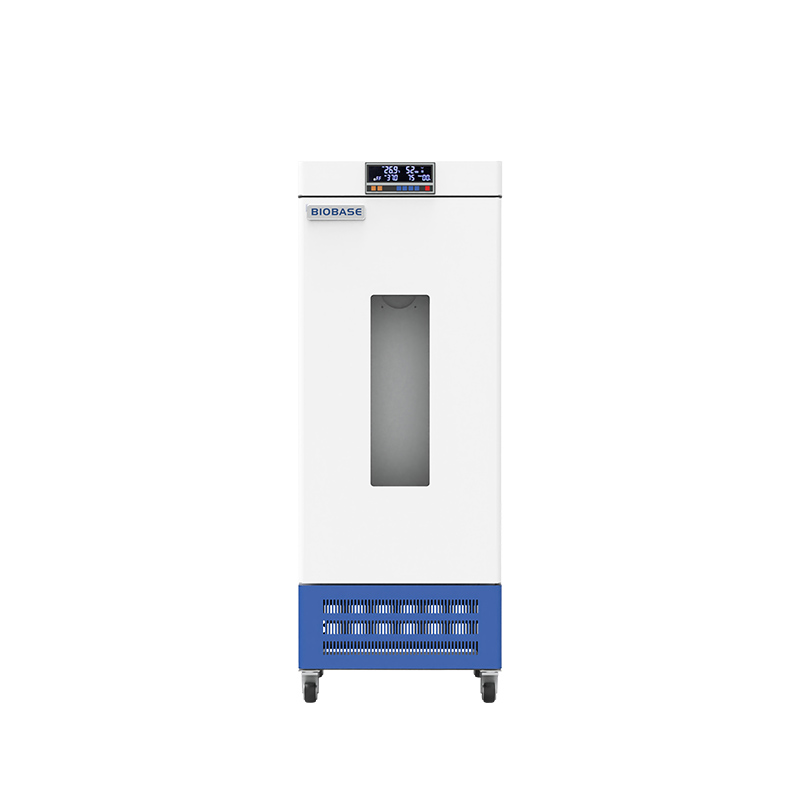

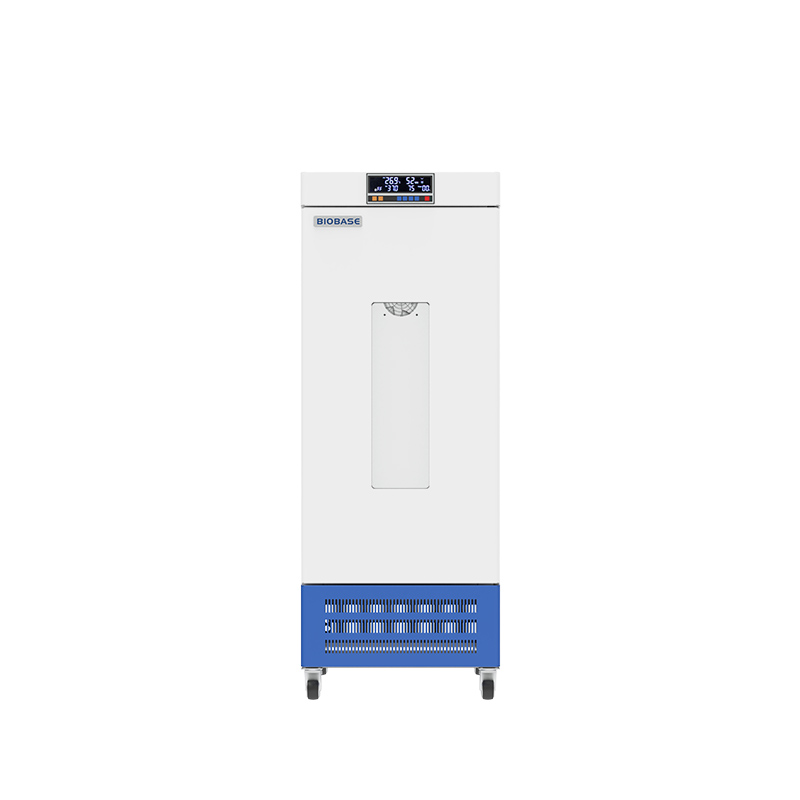

Mould Incubator(BJPX-MN)

Features:

1. LCD display.

2. The refrigeration adopts a new fluorine-free design to ensure green and environmental protection.

3. With parameter memory function, the call will automatically resume operation.

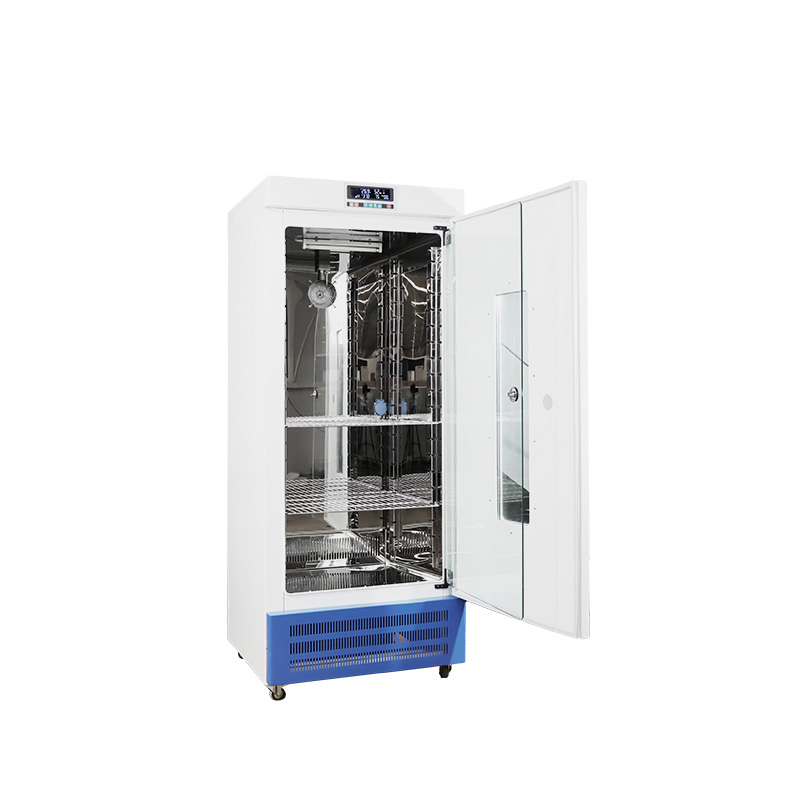

4. The inner box is designed with a circular arc structure, which is easy to clean.

5. Pullable movable shelves with adjustable spacing.

6. The inner box is equipped with a fan to form a micro air circulation to improve the temperature uniformity in the box.

7. Outer box material: cold-rolled steel plate sprayed on the surface; internal material: SUS304 stainless steel plate.



Technical Parameters:

Model	BJPX-M80N	BJPX-M100N	BJPX-M150N	BJPX-M200N	BJPX-M250N	BJPX-M300N	BJPX-M400N
Capacity	80L	100L	150L	200L	250L	300L	400L
Temp. Sensor	PT100
Temp. Range	0~65℃
Temp. Fluctuation	±1℃
Temp. Uniformity	±2℃
Temp. Precision	0.1℃
Timing Range(min/h)	0~9999
Humidity Range	50~90％RH
Humidity Control Accuracy	1%RH
Humidity Control Fluctuation	±5~±8%RH
Refrigerant	R134a							R404a
Sterilization Method	UV sterilization lamp(Timetable setting)
Power Supply	AC220V, 50Hz(Standard); 110V, 60Hz(Optional)
Consumption	1200W			1300W		1500W
Shelves	2
Standard Accessories	UV sterilization lamp, shelf
Optional Accessories	RS485, RS485 to USB interface, printer, shelf, RS232, small submersible pump
Internal Size(W*D*H)	400*370 *560mm	400*370 *680mm	450*420 *850mm	450*450 *1000mm	480*490 *1070mm	520*500 *1170mm	580*540 *1270mm
External Size(W*D*H)	540*580 *1110mm	540*580 *1230mm	590*630 *1390mm	590*660 *1540mm	620*700 *1610mm	660*700 *1710mm	720*760 *1810mm
Package Size(W*D*H)	680*730 *1290mm	680*730 *1410mm	730*770 *1570mm	730*800 *1720mm	760*850 *1790mm	800*850 *1890mm	860*900 *1990mm
Net Weight	70kg	75kg	95kg	100kg	110kg	120kg	140kg
Gross Weight	95kg	100kg	125kg	132.5kg	140kg	155kg	175kg

Notice: It cannot be used for long-term refrigeration and storage.
