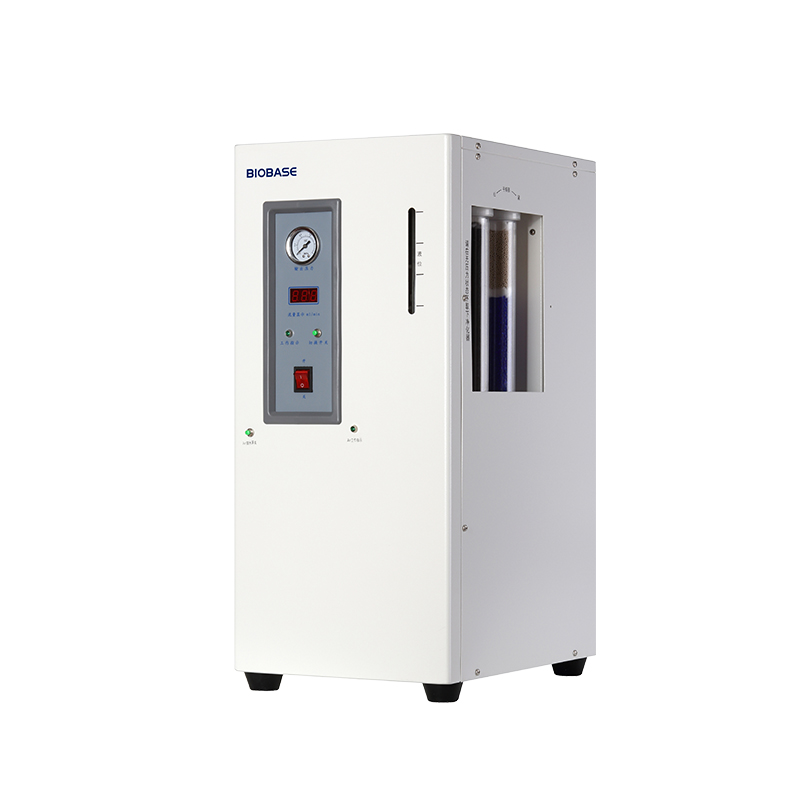

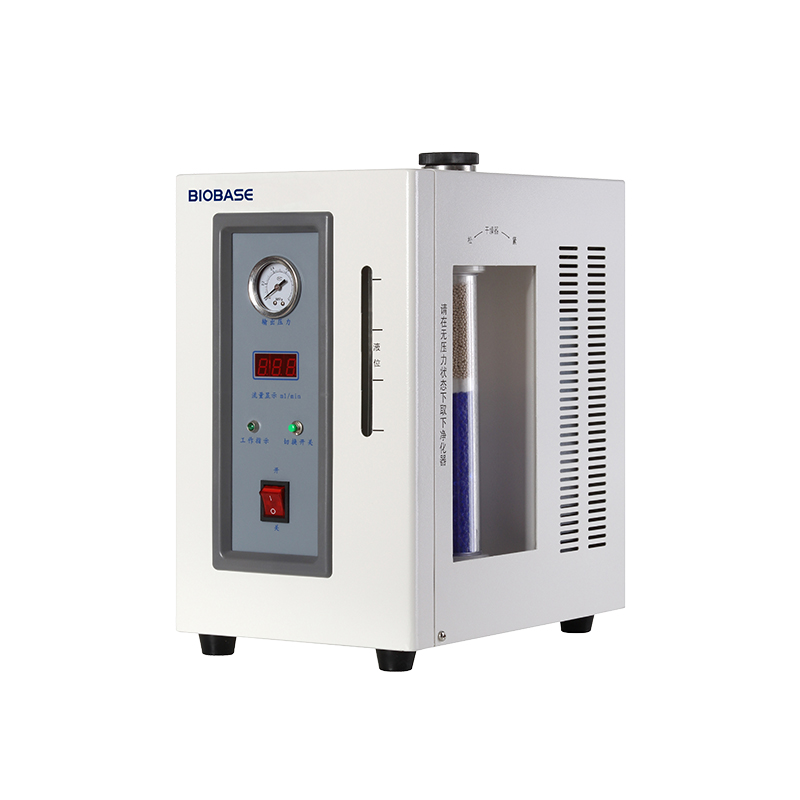

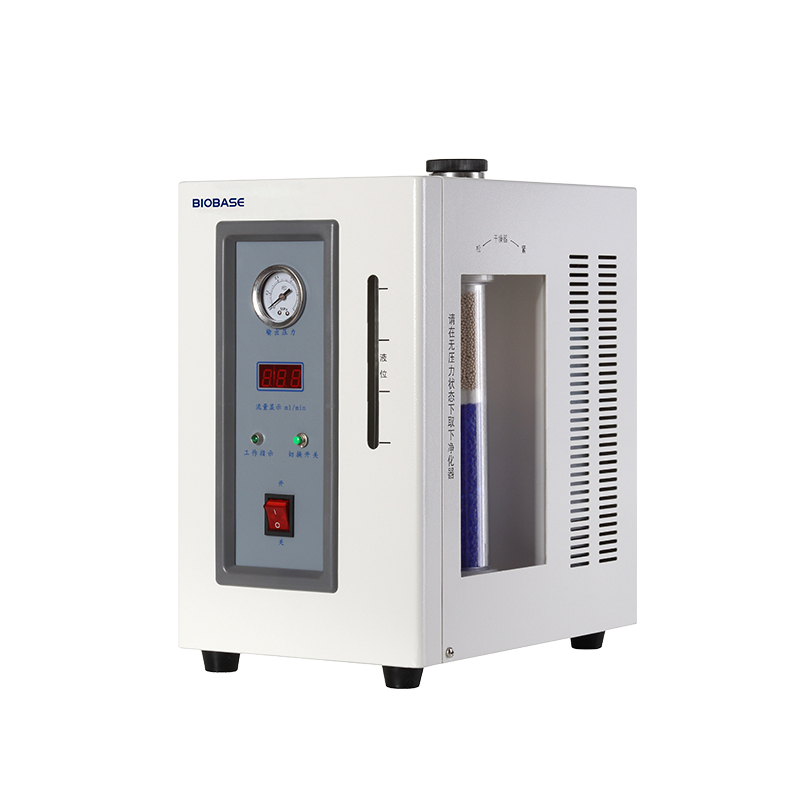

Laboratory Nitrogen Generator

Features:

1. Improved double-cathode stainless steel electrolytic separation cell. Nitrogen production by electrolysis

and oxygen exhaust are carried out simultaneously, and the electrolyte circulation is unimpeded.

2. The electrolysis separation cell has large electrolysis area, low cell temperature, large gas production,

and higher nitrogen purity.

3. The unique anti-liquid return device ensures that the instrument will never return liquid.

4. Equipped with the function of voltage stabilization and automatic closing of the gas circuit after power failure.

5. Adopt advanced switching power supply to improve the efficiency of electrolysis and separation.

6. Small size and light weight, some products use oil-free compressors.(NG-300P/500P).

7. Need external air source(NG-300ll/500ll).

Technical Parameters:

Model	NG-300II	NG-500II	NG-300P	NG-500P
Output Flow(ml/min)	0~300ml/min	0~500ml/min	0~300ml/min	0~500ml/min
Output Pressure	0~0.5Mpa(Factory setting 0.4Mpa)
Purity	>99.997%
Surrounding Requirement	Temperature 10~40°C
	Humidity≤85%
Consumption	80W	120W	650W	750W
Power Supply	AC220V±10%, 50Hz±5%(Standard); AC110, 60Hz(Optional)
Instrument Size(W*D*H)	320*220*370mm		400*300*640mm
Package Size(W*D*H)	390*280*430mm		475*375*720mm
Net Weight	15kg		40kg
Gross Weight	17kg		42kg

Laboratory Nitrogen Generator — professional solution in the Gas Generator category

Laboratory Nitrogen Generator is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Laboratory Nitrogen Generator

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Laboratory Nitrogen Generator fits easily into existing process lines and IT infrastructure.

Areas of application Gas Generator

Gas Generator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Laboratory Nitrogen Generator allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Laboratory Nitrogen Generator you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
