Features:
1. Built-in temperature control system.
2. The temperature and rotation speed can be accurately set through the digital display screen, and the temperature control range is wide.
3. Rubber feet support, more stable.
4. Configure temperature sensor PT100.
5. With relay over temperature protection alarm, safe and convenient.
Technical Parameters:
| Model | MS-H-10 | MS-H-11 |
Working Plate Size | 180*180mm | φ150mm |
Platform Material | Ceramic | Aluminum |
Motor Type | DC brushless motor |
Number of Stirring Points | 1 |
Maximum Stirring Volume(Water) | 5L |
Stirrer Maximum Size | 50mm |
Rotation Range | 20~2000r/min |
Data Display | LED | LCD |
| Timing Range | 0~9999min |
Heating Temperature Range | Room temperature~360.0℃ |
Overheating Protection | 360~400℃ adjustable |
Temperature Display Accuracy | ±0.1℃ |
External Temperature Sensor | PT100(Accuracy ±0.6℃)(Standard) |
Speed Control Accuracy | ±10rpm | ±1rpm |
Protection Class | IP21 |
Motor Power | 20W |
Heating Power | 800W | 400W |
Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
External Size(L*W*H) | 222*320*135mm | 222*320*122mm |
Net Weight | 4.2kg | 3.9kg |
Packing Size | 300*410*210mm |
Gross Weight | 7.6kg | 6.0kg |

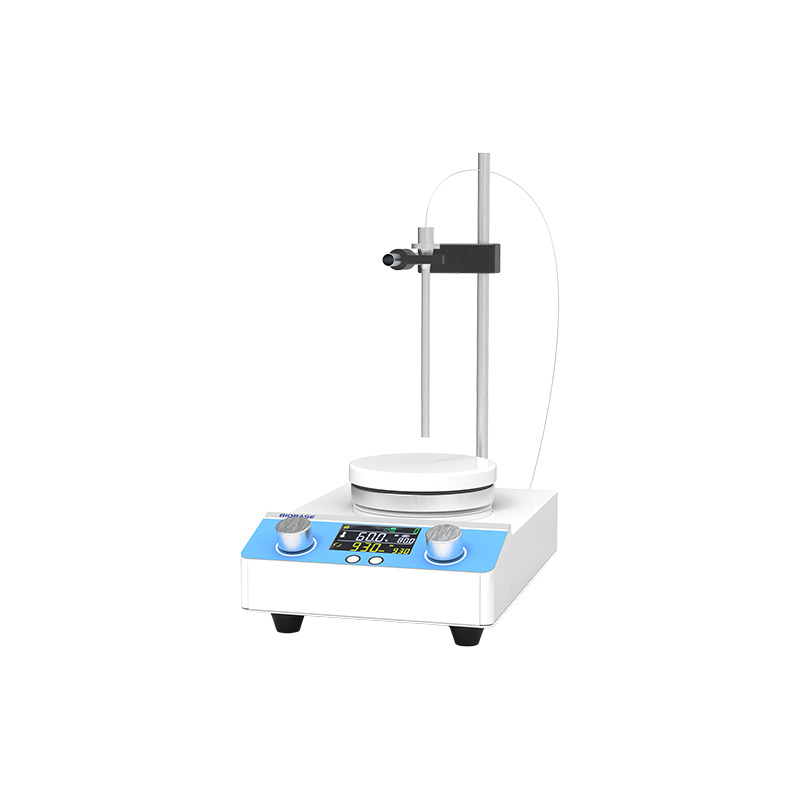

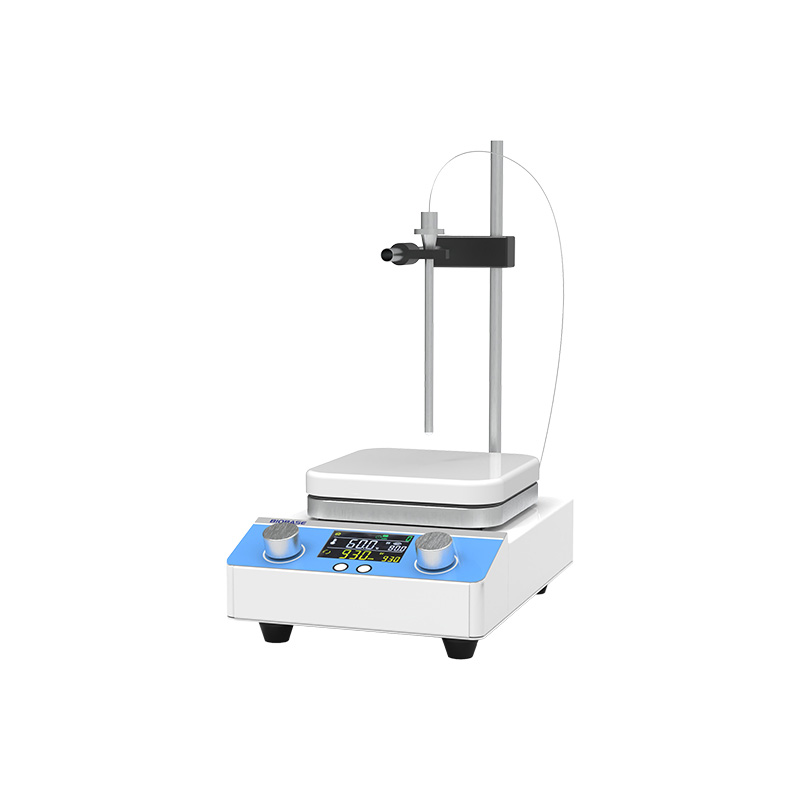

Hotplate Magnetic Stirrer MS-H-10 MS-H-11 — professional solution in the Stirrer category
Hotplate Magnetic Stirrer MS-H-10 MS-H-11 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Hotplate Magnetic Stirrer MS-H-10 MS-H-11
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Hotplate Magnetic Stirrer MS-H-10 MS-H-11 fits easily into existing process lines and IT infrastructure.
Areas of application Stirrer
Stirrer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Hotplate Magnetic Stirrer MS-H-10 MS-H-11 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Hotplate Magnetic Stirrer MS-H-10 MS-H-11 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Hotplate Magnetic Stirrer MS-H-10 MS-H-11 to the cart or contact our manager. We will help integrate Stirrer into existing processes without downtime and unnecessary costs.
