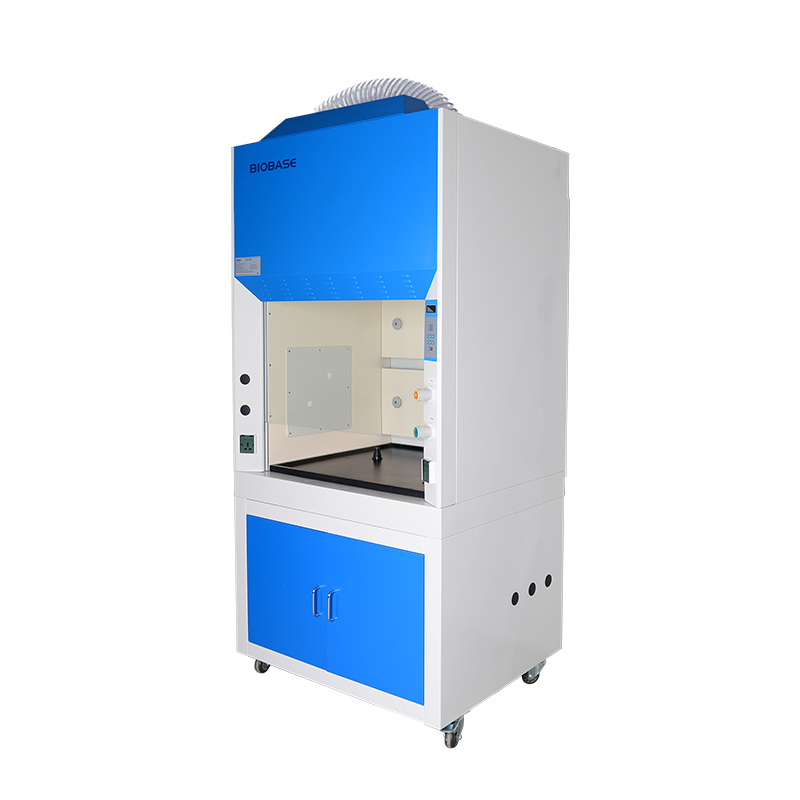

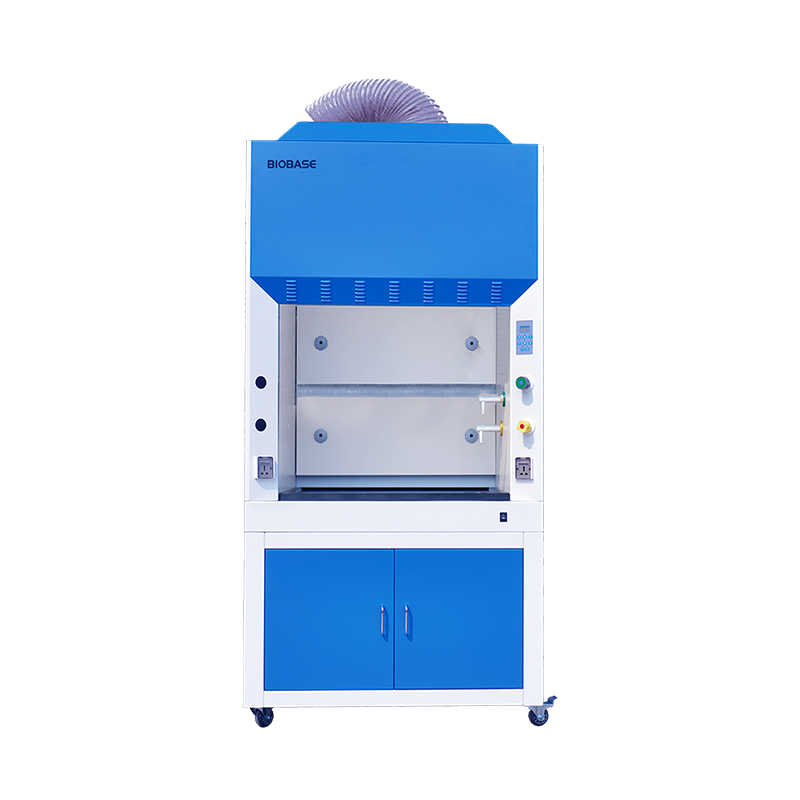

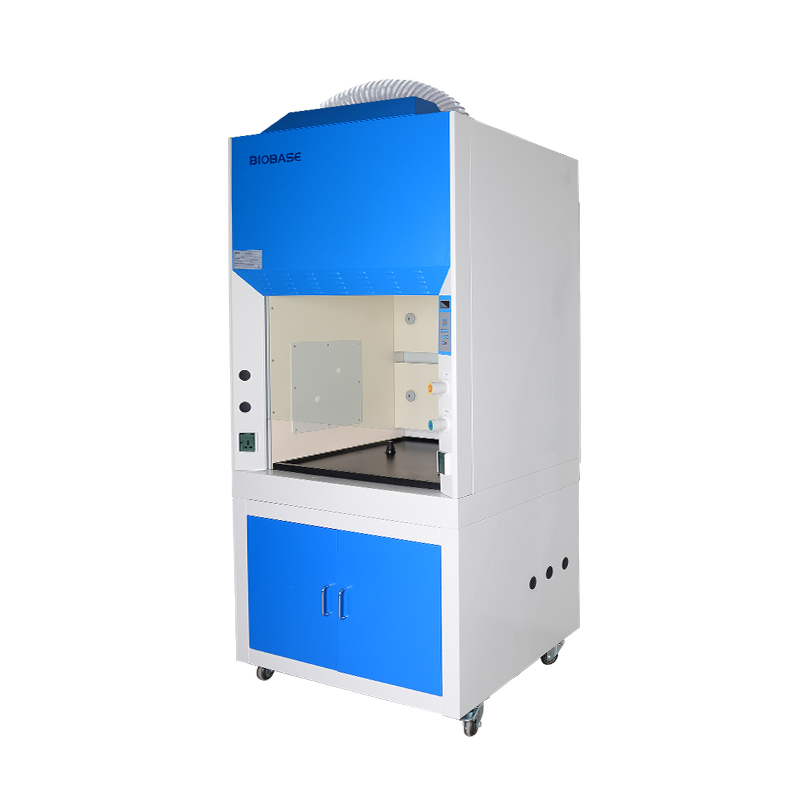

Ducted Fume Hood FH1000(A)

Features:
1. UV lamp for sterilization.

2. Resistant to weak acid and alkali.

3. Adjustable air speed: 9 levels.

4. Motorized front window, height adjustable.

5. Microprocessor control system, LED display.

6. With memory function in case of power-failure.

Technical Parameters:

Model		FH1000(A)	FH1200(A)	FH1500(A)	FH1800(A)
External Size(W*D*H)		1040*800*2200mm	1240*800*2200mm	1540*800*2200mm	1840*800*2200mm
Internal Size(W*D*H)		820*670*730mm	1020*670*730mm	1320*670*730mm	1620*670*730mm
Work Surface Height		850mm
Max Opening		520mm
Air Velocity		0.3~0.8m/s
Exhaust Air Volume		590m³/h	730m³/h	950m³/h	1170m³/h
Noise		≤68dB
Exhaust Duct		PVC, Standard length: 5 meters
		Φ300mm
LED Lamp		8W*1	12W*1	16W*1	16W*1
UV Lamp		Emission of 253.7 nanometers for most efficient decontamination
Blower		Built-in centrifugal blower, Speed adjustable
Front Window		5mm toughened glass, Motorized, Height adjustable
Power Supply		AC220±10%, 50/60Hz; 110V±10%, 60Hz
Consumption		400W	400W	500W	500W
Material	Exterior	Cold-rolled steel with anti-bacteria powder coating
	Interior	Compact laminate board with good acid and alkali resistance function
	Work Table	Chemical resistant phenolic resin
Standard Accessory		UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet
		Total load of 2 waterproof sockets: 500W
		5 meters PVC exhaust duct, pipe strap*2
Optional Accessory		Active carbon filter, HEPA filter
Gross Weight		286kg	317kg	350kg	400kg
Package	Main Body	1190*990*1690mm	1390*990*1690mm	1690*990*1690mm	1990*990*1690mm
	Base Cabinet	1190*990*900mm	1390*990*900mm	1690*990*900mm	1990*990*900mm

Ducted Fume Hood FH1000(A) — professional solution in the Fume Hood category

Ducted Fume Hood FH1000(A) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Ducted Fume Hood FH1000(A)

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Ducted Fume Hood FH1000(A) fits easily into existing process lines and IT infrastructure.

Areas of application Fume Hood

Fume Hood solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ducted Fume Hood FH1000(A) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Ducted Fume Hood FH1000(A) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
