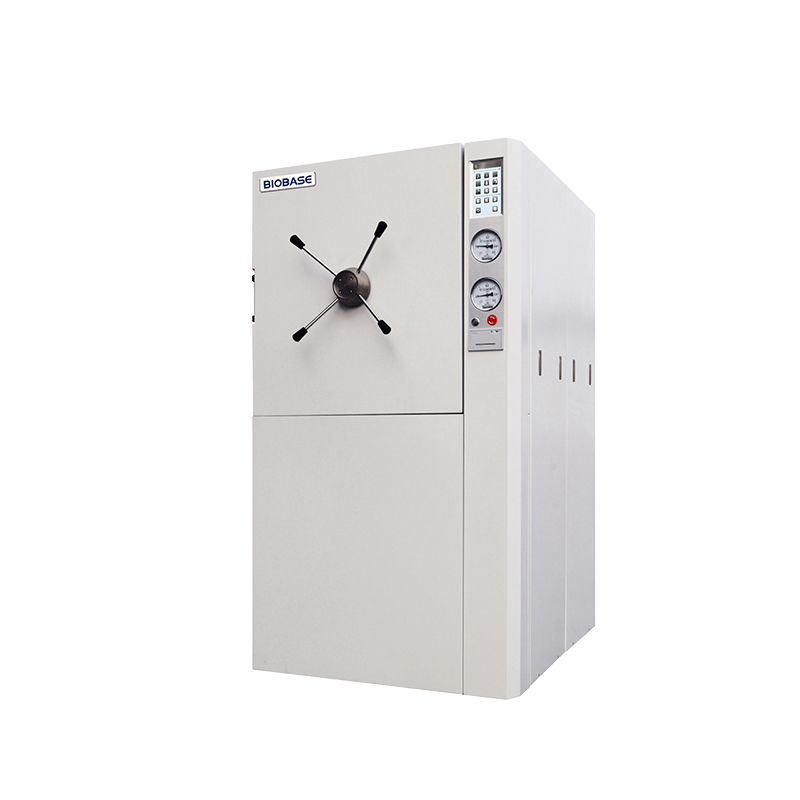

Horizontal Pulse Vacuum Autoclave

Features:

1. Sterilization data output: standard micro printer, no need for separate external connection.

2. 7-inch color LCD touch screen, which can display information such as temperature, pressure, operating status, fault alarm, cause analysis, and solutions at the same time.

3. The powerful vacuum drying system has a high evacuation speed, can dry items well, and enables more thorough sterilization.

4. The air in the chamber is sterile and avoids re-contamination.

5. Adopt quick-release side cover and top cover for easy maintenance and cleaning.

6. Micro-controller programmable control technology.

7. Full protective door cover, effectively prevent burns.

8. The equipment adopt self-expanding sealing ring. sealing performance is more reliable and stable.

9. The closing method adopts a multi-point pressing structure of the radiation rod, safe and reliable.

10. The equipment is connected to the water source without manual replenishment. After the customer chooses the program, the equipment can complete the whole process from water injection to drying without human intervention. After the program is completed, the sound prompts sterilization to be completed.

11. Built-in high speed steam generator, no external steam source, save time and effort.

12. With mobile temperature sensor, can meet the special requirements of the laboratory.

13. Pressure, mechanical and electronic three-layer safety interlock device, with over-temperature protection and over-pressure protection.

14. It is equipped with 13 programs. The programs for exposed instruments, packaging instruments, rubber, dressings, liquids, solid DIY, liquid DIY, rapid sterilization and enhanced sterilization are sterilization programs. The BD, PCD and vacuum tests are test programs, and the drying program is an auxiliary program.

Technical Parameters:

Model	BKQ-Z150H	BKQ-Z200H	BKQ-Z300H	BKQ-Z360H
Capacity	150L	200L	300L	360L
Door	Manual
Display	7-inch LCD touch screen
Designed Pressure	-0.1/0.3MPa
Working Pressure	0.23MPa
Working Temp.	105~134℃
Temp. Precision	0.1℃
Sterilization Time	0~99min
Drying Time	0~99min
Vacuum system	Water circulating vacuum pump
Chamber Material	S30408
Chamber Size	φ500*780mm	φ500*1020mm	φ650*980mm	φ650*1130mm
Altitude	≤2000m; could be customized@ 2000~3000m
Rack	1 mesh frame with 1 cover
Standard Accessories	Stainless Steel frame with cover, mobile sensor, printer
Consumption	20kVA
Power Supply	AC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch
External Size(W*D*H)	940*1190*1780mm	940*1400*1780mm	1170*1570*1980mm	1170*1570*1980mm
Net Weight	400kg	450kg	590kg	605kg
Package Size(W*D*H)	1110*1385*2080mm	1110*1585*2080mm	1330*1755*2270mm	1330*1755*2270mm
Gross Weight	520kg	600kg	755kg	770kg

Horizontal Pulse Vacuum Autoclave — professional solution in the Horizontal Autoclave category

Horizontal Pulse Vacuum Autoclave is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Horizontal Pulse Vacuum Autoclave

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Horizontal Pulse Vacuum Autoclave fits easily into existing process lines and IT infrastructure.

Areas of application Horizontal Autoclave

Horizontal Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Horizontal Pulse Vacuum Autoclave allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Horizontal Pulse Vacuum Autoclave you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
