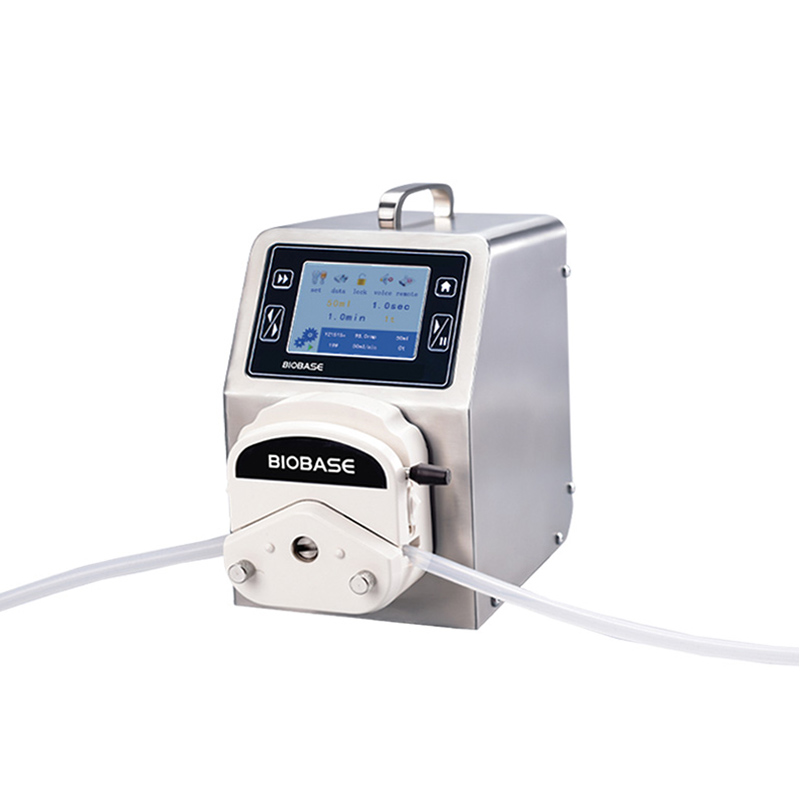

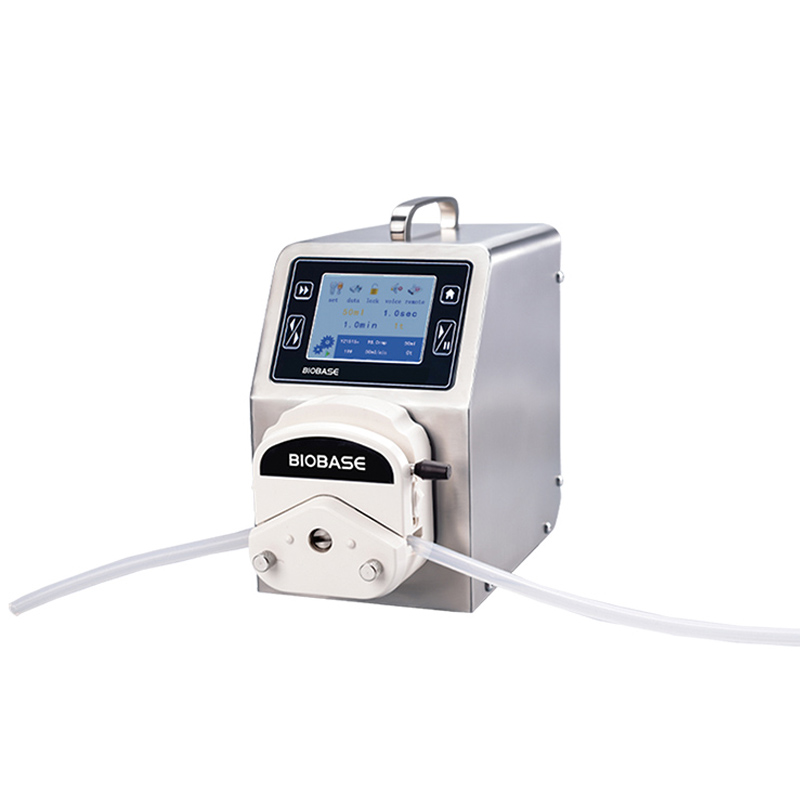

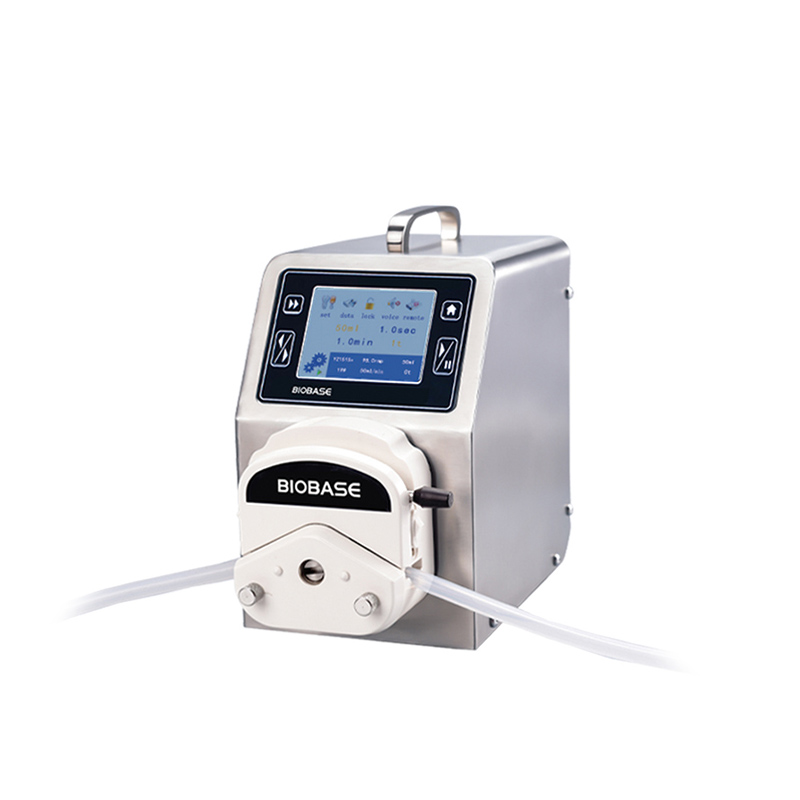

Dispensing Peristaltic Pump DPP Series

Features:

1. Storage function—user data storage function: (9 sets of filling data), support RS485/MODBUS communication protocol, analog control(0~5V, 0~10V, 4~20mA...).

2. External control function—Multiple mode selection: communication mode, analog mode, foot switch control.Provide customized services.

3. Memory function—data will be stored in time after power off.

4. Calibration function—intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to sure the flow accuracy.

5. Full speed function—one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc

6. Suckback function—By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.

7. Lock screen function—lock screen design, error proof touch, application more secure.

8. LCD touch screen, real-time display of operation status and working parameters.

9. Whole housing design-stainless steel housing, sturdy and durable, multi-face seamless whole housing design, long service life, high cost performance.

Technical Parameters:

Model	DPP-BT100FC	DPP-BT300FC	DPP-BT600FC
Pump Head	YZ1515X, YZ2515X, DG series(only DPP-BT100FC)
Speed Range	0.1~100rpm(Reversible)	0.1~300rpm(Reversible)	0.1~600rpm(Reversible)
Speed Resolution	0.1rpm
Flow Range	0.0015~380ml/min	0.007~1140ml/min	0.007~2280ml/min
Filling Precision	<±0.5%
Display	LCD
Back Suction Angle	10°~720°
Back Suction Speed	10~100rpm	10~300rpm
Optional Accessory	Foot switch
Environmental Conditions	Temperature: 0~40 °C; Humidity: < 80%,  no condensation
Consumption	22W	35W	50W
Power Supply	AC110/220V±10%, 50/60Hz
Instrument Size(W*D*H)	212*140*240mm
Package Size(W*D*H)	363*253*353mm
Gross Weight	6kg		6.9kg

Pump Head:

Pump Parameters:

Standard Peristaltic Pump   SPP Series		Model	DPP-BT100FC	DPP-BT300FC	DPP-BT600FC
		Speed Range Tubing	0.1~100rpm (Reversible)	0.1~300rpm (Reversible)	0.1~600rpm (Reversible)
Pump Head&Single Channel Flow	YZ1515x	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.007~380ml/min	0.007~1140ml/min	0.007~2280ml/min
	YZ2515x	15#, 24#	0.17~290ml/min	0.17~870ml/min	0.17~1740ml/min
	2*YZ1515x	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.007~380ml/min	0.007~1140ml/min	0.007~2280ml/min
	2*YZ2515x	15#, 24#	0.17~290ml/min	0.17~870ml/min	0.17~1740ml/min
	DG-1(6)	0.5*0.8, 1*1, 2*1, 2.4*0.8, 3*1	0.002~36ml/min	/	/
	DG-1(10)		0.0015~27ml/min	/	/
	DG-2(6)		0.002~36ml/min	/	/
	DG-2(10)		0.0015~27ml/min	/	/
	DG-4(6)		0.002~36ml/min	/	/
	DG-4(10)		0.0015~27ml/min	/	/

Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
