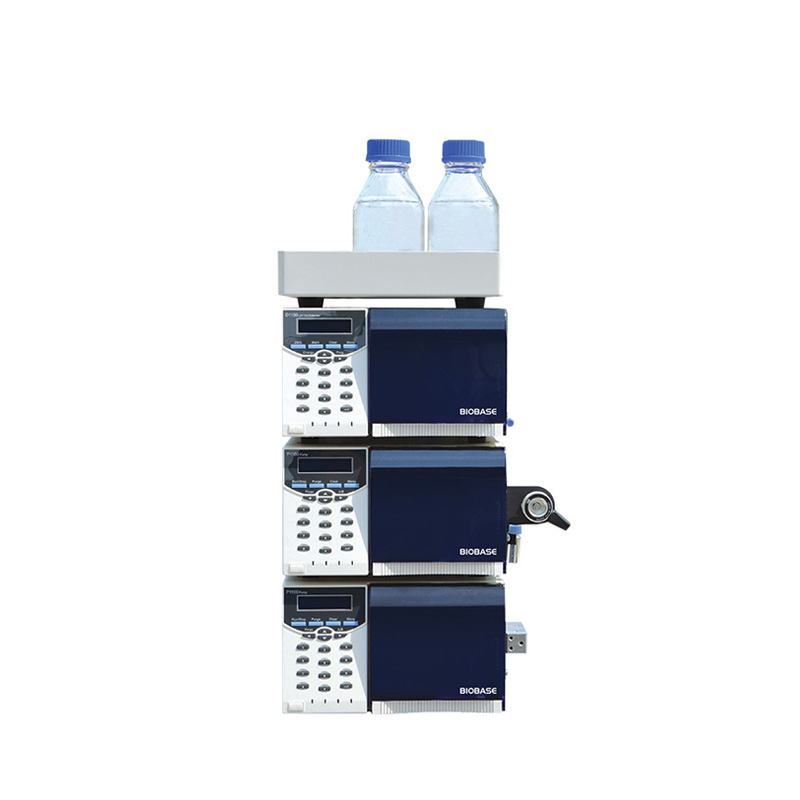

High Performance Liquid Chromatography System Agress1100

Characteristics:

1. Affordable.

2. VFD display screen.

3. Control mode: external/internal.

4. Easy to use.

5. Superior repeatability.

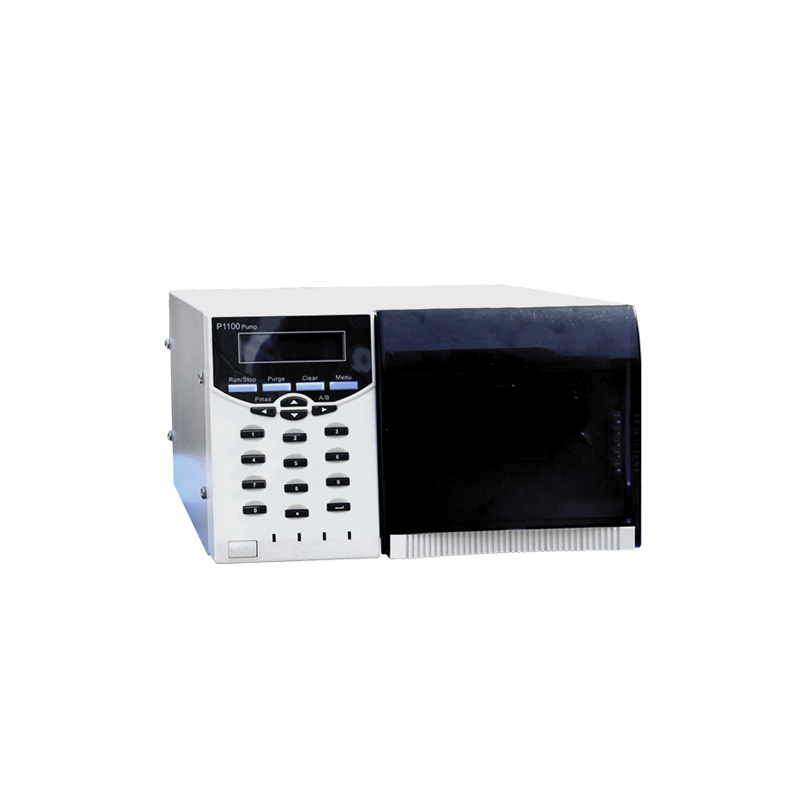

P1100 High Pressure Constant Flow Pump:

Flow Rate	0.001~10.000mL/min(Step: 0.001mL/min)
Accuracy	≤+0.3%
Precision	≤0.1%RSD
Max Pressure	42MPa(6000 psi)
Power	AC220V, 50Hz
Dimension/Weight	420*260*160mm(L*W*H)/12kg

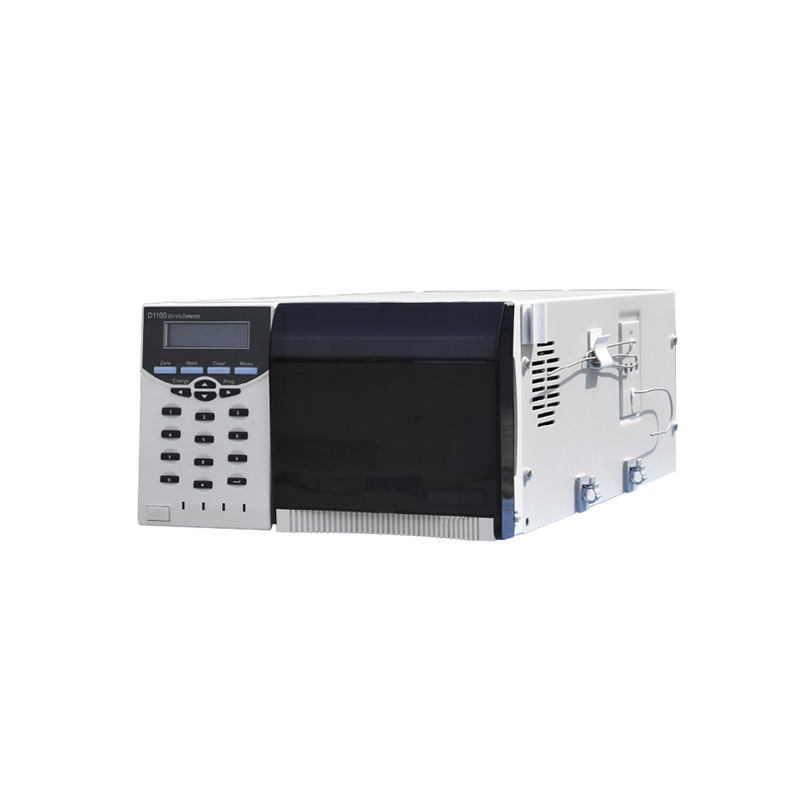

D1100 UV-Visible Detector:

Linearity	1.8AU
Wavelength Range	190~700nm
Noise	≤±1.0x10^-5AU
Drift	≤2.0x10^-4AU/h
Power	AC220V±10%, 50Hz; 100W
Dimensions/Weight	420*260*160mm(L* W*H)/12kg

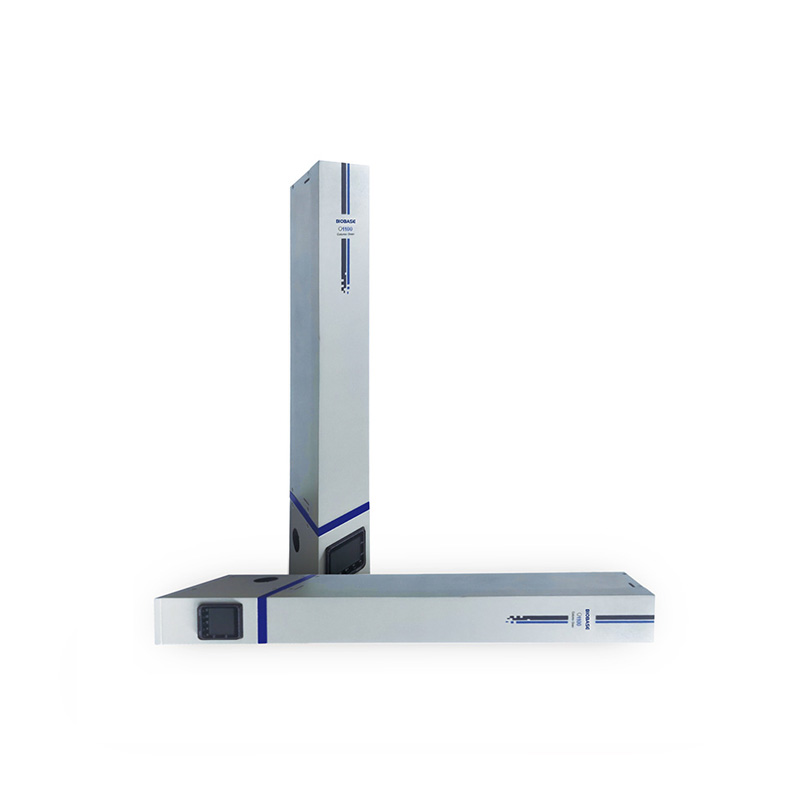

O1100 Column Oven:

Temperature Range	Ambient+5 ℃~99℃
Accuracy	± 0.1℃
Precision	≤ 0.1℃
Power	AC220V±10%, 50Hz; 150W
Dimensions/Weight	120*65*500mm(L* W*H)/8.5kg

Elitapex HPLC Workstation

Characteristics:

1. Simple operation and convenient use.

2. Optimize the control protocol to make the communication between the workstation and the unit. instrument module more smooth.

3. Stable real-time feedback of the status and parameters of each unit module.

Technical Parameters:

Model	Agress1100(Type I)	Agress1100(Type II)
Pump	P1100*1	P1100*2
Detector	D1100*1
Gradient Mixer	/	TD-1-15*1
Solvent Bottle Tray	ST1100*1
Sampler Injector	Rheodyne 7725i*1
Column	Supersil ODS2 5μm ID4.6*200mm*1
Workstation	Elitapex *1
Valve Mounting Frame	VB1100*1
System Kit	Agress1100*1
Power Supply	AC220V±10%, 50Hz
Optional Accessory	500ml Solvent bottle*2, Column, Column Oven
Package Size(W*D*H)	580*400*280mm*3	580*400*280mm*4
Gross Weight	40kg	56kg



High Performance Liquid Chromatography System Agress1100 — professional solution in the High Performance Liquid Chromatography category

High Performance Liquid Chromatography System Agress1100 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why High Performance Liquid Chromatography System Agress1100

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: High Performance Liquid Chromatography System Agress1100 fits easily into existing process lines and IT infrastructure.

Areas of application High Performance Liquid Chromatography

High Performance Liquid Chromatography solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing High Performance Liquid Chromatography System Agress1100 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with High Performance Liquid Chromatography System Agress1100 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
