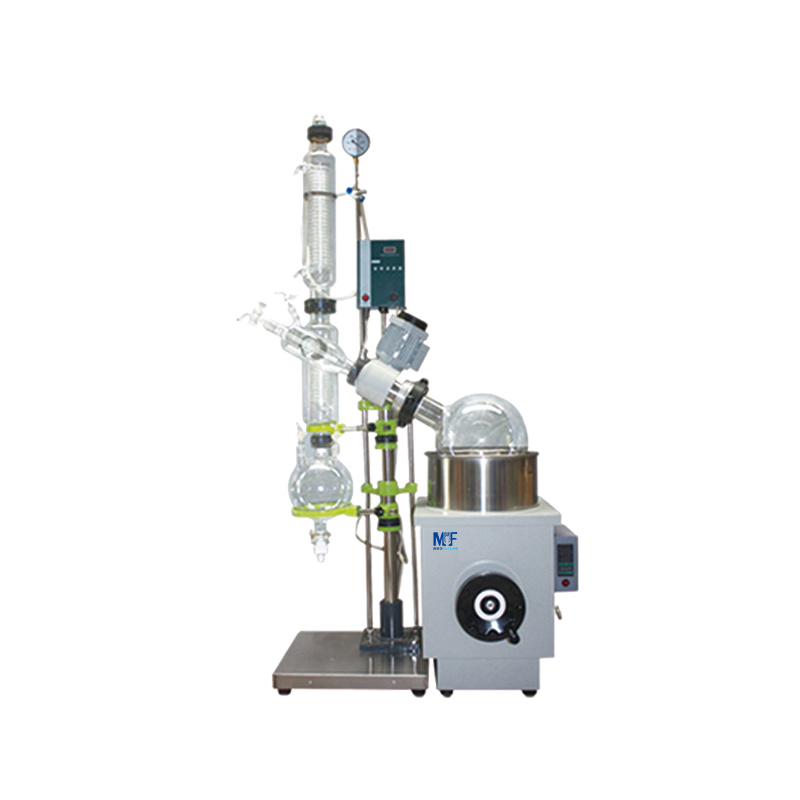

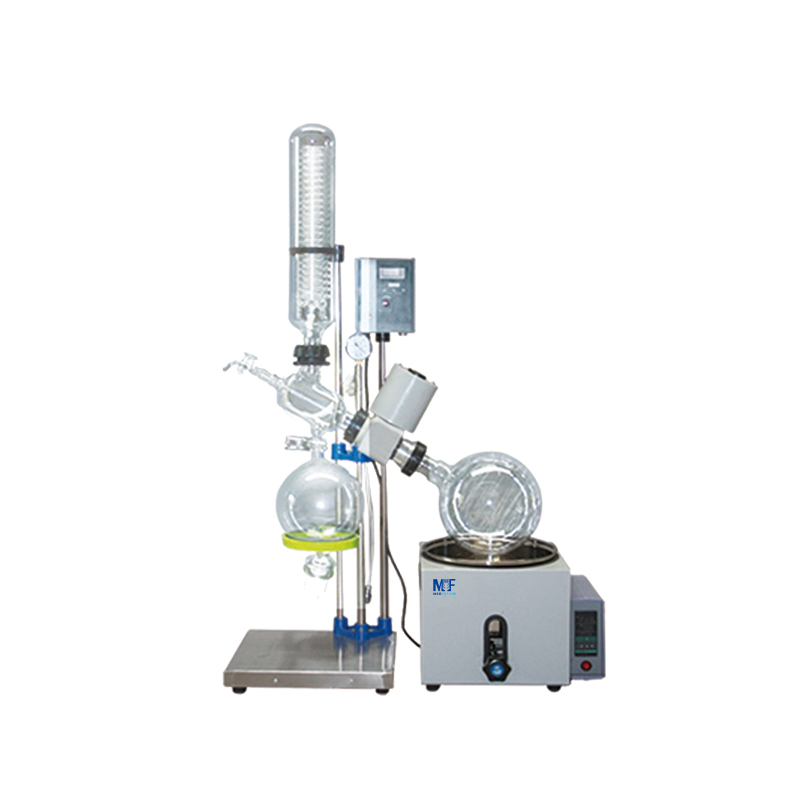

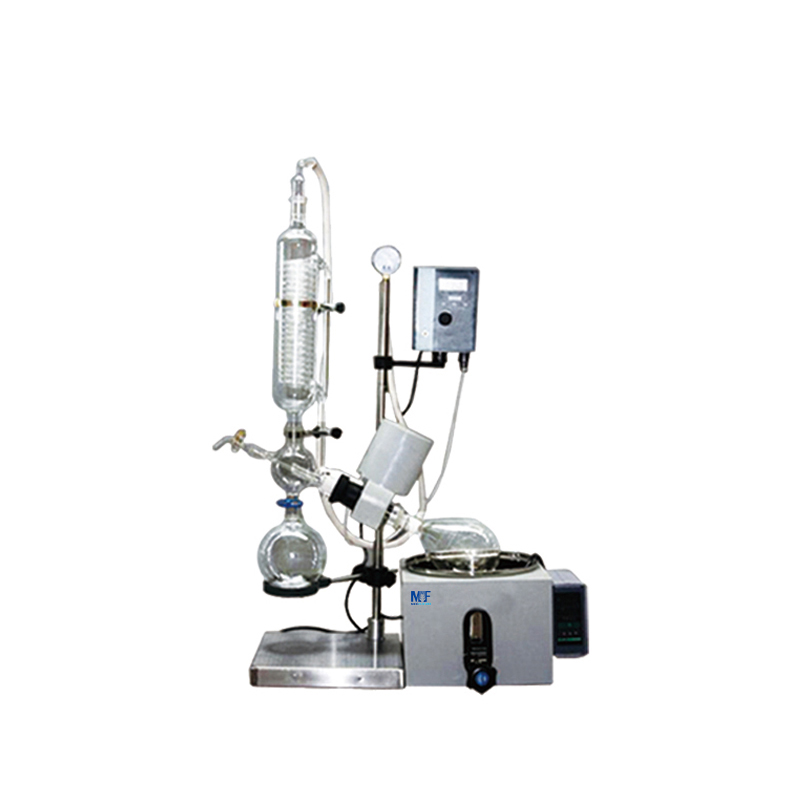

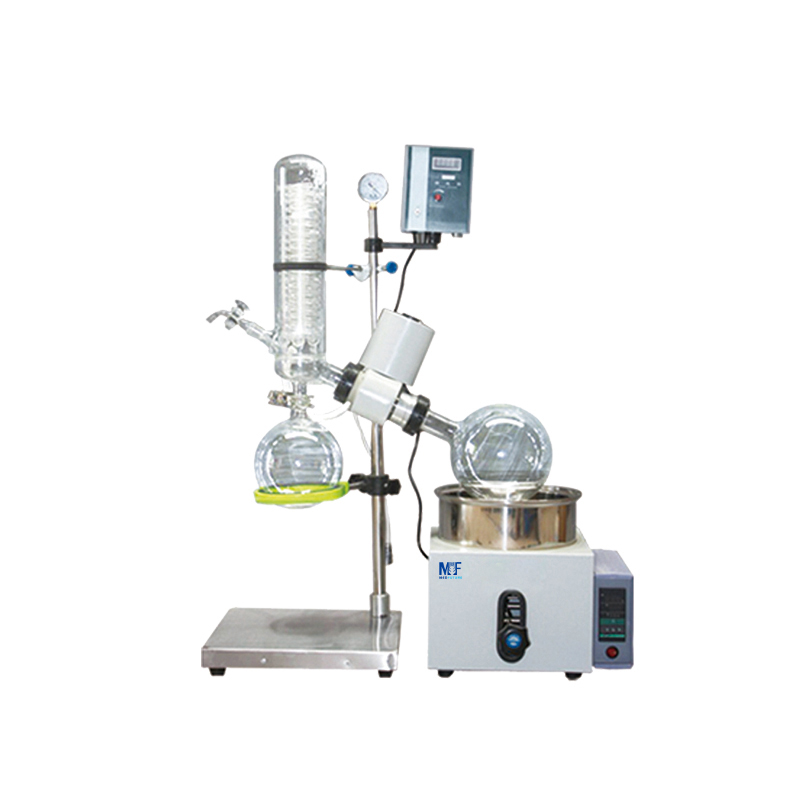

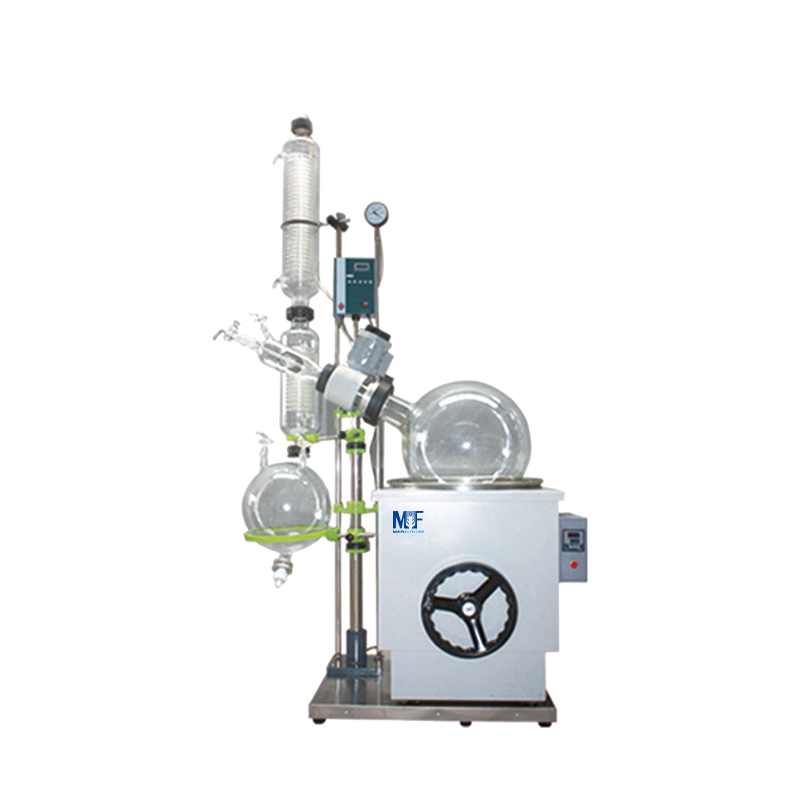

Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003

Features:

1. LED display.

2. Explosion-proof motor.

3. Explosion frequency inverter.

4. Explosion auto-temperature controller.

5. Stepless speed controller.

6. Auto-ifting bath is optional.

7. Stainless steel and aluminium alloy structure.

8. Anti-corrosive PTFE sealing good performance.



Technical Parameters:

Model	ExRE-1002	ExRE-2002	ExRE-5003
Rotary Bottle	10L(flange ø95)	20L(flange ø95)	50L(flange ø125)
Collecting Bottle	5L(flange φ60~50)	10L(flange φ60~50)	20L(flange φ60~50)
Condenser	Vertical three back flow, φ120*620mm(main), φ135*475mm(SUB)	Vertical three back flow, φ130*700mm(main), φ160*530mm(SUB)	Vertical three back flow. φ160*835mm(main), φ160*530mm(SUB)
Charging Valve	34#(standard size)		40#(standard size)
Rotating Speed	0~120rpm
Vacuum	-0.095Mpa
Temp. Range	RT~180℃
Temp. Accuracy	±1℃
Rotating Power	120W		180W
Heating Power	3KW	5KW	8KW
Power Supply	AC220/110V±10%, 50/60Hz	AC220V±10%, 50/60Hz	AC220V±10%, 50Hz or 380V, 50Hz
External Size(W*D*H)	930*560*1910mm	1000*600*2130mm	1330*730*2340mm
Package Size(W*D*H)	1320*780*755mm	1350*670*720mm 680*680*790mm	1420*820*720mm 830*730*910mm
Gross Weight	116kg	143kg	195kg
Standard Accessory	10L rotary bottle*1, 5L collecting bottle*1	20L rotary bottle*1, 10L collecting bottle*1	50L rotary bottle*1, 20L collecting bottle*1
	Explosion-proof transducer, Explosion-proof motor EX120W
Optional Accessory	Double collection bottle, Auto-lifting, Vacuum pump, Recirculating chiller





Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 — professional solution in the Rotary Evaporator category

Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 fits easily into existing process lines and IT infrastructure.

Areas of application Rotary Evaporator

Rotary Evaporator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Explosion-proof Rotary Evaporator ExRE-1002 ExRE-2002 ExRE-5003 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
