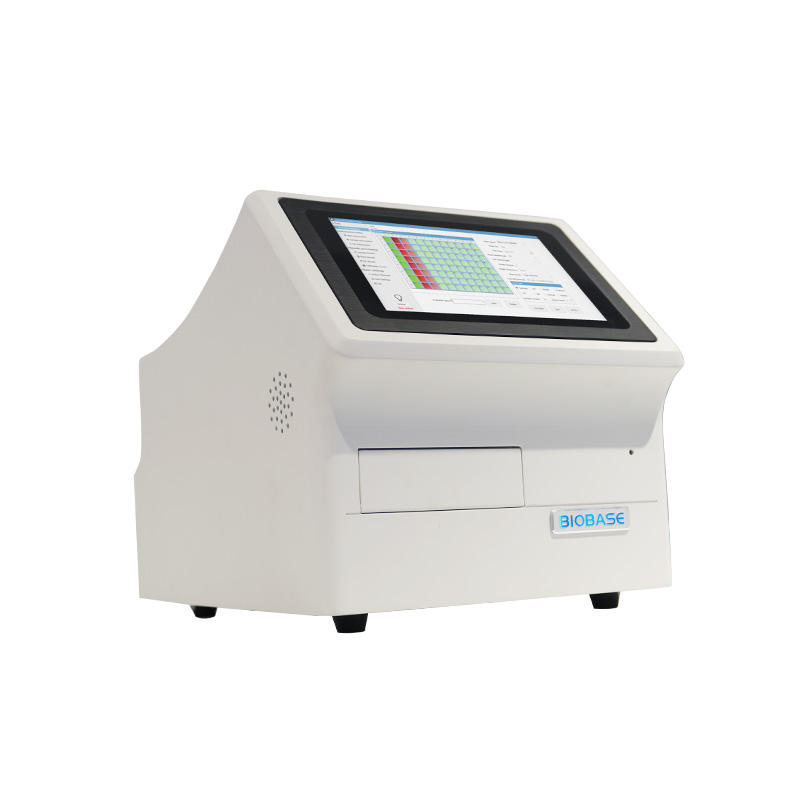

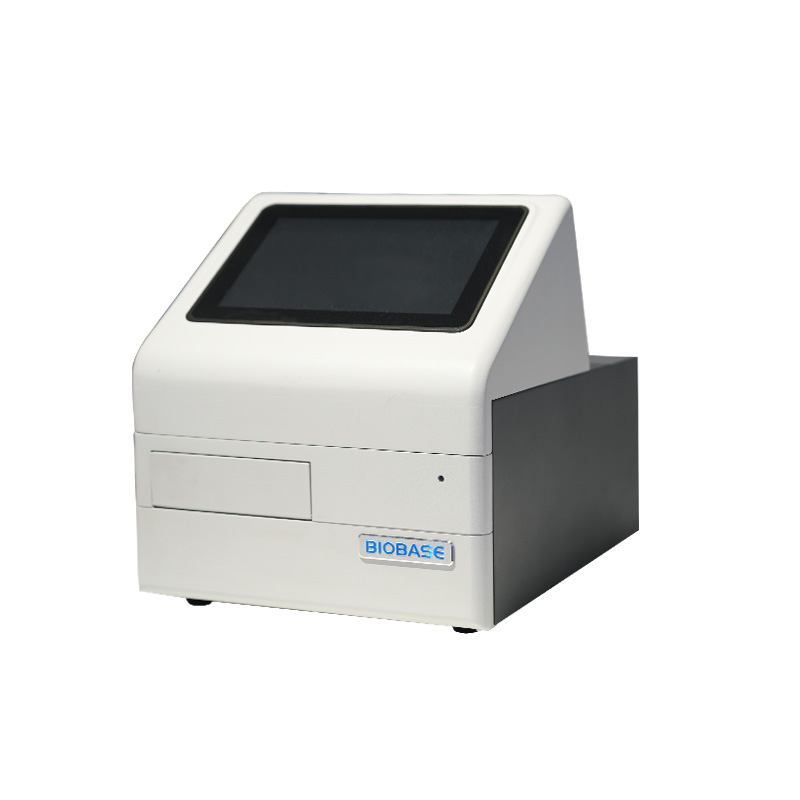

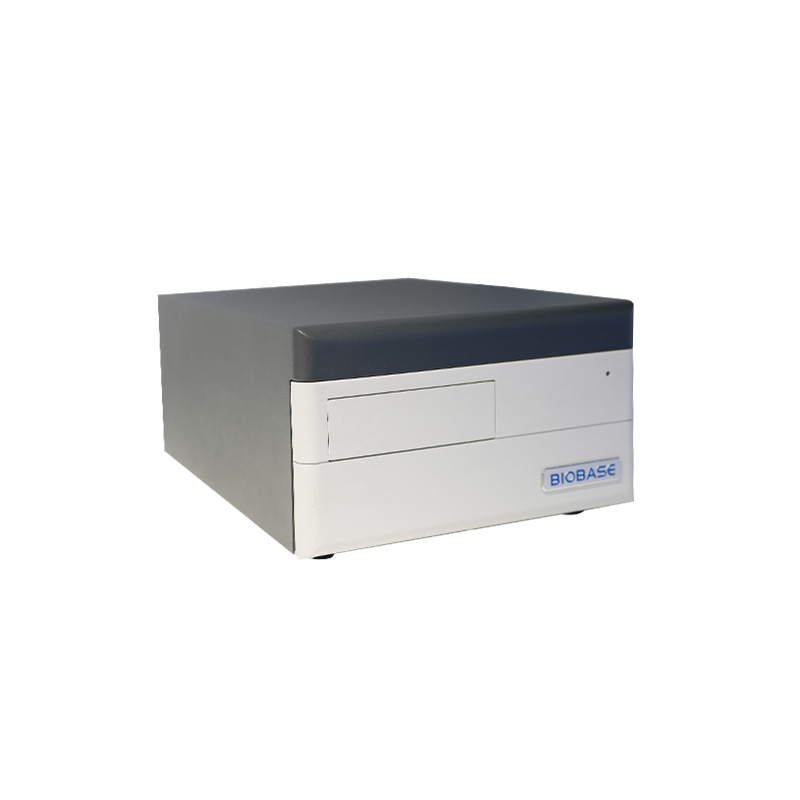

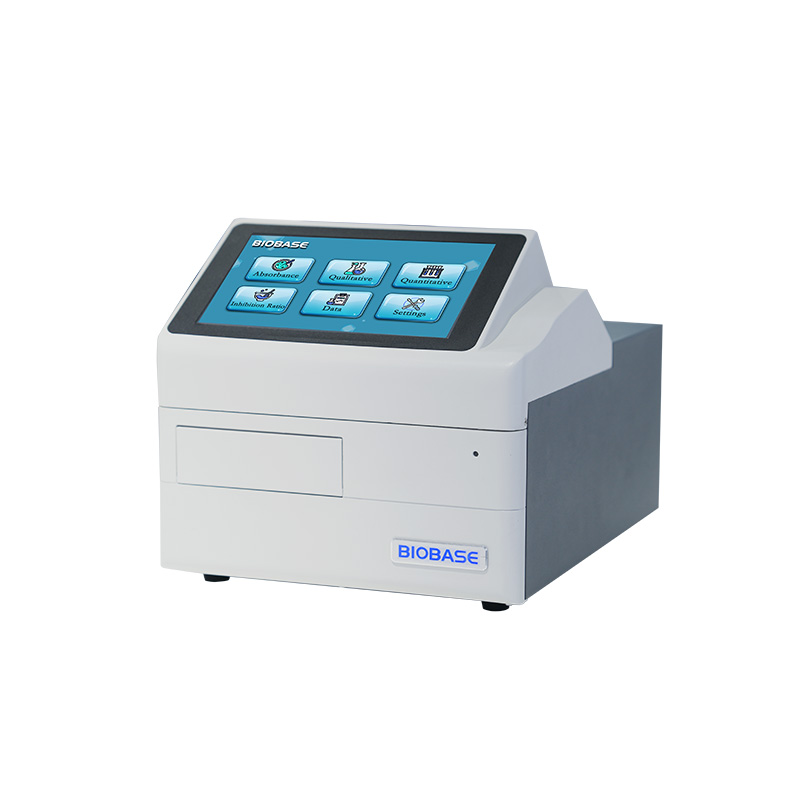

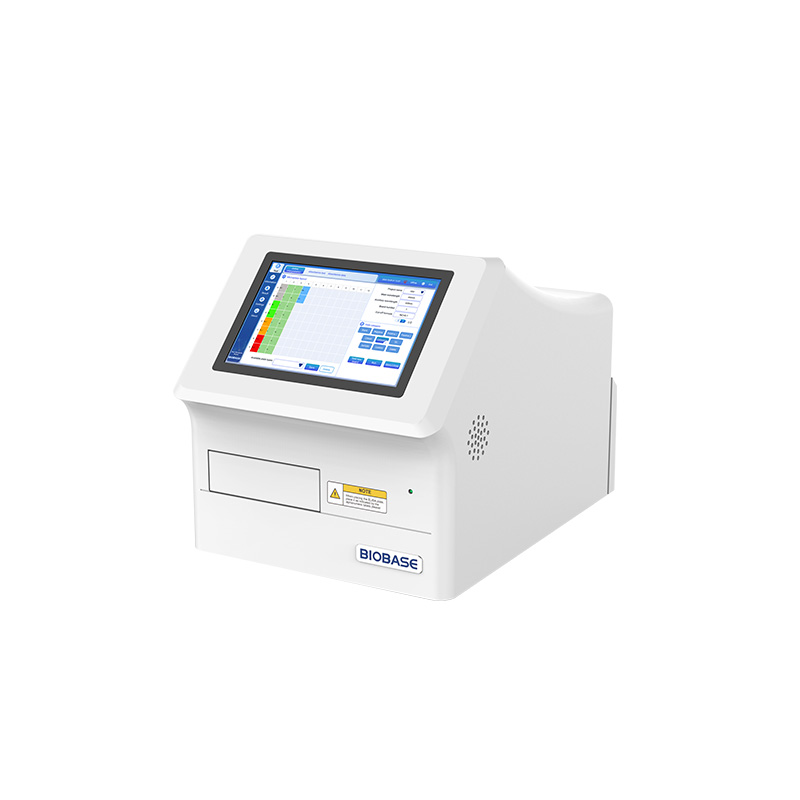

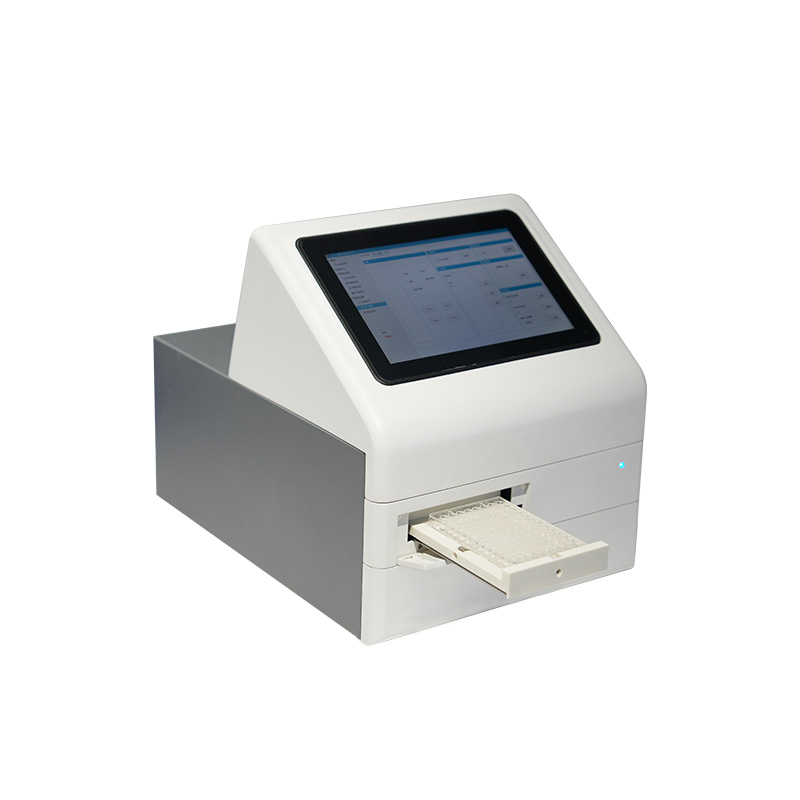

ELISA Microplate Reader BK-EL10A BK-EL10B BK-EL10C BK-EL10D BK-EL10DA

Features:

1. 10.1-inch large touch screen operation(Except BK-EL10B).

2. High precision and accurate results.

3. Software: Single wavelength and double wavelengths detection methods.
4. BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.



Technical Parameters:

Model			BK-EL10A	BK-EL10B	BK-EL10C	BK-EL10D	BK-EL10DA
Measurement Channel			Vertical 8 optical channels
Plate Type			96-well microplate
Wavelength Range			400~750nm			340~850nm
Filter			Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm(BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths
Linear Range			0.000~3.000Abs
Reading Range			0.000~4.000Abs			0.000~4.500Abs
Resolution			0.0001Abs
Repeatability			CV≤0.2%
Stability			≤±0.003Abs/10min
Sensitivity			≥0.01L/mg
Channel Difference			≤0.02Abs
Vibration Plate Function			3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA)
Incubation Function			Time Range: 0~60min Temp. Range: RT+4℃~50℃(Only for BK-EL10D, BK-EL10DA)
Software (Standard)	Detection Mode		Single/double wavelength
	Qualitative		Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions
	Quantitative		Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms
Others		Display	10.1 inch color touch capacitive screen(BK-EL10A, BK-EL10D, BK-EL10DA) 10.1 inch resistive touch screen(BK-EL10C)
		Operating Mode	Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse(BK-EL10A, BK-EL10D, BK-EL10DA)
		Printer(Optional)	BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer(A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional)
		Interface	USE2.0*4, RJ45 network port*1, RS-232*1(BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port(BK-EL10B) RS-232*2(Standard RS232 to USB cable)(BK-EL10C)
Power Supply			AC100~240V, 50/60Hz
Instrument Size(W*D*H)			450*320*300mm	450*320*190mm	450*320*300mm	495*340*370mm
Package Size(W*D*H)			540*400*460mm		585*425*405mm	610*440*475mm
Net/Gross Weight			13/15kg	10/12kg	11/13kg	12/14kg
