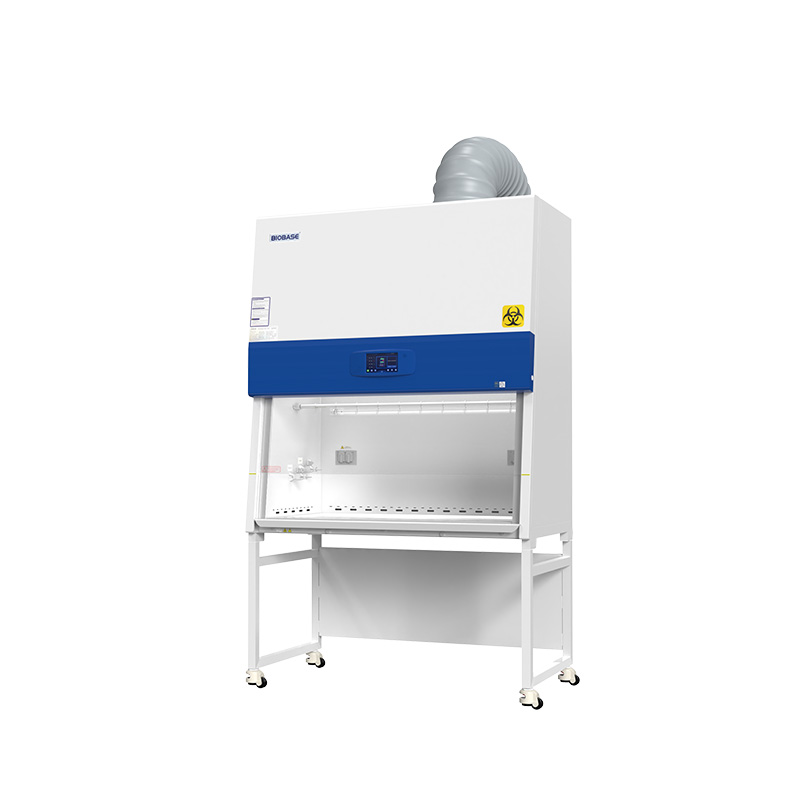

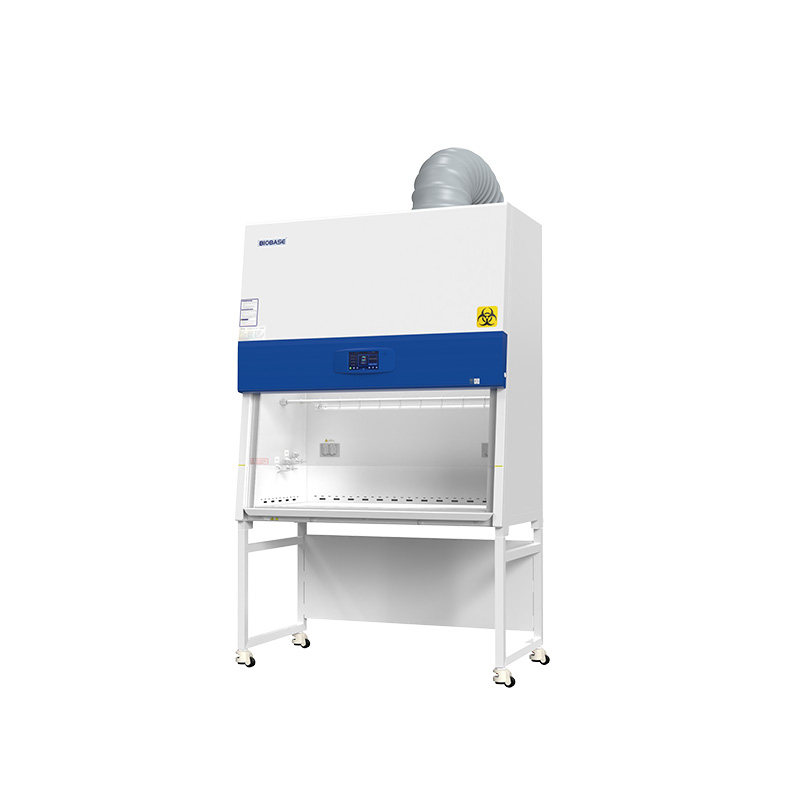

NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL

Features:

1. Motorized front window.

2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

3. The power-on password can be set to prevent mis-operation by irrelevant personnel.

4. EC Fan, automatically adjust the wind speed.

5. With power-failure memory function, the state before power-failure will be restored after power-on and there will be visual prompts and alarms.

6. The integrated design of the operation area makes it easy to disassemble and clean.

7. The cabinet is separated from the base. The height of the adjustable base can be customized.

8. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

9. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets.

10. The front window closes the trigger signal,so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.

11. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable. air speed adjustable with filter block.

Technical Parameters:

Model	BSC-4FB2-NA	BSC-4FB2-GL
External Size(W*D*H)	1383*775*2250mm
Internal Size(W*D*H)	1210*600*660mm
Tested Opening	Safety height 200mm(8")
Max Opening	470mm
Exhaust Airflow Volume	100%: 1320m³/h(776cfm)
Front Window	Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
HEPA Filter	Two, 99.995% efficiency at 0.12μm, filter life indicator
Filter Guard Type	Aluminum alloy frame
Noise	NSF49≤67dB/EN 12469≤65dB
Illumination	≥1000Lux
Display	Color touch screen
Waterproof Socket	2, Total consumption: ≤500W
Tap	Water tap*1, Gas tap *1
Ground Resistance	≤ 0.10Ω
Power Supply	AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption	400W
Alarm	Abnormal airflow velocity; Filter replacement; Front window at unsafe height.
Motor	EC motor, 115V&230V acceptable, Speed adjustable, high efficiency and low power consumption
Material	Working area: 304stainless steel   Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp	30W
	Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp	20W*2
	LED lamp
Standard Accessory	LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control
Optional Accessory	Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Exhaust duct
Package Size(W*D*H)	1540*1080*1900mm
Gross Weight	340Kg

Note: Customers need to prepare an external exhaust fan or exhaust system by themselves.



NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL — professional solution in the Biological Safety Cabinet category

NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL fits easily into existing process lines and IT infrastructure.

Areas of application Biological Safety Cabinet

Biological Safety Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
