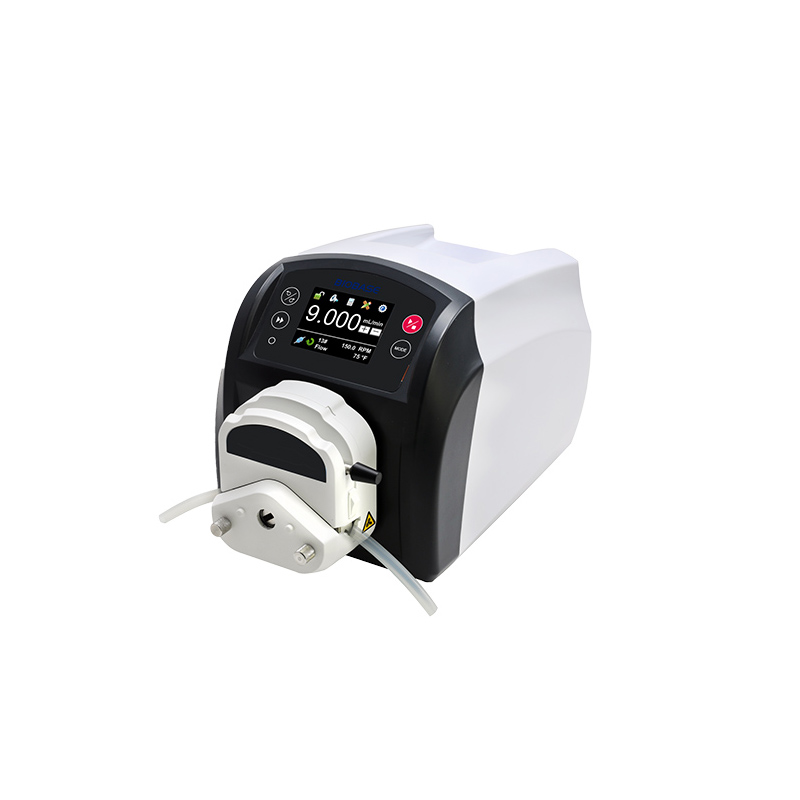

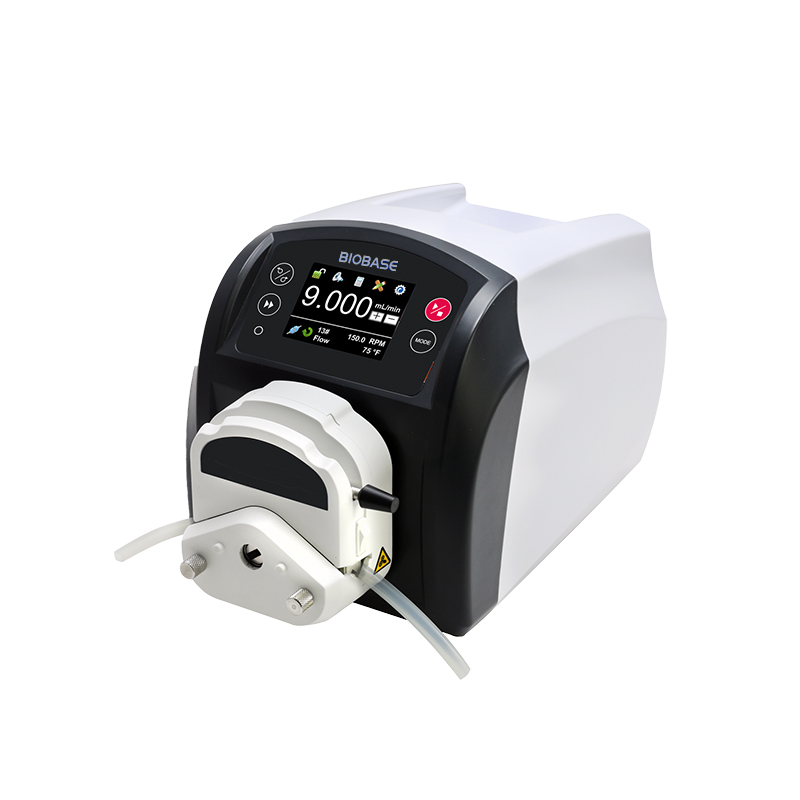

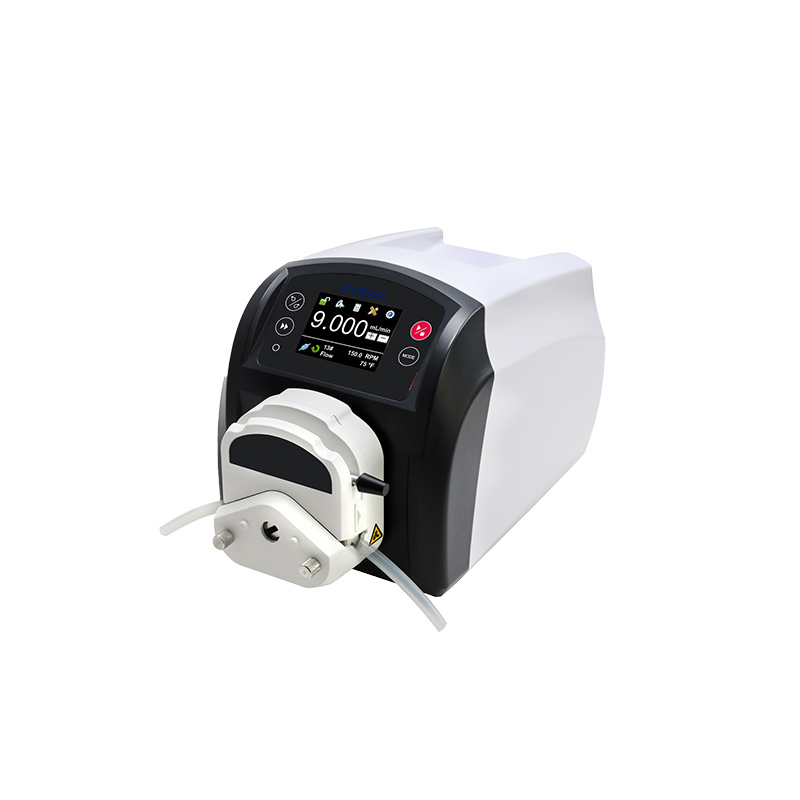

Dispensing Peristaltic Pump BT-F Series

Features:

1. Color LCD display, touch screen and keypad for operating.

2. LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.

3. Three types of working mode: volume dispensing mode, time dispensing mode, copy dispensing mode.

4. Automatically store five groups of working parameters.

5. Precious controlling technology for motor's rotating angle increases the dispensing accuracy comparing to traditional time dispensing mode caused by factors such as the slow start of the motor.

6. Start/stop, reversible direction, full speed, adjust speed, state memory(power-down memory).

7. Speed resolution is 0.1rpm.

8. Display and control flow rate, accumulate dispensing volume automatically.

9. Calibration function.

10. The operating expert system guides users setting parameters correctly.

11. Intelligent temperature-control technology reduces working noise.

12. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolation, external analog adjusts the rotate speed.

13. RS485 communication interface, MODBUS protocol is available, easy to connect other equipment.

14. Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.

15. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

16. ABS plastic housing, creative streamlined appearance, beautiful and simple.

17. Can drive multi-channels and various types of pump heads.

18. Connect foot switch control start-stop for dispensing volume.

Technical Parameters:

Model	BT101F	BT301F	BT601F
Flow Range	0.0001~720ml/min	0.005~1750ml/min	0.006~3000ml/min
Rotation Range	0.1~150rpm	0.1~350rpm	0.1~600rpm
Speed Resolution	0.1rpm
Dispensed Liquid Volume Range	0.05ml ~9999I
Dispensed Frequency Range	1 to 999 times, "0" means infinite loop
Dispensed Interval Time	0.1~999.9 seconds/minute/hour, time unit is adjustable
Speed Accuracy	<±0.2%
Power Supply	AC100~240V, 50Hz/60Hz
Power	<30W	<40W	<50W
External Control Interface	External control input level 5V, 12V(standard), 24V(optional)
Communication Interface	External control analog 0~5V(standard), 0~10V, 4~20mA(optional) RS485 communication, compatible with modbus protocol
Working Environment	Ambient temperature 0~40°C, relative humidity <80%
Protection Level	IP31
Overall Dimensions(L*W*H)	261*180*197mm
Drive Weight	4.5kg	4.7kg	4.9kg
Packing Size	430*290*320mm
Gross Weight	8kg

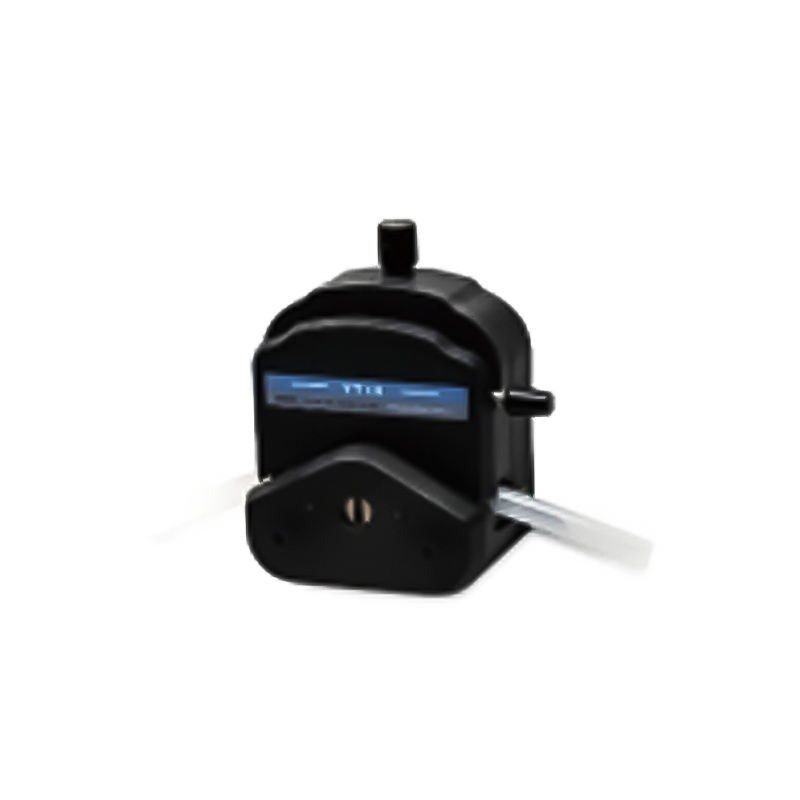

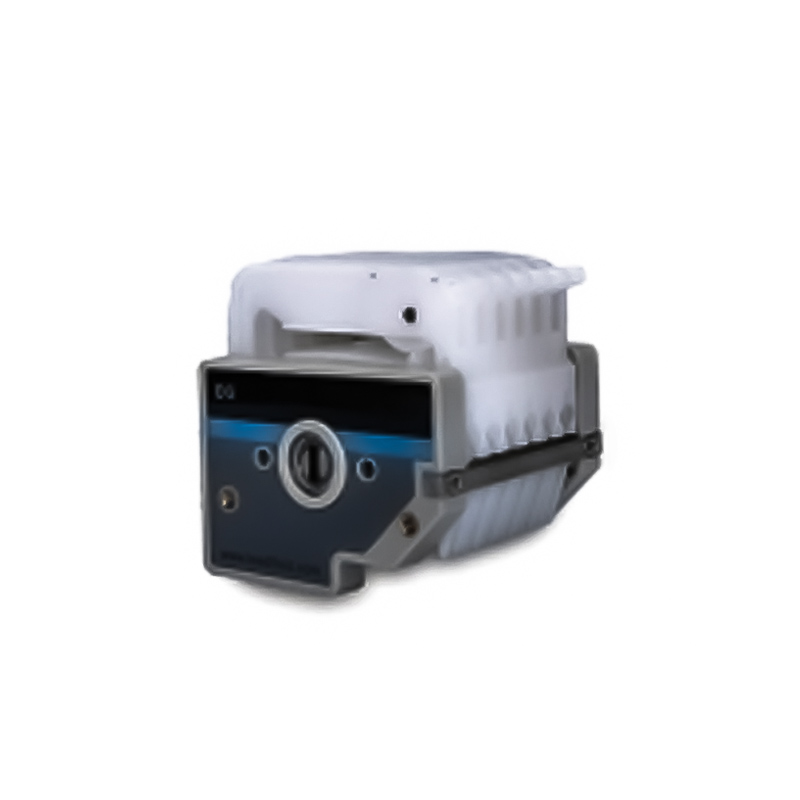

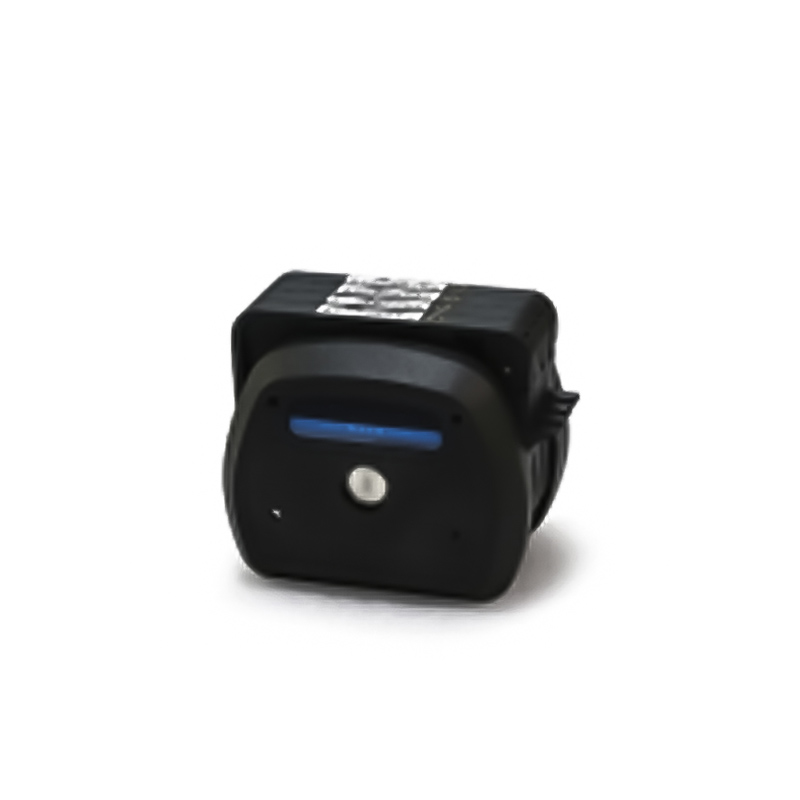

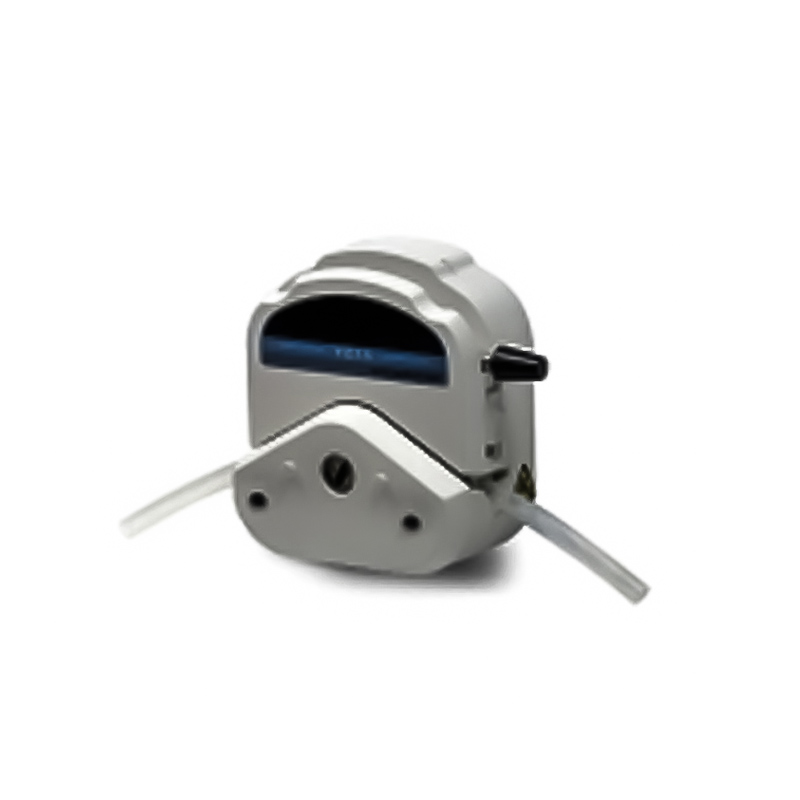

Pump Head:

Applicable Pump Head, Hose&Flow Parameters

Driver Model	Applicable Pump Head	Number Of Channels	Applicable Hose	Single Channel Flow Rate(ml/min)
BT101F	DG/DS(6 rollers)	1, 2, 4	Wall 0.8~1mm, ID≤3.17mm	0.00016~49
	DG/DS(10 rollers)	1, 2, 4	Wall 0.8~1mm, ID≤3.17mm	0.00011~32
	YZ15/YZ15T	1, 2	13#14#19#16#25#17#18#	0.005~641
	YT25	1	114#116#15#24#35#36#	0.024~750
BT301F	YZ15/YZ15T	1	13#14#19#16#25#17#18#	0.005~1495
	YT25	1	114#116#15#24#35#36#	0.024~1750
BT601F	YZ15/YZ15T	1	13#14#19#16#25#17#18#	0.005~2562
	YT25	1	114#116#15#24#35#36#	0.024~3000

Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
