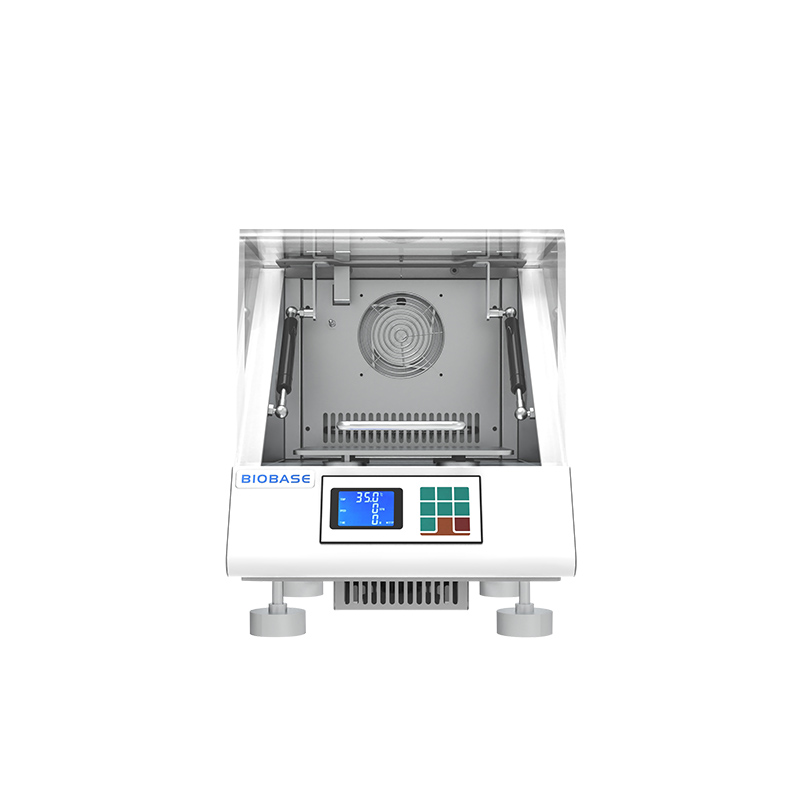

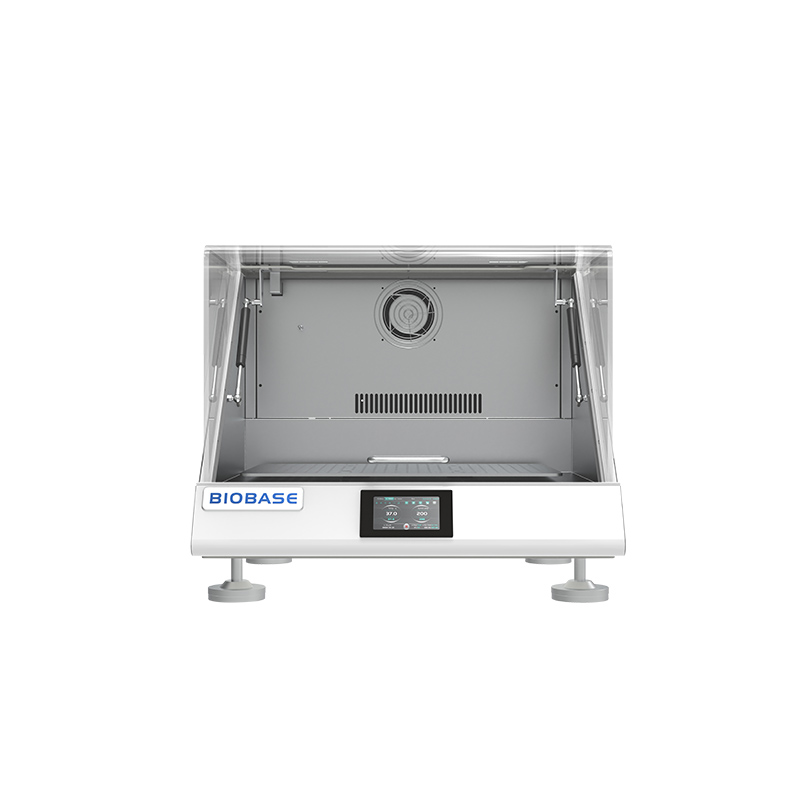

Small Capacity Thermostatic Shaking Incubator(BJPX-ST)

Features:

1. Visible transparent window, three transparent acrylic cover, can be observed from multiple angles.

2. Large screen is easy to operate, can be simple and intuitive parameter setting.

3. Microcomputer is used to control temperature and oscillation frequency, with timing function; With power failure protection function, it can automatically resume operation after the normal power supply.

4. It has the functions of historical data, curve, alarm record query, data storage and export(U disk), password lock screen protection and Chinese and English switching.

5. Smooth operation, rubber shock absorber foot, ensure that the machine can run smoothly at high speed.

6. Micro switch to open the door to stop, over-temperature alarm, protect the safety of experimental materials.

7. The refrigeration system conforms to the trend of environmental protection, and the new fluorine-free design.
8. Standard of USB for BJPX-ST10/11/20.

Technical Parameters:

Model	BJPX-ST10-L	BJPX-ST11-L	BJPX-ST10	BJPX-ST11	BJPX-ST20
Capacity	22L		104L		110L
Temperature Control Range	RT+5~60℃
Temperature Display Resolution	0.1℃
Temperature Uniformity	≤±1℃(@37℃)
Temperature Fluctuation	≤±0.5℃
Ambient Temperature	15~35℃
Timing Range	0~9999min(h)		0~999h59min
Control Mode	PID microcomputer control
Display	LCD display		5.0-inch touch screen
Circulation Mode	Forced convection
Oscillation Mode	Rotary shaking
Curve Programming Setting	Fixed value control temperature velocity		Fixed value and multi-stage control temperature velocity
Speed Range	30~300rpm
Speed Accuracy	±1rpm
Swing Amplitude of the Plate	Φ26mm	Φ50mm	Φ26mm	Φ50mm	Φ26mm
Shaking Plate	245*245mm		566*363mm	566*343mm	566*363mm
Refrigerant	/				R290/75g
Max Capacity	Flask Holder:    50ml*16, 100ml*9, 150ml*8, 200ml*6, 250ml*6, 500ml*3, 1000ml*2, 96-well plate*4	Flask Holder: 50ml*14, 100ml*7, 150ml*7, 200ml*5, 250ml*5, 500ml*3, 1000ml*1, 96-well plate*5	Flask Holder: 50ml*54, 100ml*33, 150ml*28, 200ml*23, 250ml*23, 500ml*18(BJPX-ST10/20), 500ml*15(BJPX-ST11), 1000ml*11, 2000ml*7(BJPX-ST10/20), 2000ml*6(BJPX-ST11), 3000ml*6(BJPX-ST10/20), 3000ml*4(BJPX-ST11), tube rack*2, 96-well plate*10, clamping rod shaking plate*1
Defrost Function	/				Automatic defrosting
Alarm	Over-temperature alarm, power failure protection, automatic stop upon opening door
Material	External material: cold rolled steel plate spray; Internal material: 304 stainless steel
Power Supply	AC220V, 50Hz(Standard); 110V, 50/60Hz(Optional)(External transformer)
Consumption	500W		800W		1000W
Standard Accessories	Flask Holder: 50ml*6 or 100ml*6 or 150ml*5 or 200ml*5 or 250ml*4(Default) or 500ml*2 or 1000ml*1		Flask Holder: 50ml*20 or 100ml*20 or 150ml*16 or 200ml*16 or 250ml*12(Default) or 500ml*10 or 1000ml*6 or 2000ml*4 or 3000ml*4
Optional Accessories	96-well plate, universal spring clamp		Tube rack, 96-well plate, clamping rod shaking plate, universal spring clamp
Internal Size(W*D*H)	310*315*230mm		663*413*380mm		663*446*372mm
External Size(W*D*H)	365*510*440mm		719*700*590mm		719*780*590mm
Package Size(W*D*H)	485*630*600mm	485*630*600mm	840*830*730mm	840*830*730mm	840*910*730mm
Net Weight	31.5kg	38kg	64kg	90kg	89kg
Gross Weight	39kg	45.5kg	78kg	104kg	107kg

Small Capacity Thermostatic Shaking Incubator(BJPX-ST) — professional solution in the Shaking Incubator category

Small Capacity Thermostatic Shaking Incubator(BJPX-ST) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Small Capacity Thermostatic Shaking Incubator(BJPX-ST)

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Small Capacity Thermostatic Shaking Incubator(BJPX-ST) fits easily into existing process lines and IT infrastructure.

Areas of application Shaking Incubator

Shaking Incubator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Small Capacity Thermostatic Shaking Incubator(BJPX-ST) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Small Capacity Thermostatic Shaking Incubator(BJPX-ST) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
