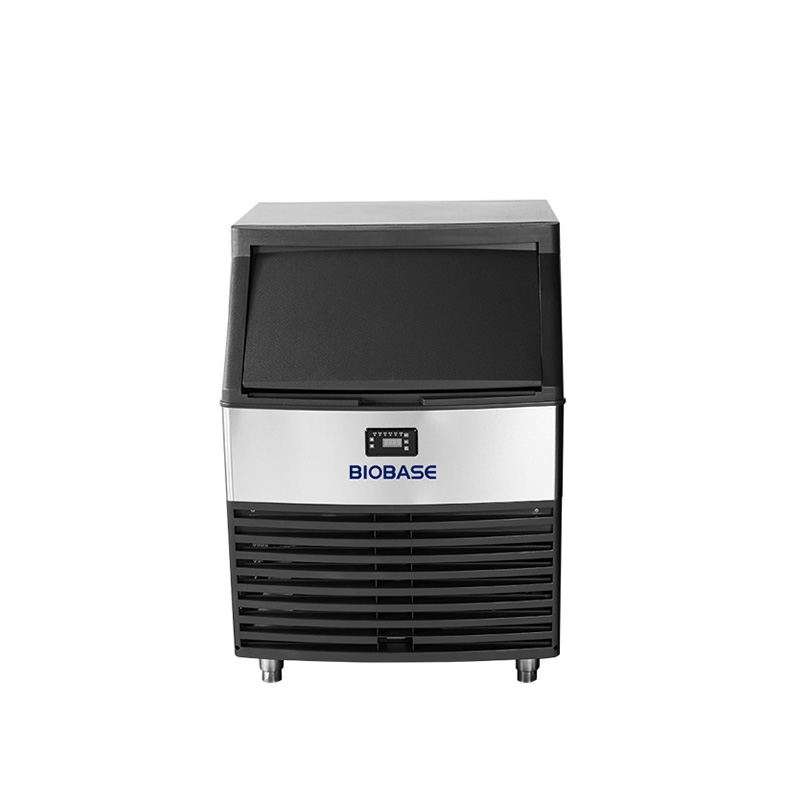

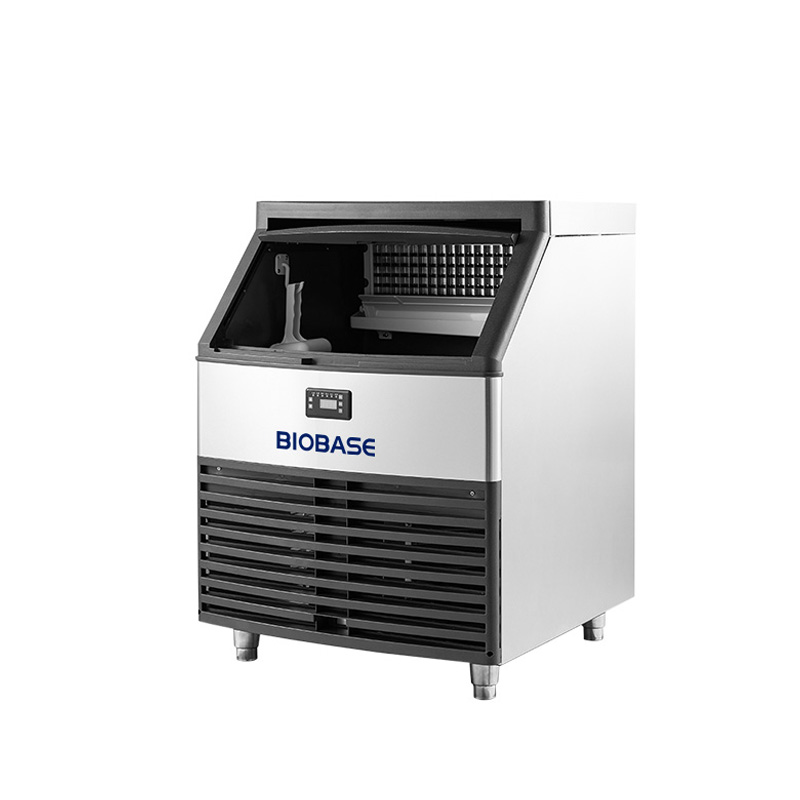

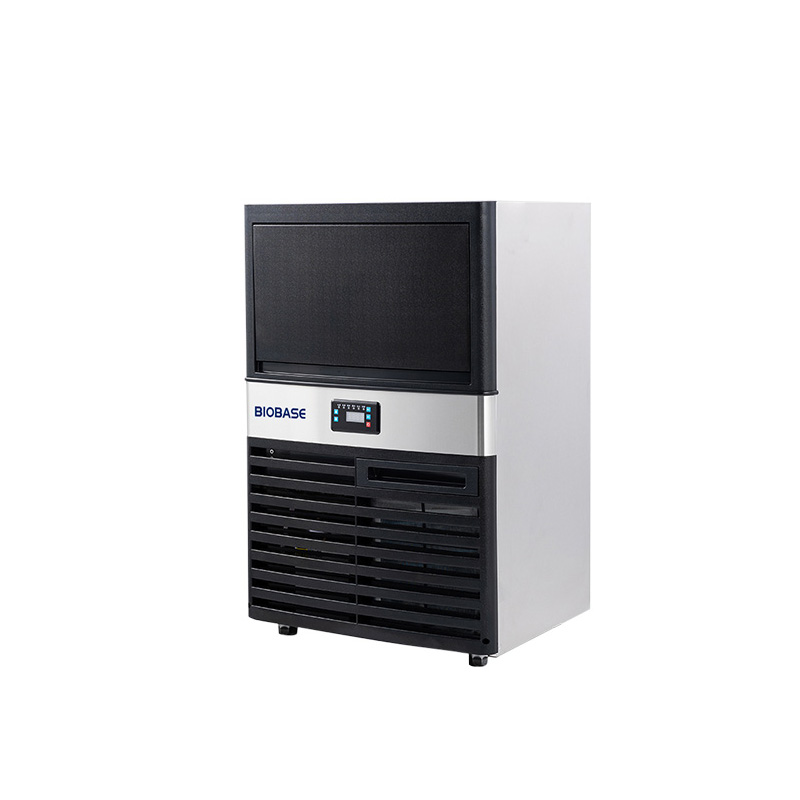

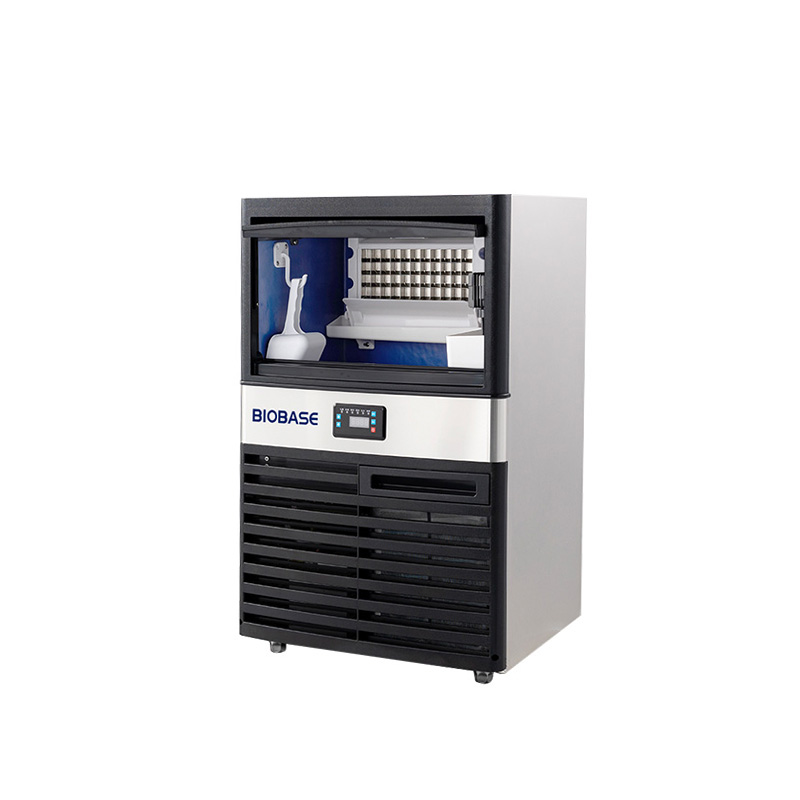

Cube Ice Machine

Features:

1. Cube ice, large contact area, adjustable ice thickness.

2. Stainless steel and ABS engineering plastic shell, beautiful shape, strong, practical.

3. Nickel-plated copper ice plate, flowing vertical ice making, high ice making efficiency, energy saving.

4. "Intelligent core" control system, automatic ice making, automatic ice falling, ice full detection.

5. One-button cleaning function, convenient daily maintenance.

6. LED screen, clear operation, accurate understanding of the machine's working conditions.

7. The tank, sink, and water distribution pipe all meet the food grade standards, safe and hygienic.

8. Built-in refrigerator.

9. The three basic parts(computer board, fan, condenser) are guaranteed for five years.

Technical Parameters:

Model	CIM-65	CIM-80	CIM-120		CIM-180	CIM-65		CIM-65
Ice Making Capacity(kg/24h)	30	40	60		80	100		120
Max. Ice Storage Capacity	15kg				45kg
Ice Shape	Cube ice: 22*22*22mm, 10g
Ice Grid	4*9	4*10		5*12	5*16		5*18	6*18
Input Current	280W	300W	360W		580W	600W		650W
Way of Condensation	Air-cooling
Ambient Temperature	1~40℃
Water Temperature	5~35℃
Compressor	Wanbao
Refrigerant	R290, 60g	R290, 65g	R290, 80g		R290, 96g	R290, 100g		R290, 106g
Standard Accessory	Water inlet pipe*1, drainage pipe*1, ice spoon*1, filter*1
Optional Accessory	UV lamp
Power Supply	AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
External Size(W*D*H)	500*450*800mm				660*680*930mm
Package Size(W*D*H)	580*510*850mm				740*750*920mm
Net Weight	34kg		35kg		54kg	55kg		56kg
Gross Weight	38kg		39kg		59kg	60kg		61kg

Cube Ice Machine — professional solution in the Ice Maker category

Cube Ice Machine is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Cube Ice Machine

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Cube Ice Machine fits easily into existing process lines and IT infrastructure.

Areas of application Ice Maker

Ice Maker solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Cube Ice Machine allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Cube Ice Machine you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
