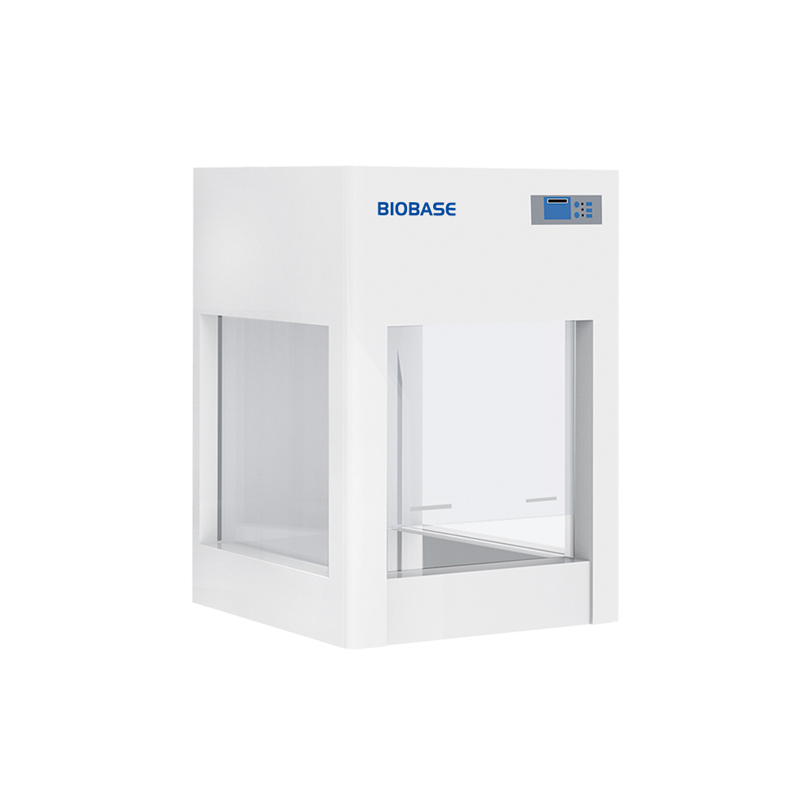

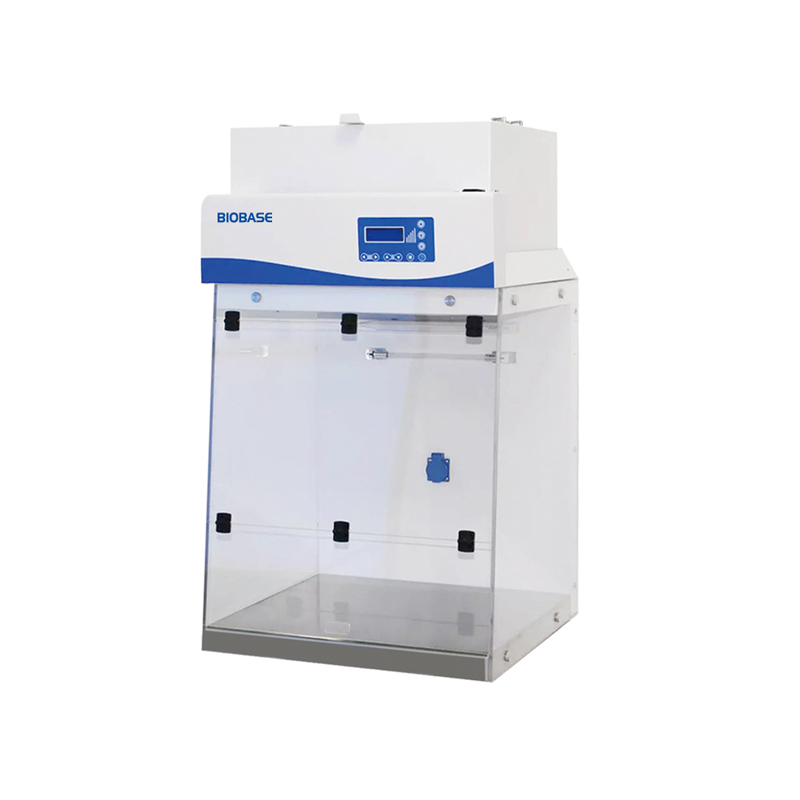

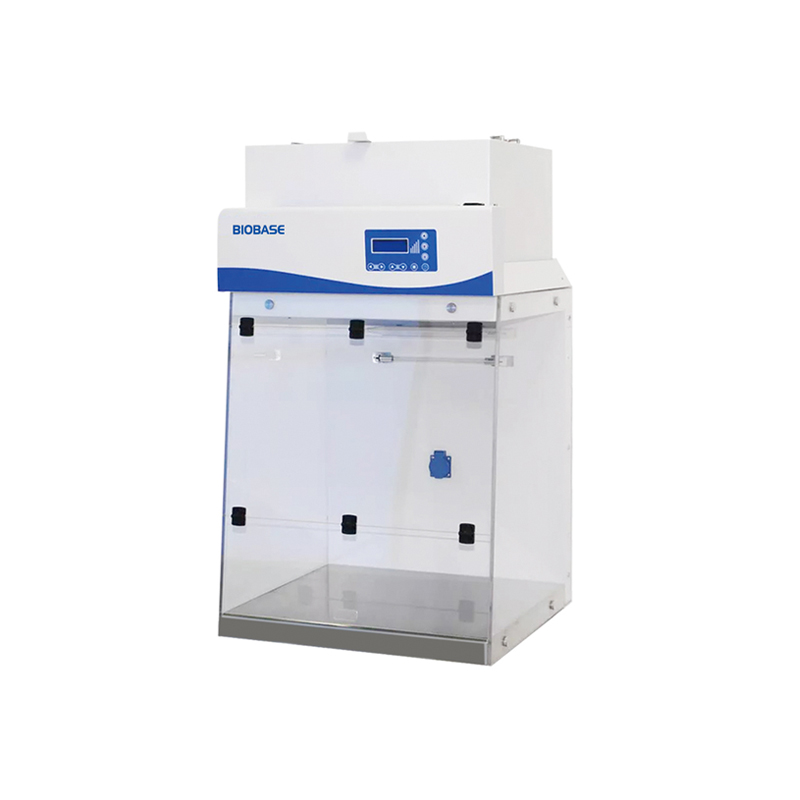

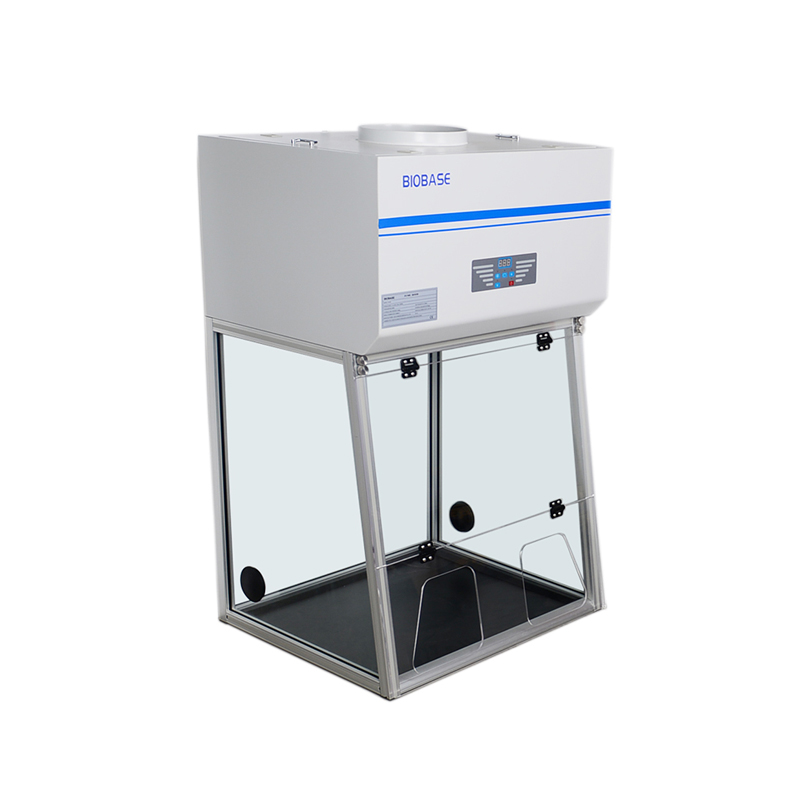

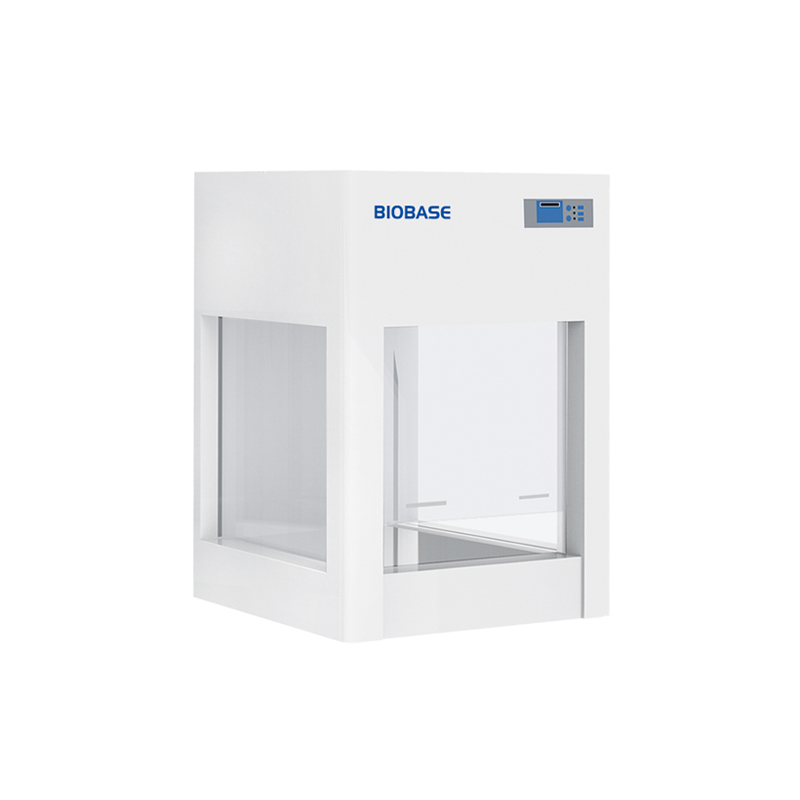

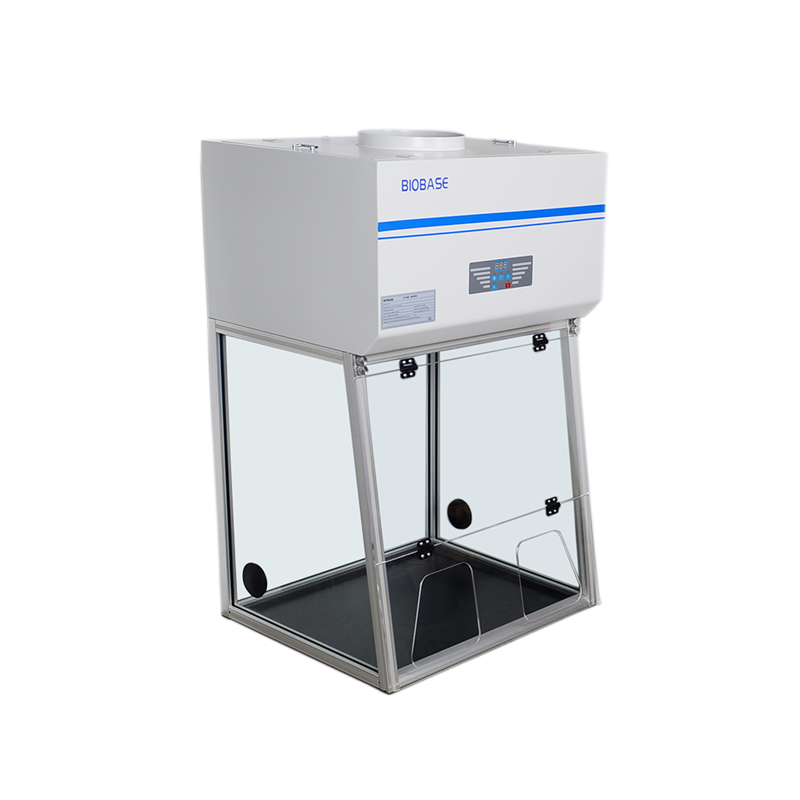

Compounding Hood BBS-V500,V600,V700 BYKG-V Series

Technical Parameters:

Model		BBS-V500	BYKG-VII	BBS-V600	BYKG-VIII	BBS-V700	BYKG-IX		BYKG-X	BYKG-XII
External Size (W*D*H)mm		550*460*700		600*580*1060		700*620*1150			1000*620*1150	1200*620*1150
Internal Size (W*D*H)mm		480*340*370		580*520*610		640*550*700			940*550*700	1140*550*700
Display		LED Display		LCD display		LED display
Airflow Velocity		0.3~0.5m/s	≥0.5m/s	0.3~0.5m/s	0.3~0.8m/s	0.3~0.5m/s	0.3~0.8m/s
Material	Main	Cold-rolled steel with anti-bacteria power coating
	Body
	Work	304 stainless steel					Solid physicochemical steel plate
	Table
Pre-filter		Polyester fiber, washable(for BBS-V500, BBS-V600 and BBS-V700)
Filter		HEPA Filter	Active Carbon Filter, HEPA Filter	HEPA Filter	Active Carbon Filter	HEPA Filter	Active Carbon Filter		Active Carbon Filter, HEPA Filter
Noise		≤60dB
Front Window		Manual, 5mm toughened glass, anti UV		Manual, acrylic material
Max Opening		300mm		590mm			660mm
LED Lamp		4W*1					4W*2		12W*1
UV Lamp		8W*1					15W*1	15W*1(Optional)
		Emission of 253.7 nanometers
Consumption		100W		150W			300W	200W			400W
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory		HEPA filter, LED lamp, UV lamp*2.	Active carbon filter, HEPA filter, LED lamp, UV lamp*2.	HEPA filter, LED lamp, UV lamp*2, Waterproof socket.	Active carbon filter, LED lamp, UV lamp*2, Waterproof socket.		HEPA filter, LED lamp*2, UV lamp*2.	Active carbon filter, HEPA filter(for model BYKG-X, BYKG-XII) LED lamp*1, (LED lamp*2 for BYKG-IX) 4 meters PVC exhaust duct, Diameter: 250mm.
Optional Accessory		/		Base stand			Base stand, UV lamp*2
Gross Weight		57kg		90kg			100kg		145kg	190kg
Package Size (W*D*H)mm		700*610*925		760*740*1280			840*760*1400		1140*740*1340	1340*740*1360

Compounding Hood BBS-V500,V600,V700 BYKG-V Series — professional solution in the Laminar Flow Cabinet category

Compounding Hood BBS-V500,V600,V700 BYKG-V Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Compounding Hood BBS-V500,V600,V700 BYKG-V Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Compounding Hood BBS-V500,V600,V700 BYKG-V Series fits easily into existing process lines and IT infrastructure.

Areas of application Laminar Flow Cabinet

Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Compounding Hood BBS-V500,V600,V700 BYKG-V Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Compounding Hood BBS-V500,V600,V700 BYKG-V Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
