For testing the bending tensile strength according to the standards on:
concrete beams / bars
concrete plates
concrete kerb stones
concrete paving stones
natural stone paving stones

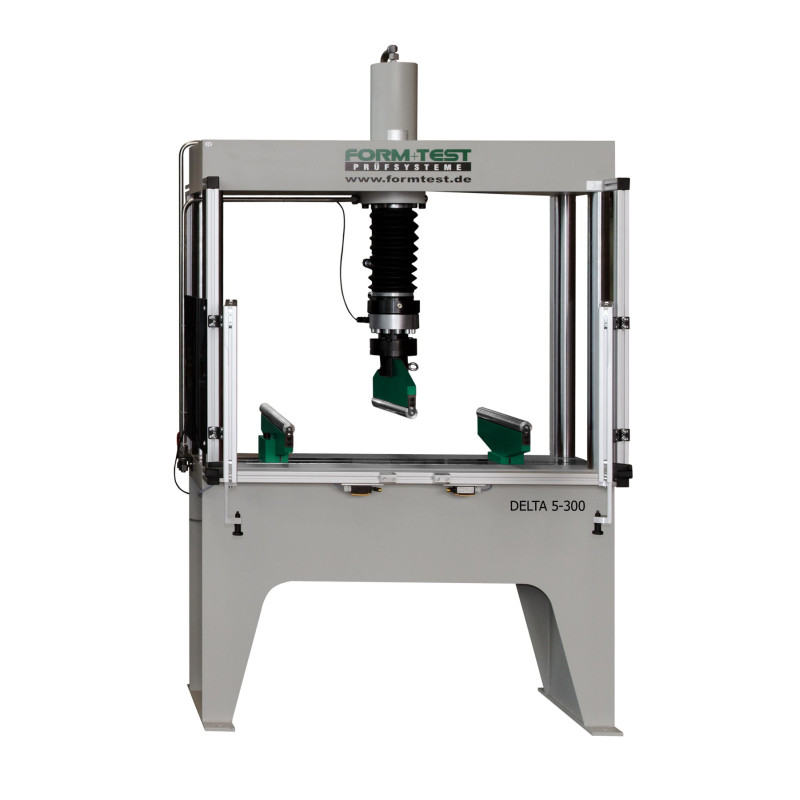

Test machine frame with sturdy 4-column construction. The machine columns are chromium-plated. The double-action test cylinder is placed at the top of the machine frame.
The load is measured via an electronic load cell, which is insensitive to lateral force, mounted at the top in the direct line of force.
● accuracy acc. to DIN EN ISO 7500-1, class 1
● for bending strength tests on material samples especially acc. to EN 12390-5, EN 1339, EN 1343, EN 1344
● with accessories / options also for splitting tensile strength tests and kerb stone tests acc. to EN 1338, EN 1340 and for compression tests

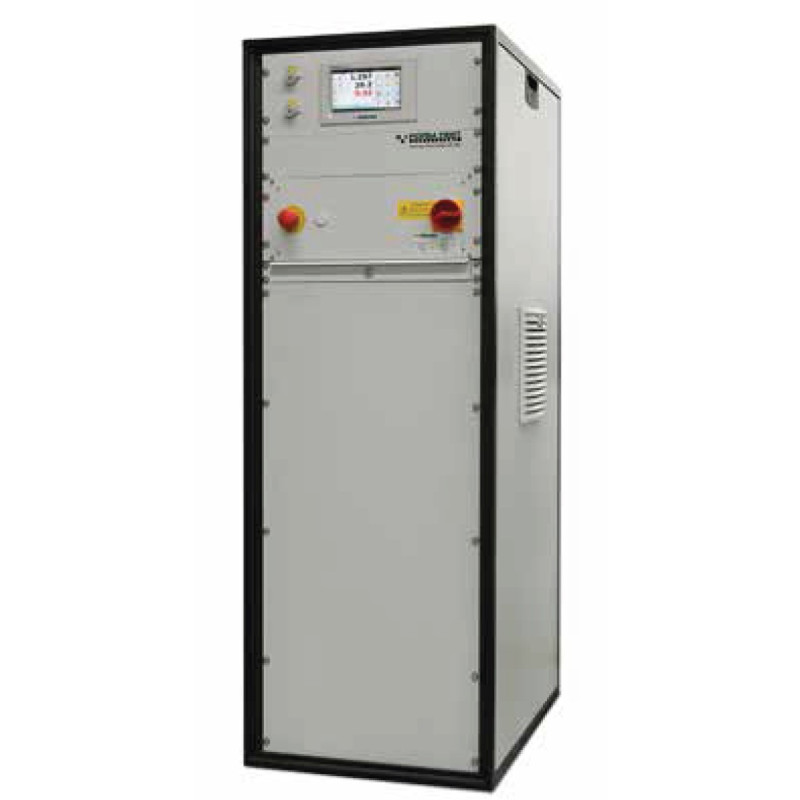

● separate drive station AS-C40-N
● automatic load increase by digital controller DIGIMAXX® C-40 with servo valve in closed loop system with nominal-actual value comparison
Technical Data – Test Frame
● 4-columns test frame
● double-acting test cylinder
● test load max. 300 kN
● working pressure max: 288 bar
● piston stroke: 220 mm
● test area height: 220 mm
● length of bending roller: 510 mm
● bending roller Ø: 40 mm
● lower bending rollers distance adjustable from 80.. 1020 mm
● basic equipment with 3-point load
● measuring range: 3.00... 300 kN
● display area: 0... 300 kN
● force measurement by an electronic precision load sensor
● voltage: 3x 400 volt, 50 Hz, 2.2 kW
● weight: approx. 1470 kg
● available with following test loads: 100 kN, 200 kN and 300 kN
Technical Data – Digital Controller
● capacitive and robust 7” touch display
● PID-controller with DSP processor
● modular system with expansion options up to 8 control and measuring channels – 18 Bit
● measuring- and control cycle 2 kHz
● transmission of measured value up to 1 kHz
● freely programmable test sequences
● real-time display of the measuring channels as well as of the specimen strengths and test speed
● authorization model with different role and access authorizations (tester, laboratory manager, service technician, administrator)
● automatic and manually zero-adjustment
● adjustable break detection
● adjustable piston back-travel time
● specimen storage for test results
● 6 digital inputs galvanically isolated
● 9 potential-free relay outputs
● USB port for data export
● Ethernet connection for communication with PC software
Options:

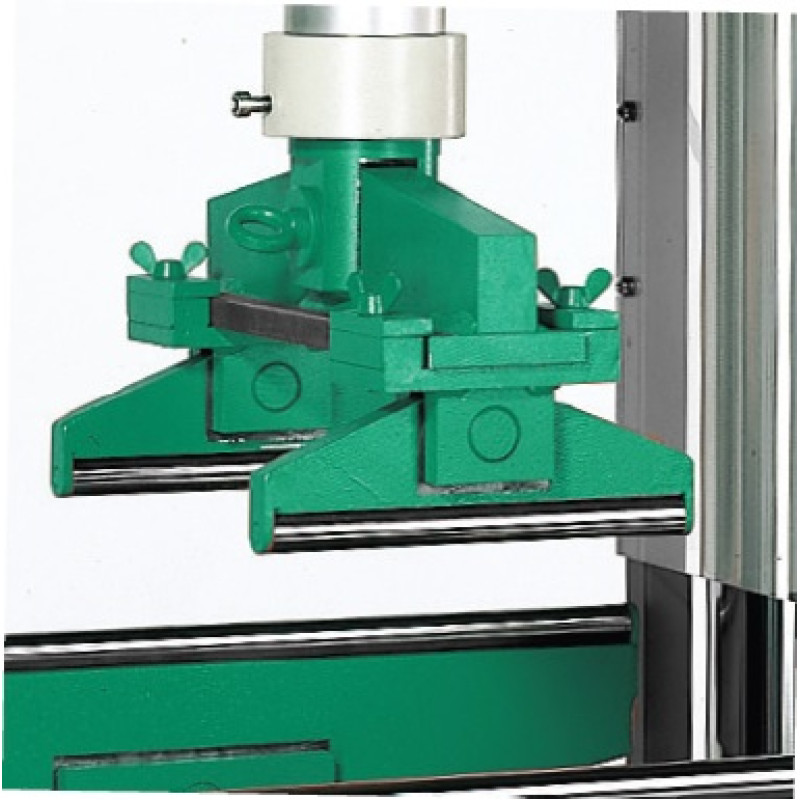

A) insert for 4-point loading
B) splitting tensile strength device acc. EN 1338

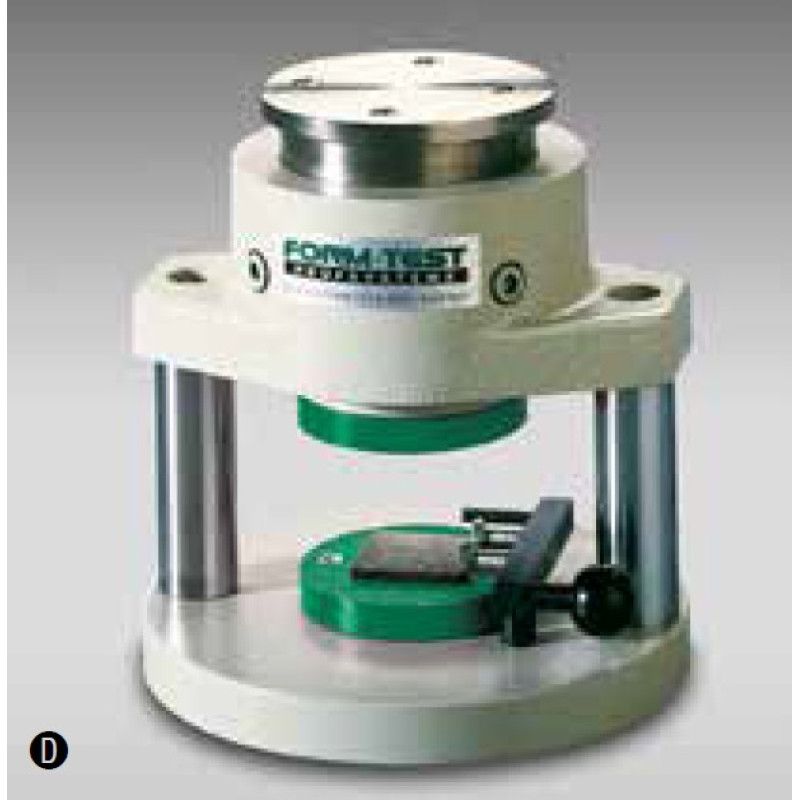

C) compression for curbstones acc. EN 1340

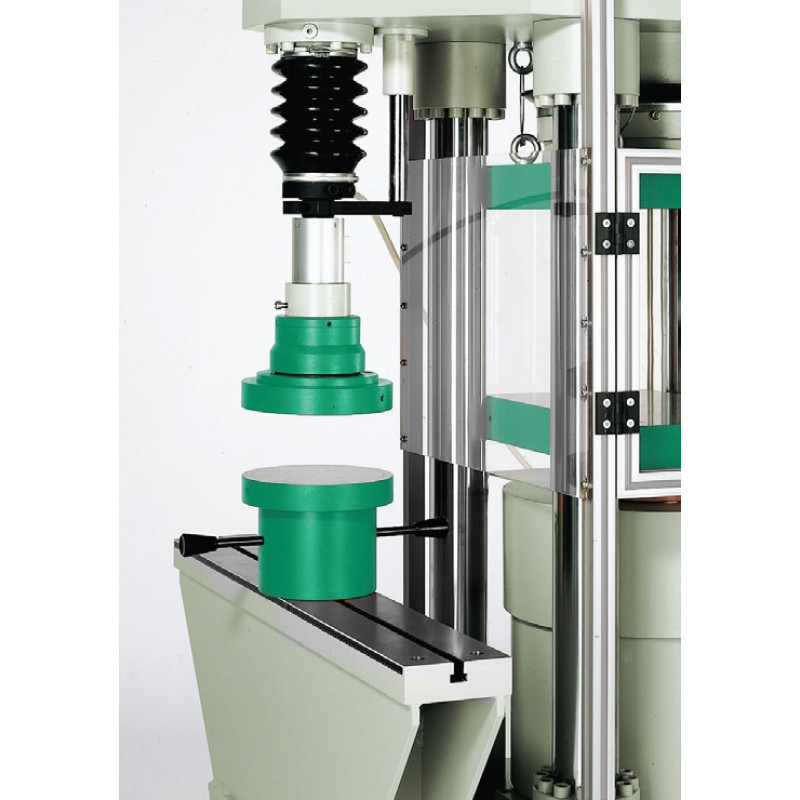

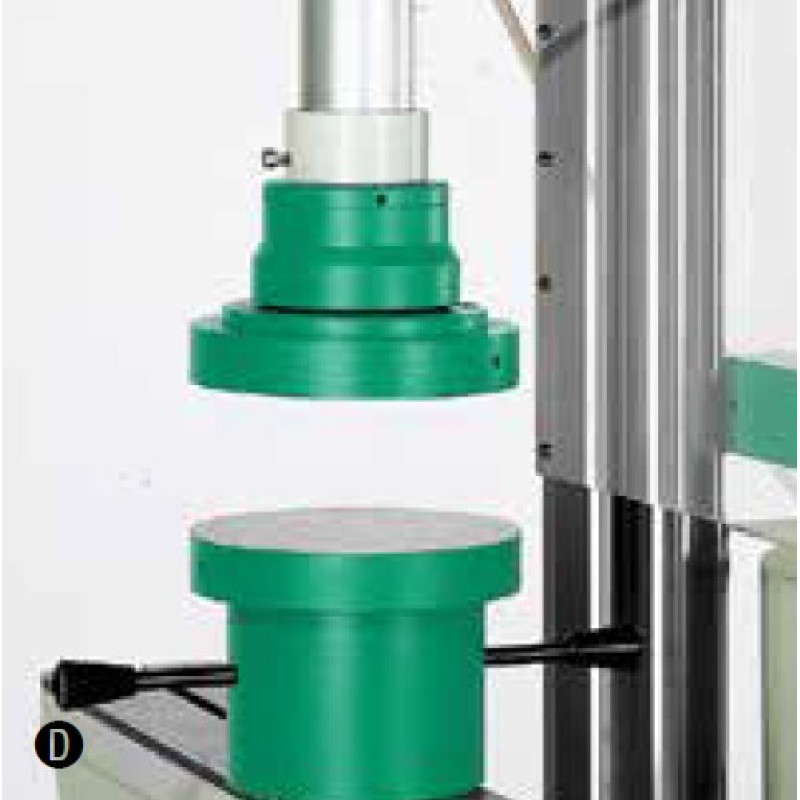

D) set of pressure plates with floating axle (Ø 230 x 40 mm)
E) compression device DV 600 AZ (only applicable in connection with set of pressure plates)
● fibre concrete measuring equipment DBV/DAfStB
● electronic piston stroke measuring and control equipment
● deflection measuring equipment
● test software PROTEUSMT
