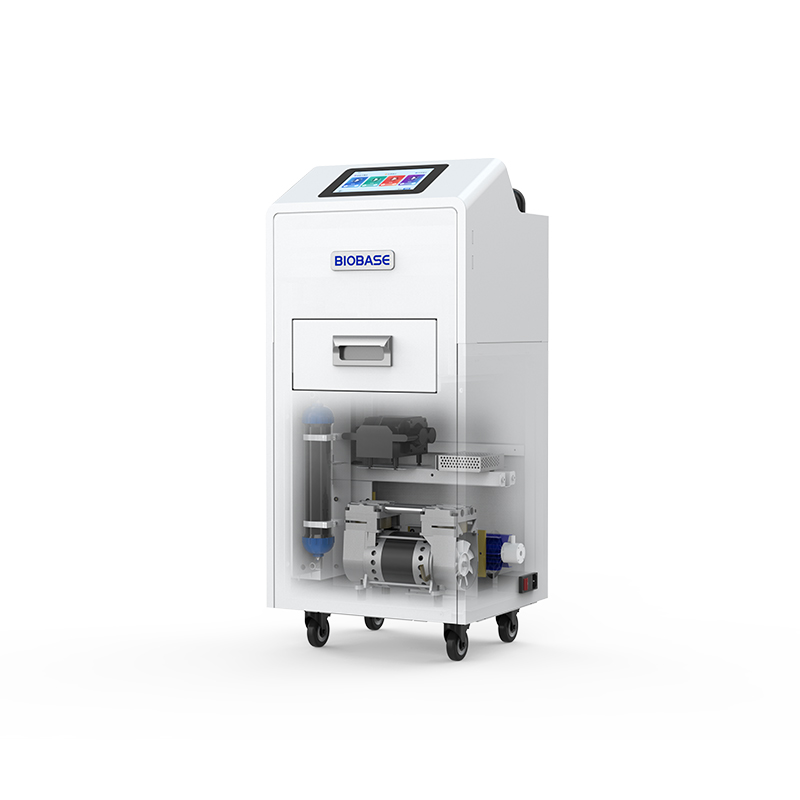

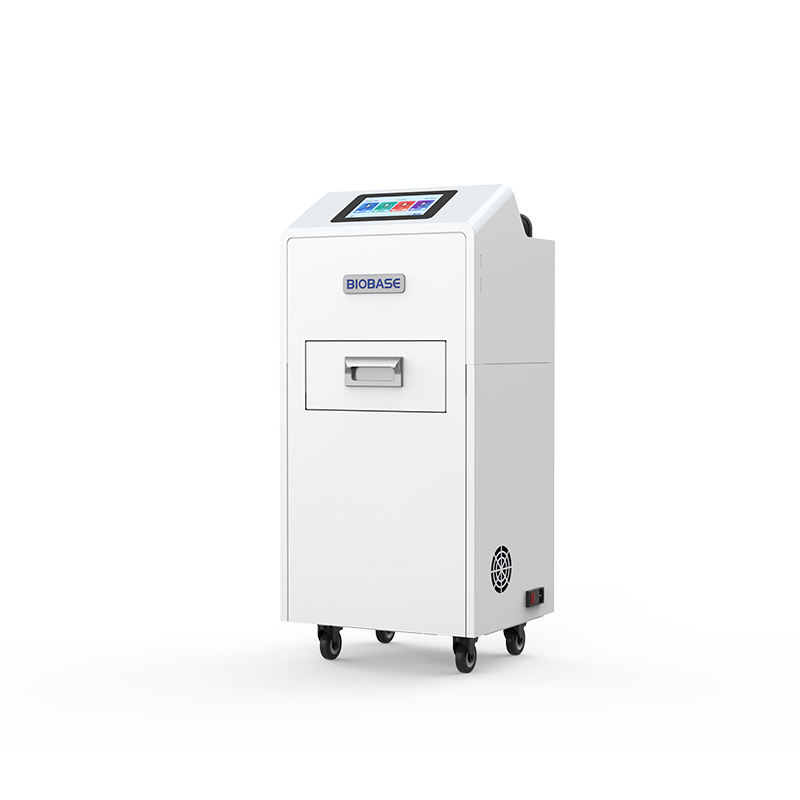

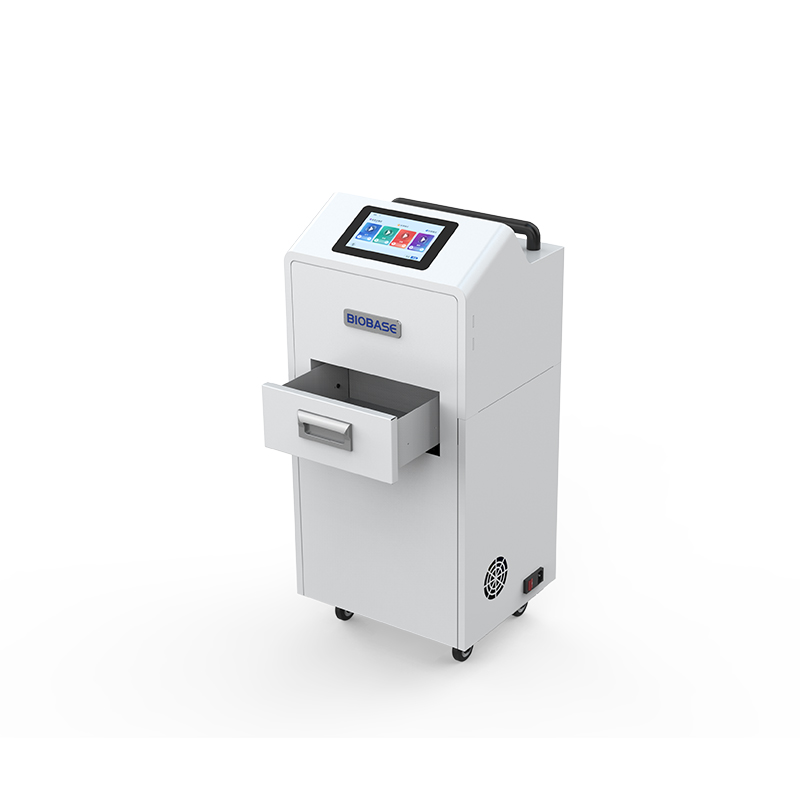

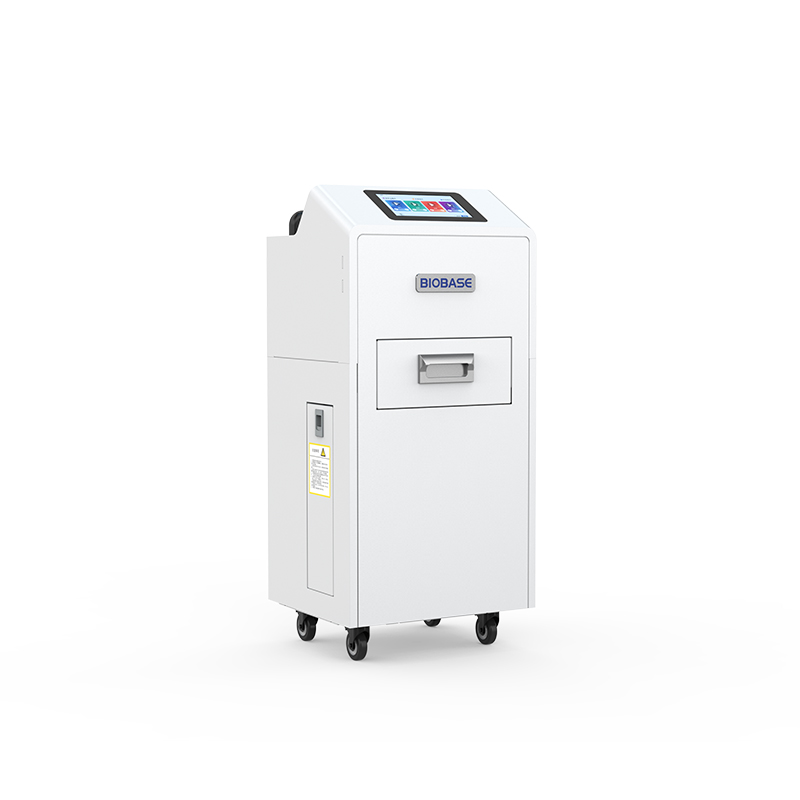

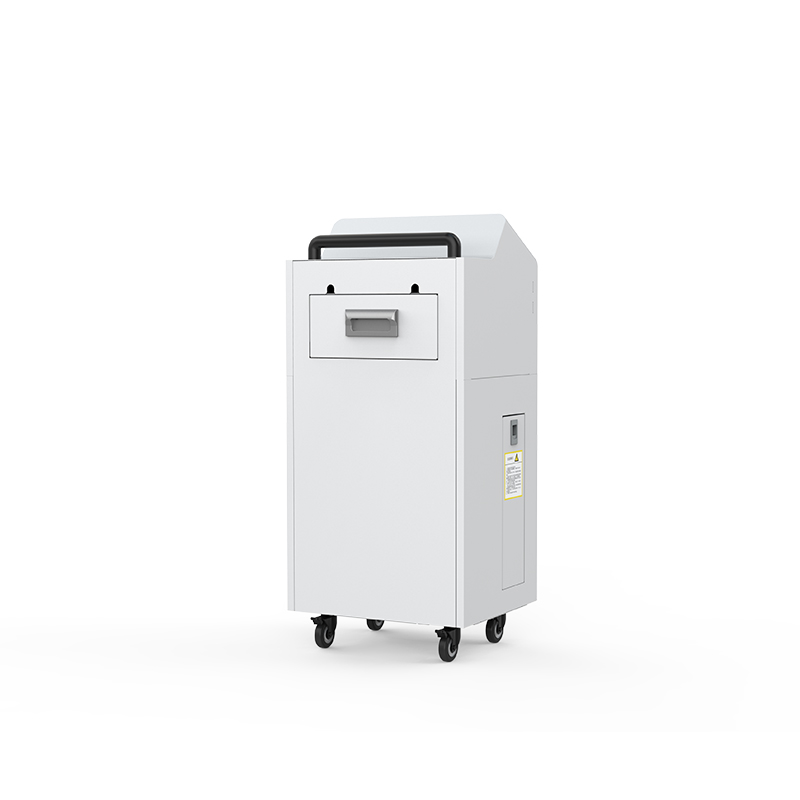

Bed Unit Ozone Sterilizer ZY-Y-CY5G

Features:

1. 7-inch color touch screen, microcomputer control, long service life, low light loss and system energy consumption and convenient man-machine interaction.

2. With consumable life alarm function.

3. Manual/automatic mode is optional, free to set disinfection time.

4. Clock display function to accumulate disinfection time, real-time temperature monitoring.

5. Special lockers are provided before and after the machine to facilitate users to store items such as ozone output tubes.

6. With ozonolysis device, the treated gas can be directly discharged into the air, healthy and pollution-free.

7. Equipped with high-power air compressor, so that ozone can completely enter the interior of cotton wool and other items for disinfection.

8. Stainless steel ceramic ozonator, high purity ozone, large amount of production, long service life.

Technical Parameters:

Model	ZY-Y-CY5G
Disinfection Method	Ozone
Ozone Generation	5000mg/h
Max Ozone Concentration	≥1700mg/m3
Ozone Filling Time	0~99min(Customizable)
Disinfection Time	0~99min(Customizable)
Pump-out Time	0~99min(Customizable)
Parsing Time	0~99min(Customizable)
Noise	45~50dB(A)
Special Function	Single and twin bed mode, temperature detection, analytical agent change prompt, selection of disinfection cycles, time can be set and scheduled disinfection is available
Consumption	410VA
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H)	320*380*830mm
Net Weight	31kg
Package Size(W*D*H)	400*460*967mm
Gross Weight	40kg

Bed Unit Ozone Sterilizer ZY-Y-CY5G — professional solution in the Ozone UV Sterilization Cabinet category

Bed Unit Ozone Sterilizer ZY-Y-CY5G is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Bed Unit Ozone Sterilizer ZY-Y-CY5G

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Bed Unit Ozone Sterilizer ZY-Y-CY5G fits easily into existing process lines and IT infrastructure.

Areas of application Ozone UV Sterilization Cabinet

Ozone UV Sterilization Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Bed Unit Ozone Sterilizer ZY-Y-CY5G allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Bed Unit Ozone Sterilizer ZY-Y-CY5G you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
