Features:
1. Throughput 60t/h.
2. 14-inch touch screen.
3. Tri-angle laser scatter+flow cytometry method+impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5-part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, animal information).
Technical Parameters:
Model | BH-HA630VET |
Throughput | 60 tests/hour |
Sample Profile | Dog, cat, horse, sheep, goat, camel, cow, more species coming soon |
Assay Items | 5 parts, 25 parameters, 3 histograms, 3D scattergram |
Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
Sample Volume | CBC+DIFF mode : ≤20μl CBC mode : ≤10μl |
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# |
Performance | Item | Linearity Range | Carry Over | CV |
WBC | (0~300.0x10^9)/L | ≤0.5% | ≤2.0% |
RBC | (0~8.00x10^12)/L | ≤0.5% | ≤1.5% |
HGB | (0~250)g/L | ≤0.5% | ≤1.5% |
PLT | (0~3000x10^9)/L | ≤1.0% | ≤4.0% |
Sample Volume | CBC+DIFF mode≤20μl CBC mode≤10μl |
Storage | 100,000 results including histograms, scattergrams and patient information |
Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
Power Supply | AC100~240V±10%, 50/60Hz; 300VA |
Package Size(W*D*H) | 575*490*690mm |
Gross Weight | 46kg |
Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm |
Reagent Gross Weight | 22kg, 2kg, 2kg |

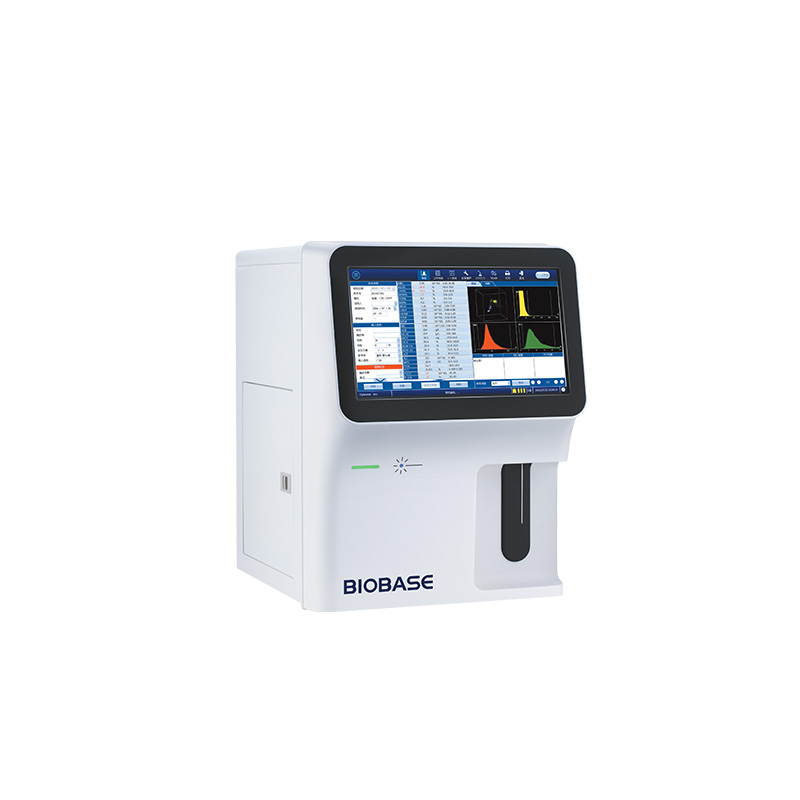

5-Part Auto Veterinary Hematology Analyzer BH-HA630VET — professional solution in the Hematology Analyzer category
5-Part Auto Veterinary Hematology Analyzer BH-HA630VET is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why 5-Part Auto Veterinary Hematology Analyzer BH-HA630VET
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: 5-Part Auto Veterinary Hematology Analyzer BH-HA630VET fits easily into existing process lines and IT infrastructure.
Areas of application Hematology Analyzer
Hematology Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing 5-Part Auto Veterinary Hematology Analyzer BH-HA630VET allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with 5-Part Auto Veterinary Hematology Analyzer BH-HA630VET you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add 5-Part Auto Veterinary Hematology Analyzer BH-HA630VET to the cart or contact our manager. We will help integrate Hematology Analyzer into existing processes without downtime and unnecessary costs.
