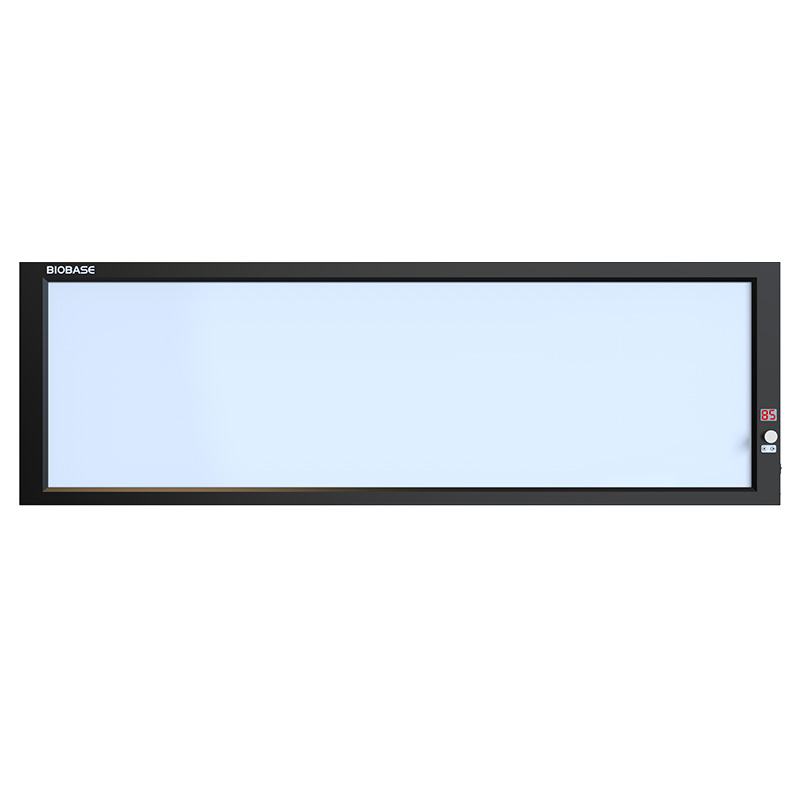

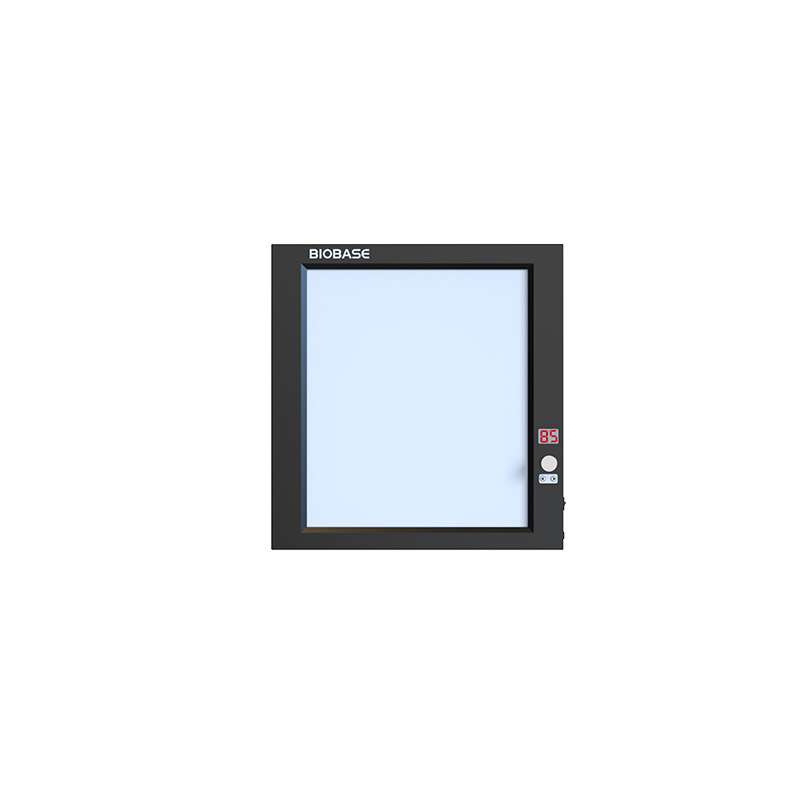

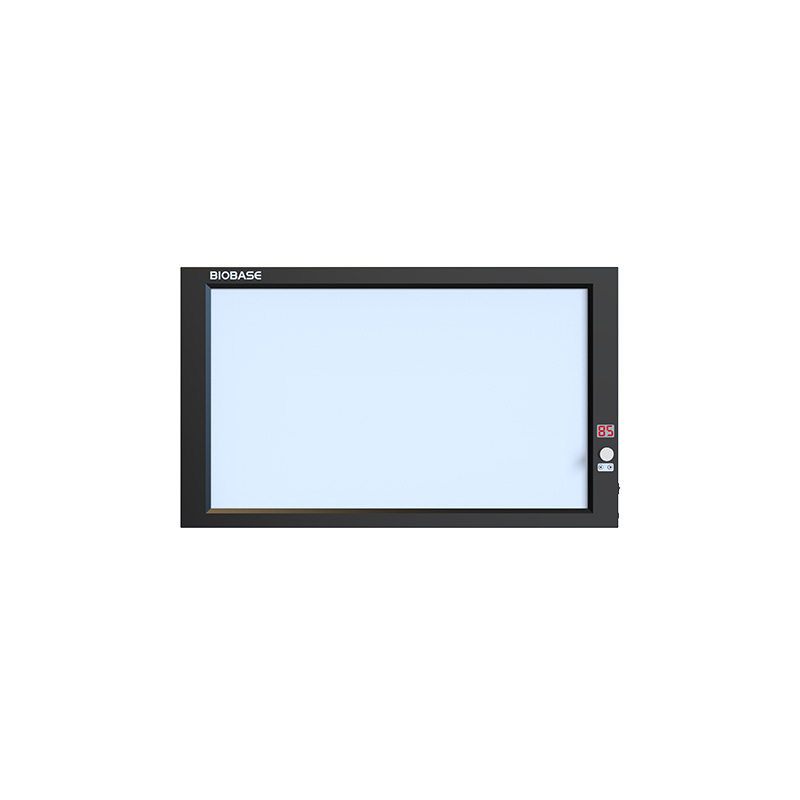

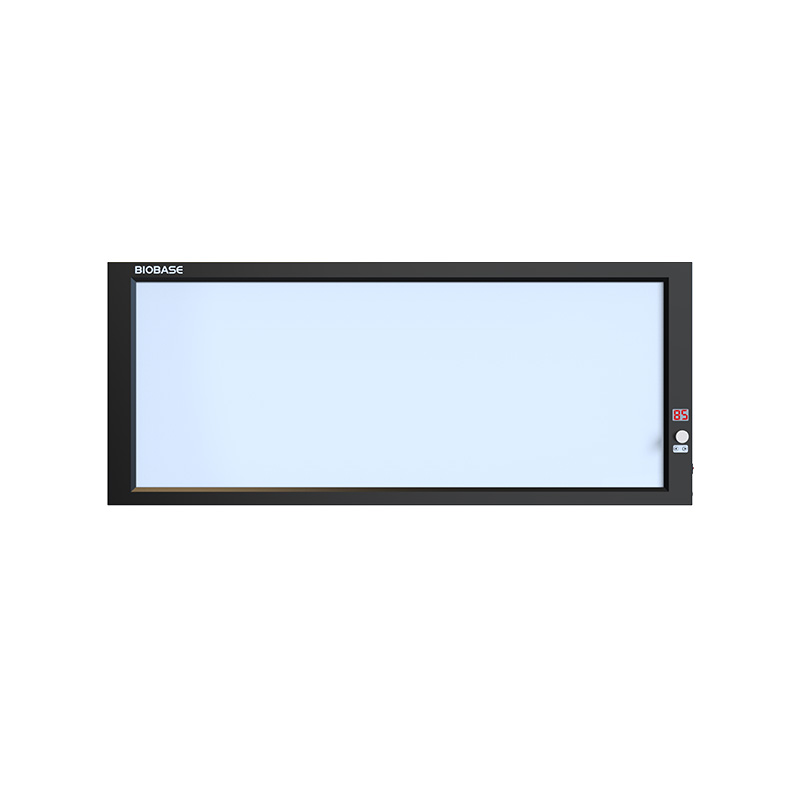

X-ray Film Viewing Lamp

Features:

1. It has automatic sensing function. When the film viewing lamp is inserted into the film, the film insertion area will light up automatically.

2. The LED color temperature is above 8000K, which makes your eyes less likely to get tired after long-term viewing.

3. The brightness of the light source can be randomly adjusted from 1% to 100%, and supports brightness memory.

4. Imported Mitsubishi observation screen is used, which is durable, does not deform or discolor.

5. Aluminum alloy frame, rapid heat dissipation, reducing LED light and color decay, strong and durable

6. The light source adopts ultra-bright LED cold light source, and the maximum brightness of the observation screen reaches more than 4000cd/m2.



Technical Parameters:

Model	BH-GPD01	BH-GPD02	BH-GPD03	BH-GPD04
Type	1 Ray Light Panel	2 Ray Light Panels	3 Ray Light Panels	4 Ray Light Panels
Light Color Temp.	＞8000K
Luminance Uniformity	≥90%
Max Luminance	＞4000cd/m²
Installation Method	Standard: Hanging typ; Optional: Bracket type
Auto-induction	Insert automatically lights up, take off automatically, brightness memory
Light Source	LED cold light
Clamping device	Soft silicone
External Size(mm)	475*498*25	835*498*25	1195*498*25	1555*498*25
Viewing Area(mm)	360*420	720*420	1080*420	1440*420
Power Supply	100~240V, 50/60Hz
Packing Size(mm)	620*115*680	980*120*660	1350*130*680	1700*130*680
Gross Weight(kg)	4.7	7	10.3	12.2

X-ray Film Viewing Lamp — professional solution in the New Products category

X-ray Film Viewing Lamp is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why X-ray Film Viewing Lamp

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: X-ray Film Viewing Lamp fits easily into existing process lines and IT infrastructure.

Areas of application New Products

New Products solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing X-ray Film Viewing Lamp allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with X-ray Film Viewing Lamp you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
