Features:
1. A double-chamber design with high thermal efficiency and excellent furnace insulation properties.
2. The design integrates the furnace door, utilizing zirconium-containing ceramic fiber cotton, which is non-deformable, lightweight, and offers excellent insulation properties.
3. A standalone design that isolates heat sources, ensuring safety and reliability, with tangential reoxygenation in the secondary combustion chamber to guarantee that flue gas residence time exceeds 2 seconds.
Technical Parameters:
Model | BK-HLPG-300 |
Quantity of Combustion Chamber | Dual |
Refractory Material | Mullite, include 65% aluminium oxide |
Refractory Temperature | 1350°C |
Operational Temperature | 550~1350°C |
Burner | Three burners |
Burn Rate | 150~300kg |
Fuel Consumption | 10~15kg(Diesel) |
Flue Gas Retention | More than 2 seconds |
Metal Thickness | 6mm |
Emission Standard | Smokeless and odorless |
Primary Combustion Chamber(Main Body) | Capacity | 200~300kg/batch |
Material | Inner wall of the furnace: high aluminum refractory brick Vault: mullite castable, which is cast in one time There are observation holes and 2 burners |
Working Temperature | 800~1000℃ |
Volume | 1.75m³ |
Furnace Door | 760*960mm |
Inside Size(W*D*H) | 1850*900*1050mm |
Secondary Combustion Chamber | Material | Q235B+refractory material(High temperature resistance up to 1350℃) |
Working Temperature | 1050~1200℃ |
External Size(W*H) | Φ1000*1260mm |
Standard Accessory | Chimney |
Optional Accessory | Natural gas burner |
Power Supply | AC220V, 50/60Hz; 110V, 50/60Hz(Optional) With smoke filter equipment: external transformer Monomer: built-in transformer |
External Size(W*D*H) | 2650*2200*3570mm |
Package Volume | 20m³ |
Net Weight | 8000kg |
Gross Weight | 8500kg |

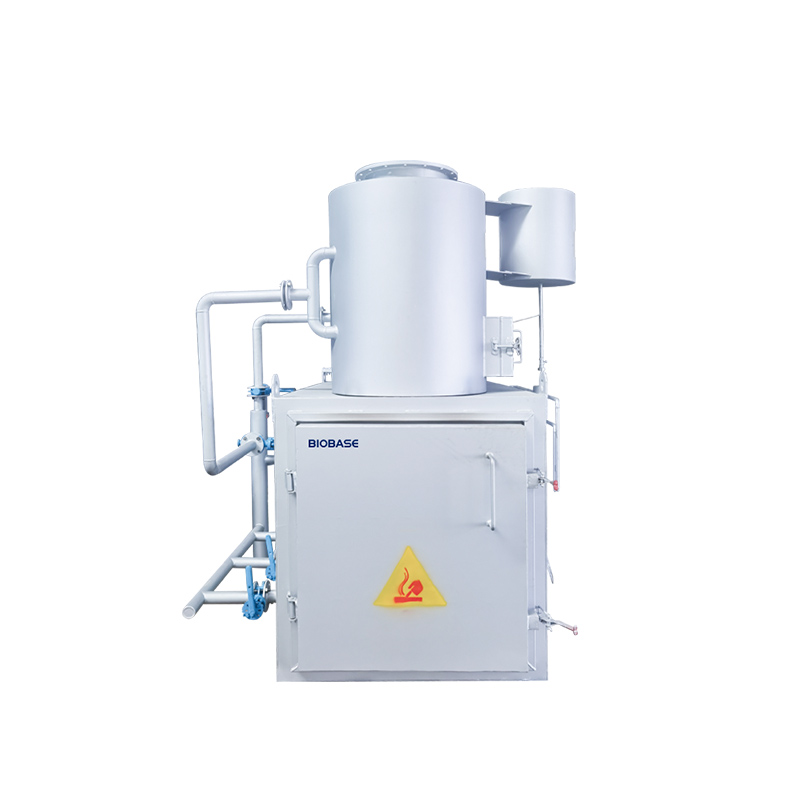

Waste Incinerator — professional solution in the New Products category
Waste Incinerator is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Waste Incinerator
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Waste Incinerator fits easily into existing process lines and IT infrastructure.
Areas of application New Products
New Products solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Waste Incinerator allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Waste Incinerator you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Waste Incinerator to the cart or contact our manager. We will help integrate New Products into existing processes without downtime and unnecessary costs.
