Features:
1. Two toughened glass doors, prevent cross infection.
2. Color LCD touch screen, advanced programmable control system with twelve standard programs.
3. High efficient cleaning system, with rotary nozzles in top, bottom and among the shelves to make sure that the spray liquid can contact the surface of devices completely.
4. High efficient drying system with HEPA filter, can clean and dry the inner of tubular things.
5. Thermal disinfection, water heating system can make sure the water temperature keep above 93℃ to reach the international disinfecting efficiency level.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning → Clean with enzymes → Rinse → Thermal disinfection → Glazing clean → Drying
Technical Parameters：
Model | BK-LW220D | BK-LW320D | BK-LW420D |
Cleaning | Capacity | 220L | 320L | 420L |
Washer Load Level | 2 | 3 | 2 |
Water Wash Power | 0.75KW | 1.5KW | 1.5KW |
Water Heater Power | 5KW | 15KW | 5KW | 15KW | 5KW | 15KW |
MAX. Power | 6KW | 16KW | 7KW | 17KW | 7KW | 17KW |
Water Consumption/Step | 20L | 22L | 25L |
Tank Internal Temperature | 0~99℃ |
Water Supply Pressure | 0.3~1.0Mpa |
Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent |
Cleaning Agent Level Sensor | YES |
Washing Pump | Sweden 800L/min | Sweden 1000L/min | Sweden 1000L/min |

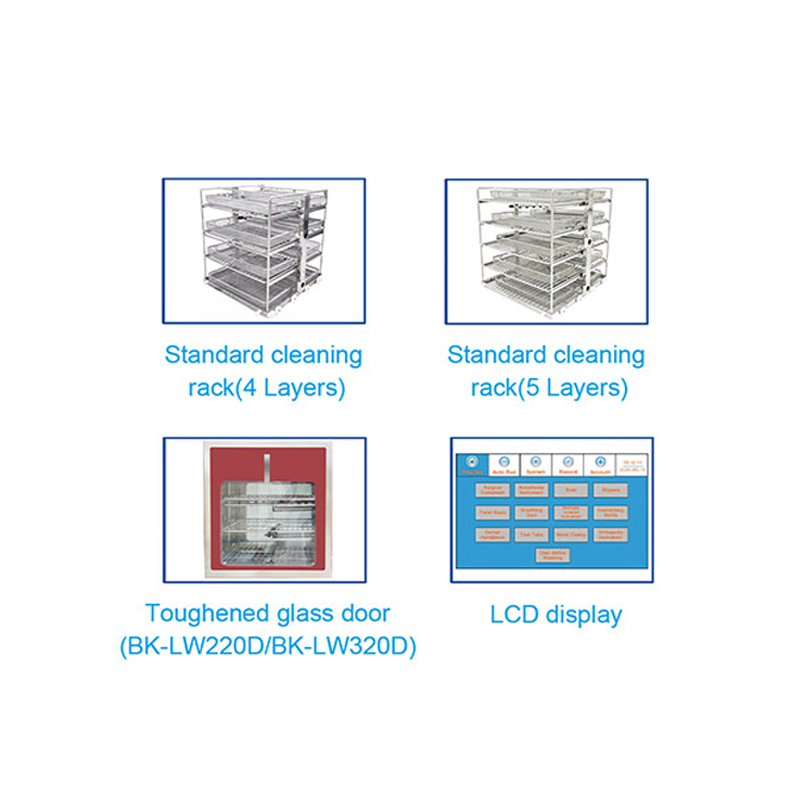

Standard Cleaning Racks | 4 Layers | 5 Layers |
BK01-220*1 | BK01-320*1 | BK01-420*1 |
Drying | Drying Function | YES |
Steam Condenser | NO |
Dry Power | 3.6KW | 3.6KW | 3KW |
Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor |
Cleaning Program | 12 pre-set programs(editable)+100 PLC free programming |
Password Protection | 3 levels password |
Safety Emergency Button | YES
|
USB Port | YES |
Integrated Printer | YES |
Online Monitor Performance of Washing | Optional |
Dimensions&Weight | Chamber Dimension(W*D*H) | 600*629*830mm | 600*629*990mm | 688*700*703mm |
Exterior Dimension(W*D*H) | 960*805*1865mm | 960*805*2025mm | 1110*900*2165mm |
Package Dimension(W*D*H) | 1100*950* 2150mm | 1100*950*2180mm | 1230*1070*2290mm |
Net Weight(Host only) | 320kg | 340kg | 370kg |
Gross Weight(Host with rack ) | 420kg | 440kg | 460kg |
Others | Door | Double-layered glass door, 2 doors, manual | Double-layered glass door, 2 doors, electric |
Safety Door Lock | YES |
Built-in RO Water Pump | YES |
Noise | <55dB | <55dB | <60dB |
Optional Accessories | Trolly(BK01) |
Power Supply | AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional) |
Washer Disinfector(Double Door Automatic Glassware Washer) — professional solution in the Washer Disinfector category
Washer Disinfector(Double Door Automatic Glassware Washer) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Washer Disinfector(Double Door Automatic Glassware Washer)
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Washer Disinfector(Double Door Automatic Glassware Washer) fits easily into existing process lines and IT infrastructure.
Areas of application Washer Disinfector
Washer Disinfector solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Washer Disinfector(Double Door Automatic Glassware Washer) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Washer Disinfector(Double Door Automatic Glassware Washer) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Washer Disinfector(Double Door Automatic Glassware Washer) to the cart or contact our manager. We will help integrate Washer Disinfector into existing processes without downtime and unnecessary costs.
