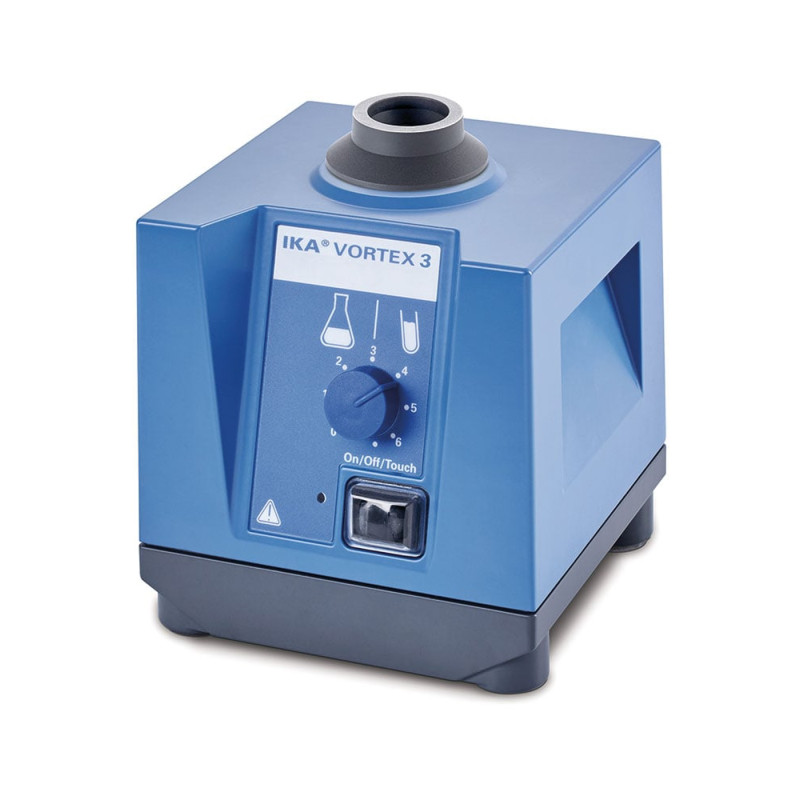

VORTEX 3

Vortex shaker suitable for short-time operation (touch function), activated by pressing shaker attachment or continuous operation. - Wide speed range, infinitely adjustable - Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately - Attachments securely click onto appliance in any position - Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks - Sturdy metal zinc die cast casing - Compact design - Short-time operation activated by pressing attachment (touch function) - Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping) - Eccentric with ball bearings - Suitable for continuous operation with low self heating thanks to self ventilation of motor Shaking movement: orbital Orbital diameter: 4 mm Infinitely adjustable speed range: 500 - 2.500 rpm Type of movement: orbital Shaking stroke [mm]: 4 Permissible shaking weight (incl. attachment) [kg]: 0.4 Motor rating input [W]: 58 Motor rating output [W]: 10 Permissible ON time [%]: 100 Speed min (adjustable) [rpm]: 500 Speed range [rpm]: 0 - 2500 Speed display: none Timer: no Operating mode: continuous operation Touch function: yes Shaking table lock: no Working with microtiter plates: yes Number of microtiter plates: 1 Dimensions (W x H x D) [mm]: 127 x 136 x 149 Weight [kg]: 4.5 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 21 RS 232 interface: no Analog output: no Voltage [V]: 200 - 240 Frequency [Hz]: 50/60 Power input [W]: 60

VORTEX 3 — professional solution in the IKA®-Werke GmbH & Co. KG category

VORTEX 3 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why VORTEX 3

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: VORTEX 3 fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing VORTEX 3 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with VORTEX 3 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
