Features
1. It has good horizontal grinding force, high grinding efficiency, comfortable control button feel, simple operation, and a clamping device that achieves fast pressing, sturdy and durable.
2. The appearance and posture are generous, and the feet are equipped with pulleys, making it easy to move.
Technical Parameters
Model | BK-VBM01 |
Grinding Disc Speed | 1480r/min |
Control Device | Master switch/button switch/digital time controller |
Motor Phase Loss/Overcurrent Protection | Have |
Cover opening and shutdown | Have |
Grinding Disc Seat | Single |
Clamping Device | Quick clamping |
Grinding Disc Material | Tungsten carbide Outsourced steel sleeve |
Grinding Disc Specifications | 100ml（1-50g） |
Optional Grinding Disc Material | High chromium steel, agate, zirconia, corundum, and high manganese steel |
One Grinding Time | 60-180S |
Feed Particle Size | ≤8mm |
Grinding Particle Size | ≤0.074mm |
Equipment support feet | 4 fixed and sliding feet |
Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
External Dimensions (mm） | 680*620*915 |
Net Weight(kg) | 160 |
Packing Size(mm) | 840*740*1090 |
Gross Weight(kg) | 185 |
Remarks: There are two power options, 1.1KW and 1.5KW. 1.1KW corresponds to 960 rpm, 1.5KW corresponds to 1480 rpm, and the prices of both are the same.

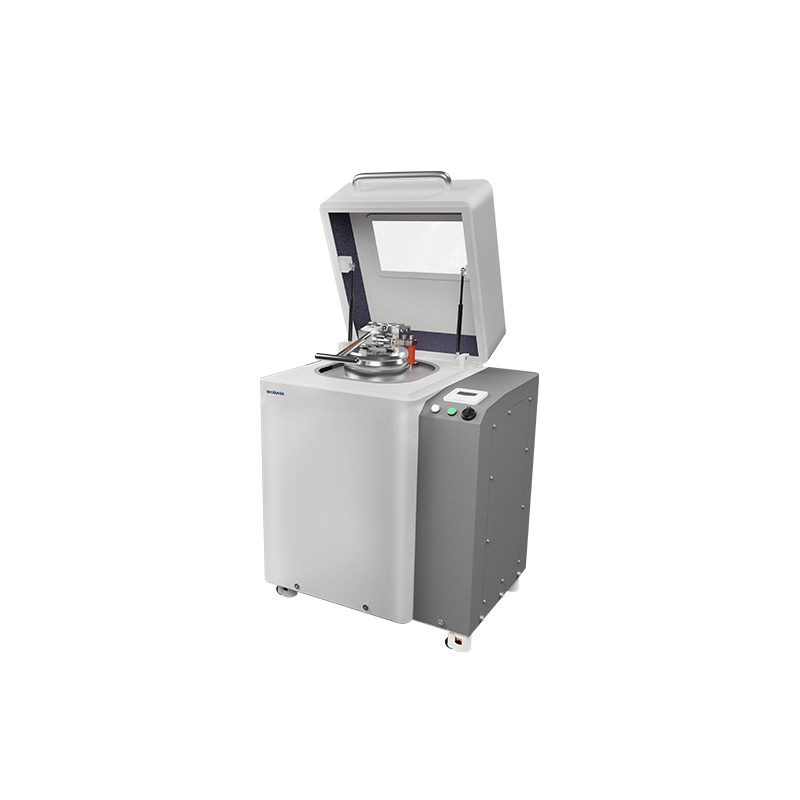

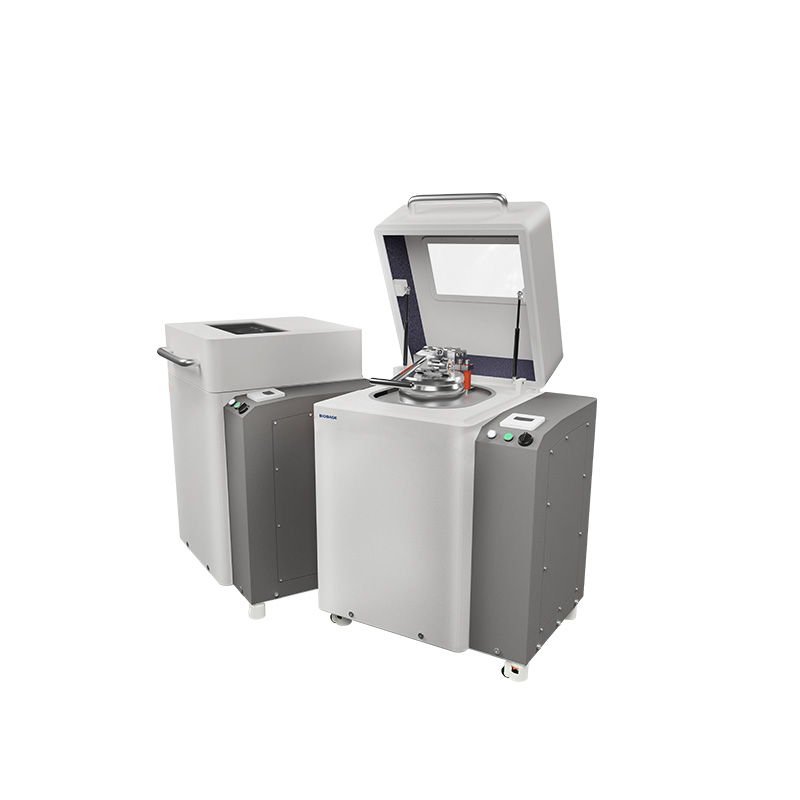

Vibration Mill BK-VBM01 — professional solution in the Ball Mill category
Vibration Mill BK-VBM01 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Vibration Mill BK-VBM01
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Vibration Mill BK-VBM01 fits easily into existing process lines and IT infrastructure.
Areas of application Ball Mill
Ball Mill solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vibration Mill BK-VBM01 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Vibration Mill BK-VBM01 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Vibration Mill BK-VBM01 to the cart or contact our manager. We will help integrate Ball Mill into existing processes without downtime and unnecessary costs.
