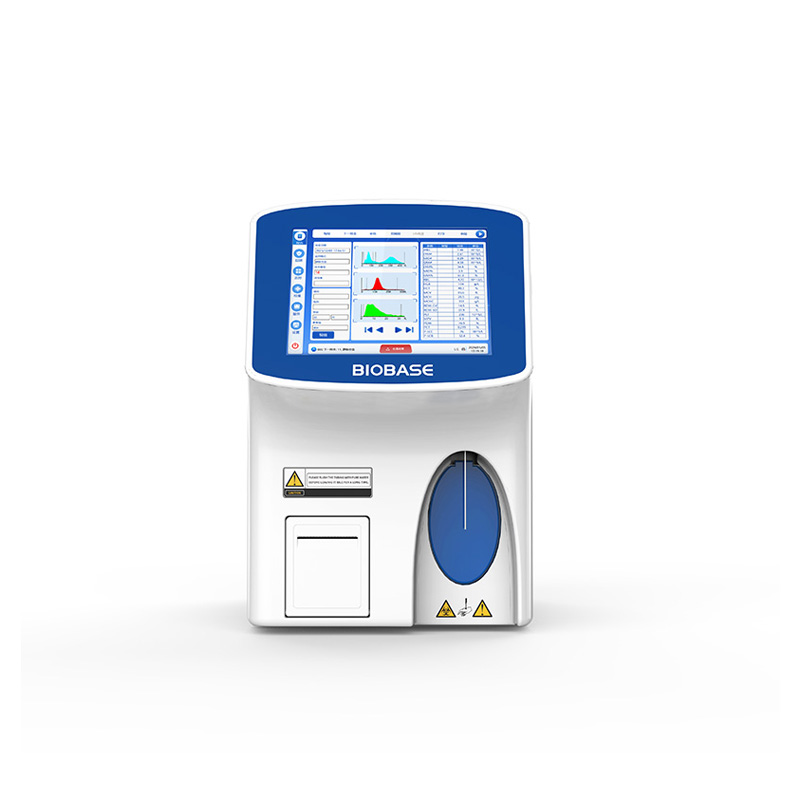

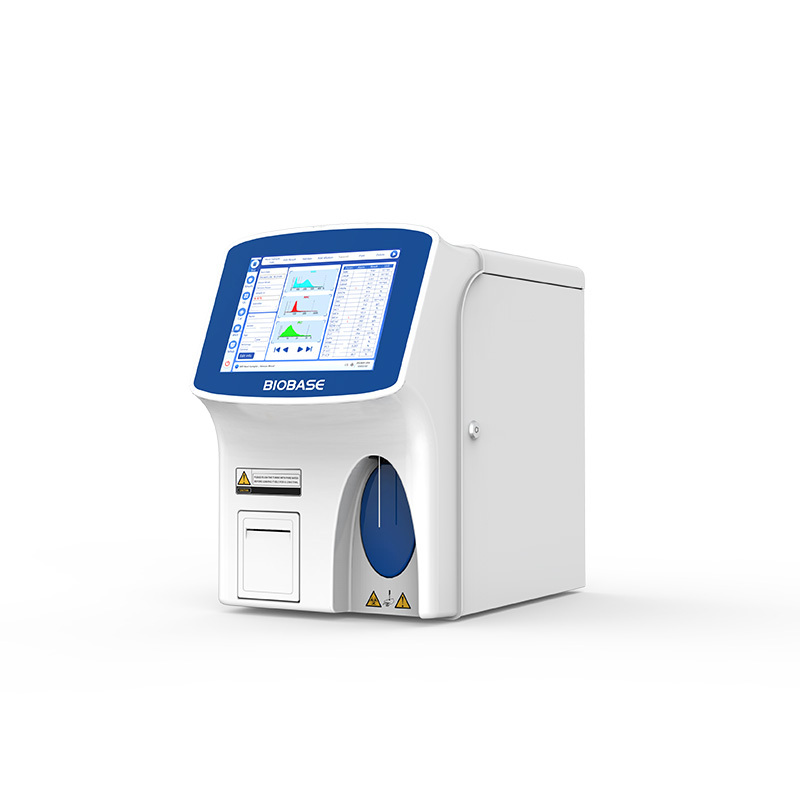

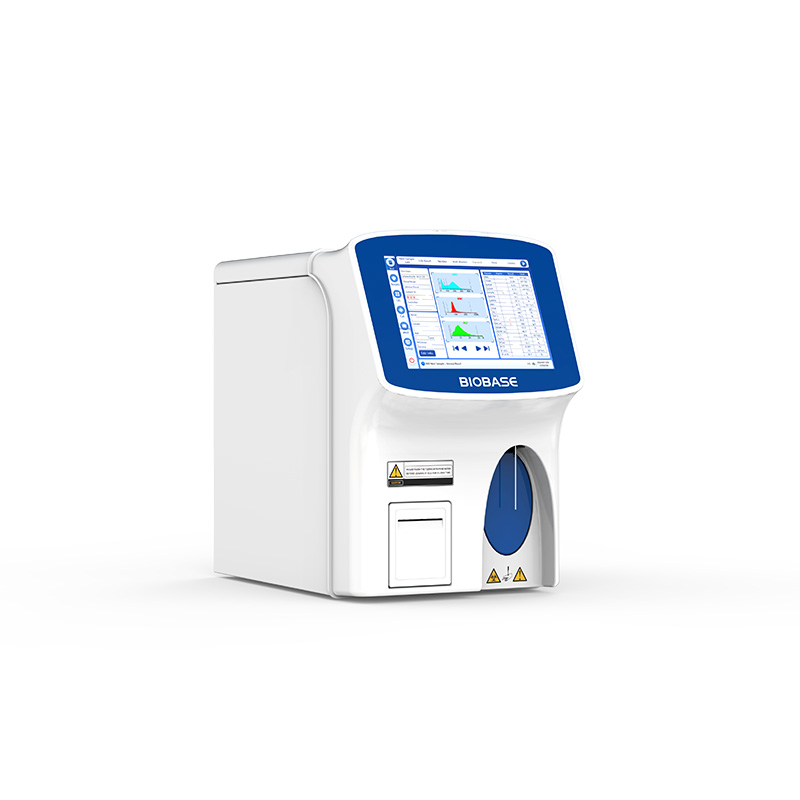

Veterinary Auto Hematology Analyzer BH-HA310VET

Application:

The Hematology Analyzer can detect abnormalities of healthy animals, assess sick animals and monitor sick animals undergoing treatment by performing routine blood tests. It is suitable for animal experiment center, drug research center, animal and plant quarantine department, zoo, pet hospital, animal husbandry and veterinary system and other institutions.

Features:

1. Detection many animal species, with upgrade function.

2. Seven animal detection modes(cow, horse, sheep, goat, rabbit, dog, cat, camel).

3. Automatic detection, eliminating manual error.

4. Abnormal results intuitive prompt, timely and accurate screening out abnormal experimental results.

5. Three detection modes: venous blood, peripheral blood, pre-diluted peripheral blood.

6. 9. 7-inch color touch screen, data status at a glance.

7. One button for maintenance.

8. It can be turned on continuously for 24 hours.

9. Applying cyanide-free hemolytic agent to sample, safe and environmental protection without stimulation.

10. Automatic system diagnosis and maintenance, with a variety of alarm functions.

11. Fully enclosed reagent line, no contamination.

12. Excellent data management and communication function, automatically store 100,000 results.

13. Supporting online remote diagnosis and quality control.

The BH-HA310VET hematology analyzer has three detection modes of venous blood, capillary blood, prediluted blood, including 21 detection parameters:

MID#  GRAN#  LYM%  RBC  MCV  MCHC  RDW-CV  MPV  PCT P-LCC  WBC

LYM#  MID%  GRAN%  HGB  HCT  MCH  RDW-SD  PLT  PDW  P-LCR

Technical Parameters:

Model	BH-HA310VET
Throughput	50 samples/hour
Principle	Impedance for WBC differentiation, WBC/RBC/PLT count, Colorimetric method for HGB
Channel	2
Parameters	21 parameters(including MID#, GRAN#, LYM%, RBC, MCV, MCHC, RDW-CV, MPV, PCT, P-LCC, WBC, LYM#, MID%, GRAN%, HGB, HCT, MCH, RDW-SD, PLT, PDW, P-LCR)
Histograms	3 histograms(including WBC,RBC,PLT)
Sample Volume	Venous blood: 10μl; Capillary blood: 10μl; Prediluted: 20μl
Calibration	Manual calibration, automatic calibration, and fresh blood calibration
Counting Mode	Venous blood, capillary blood, prediluted blood
Printing Model	Auto print, manual print
LIS System	Supporting Bi-directional LIS
Language	Chinese, English, Spanish, French
QC	L-J, X-B
Reagent	Diluent 10L, Hemolytic agent 250ml(animal specific), Probe cleaner 50ml
Date Input	9.7-inch touch screen; mouse, keyboard(optional)
Output	Built-in printer, supporting external printers
Printer Paper	57*30mm
Interface	4 USB ports, 1 network port, and 1 RS232 serial port
Storage	Automatic storage, 100,000 results with histograms(including sample information)
Information Transmission	Bidirectional LIS communication, HL7 and many other transmission protocols
Unclog	Reverse high-pressure flush
Work Temp.	10~40°C
Power Supply	AC100~240V, 50/60Hz
Relative Humidity	≤80％
Atmospheric Pressure	86.0kPa~106.0kPa
Carry-Over Rate	Parameter		WBC	RBC			HGB		PLT
	CV		≤1.5%	≤1.0%			≤1.0%		≤3.0%
Background	WBC		RBC		HGB			PLT
	≤0.5*109/L		≤0.05*1012/L		≤2g/L			≤10*109/L
Linearity	Parameter	Measurement Range				CV
	WBC	(1~10.00)*109/L (10.1~99.9)*109				±0.5*109/L   ±5%
	RBC	(0.3~1.00)*1012/L (1.01~7.00)*1012/L				±0.5*1012/L   ±5%
	HGB	(20~70)g/L (71~200.0)g/L				±2.0g/L       ±3%
	PLT	(20~100)*109/L (101~999)*109/L				±10.0*109/L ±10%
Precision	Parameter	Repeatability				Measurement Range
	WBC	≤ 4.0%				(3.5~9.5)*109/L
	RBC	≤ 2.0%				(3.8~5.8)*1012/L
	HGB	≤ 2.0%				(115~175)g/L
	PLT	≤ 8.0%				(125~350)*109/L
	HCT	≤3.0%				35%~50%
External Size(W*D*H)	295*505*430mm
Package Size(W*D*H)	Instrument: 404*564*616mm;  Reagent 1: 340*340*340mm;  Reagent 2: 200*150*100mm
Net Weight	20kg
Gross Weight	Instrument: 23kg; Reagent 1: 13kg; Reagent 2: 13kg

Veterinary Auto Hematology Analyzer BH-HA310VET — professional solution in the Hematology Analyzer category

Veterinary Auto Hematology Analyzer BH-HA310VET is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Veterinary Auto Hematology Analyzer BH-HA310VET

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Veterinary Auto Hematology Analyzer BH-HA310VET fits easily into existing process lines and IT infrastructure.

Areas of application Hematology Analyzer

Hematology Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Veterinary Auto Hematology Analyzer BH-HA310VET allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Veterinary Auto Hematology Analyzer BH-HA310VET you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
