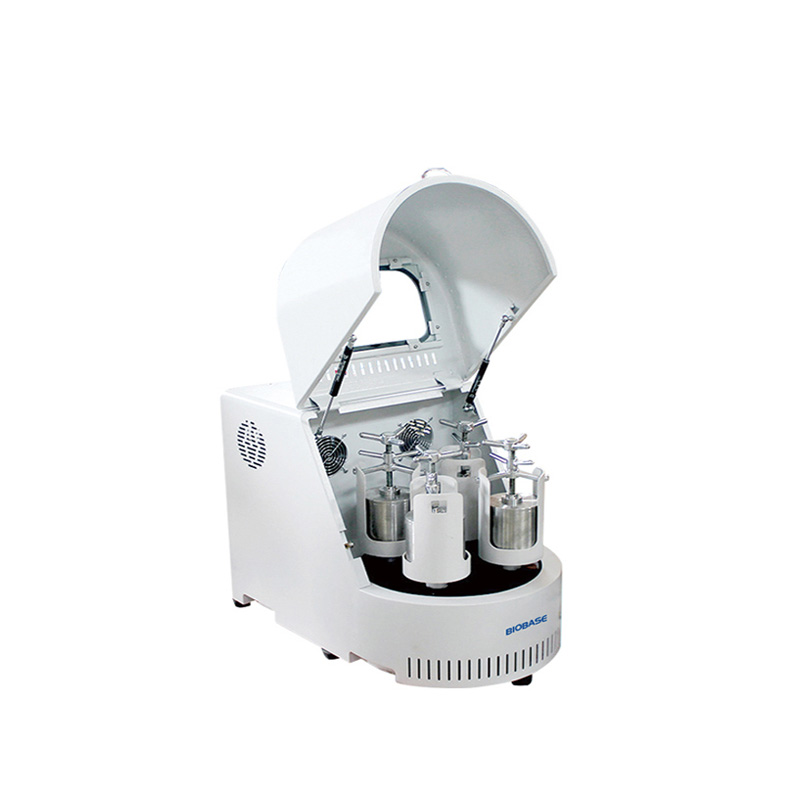

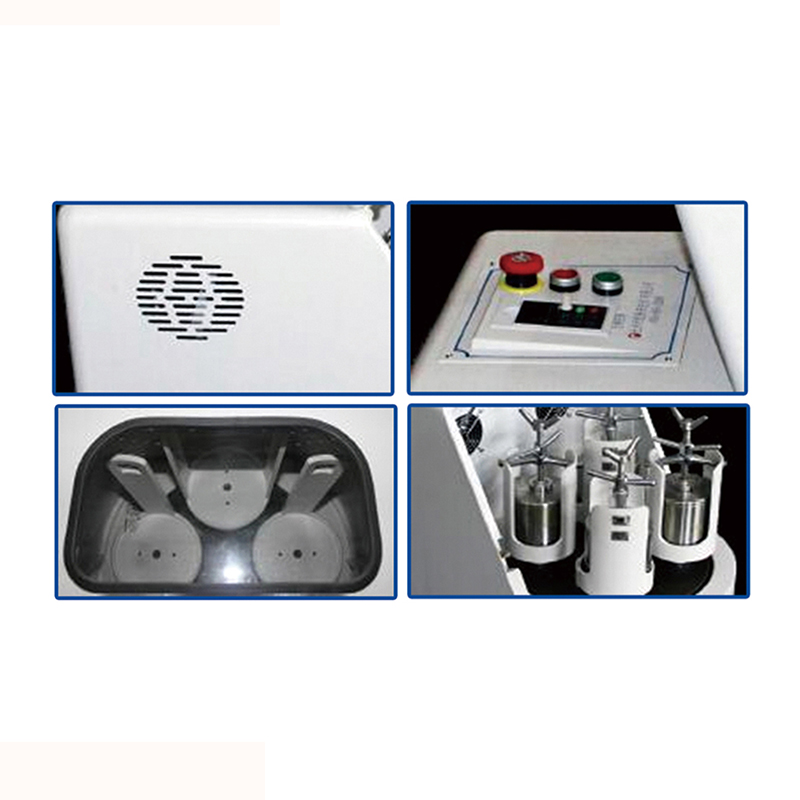

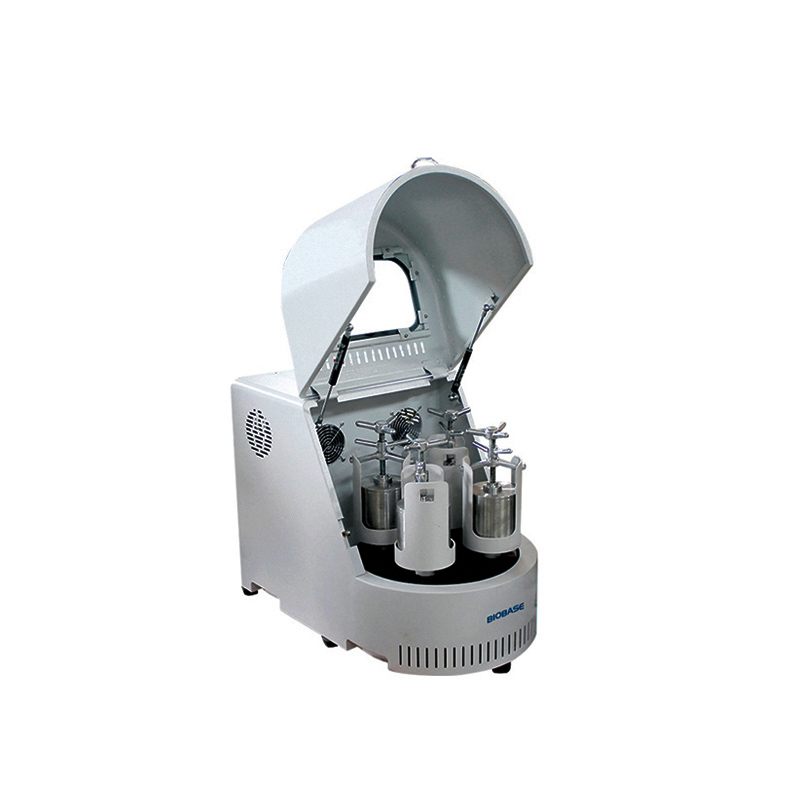

Vertical Planetary Ball Mill(Semi-circle Type)

Features:

1. 3D curve shape design.

2. Special gear with low noise.



Technical Parameters:

Model	BKBM-V0.4	BKBM-V2
Capacity	0.4L	2L
Volume of Each Capacity	50~100ml	50~500ml
Pot Quantity	4pcs
Running Time Range	1~9999min
Reciprocal Running Time	1~999min
Adjustable, Revolution	45~435rpm	35~335rpm
Speed Rotation	90~870rpm	70~670rpm
Noise	58±5dB	60±5dB
Speed Control Mode	Frequency control
Transmission Mode	Gear drive
Working Mode	2 or 4 pots can be used each time
Maximum Sample Volume(Material+Grinding Ball)	2/3 of the volume of the ball mill tank
Feed Size	Soft and Crispy material<10mm, Other materials<3mm
Out-put Granularity	Minimum granularity can be reached to 0.1μm
Adjusting Mode of Rotate Speed	Frequency converter with stepless speed regulation
Consumption	0.25KW	0.75KW
Power Supply	AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm	530*300*340	750*470*565
Package Size(W*D*H)mm	595*360*485	820*530*720
Net Weight(kg)	29	80
Gross Weight(kg)	50	100
Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately.





Vertical Planetary Ball Mill(Semi-circle Type) — professional solution in the Ball Mill category

Vertical Planetary Ball Mill(Semi-circle Type) is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Planetary Ball Mill(Semi-circle Type)

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Planetary Ball Mill(Semi-circle Type) fits easily into existing process lines and IT infrastructure.

Areas of application Ball Mill

Ball Mill solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Planetary Ball Mill(Semi-circle Type) allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Planetary Ball Mill(Semi-circle Type) you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
