Features:
1. Adjustable air speed: 8 levels.
2. 7° slope front ergonomics design, fatigue-free working posture.
3. Interlock function: UV lamp and blower, LED lamp.
4. UV lamp starts after 5 seconds delay. Protect operator safety.
5. With UV lamp, fan appointment timing function.
6. Set the safe height of the front window opening, and alarm when it is lower or higher than the safe height. Ensure that the performance of the equipment is stable.
7. Footmaster casters design, convenient cabinet movement and fixation.
Technical Parameters:
Model | BBS-V800-X | BBS-V1300-X | BBS-V1800-X |
External Size(W*D*H) | 800*665*1850mm | 1300*710*1850mm | 1800*710*1850mm |
Internal Size(W*D*H) | 700*575*625mm | 1200*575*625mm | 1700*575*625mm |
Work Surface Height | 750mm |
Max Opening | 400mm |
Display | LCD display |
Airflow Velocity | 0.3~0.45m/s |
Material | Working area: 304 stainless steel Main body: 1.2mm cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV |
Pre-Filter | Polyester fiber |
HEPA Filter | One, 99.995% efficiency at 0.3μm |
Noise | ≤65dB(A) |
Illumination | ≥300lx |
Waterproof Sockets | Two sockets, Max. Power: 500W |
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) |
Consumption | 650W | 750W | 900W |
LED Lamp | 8W*1 | 12W*1 | 16W*1 |
UV Lamp | 20W*1 | 30W*1 | 40W*1 |
Standard Accessories | Base stand, LED lamp, UV lamp, Waterproof socket*2 |
Optional Accessories | / | Camera, scanner, tablet computer |
Package Size(W*D*H) | 940*980*1350mm | 1440*980*1350mm | 1940*980*1350mm |
Gross Weight | 140kg | 220kg | 280kg |

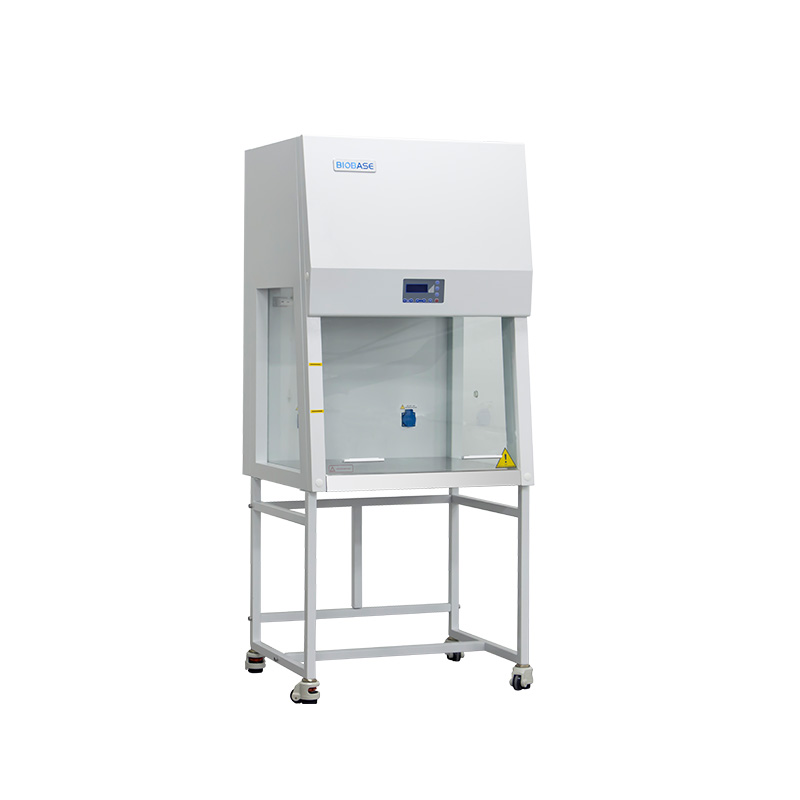

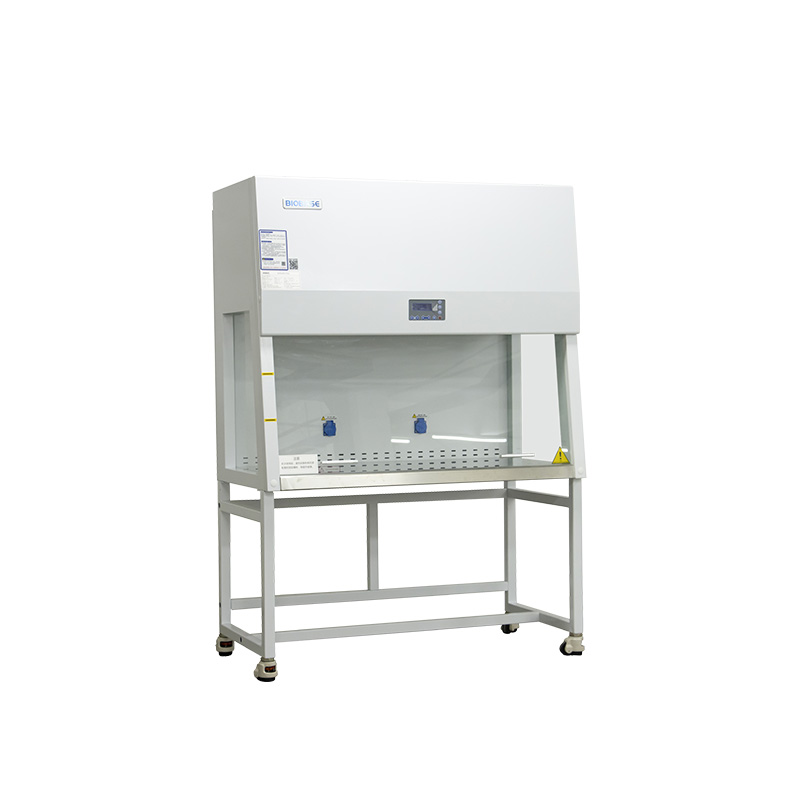

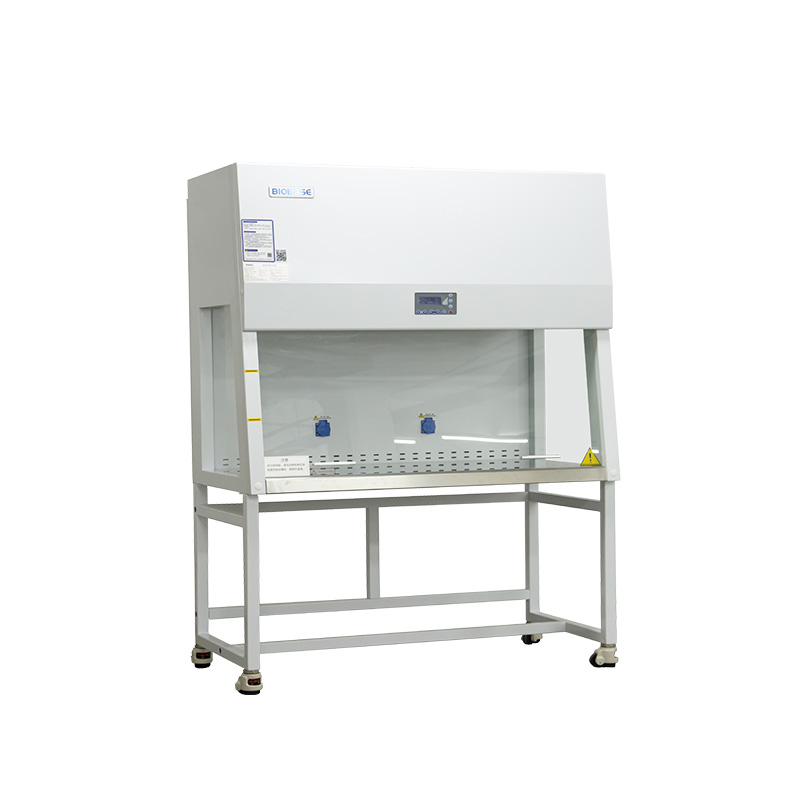

Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X — professional solution in the Laminar Flow Cabinet category
Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X fits easily into existing process lines and IT infrastructure.
Areas of application Laminar Flow Cabinet
Laminar Flow Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Vertical Laminar Flow Cabinet BBS-V800-X BBS-V1300-X BBS-V1800-X to the cart or contact our manager. We will help integrate Laminar Flow Cabinet into existing processes without downtime and unnecessary costs.
