Vertical Freeze Dryer BK-FD12 Series

Technical Parameters:

Model		BK-FD12S	BK-FD12P	BK-FD12T		BK-FD12PT

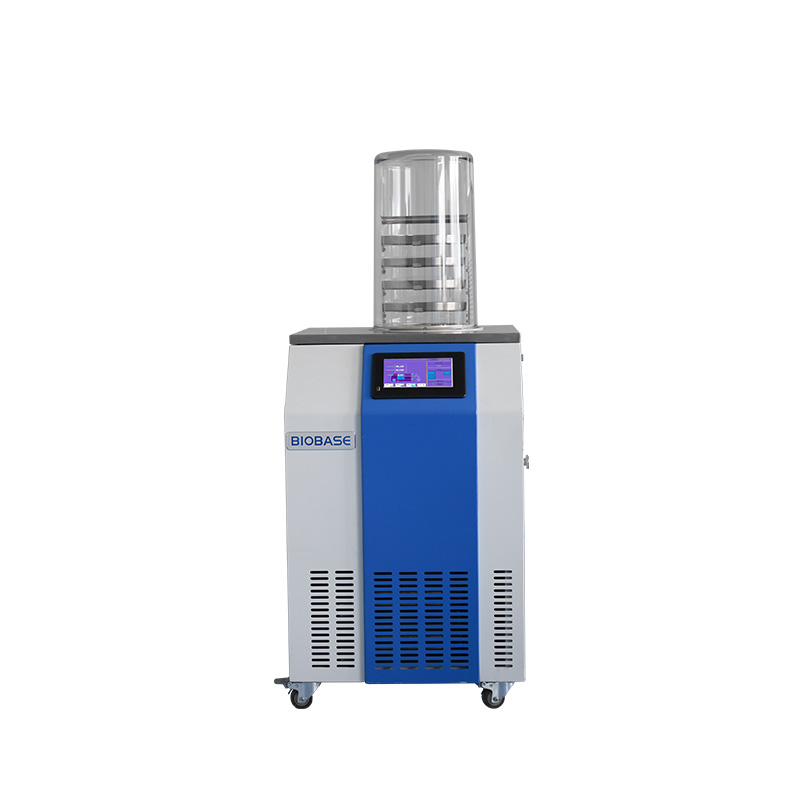

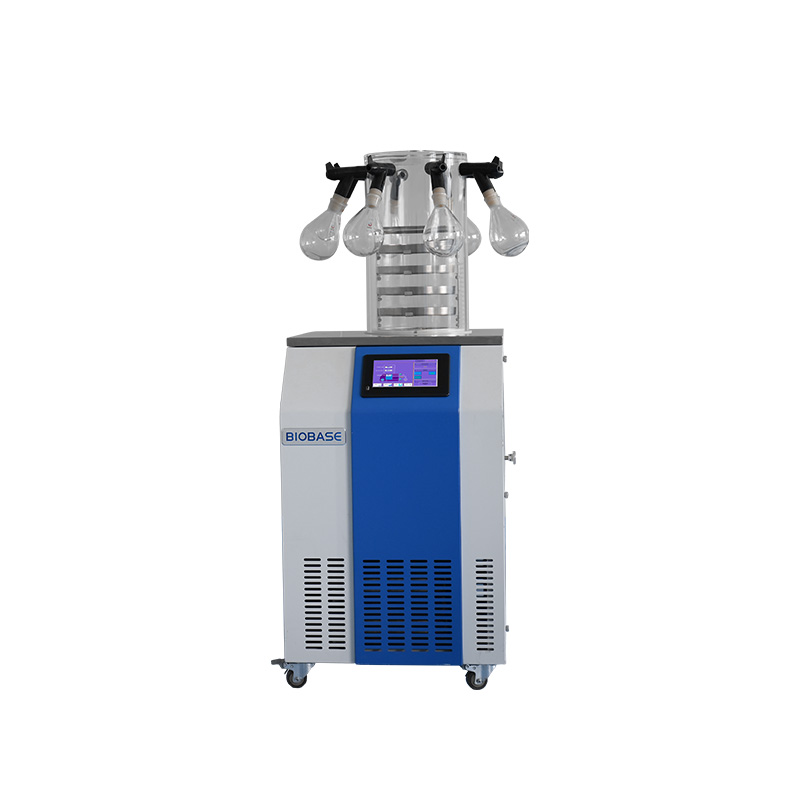

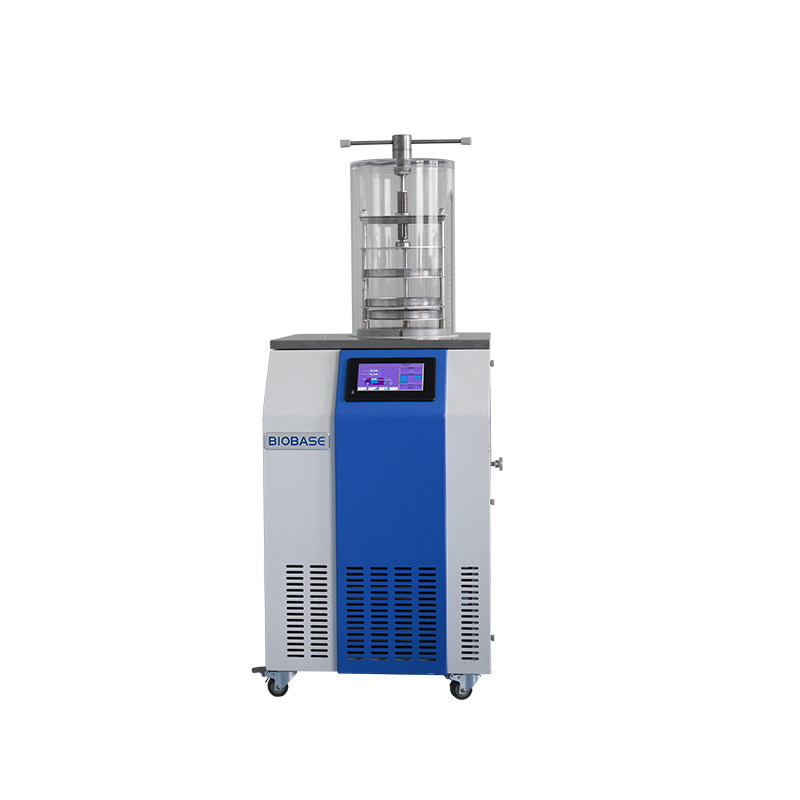

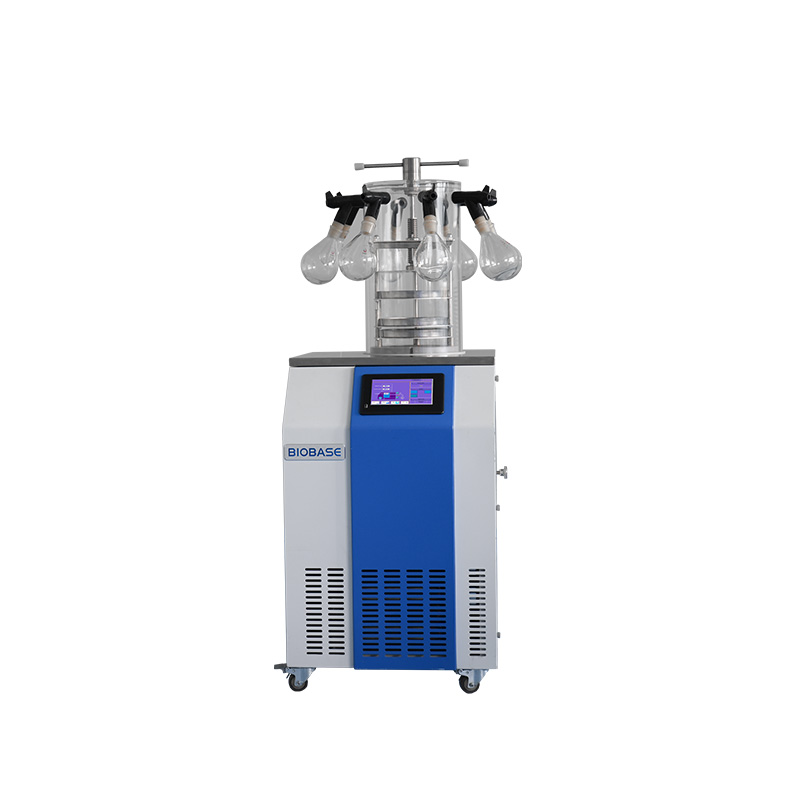

Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber		Stoppering chamber with  8 port manifold
Freeze Drying Area		0.12㎡		0.08㎡
Tray		4pcs		3pcs
Height Between Trays		50mm		/
Cold Trap Temperature		≤-60℃(No load)(-80℃ optional)
Cold Trap Capacity		9L
Cold Trap Size(Diameter*H)		Φ219*240mm
Vacuum Degree		≤5Pa
Water Capture Capacity		3~4L/24h
Tray Size(D*H)		Φ200*20mm		Φ180*20mm
Freeze Drying Time		36h
Loading Capacity/Shelf(Liquid)		1.2L		0.8L
Total Loading Capacity(Liquid)		2.4L		1.6L
Drying Chamber Size(Diameter*H)		Φ260*420mm	Φ260*465mm
Total Qty. of Vial Φ22		/	/	147		147
Total Qty. of Vial Φ16		/	/	297		297
Total Qty. of Vial Φ12		/	/	492		492
Refrigerant		-60℃: R600a, R23   -80℃: R404a, R23
Cooling System		Standard: Air cooling   Optional: Water cooling
Power Supply		Standard: 220V, 50Hz   Optional: 220V, 60Hz
Power Consumption		1400W
Standard Accessory		Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)  Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs,  500ml*2pcs, Switch valve*8pcs(only for model BK-FD12P/PT), USB port
Optional Function & Accessory		Equipment moving frame, vacuum pump of other specifications, oil mist filter, and other customization(for all models) 600ml/1200ml wide-mouth flask(for BK-FD12P/PT)
External Size(W*D*H)mm		520*625*865
Package Size(W*D*H)mm	Main Body	665*765*1140
	Accessory	720*605*560
Gross Weight(kg)		-60℃: 95 -80℃: 114
		45	49	54	56



Vertical Freeze Dryer BK-FD12 Series — professional solution in the Freeze Dryer category

Vertical Freeze Dryer BK-FD12 Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Freeze Dryer BK-FD12 Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Freeze Dryer BK-FD12 Series fits easily into existing process lines and IT infrastructure.

Areas of application Freeze Dryer

Freeze Dryer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Freeze Dryer BK-FD12 Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Freeze Dryer BK-FD12 Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
