Vertical Freeze Dryer

Models:

Model		BK-FD18S(-56/-80)	BK-FD18P(-56/-80)	BK-FD18T(-56/-80)	BK-FD18PT(-56/-80)

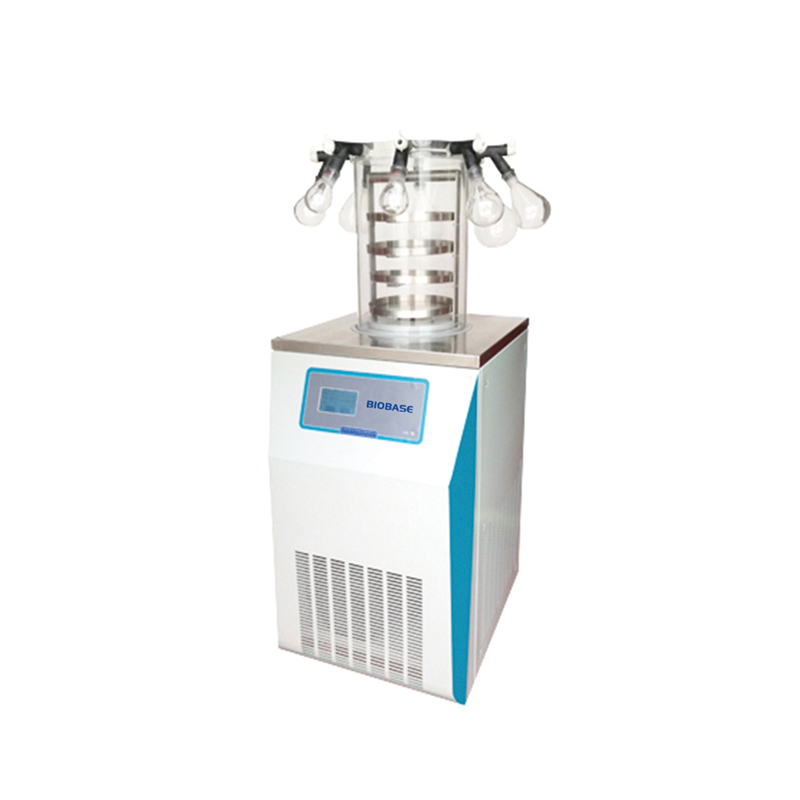

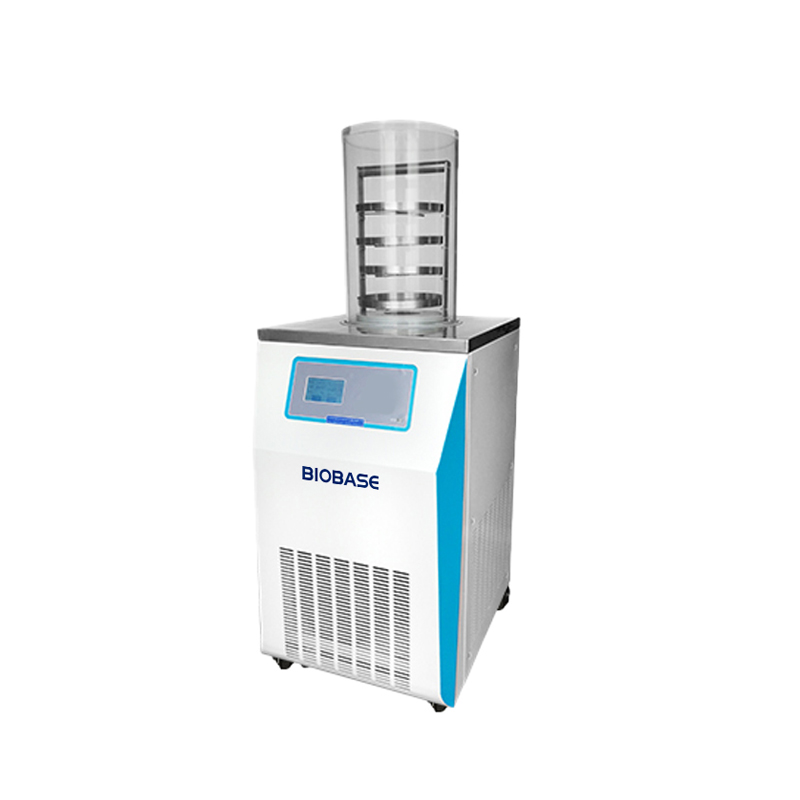

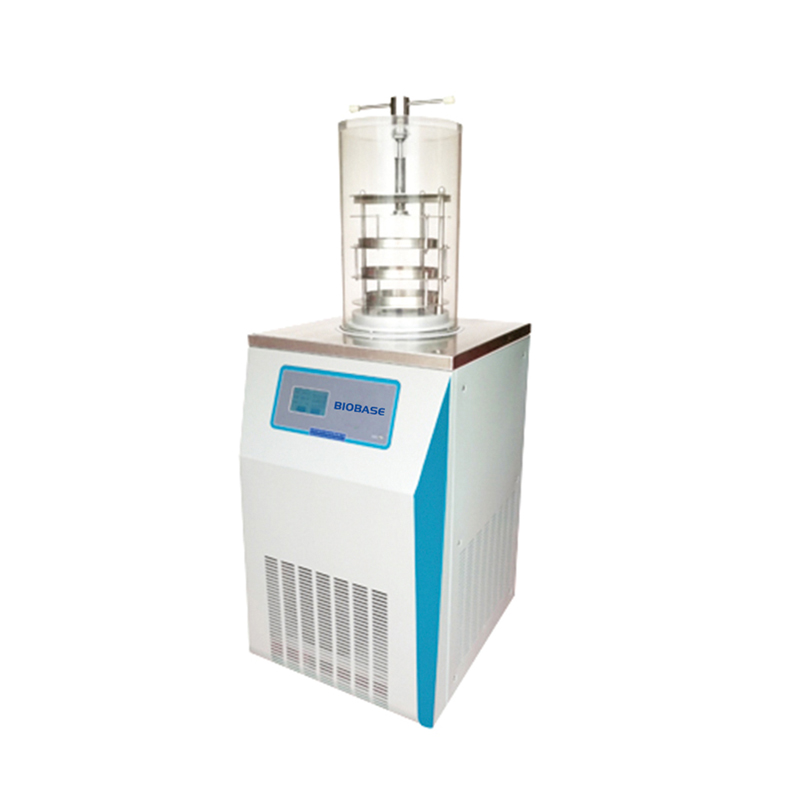

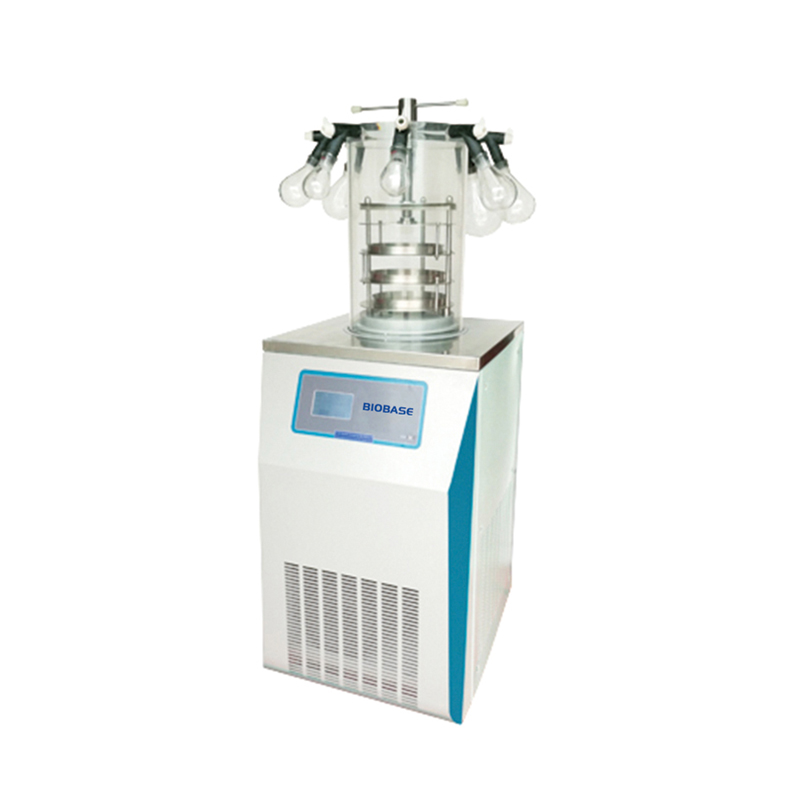

Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area		0.18m²		0.09m²
Tray		4pcs		3pcs
Height Between Trays		70mm
Cold Trap Temperature		≤-56℃/-80℃(Optional)
Cold Trap Capacity		23L
Cold Trap Size (Dr*H)		Φ270*400mm
Vacuum Degree		<5Pa
Water Capture Capacity		6kg/24h
Tray Size (D*H)		Φ240*18mm		Φ200*18mm
Freeze Drying Time		18-36h
Loading Capacity/Shelf (Liquid)		0.45L		0.3L
Total Loading Capacity (Liquid)		1.8L		0.9L
Drying Chamber Size (D*H)		Φ300*445mm	Φ300*465mm	Φ300*540mm	Φ300*570mm
Can Load Vials Qty	Φ22mm	/		270
	Φ16mm	/		555
	Φ12mm	/		990
Refrigerant		R404+R23
Cooling System		Air cooling
Consumption		-56℃: 1.4KW; -80℃: 2.1KW.		-56℃: 1.4KW; -80℃: 2.1KW.
Power Supply		AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase)
Standard Accessory		-56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT)
Optional Function & Accessory		-80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT)
External Size (W*D*H)		630*580*970/1415mm	630*580*970/1435mm	630*580*970/1510mm	630*580*970/1810mm
Package Size(W*D*H)mm / Gross Weight	Main Body	790*690*1200(148kg)
	Drying Chamber	420*420*560(14kg)	430*430*660 (26kg)
	Vacuum Pump	620*370*450 (32kg)

Vertical Freeze Dryer — professional solution in the Freeze Dryer category

Vertical Freeze Dryer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Freeze Dryer

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Freeze Dryer fits easily into existing process lines and IT infrastructure.

Areas of application Freeze Dryer

Freeze Dryer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Freeze Dryer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Freeze Dryer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
