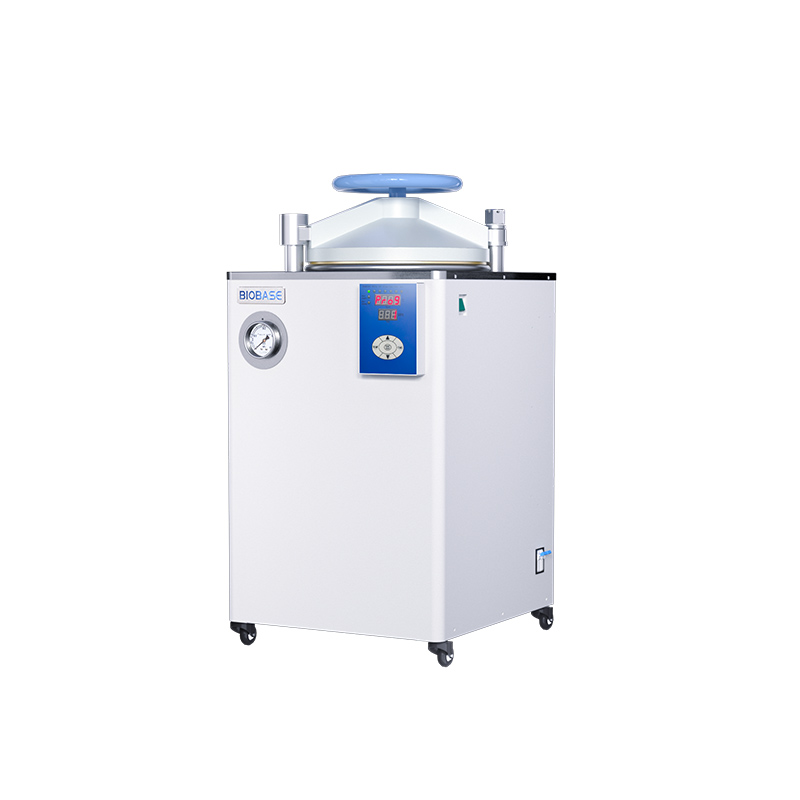

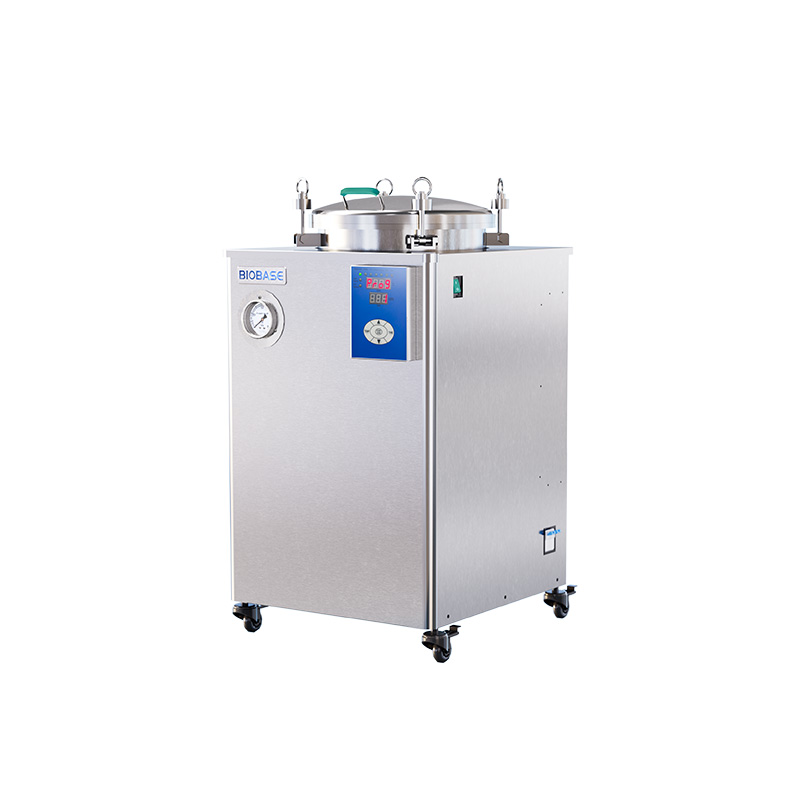

Vertical Autoclave 50L

Features：
1. High-quality materials: The sterilization chamber is made of high-quality S30408 stainless steel with electrolytic polishing, which is not prone to corrosion and rust. The pot wall is covered with insulating cotton.

2. Operation interface: It uses an LED digital tube display, which can display real-time information such as the operating status of the equipment during operation, the temperature inside the chamber, and alarm codes, facilitating users' observation.

3. Diverse programs:

BKQ-Z50E: Solid bare instrument program(126°C), packaged instrument program(126°C), rubber program(121°C), fabric program(126°C), liquid program(121°C), custom program 1(105~126°C), custom program 2(105~126°C), select the appropriate program and temperature according to the items to be sterilized.

BKQ-B50E:Solid bare instrument program(134°C), packaged instrument program(134°C), rubber program(121°C), fabric program(134°C), liquid program(121°C), custom program 1(105~136°C), custom program 2(105~136°C), select the appropriate program and temperature according to the items to be sterilized.

4. Safety protection: Automatic over-temperature protection function for the equipment, over-pressure protection, over-current and leakage safety device.

Technical Parameters:

Model	BKQ-Z50E	BKQ-B50E
Capacity	50L
Designed Pressure	0.2MPa	0.28MPa
Working Pressure	0.16MPa	0.23MPa
Designed Temp.	126℃	121/134℃
Temp. Precision	0.1℃
Chamber Material	S30408
Chamber Size	φ319*610mm	φ316*640mm
Basket/ Bucket	φ300*250, 2pcs
Noise	≤65dB
Altitude	≤2700m
Standard Accessory	Mesh bottom basket
Optional Accessories	Printer, bucket, tray
Consumption	3.1KW
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H)	525*475*890mm	525*475*960mm
Net Weight	49kg	61kg
Package Size(W*D*H)	635*550*1020mm	635*550*1090mm
Gross Weight	60kg	72kg

Vertical Autoclave 50L — professional solution in the Class B Autoclave category

Vertical Autoclave 50L is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Vertical Autoclave 50L

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Vertical Autoclave 50L fits easily into existing process lines and IT infrastructure.

Areas of application Class B Autoclave

Class B Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Vertical Autoclave 50L allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Vertical Autoclave 50L you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
