Features:
1. Adjustable scanning speed: high, medium, or low.
2. System upgrade capability, customers provide the instrument number for one-click USB upgrade(Lifetime free upgrades).
3. Large storage capacity, capable of storing 57,600 sets of data.
4. Test data can be exported via USB.
5. Optional printer for real-time printing of measurement results.
Technical Parameters:
Model | BK-V1000G | BK-V1600G | BK-UV1000G | BK-UV1600G | BK-UV1800G |
Display | Matrix LCD | LCD touch screen | Matrix LCD | LCD touch screen |
Optical System | Single beam, grating 1200L/mm |
Wavelength | 325~1020nm | 325~1100nm | 200~1020nm | 190~1100nm |
Spectral Bandwidth | 4.0nm | 2.0nm |
Wavelength Accuracy | ±1.5nm | ±0.5nm |
Wavelength Repeatability | ≤0.2nm |
Photometric Accuracy | ±0.002A(0~0.5A), ±0.004A(0.5~1.0A), ±0.4%T(0~100%T) | ±0.002A(0~0.5A), ±0.004A(0.5~1.0A), ±0.3%T(0~100%T) |
Photometric Repeatability | 0.001A(0~0.5A), 0.002A(0.5~1.0A), ≤0.2%T(0~100%T) | 0.001A(0~0.5A), 0.002A(0.5~1.0A), ≤0.15%T(0~100%T) |
Stray Light | ≤0.1%T(360nm) | ≤0.1%T(220nm, 360nm) | ≤0.05%T(220nm, 360nm) |
Stability | ±0.001A/h(500nm) |
Photometric Range | -0.301~3.0A; 0~200%T; 0~9999C |
Photometric Mode | A, T, C, F | A, T, C, E |
Wavelength Setting | Automatic |
Output | RS232, USB | RS232, USB, WiFi, bluetooth printer(Optional) | RS232, USB | RS232, USB, WiFi, bluetooth printer(Optional) |
Detector | Imported silicon photodiode |
Light Source | Tungsten lamp | Deuterium lamp, tungsten lamp |
Standard Accessory | 10mm glass cuvette*4 | 10mm glass cuvette*4, PC software | 10mm glass cuvette*4, 10mm quartz cuvette*2 | 10mm glass cuvette*4, 10mm quartz cuvette*2, PC software |
Optional Accessory | Thermal printer | Bluetooth printer | Thermal printer | Bluetooth printer |
Power Supply | AC100~220V, 50/60Hz |
External Size(W*D*H) | 466*365*200mm | 466*365*220mm |
Package Size(W*D*H) | 493*590*300mm |
Net Weight | 10.1kg | 11.1kg | 10.55kg | 11.55kg | 12kg |
Gross Weight | 13.8kg | 14.8kg | 14.75kg | 15.75kg | 16.2kg |

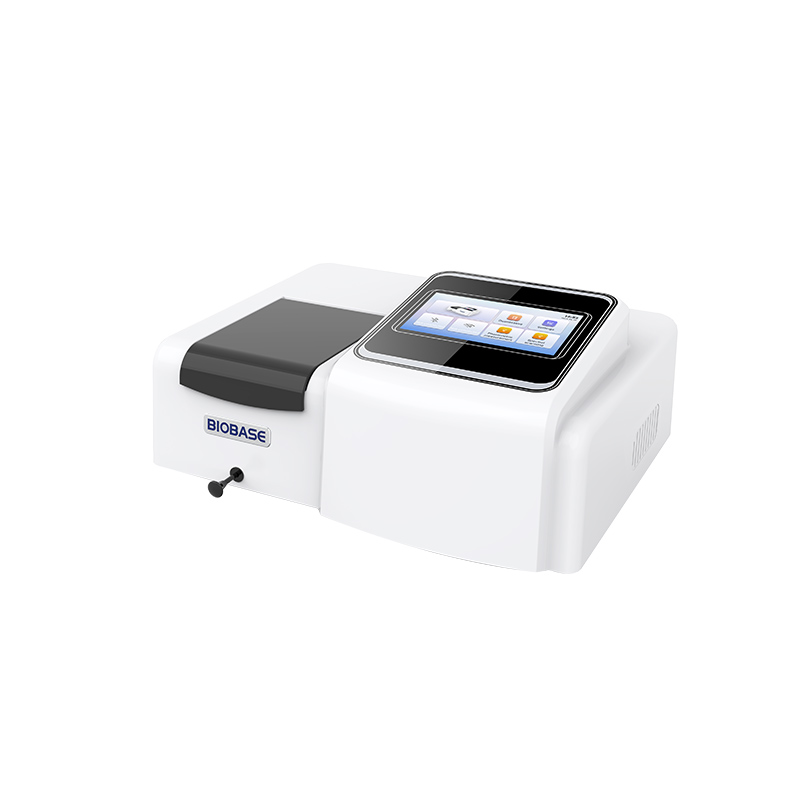

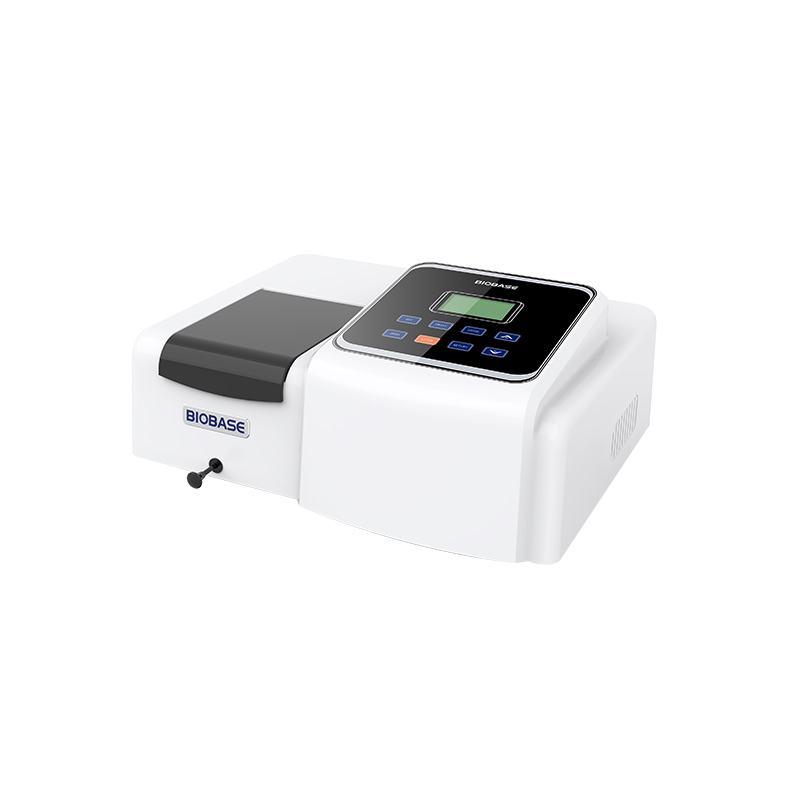

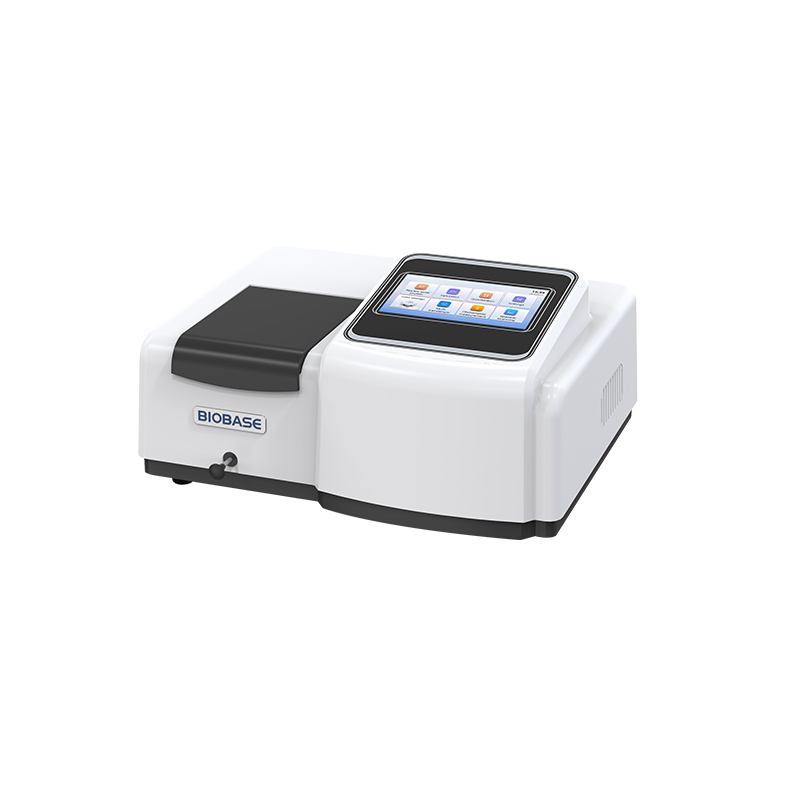

UV/VIS Spectrophotometer BK-V Series — professional solution in the Spectrophotometers category
UV/VIS Spectrophotometer BK-V Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why UV/VIS Spectrophotometer BK-V Series
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: UV/VIS Spectrophotometer BK-V Series fits easily into existing process lines and IT infrastructure.
Areas of application Spectrophotometers
Spectrophotometers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing UV/VIS Spectrophotometer BK-V Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with UV/VIS Spectrophotometer BK-V Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add UV/VIS Spectrophotometer BK-V Series to the cart or contact our manager. We will help integrate Spectrophotometers into existing processes without downtime and unnecessary costs.
