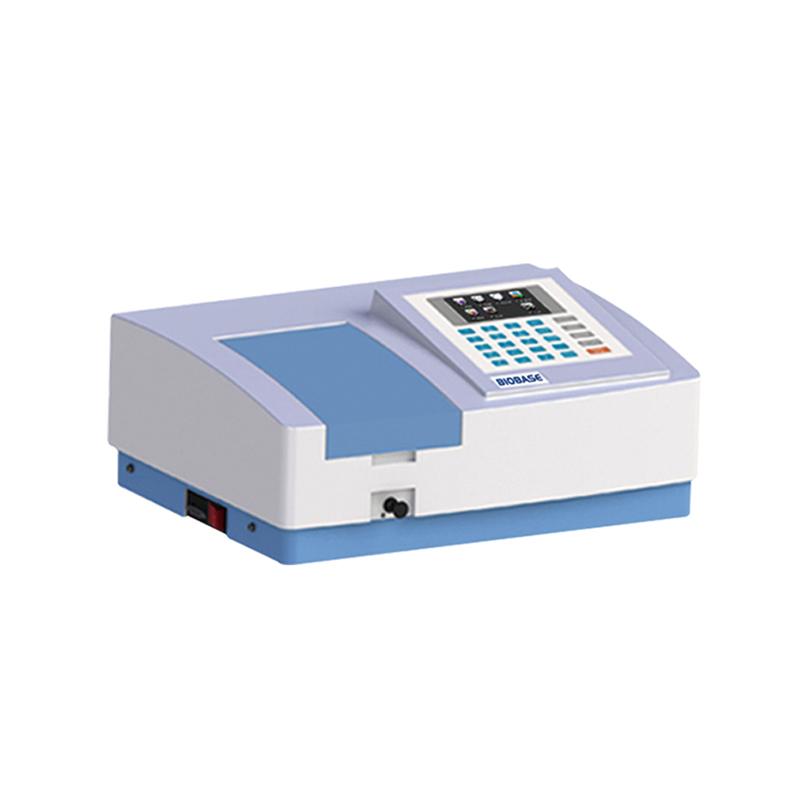

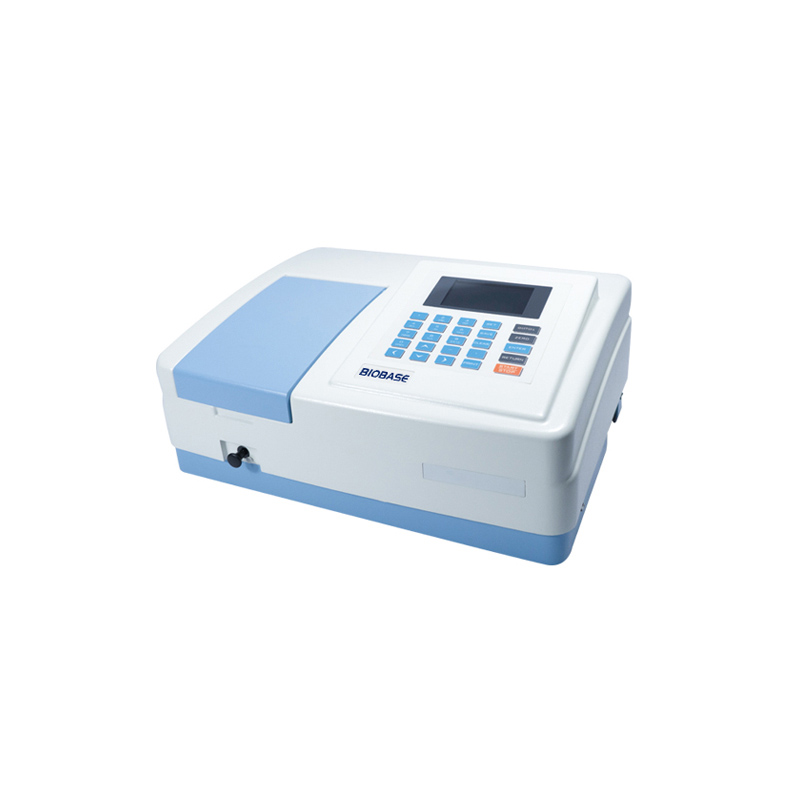

Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600

Features:

1. With SiO2 coating optical mirror, reducing the pollution from outside fully.

2. Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically.

3. With GLP self-check function, check the wavelength accuracy and Photometry accuracy.

4. PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics, Spectrum Scanning, DNA/Protein test for PC Series.

Basic Functions:

1, Photometry

Test Abs., Transmittance and Energy by fixed wavelength.

2. Quantitative

Linear fit and Linear fit through zero two modes.

a. Coefficient, Standard sample input and standard sample read three modes to establish standard curve.

b. Establish A=K1*C+K0, can search original data, graph curve, parameters settings.

c. Can save 240 group curves, can test 240 data in each curve.

d. Double wavelength, Triple wavelength test functions.

3. Kinetics

Used for time course scanning or reaction ratecalculations△A/t,can search all data.

4. Multi-Wavelength

Can test Transmittance and Abs. with 8 different wavelengths at most.



Technical Parameters:

Model	BK-UV1800 BK-UV1800PC	BK-UV1600 BK-UV1600PC	BK-V1800 BK-V1800PC	BK-V1600 BK-V1600PC
Optical System	Single Beam, Grating 1200 lines/mm
Wavelength Range	190~1100nm		320~1100nm
Spectral Bandwidth	2nm	4nm	2nm	4nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.2nm
Photometric Accuracy	±0.002A(0~0.5Abs), ±0.004A(0.5~1.0Abs), ±0.5%T(0~100%T)
Photometric Repeatability	0.001Abs(0~0.5Abs), 0.002Abs(0.5~1.0Abs), ≤0.2%T(0~100%T)
Stray Light	≤ 0.04%T@360nm; 220nm		≤0.04%T@360nm
Stability	±0.001A/h@500nm
Baseline Flatness	±0.002A
Noise	±0.0005A
Display	480*272 65 thousand true color TFT LCD
Photometric Mode	T, A, C, E
Photometric Range	0~200% T, -0.301~3.0A
Detector	Silicon Photodiode
Light Source	Deuterium Lamp, Tungsten Lamp
Input	Membrane Keypad
Output	USB-A*2 Print and data output USB-B Connect PC
Standard Accessories	1cm glass cuvette*4, 1cm quartz cuvette*2, 1cm quadruple cuvette holder*1, Scanning software(only for PC type)		1cm glass cuvette*4, 1cm quadruple cuvette holder*1, Scanning software(only for PC type)
Optional Accessories	1cm standard single slot cuvette holder, long optical path cuvette holder, cuvette, micro cuvette, test tube type absorber rack, solid sample holder, deuterium lamp(only for UV series),tungsten lamp, quadruple cuvette holder, printer, four-slot water bath type constant temperature absorption pool, X-Y adjustable micro absorption pool, single bath type constant temperature absorption pool, program-controlled thermostatic absorption pool seat, 8 racks, reflection accessories, general application software or scanning software(not for PC type)
Power Supply	AC110/220V±10%, 60/50Hz
Packing Size(mm)	620*500*370	620*500*370	620*500*370	620*500*370
Gross Weight(kg)	18	18	16.5	16.5





Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600 — professional solution in the Spectrophotometers category

Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600 fits easily into existing process lines and IT infrastructure.

Areas of application Spectrophotometers

Spectrophotometers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Uv Vis Visible Spectrophotometer BK-UV1800 BK-UV1600 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
