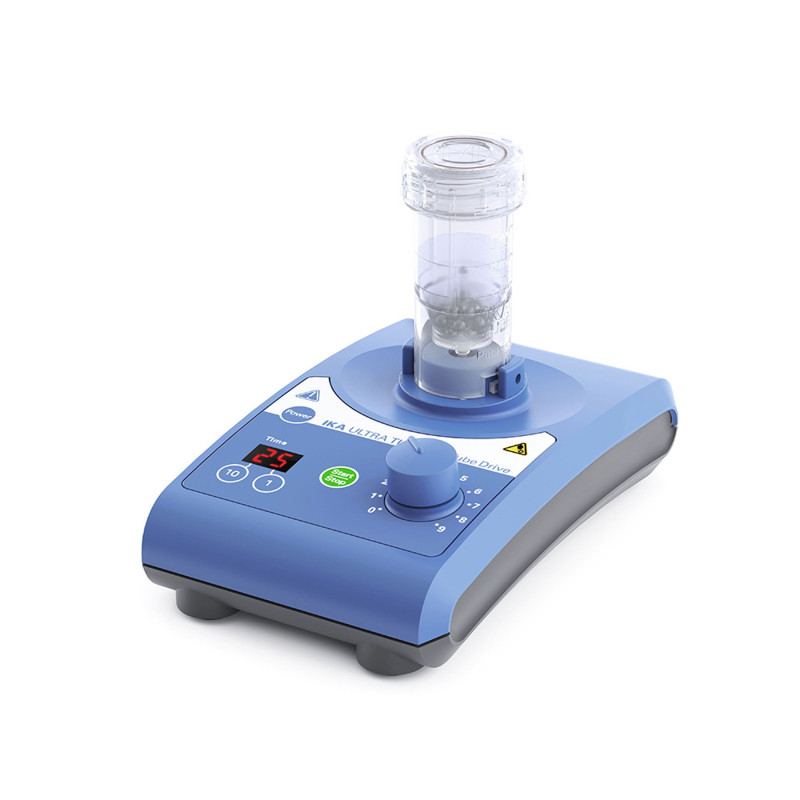

UTTD basic Tissue Solution

Microbiological and molecular biological analysis of patient samples: The crushing and disruption of tissue, cartilage and bone samples is an essential step before the actual microbiological and molecular biological analysis of patient samples. The challenges in this preoperative step are to crush the sample homogeneously and not to contaminate the sample on the way to analysis. With the ULTRA-TURRAX® Tube Drive, IKA offers a powerful, universal shredding drive that is operated in combination with patented disposable plastic containers. The sample containers specially developed for in-vitro diagnostics are available in single or double sterile packaging and are already filled with 5 ml of 0.90% saline solution. The crushing of the sample is carried out with 10 stainless steel balls contained in the tube, which are set in motion with the help of the drive via a tumbler with up to 3000 revolutions. The accelerated balls break up the sample or reliably detach tissue from the bone. Any germs that may be present pass into the liquid phase (NaCl solution). The sample material can be introduced into the sterile sample container directly in the or after opening the lid. The subsequent transport to the laboratory takes place in a hermetically sealed container. In the microbiological laboratory, the tube is placed directly on the drive and the sample is crushed. This eliminates the need for additional mechanical processing. A risk of cross-contamination can thus be ruled out. The samples can then be taken via the pierceable membrane in the sample lid. The lockable disposable sample tubes are transport containers, comminution containers and storage all in one. They significantly reduce the cleaning effort and systematically rule out cross-contamination. Users benefit from reduced handling costs and a reduced number of incorrect diagnoses. The disposable tubes BMT-20-S-IVD included in the package are a Invitro diagnostic product according to Directive 98/79/EG and manufactured according to ISO 13485:2016. Approved for all EU countries. Important note: The maximum processing time for the tubes is 1 minute using an automated process similar to the ULTRA-TURRAX® Tube Drive. If the processing time is longer, the mechanical load can become too great and leaks can occur. The process must be validated by the customer. Please also note the operating instructions for the ULTRA-TURRAX® Tube Drive. Features of the tubes: • Volume [mL]: 20 • Working range [mL]: 5 - 15 • Functional unit: 10 steel balls, 5mm • Membrane cover: yes • Sterile: yes • IVD marking: yes • Packaging unit [pcs]: 50 • Applications: dry grinding, cell disruption, wet grinding • Miscellaneous: incl. 5 mL NaCl solution Motor rating input [W]: 20 Motor rating output [W]: 17 Speed display: scale Speed range [rpm]: 300 - 6000 Viscosity max. [mPas]: 5000 Speed deviation [%]: 10 Speed adjustment: stepless Noise without element [dB(A)]: 50 Process type: batch Dimensions (W x H x D) [mm]: 100 x 40 x 160 Weight [kg]: 0.75 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 Voltage [V]: 100 - 240 Frequency [Hz]: 50/60 Power input [W]: 20 DC Voltage [V=]: 24 Current consumption [mA]: 800

UTTD basic Tissue Solution — professional solution in the IKA®-Werke GmbH & Co. KG category

UTTD basic Tissue Solution is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why UTTD basic Tissue Solution

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: UTTD basic Tissue Solution fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing UTTD basic Tissue Solution allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with UTTD basic Tissue Solution you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
