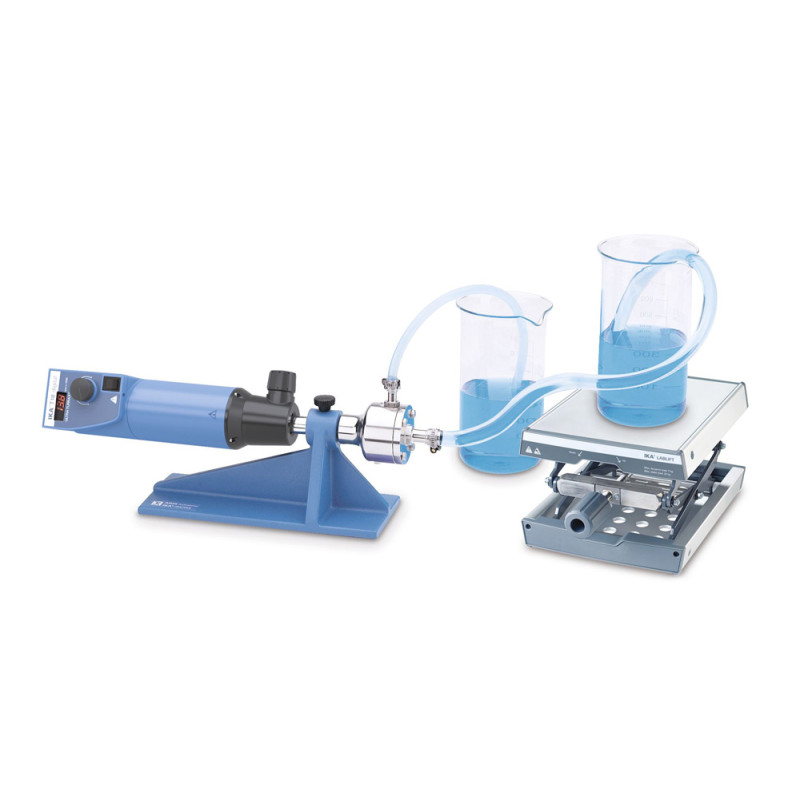

UTL 25 digital Inline ULTRA-TURRAX®

For circulation or flow-through processing in the laboratory. - Simple, compact and sturdy modular design - Sterilizable, autoclave-compatible - Table-top or stand-supported device, low space requirement - Easy disassembly - Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate) - For air-free, sterile, and inline suspension, emulsifying and deagglomeration - For vacuum or pressurized operation (up to 6 bar) - If the DK 25.11 is used, air induction is also prevented in batch operation - Not self-priming - A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed - Not suitable for continuous operation or cyclical continuous operation - The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber Motor rating input [W]: 500 Motor rating output [W]: 300 Pump rate [l/min]: 11.6 Speed range [rpm]: 3000 - 25000 Speed display: scale Speed adjustment: stepless Noise without element [dB(A)]: 73 Extension arm diameter [mm]: 13 Extension arm length [mm]: 175 Chamber volume [ml]: 26 Attainable vacuum [mbar]: 1 Pressure max. [bar]: 6 Process type: inline Dimensions (W x H x D) [mm]: 450 x 120 x 100 Weight [kg]: 3.8 Permissible ambient temperature [°C]: 5 - 40 Permissible relative humidity [%]: 80 Protection class according to DIN EN 60529: IP 20 Voltage [V]: 230 Frequency [Hz]: 50/60 Power input [W]: 500

UTL 25 digital Inline ULTRA-TURRAX® — professional solution in the IKA®-Werke GmbH & Co. KG category

UTL 25 digital Inline ULTRA-TURRAX® is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why UTL 25 digital Inline ULTRA-TURRAX®

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: UTL 25 digital Inline ULTRA-TURRAX® fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing UTL 25 digital Inline ULTRA-TURRAX® allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with UTL 25 digital Inline ULTRA-TURRAX® you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
