Features:
1. LCD touch screen display.
2. Storage capacity: 20 groups of program data.
3. Temp. monitor: over-temperature protection.
4. Other functions: automatic tracking the frequency, fault alarm.
Technical Parameters:
Model | UCD-150 | UCD-250 | UCD-500 | UCD-650 | UCD-950 | UCD-1200 | UCD-1500 | UCD-1800 | UCD-2000 |
Frequency(KHz) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 19.5~20.5 | 19.5~20.5 | 19.5~20.5 | 19.5~20.5 |
Crushing Capacity(ml) | 0.1~150 | 0.1~300 | 0.1~400 | 0.1~500 | 0.1~700 | 1~1000 | 1~1500 | 1~1200 | 50~2000 |
Standard Amplitude-change PoleΦ(mm) | 6 | 20 | 22 | 22 | 25 |
Optional Amplitude-change Pole Φ(mm) | 2, 3, 6, 8,10 | 2, 3, 6, 8, 10 | 2, 3, 6, 8, 10, 12 | 2, 3, 6, 8, 10, 12 | 2, 3, 6, 8, 10, 12, 15 | 3, 6, 10, 15, 22, 25 | 10, 15, 20, 22, 25 | 10, 15, 20, 22, 25 | 10, 15, 20, 25 |
Ultrasonic Power(W) | 1.5~150 | 2.5~250 | 5~500 | 6.5~650 | 10~1000 | 12~1200 | 15~1500 | 18~1800 | 0~2000 |
Power Supply | AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
Package Size(W*D*H) | 350*350*550mm(Acoustic chamber) 470*305*430mm(Main body) |
Gross Weight | 26kg | 29kg |
Technical Parameter for Amplitude Pole:
Size | Crushing
Capacity | Recommended
Power Ratio | Frequency(KHz) | UCD-150 | UCD-250 | UCD-500 | UCD-650 | UCD-950 | UCD-1000 | UCD-1200 | UCD-1500 | UCD-1800 | UCD-2000 |
φ2mm | 0.1~5ml | 1~35% | 20~25 | √ | √ | √ | √ | √ | √ | x | x | x | x |
φ3mm | 3~10ml | 1~45% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | x |
φ5mm | 5~100ml | 1~60% | 20~25 | x | x | x | x | x | x | x | x | x | x |
φ6mm | 10~100ml | 1~70% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
φ8mm | 20~200ml | 1~85% | 20~25 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
φ10mm | 30~300ml | 1~90% | 20~25 | v | √ | √ | √ | √ | √ | x | x | x | x |
φ10mm | 30~300ml | 1~60% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
φ12mm | 50~600ml | 10~90% | 20~25 | x | x | √ | √ | √ | √ | x | x | x | x |
φ15mm | 200~750ml | 10~95% | 20~25 | x | x | x | x | √ | √ | x | x | x | x |
φ15mm | 50~500ml | 5~80% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
φ20mm | 100~1000ml | 10~90% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
φ22mm | 200~1200ml | 20~95% | 19.5~20.5 | x | x | x | x | x | x | √ | √ | √ | √ |
φ25mm | 300~1500ml | 30~95% | 19.5~20.5 | x | x | x | x | x | x | x | √ | √ | √ |

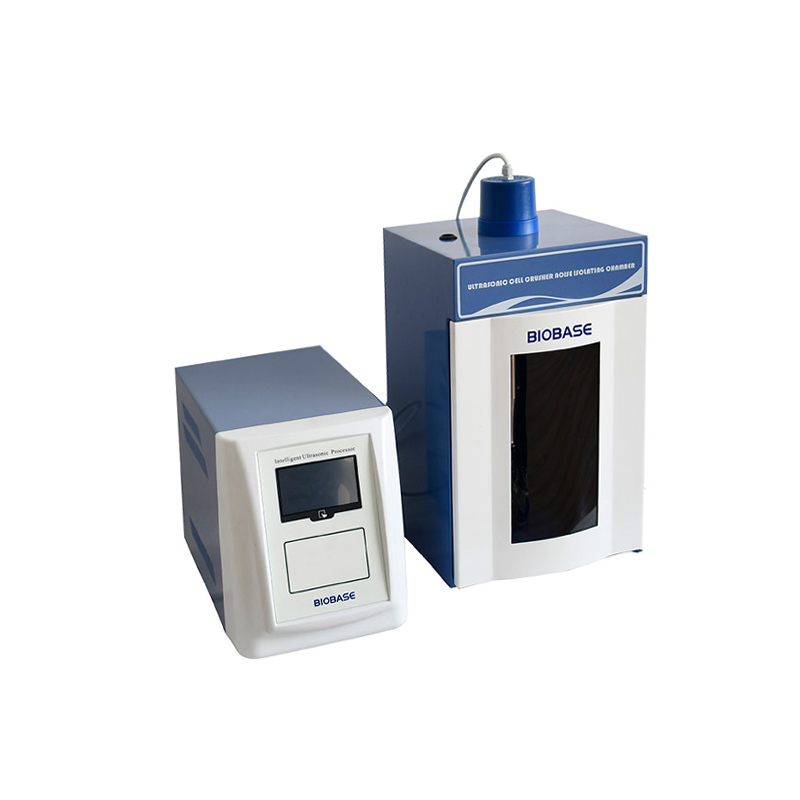

Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 — professional solution in the Ultrasonic Cell Disruptor category
Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 fits easily into existing process lines and IT infrastructure.
Areas of application Ultrasonic Cell Disruptor
Ultrasonic Cell Disruptor solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 to the cart or contact our manager. We will help integrate Ultrasonic Cell Disruptor into existing processes without downtime and unnecessary costs.
