Transmission spectrophotometer DS-810

Parameter Specification:

Measurement Condition	d/0(Scattered light source, 0-degree observation Angle）(CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、JIS Z8722 Condition c)
Integrating Sphere	Φ40mm, Avian-D Full diffuse reflection surface coating
Lighting Source	CLEDs(Full-band balanced Led light source）
Inductor	Dual-optical path sensing array sensor
Wavelength Range	400~700nm
Wavelength Coverage	10nm
Half-band Width	5nm
Measuring Range	0~200%
Resolution Ratio	0.0001
Observer's Perspective	2°/10°
Observe the Light Source	A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84
Display	Transmission graph/data, sample chromaticity value, color difference value/graph, pass/fail result, color bias, color simulation, historical data color simulation, manual input of standard sample, test report
Measurement Interval	1s
Measure time	1s
Measure Aperture	Φ10mm
Color Space	CIE Lab, LCh, CIE Luv, XYZ, Yxy, transmissivity, Hunter Lab Munsel, MI, CMYK
Color Difference Formula	ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00
Other Indicators	WI(ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Isomerism index Milm, color fastness, Color fastness, APHA, Pt-Co(platinum-to-cobalt index), Gardner(Gardner Index), Saybolt(Sebert Index), Astm Color, Saybolt, ASTM Color
Repeatability	Spectral transmittance: Standard deviation within 0.08%, chromaticity value: ΔE*ab 0.015(After correction, measure the standard deviation of air 30 times at intervals of 5 seconds), maximum value
Inter-instrument Agreement	ΔE*ab0.2
Data Interface	USB
Data Storage	Massive Storage(PC)
Size	475*340*150mm(L*W*H)
Weight	7kg
Operating Temperatur	The temperature range is 0 to 45℃, with a relative humidity of 80% or lower(at 35°C), and no water vapor condensation
Storage Temperature	From -25°C to 55°C, with a relative humidity of 80% or lower(at 35°C), and no condensation of water vapor

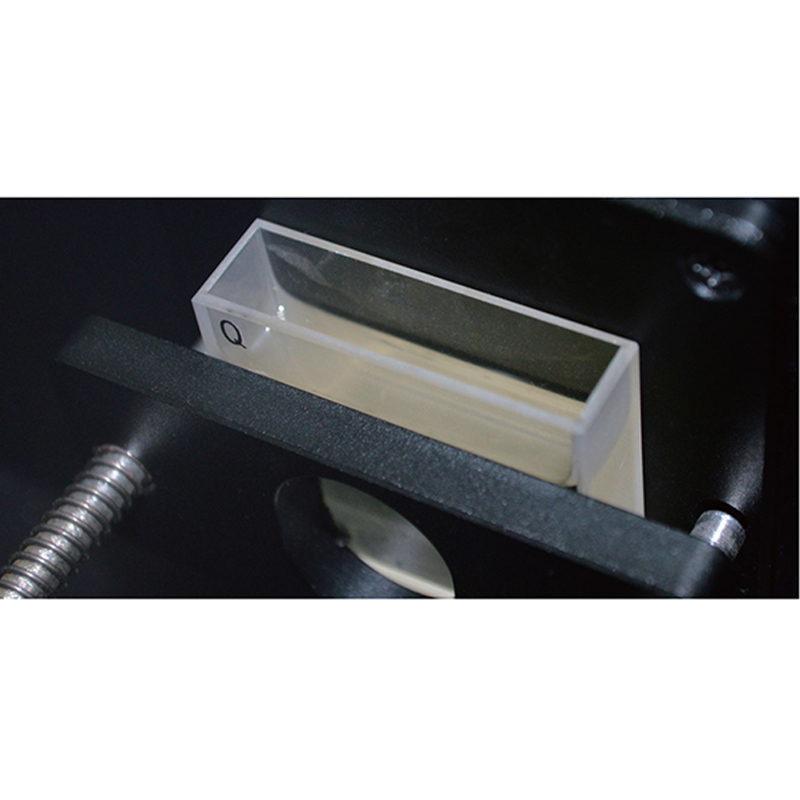

Standard Equipment	Power cord, color management software, driver software, data cable, black correction board, 40*10mm cuvette
Optional Accessories	40*33mm cuvette(for measuring ASTM color), 40*100mm cuvette(for measuring Saybolt)

Transmission spectrophotometer DS-810 — professional solution in the Spectrometers category

Transmission spectrophotometer DS-810 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Transmission spectrophotometer DS-810

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Transmission spectrophotometer DS-810 fits easily into existing process lines and IT infrastructure.

Areas of application Spectrometers

Spectrometers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Transmission spectrophotometer DS-810 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Transmission spectrophotometer DS-810 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
