Feature：
● Advanced work mode DSP digital control Technology, high performance.
● Protection of comprehensive and reliable it can effectively solve 9 power problems such as power failure, surge, transient, spike, etc.
● The design of optimizing battery pack 1KVA-24VDC/36VDC(optional), 2KVA-48VDC/72VDC(optional) and 3KVA-72/96VDC(optional).
● Function of the charger extension charging current is 1-4A, support extended to 6A.
● Strong adaptability to environment overload capacity is 120%.
● Intelligent management RS232/USB are optional.
● Overload capacity: 105%-125%, 1mins; load>125%,30s turn to bypass output; load>150%,300ms turn off.
Technical Parameter:
Model | BK-U1101B | BK-U1101H | BK-U1102B | BK-U1102H | BK-U1103B | BK-U1103H |
Capacity | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
Input | Voltage | 110 - 300 VAC (Auto sensing) |
Power Factor | 0.99 (nominal output @ full load) |
Frequency | 46Hz ~55 Hz or 56Hz ~ 64 Hz |
Phase | Single phase with ground |
Output | Voltage | 200/208/220/230/240 VAC |
AC Voltage Regulation (Static) | ± 1% |
Frequency Range | 48~ 52 Hz or 58 ~ 62 Hz (Synchronized Range) 50 Hz ± 0.2 Hz or 60Hz ± 0.2 Hz (Batt. Mode) |
Current Crest Ratio | 3:1 |
Harmonic Distortion | 2 % THD (Linear Load),≦ 6 % THD (Non-linear Load) |
Waveform (Batt. Mode) | Pure sinewave |
Output Factor | 0.8 / 0.9 |
Transfer Time | AC Mode to Batt. Mode: 0 ms; AC Mode to Bypass: 4 ms (Typical) |
Efficiency (Peak) | AC Mode (@100% RCD load): 88% Battery Mode (@100% RCD load): 83% |
Battery | Type | 12V / 9Ah |
Battery Numbers | 2 | External | 4 | External | 6 | External |
Typical Recharge Time | 5 hours recover to 90% capacity |
Charging Current | 1A |
Charging Voltage | 27.4 VDC ± 1% | 54.8 VDC ±1% | 82.2 VDC ±1% |
Indicators | LED / LCD Panel: UPS status, Load level, Battery level, and Fault conditions |
Environment | Working humidity: 20-95 % RH @ 0- 40°C (non-condensing); Noise Level: Less than 50dBA @ 1 Meter |
Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continously sounding |
Optional SNMP | Communication: RS232 Card / Optional USB Card, SNMP Card, or AS400 Card available; Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7, Linux, Unix, and MAC. Optional SNMP: Power management from SNMP manager and web browser. |
External Size(W*D*H) mm | 145*350*228 | 145*350*228 | 190*395*328 | 190*395*328 | 190*395*328 | 190*395*328 |
Package Size(W*D*H) mm | 236*428*333 | 236*428*333 | 325*493*458 | 325*493*458 | 325*493*458 | 325*493*458 |
Net weight (kg) | 9.6 | 4.9 | 17.5 | 8.3 | 23 | 8.9 |
Gross weight (kg) | 10.7 | 6.2 | 19.1 | 9.6 | 25 | 10.3 |
* If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.
* When the temperature is lower than 30°C, the power factor can be adjusted to 0.9.

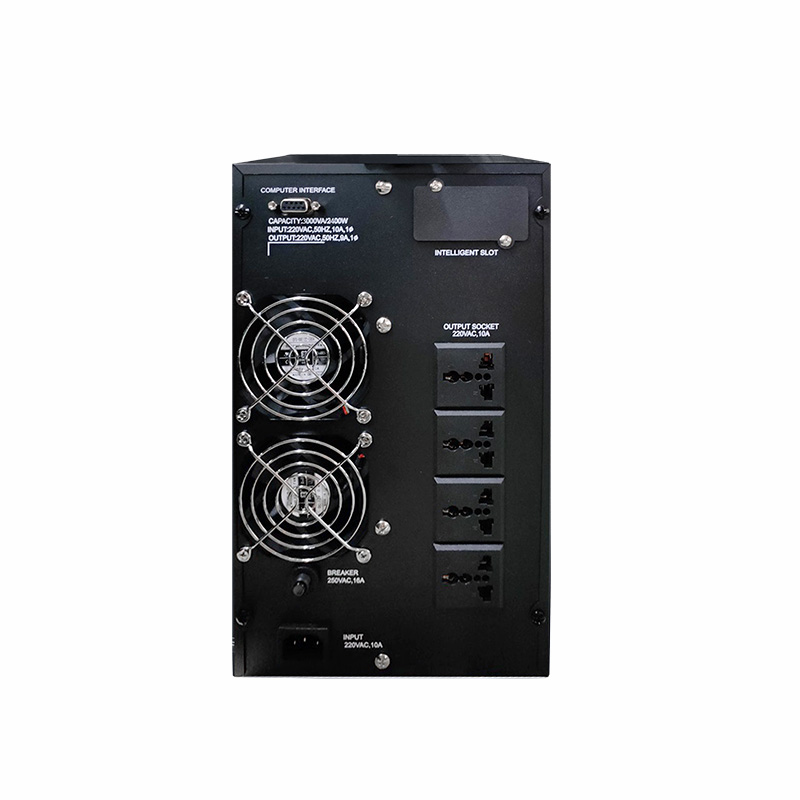

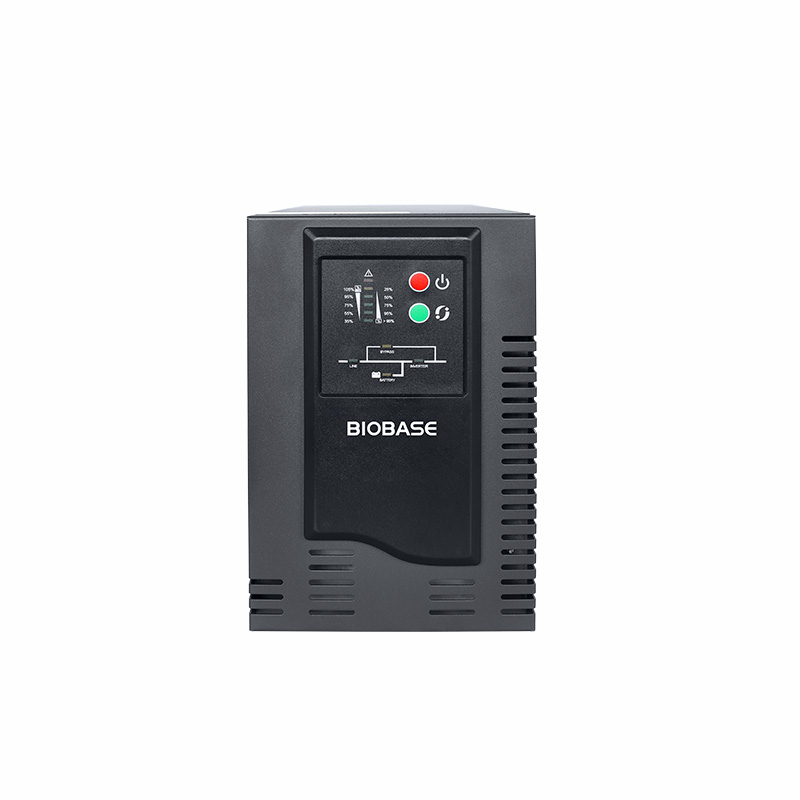

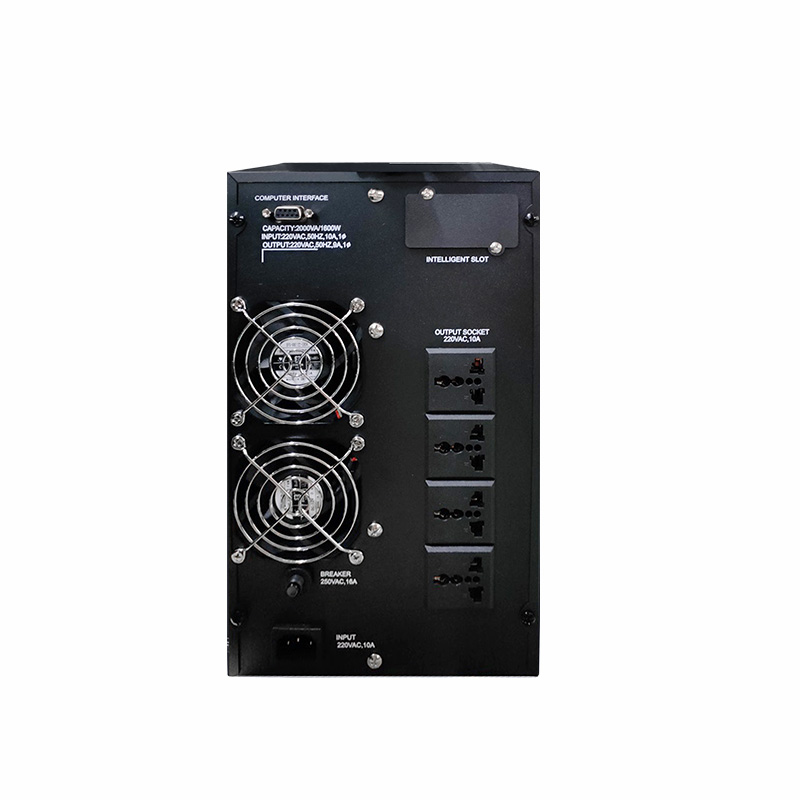

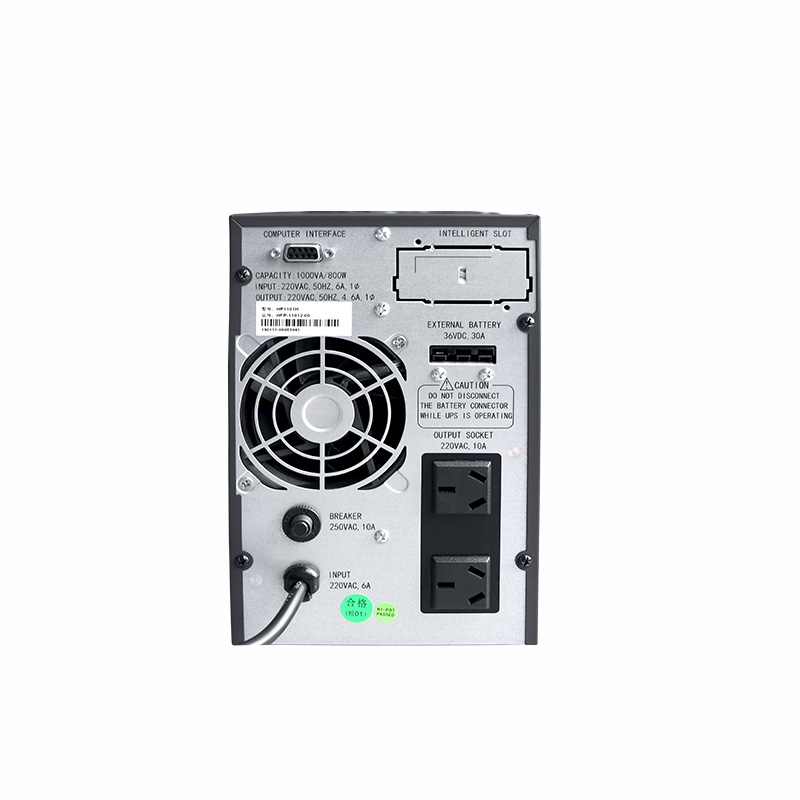

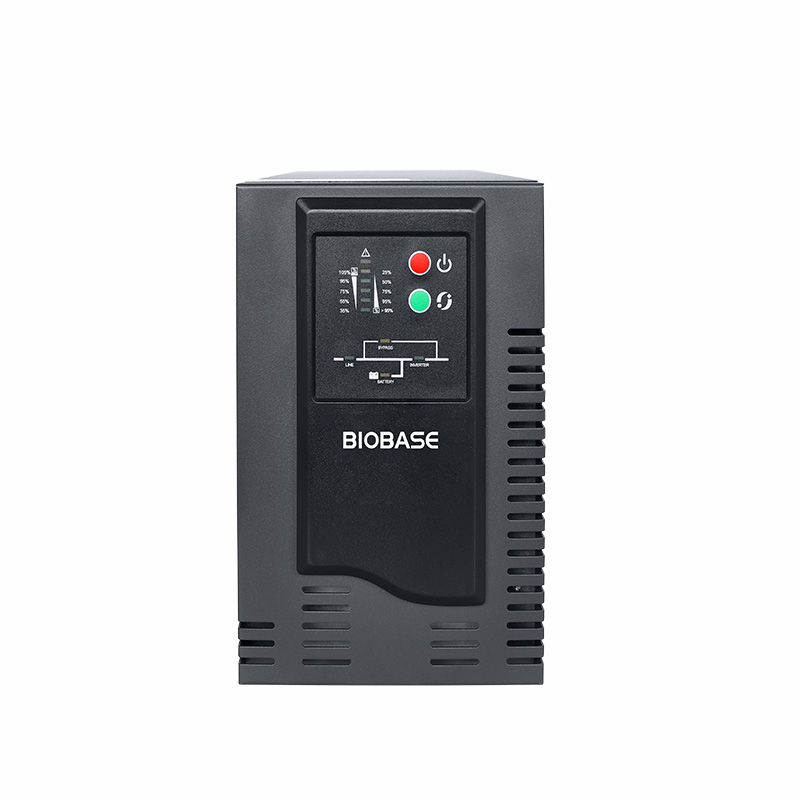

Tower UPS — professional solution in the Other Lab Equipments category
Tower UPS is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Tower UPS
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Tower UPS fits easily into existing process lines and IT infrastructure.
Areas of application Other Lab Equipments
Other Lab Equipments solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Tower UPS allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Tower UPS you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Tower UPS to the cart or contact our manager. We will help integrate Other Lab Equipments into existing processes without downtime and unnecessary costs.
