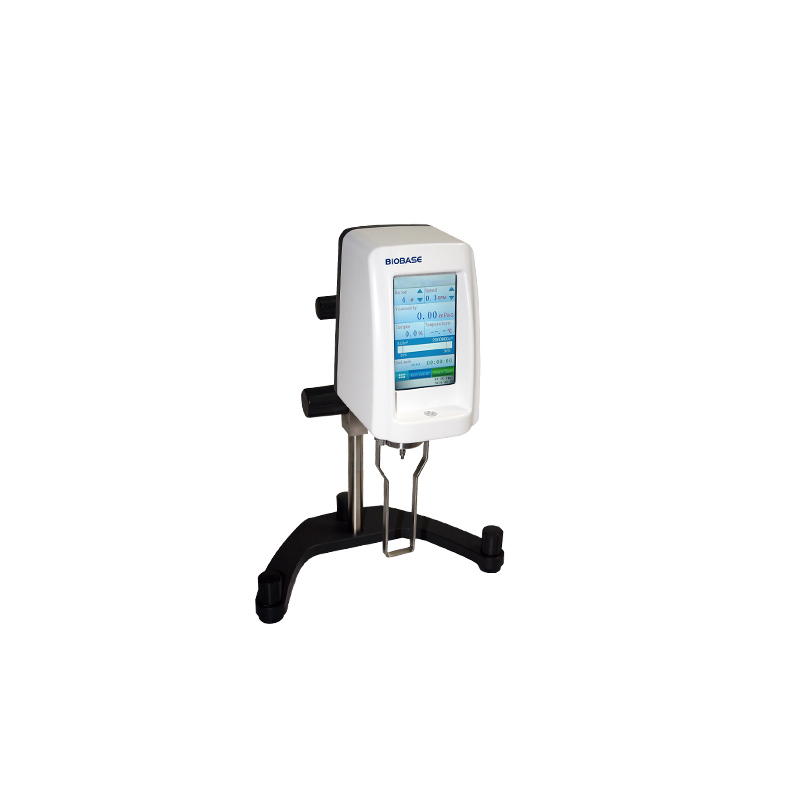

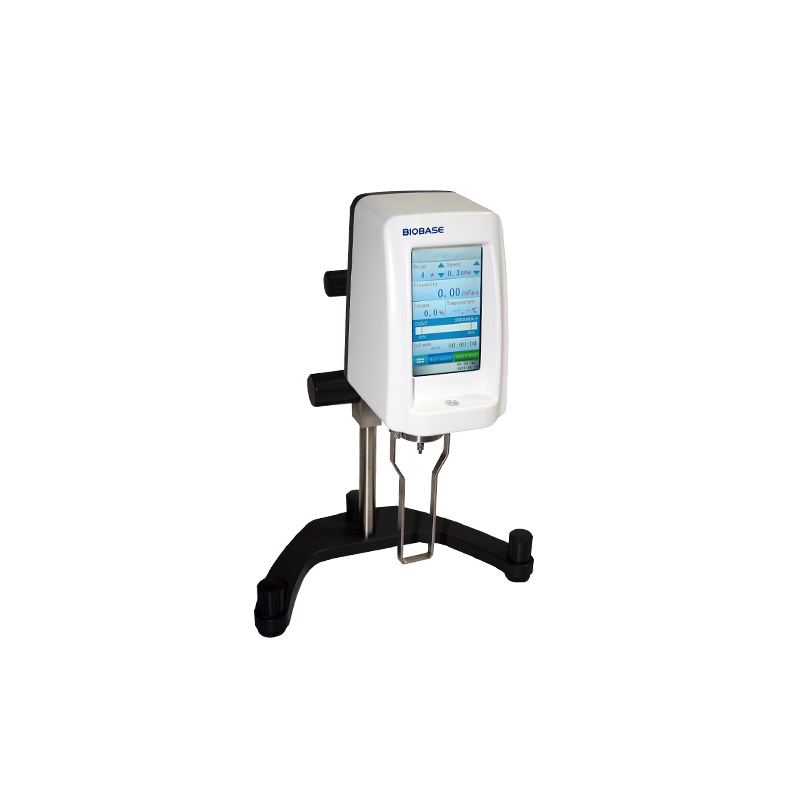

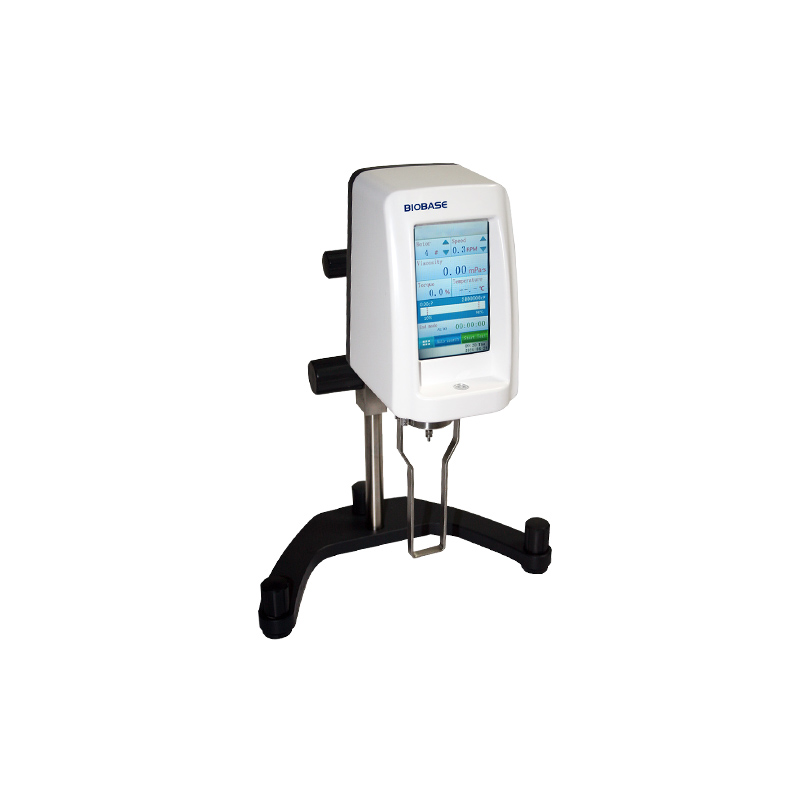

Touch Screen Digital Display Viscometer

Features：

1. With automatic test mode.

2. With data storage function.

3. 5-inch LCD color touch screen, display parameters more intuitively, easy to use and operate, beautiful and generous shape.

4. Equipped with RS232 interface, it can be connected to the printer for output use, diversified to meet the public demand.

5. Equipped with temperature sensor interface, it can detect the sample temperature in real time.

6. Equipped with computer USB interface, easy to connect with the computer output use.

7. Microcomputer control technology, high measurement sensitivity, reliable test results, good anti-interference.

8. The rotor connection interface uses universal joint, easy to turn.

9. Handwheel for high wear-resistant, high-performance engineering plastic and stainless steel materials, easy to operate.

10. Chinese and English display, can be switched randomly.

11. It can be used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.

Technical Parameters:

Model	BDV-5SC	BDV-8SC	BDV-9SC
Measured Range	1~1*10^5mpa.s	1~2*10^6mpa.s	1~6*10^6mpa.s
Measurement Accuracy	±2%(FS)(Newtonian liquid)
Repetitive Error	1%(FS)(Newtonian liquid)
Display Accuracy	0.01mpa.s
Single Measurement Automatic	When the measurement result is stable, the rotor stops automatically
Rotor Specification	Standard: 1#, 2#, 3#, 4# Optional: 0#
Rotor Speed(rpm)	6, 12, 30, 60	0.3, 0.6, 1.5, 3, 6, 12, 30, 60	0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
Standard Accessory	Temperature sensor interface, computer USB interface, RS232 interface
Work Environment	Temperature: 5~35℃ Relative Humidity: ≤80%
Power Supply	AC110~240V, 50/60Hz, DC 12V
Package Size(W*D*H)	200*440*480mm
Net Weight	6.3kg
Gross Weight	10.6kg

Touch Screen Digital Display Viscometer — professional solution in the Viscometer category

Touch Screen Digital Display Viscometer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Touch Screen Digital Display Viscometer

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Touch Screen Digital Display Viscometer fits easily into existing process lines and IT infrastructure.

Areas of application Viscometer

Viscometer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Touch Screen Digital Display Viscometer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Touch Screen Digital Display Viscometer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
