Features:
1. Auto sample dilution, auto acid-adding and auto gas purging(BK-TOC5000RD).
2. 680℃ catalytic oxidation technology with platinum catalyst, especially for seawater test.
3. NDIR detector, high sensitivity and stability.
4. Optional autosampler.
5. Multi-functional PC software.
6. Precise gas flow control technology improves accuracy.
7. PID temperature controlling technology, ensure higher accuracy.
8. Unique three-stage dehydration technology improves drying efficiency.
9. Personalized standard curve management provides great convenience for users.
10. Consumables management reminds users to replace consumables in time.
11. Modular design, simplifying device operation and maintenance.
12.TOC-LAB software is optional, which complies with FDA-21 CFR Part11 requirements and USP.
Technical Parameters:
Model | BK-TOC5000RN | BK-TOC5000RD |
Measurement Method | High temperature catalytic combustion |
Detector | NDIR |
Analysis Parameter | TC, TIC, TOC, NPOC |
Control Mode | PC software controlled |
Gas Requirement | Oxygen, purity≥99.995% |
Sample Type | Liquid sample(AS-W20 is optional) |
Measurement Range | 0~1000mg/L, can extend to 0~100,000mg/L(Manually dilution) | 0~1000mg/l, can extend to 0~100,000mg/L(Automatically dilution) |
Limit of Detection | TC: 50μg/L IC: 20μg/L |
Measuring Time | TC: around 4min IC: around 3min |
Max. Permissible Error | TOC: ±5% IC: ±4% |
Repeatability | ≤3% |
Injection Volume | TC: 100~500μl IC: 100~2000μl |
Optional Accessories | Autosampler for liquid sample or solid sample Enhanced halogen removal device Enhanced halogen removal device-Metal wire mesh |
Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 50/60Hz(Optional) |
Consumption | 700W |
Package Size(W*D*H) | Main Machine: 780*710*610mm Accessories: 710*230*600mm |
Gross Weight | Main Machine: 59kg Accessories: 7kg | Main Machine: 63kg Accessories: 8kg |

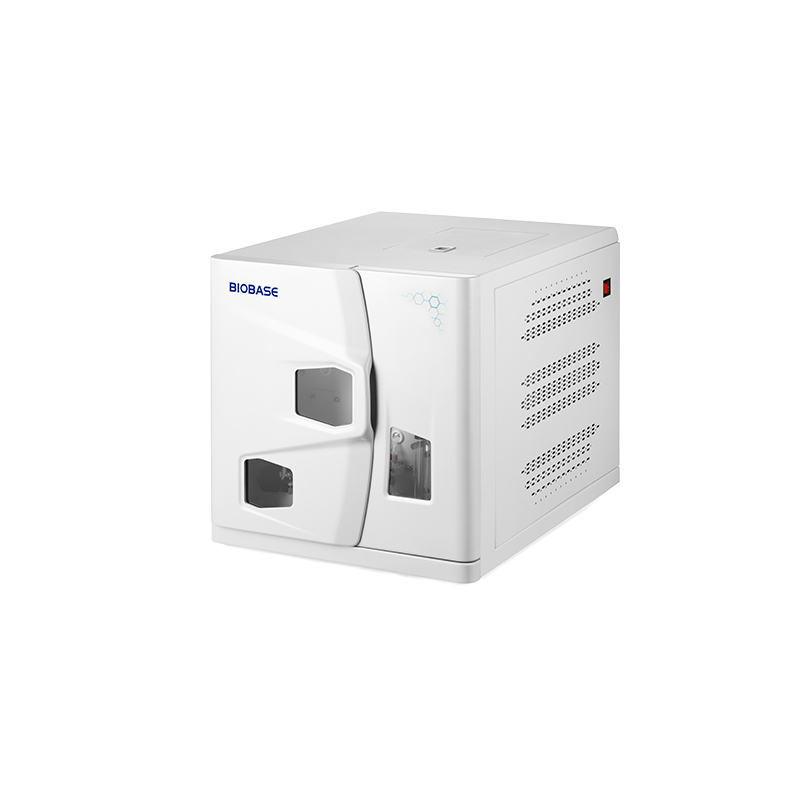

Total Organic Carbon Analyzer BK-TOC5000RN — professional solution in the New Products category
Total Organic Carbon Analyzer BK-TOC5000RN is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Total Organic Carbon Analyzer BK-TOC5000RN
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Total Organic Carbon Analyzer BK-TOC5000RN fits easily into existing process lines and IT infrastructure.
Areas of application New Products
New Products solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Total Organic Carbon Analyzer BK-TOC5000RN allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Total Organic Carbon Analyzer BK-TOC5000RN you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Total Organic Carbon Analyzer BK-TOC5000RN to the cart or contact our manager. We will help integrate New Products into existing processes without downtime and unnecessary costs.
