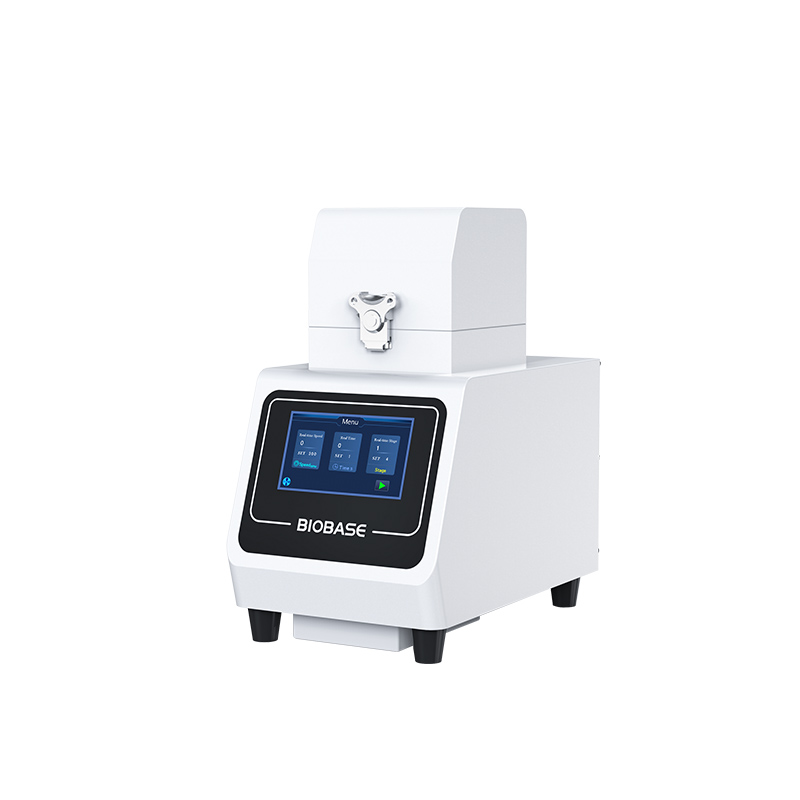

Tissue Grinding Machine

Features:

1. In standard mode, both BHY1 and BHY2 can process up to 24 samples in as little as 1 minute.

2. The grinding process is fully enclosed, with samples moving independently to avoid cross-contamination.

3. BHY2 has been upgraded to a dual-slide vertical oscillation mechanism, providing more thorough grinding, better stability, and a longer lifespan. BHY1 features a wear-resistant graphite bush structure.

4. Supports placing centrifuge tubes directly into the adaptor, supports pre-freezing of centrifuge tubes.

5. Adopt for quiet operation to reduce interference with the surrounding environment.

Applicable Samples:

1. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestines, lymph nodes, muscles, bones, hair, etc.

2. Volatile samples: coal, oil shale, wax products, etc.

3. Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc.

4. Microorganisms: yeast, E. coli, etc.

5. Food: various foods, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.

7. Environmental samples: soil, sediment, sludge, feces, etc.

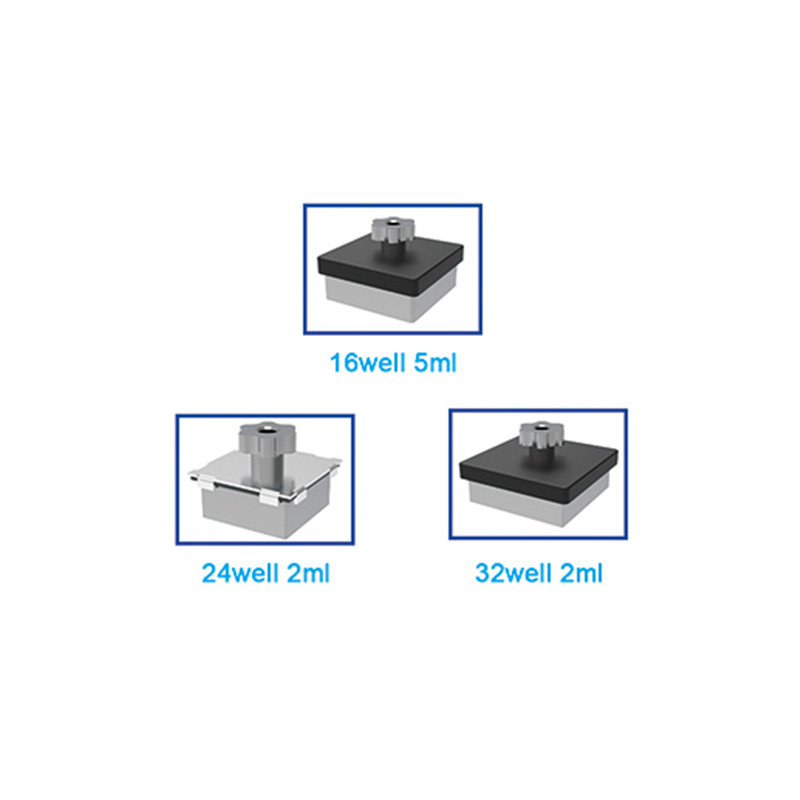

Adaptor:

Technical Parameters:

Model	BHY1	BHY2
Display	5-inch OLED touch screen	7-inch OLED touch screen
Oscillation Mode	Up and down vertical oscillation
Grinding Speed	0~2300rpm
Grinding Way	Dry grinding/wet grinding/low temperature grinding
Grinding Time	Each segment 0~120s, can be set in multiple segments
Programming	Multi-stage operation setup is available, automatically records the parameters of the last operation
Safety Lock	Mechanical butterfly safety lock+door-controlled electronic operation limit
Adaptor	Aluminum alloy material Standard: 24*2ml Optional(Can customize): 32*2ml/16*5ml	Aluminum alloy material Standard: 24*2ml Optional(Can customize): 96*2ml/48*2ml/32*2ml/16*5ml/8*10ml/2*15ml/2*25ml/2*50ml
Grinding Ball	Diameter: 0.1~10mm Standard stainless steel grinding ball: φ3mm*800 and φ5mm*300	Diameter: 0.1~30mm Standard stainless steel grinding ball: φ3mm*800 and φ5mm*300
Consumption	120W	180W
Power Supply	AC110~220V, 50/60Hz
External Size(W*D*H)	265*405*475mm	265*405*520mm
Package Size(W*D*H)	375*510*640mm	375*530*640mm
Net Weight	28.5kg	27kg
Gross Weight	41kg

Note: Low temperature grinding means that the aluminum alloy adapter can be placed in a low temperature refrigerator or liquid nitrogen container to take out and then use, rather than the instrument with its own freezing function.

Tissue Grinding Machine — professional solution in the Other Lab Equipments category

Tissue Grinding Machine is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Tissue Grinding Machine

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Tissue Grinding Machine fits easily into existing process lines and IT infrastructure.

Areas of application Other Lab Equipments

Other Lab Equipments solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Tissue Grinding Machine allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Tissue Grinding Machine you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
