Technical specifications
1.Eyepiece:
Category | Magnification | Field of view diameter |
Eyepiece | 10X | Φ18mm |
16X | Φ11mm |
2.Objective:
Category | Magnification rate | Numerical Aperture | work distance |
Achromatic objective | 4X | 0.10 | 37.5mm |
10X | 0.25 | 7.31mm |
40X | 0.65 | 0.63mm |
100X(Oil) | 1.25 | 0.18mm |
3.Objective:
Category | Magnification rate | Numerical Aperture | work distance |
Phase contrast objective | 10X | 0.25 | 7.31mm |
40X | 0.65 | 0.63mm |
100X(Oil) | 1.25 | 0.18mm |
4.Mechanical cylinder length: 160mm
5 Magnification factor: 40X-1600X
Total magnification of microscope: Total magnification of microscope=objective magnification x
tube coefficient magnification x eyepiece magnification)
6 Stage size: moving platform 160 x 140mm, moving range: 80 x 50mm, cursor: 0.1mm
7 Pupil distance: 55-75 mm
8 Focusing device: 30mm coarse micro motion focusing coaxial mechanism with fine
adjustment grid value of 0.002mm
9 Spotlight mirror: N A. 1.25 adjustable Abbe condenser with variable light bar, phase contrast
condenser with variable light bar
10 Color filter: blue, yellow, green
11 Light source: halogen lamp 6V20W, AC85V-230V, brightness adj

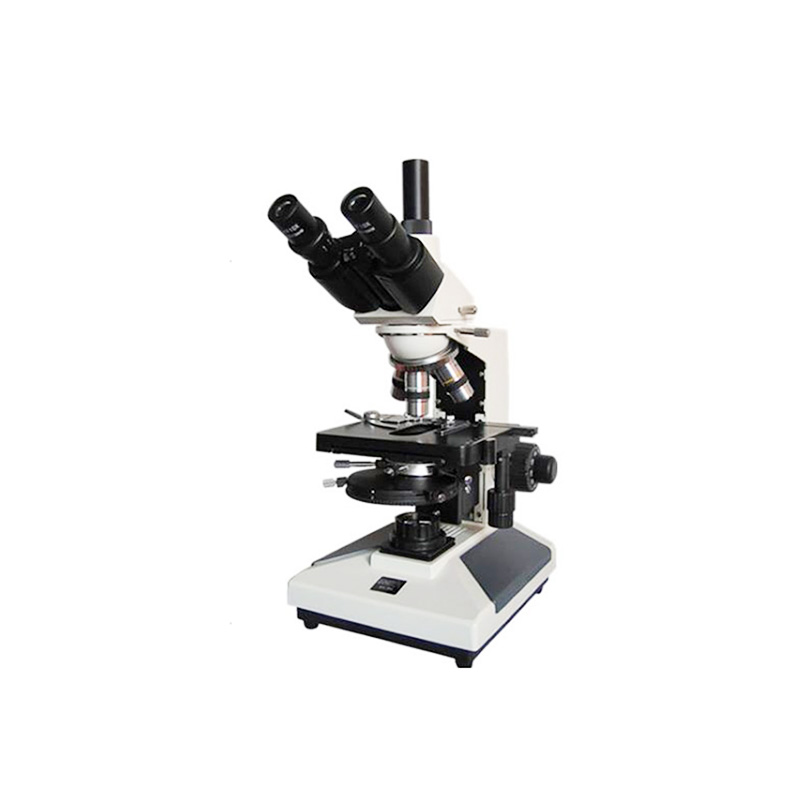

Three eye phase contrast microscope BM-PH — professional solution in the Microscope category
Three eye phase contrast microscope BM-PH is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Three eye phase contrast microscope BM-PH
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Three eye phase contrast microscope BM-PH fits easily into existing process lines and IT infrastructure.
Areas of application Microscope
Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Three eye phase contrast microscope BM-PH allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Three eye phase contrast microscope BM-PH you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Three eye phase contrast microscope BM-PH to the cart or contact our manager. We will help integrate Microscope into existing processes without downtime and unnecessary costs.
