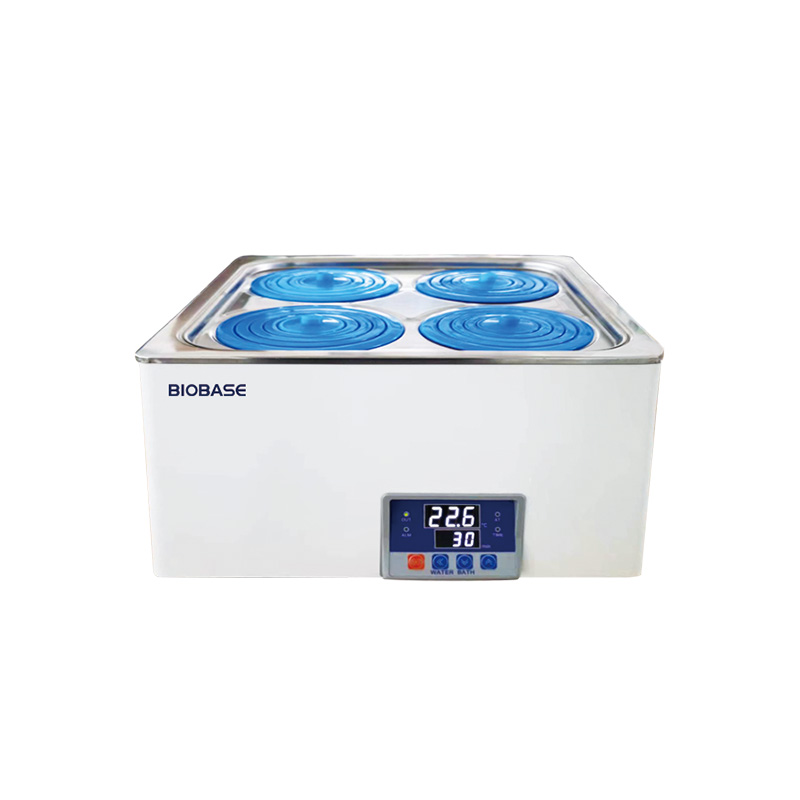

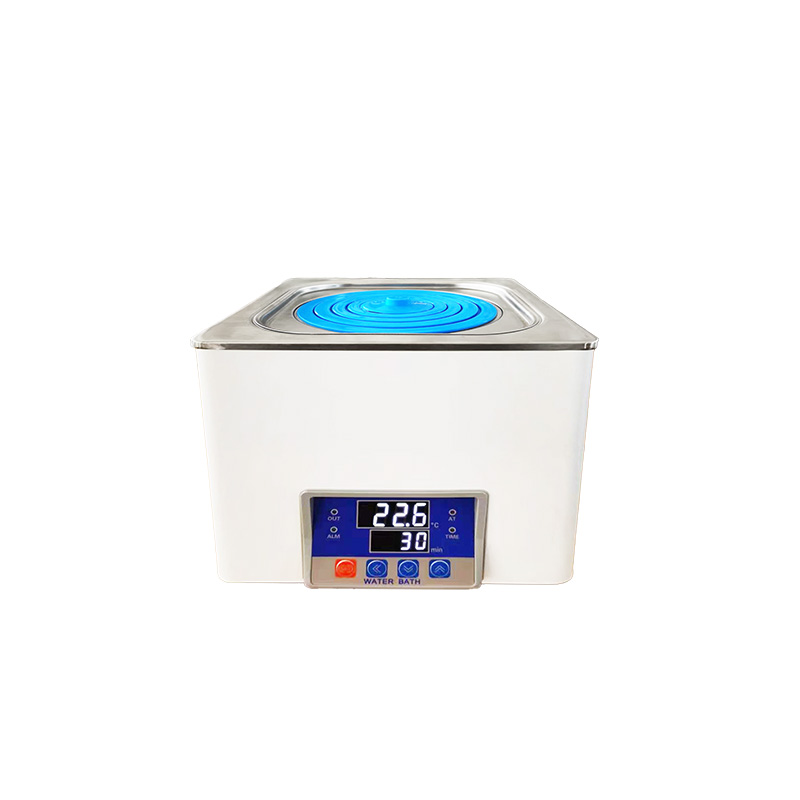

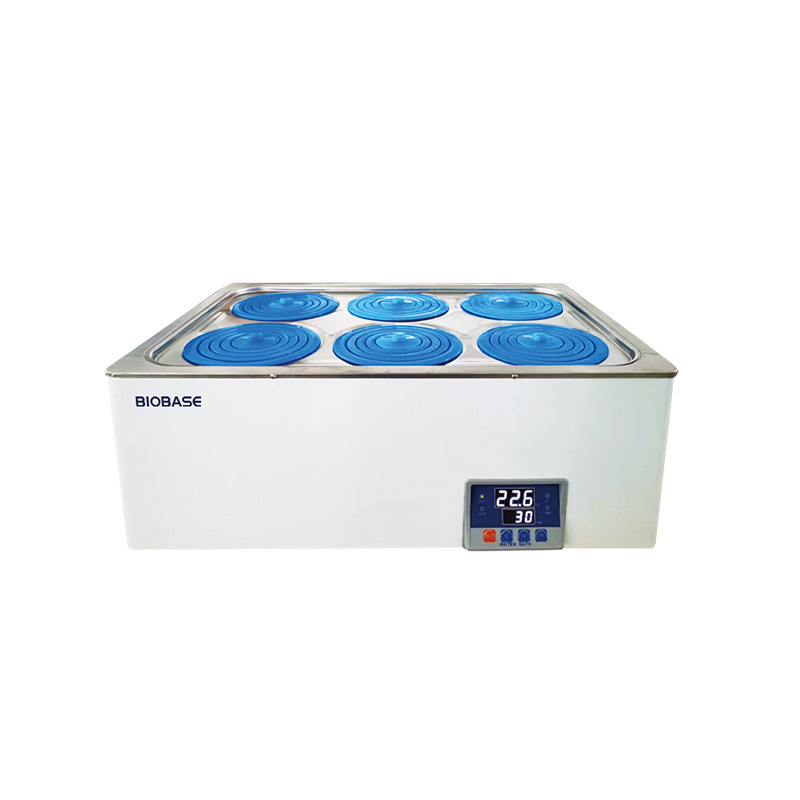

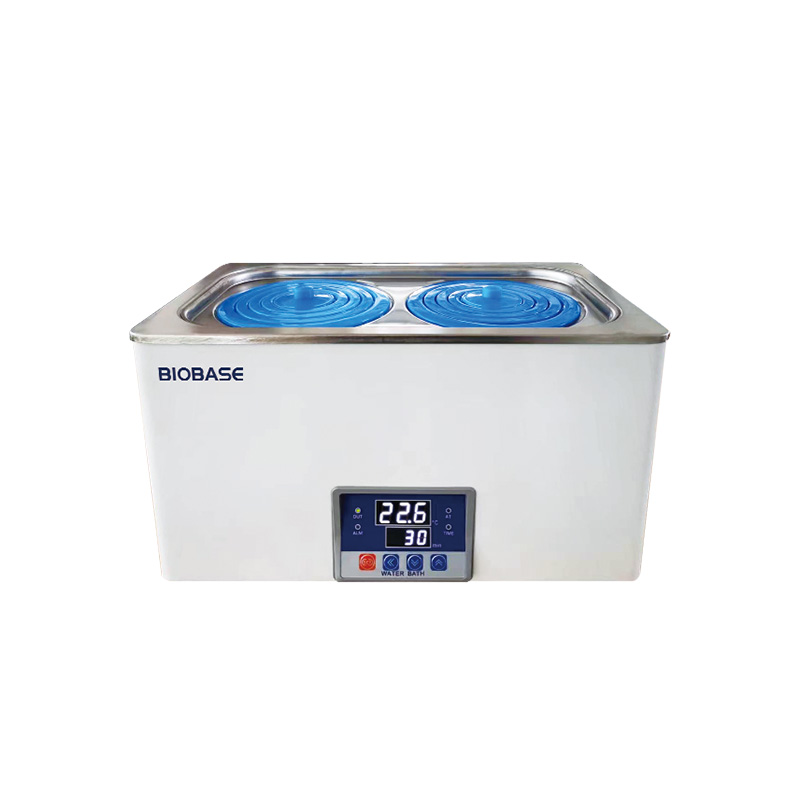

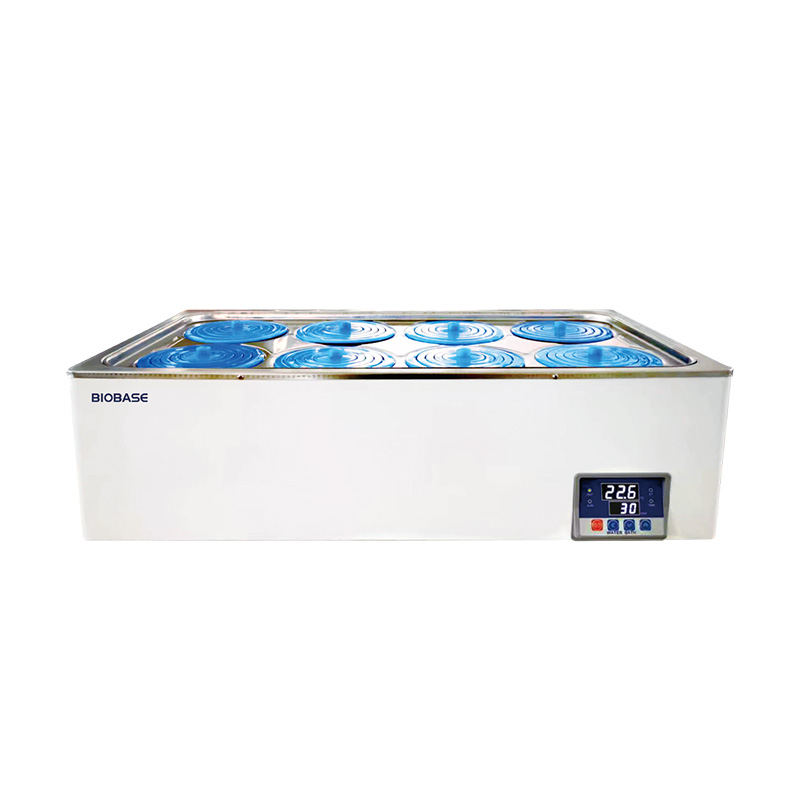

Thermostatic Water Bath BK-WB Series

Features:

1. The shell adopts cold plate spraying, which improves the anti-corrosion ability of the whole machine.

2. The water tank is made of 304 stainless steel, which is resistant to high temperature, corrosion and rust.

3. Adjustable ring cover to meet the needs of different sizes of experimental instruments.

4. Real-time temperature value display, accurate temperature control, countdown display.

5. Hidden stretch drain, beautiful, convenient and durable.

Technical Parameters:

Model	BK-WB1	BK-WB2	BK-WB4	BK-WB6	BK-WB8
Capacity	3.5L	6.8L	13L	20L	26L
Temp. Range	RT+5~99.9℃
Temp. Precision	0.1℃
Temp. Fluctuation	±0.5℃
Temp. Uniformity	±0.5℃
Timing Range	1~999min
Display	LED Display
Anti-dry Protection	Standard
Consumption	300W	600W	800W	1200W	1800W
Power Supply	Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
Internal Size(L*W*H)	160*160*140mm	305*160*140mm	305*305*140mm	470*305*140mm	620*305*140mm
External Size(L*W*H)	210*215*195mm	365*215*195mm	365*365*195mm	530*365*195mm	680*365*195mm
Net Weight	2.7kg	3kg	4.3kg	5.4kg	7kg
Packing Size(L*W*H)	210*215*195mm	395*215*240mm	395*395*240mm	560*395*240mm	705*410*265mm
Gross Weight	3.5kg	3.7kg	5.3kg	6.7kg	8.6kg

Optional Tube Rack:

Model		BK-WB1	BK-WB2	BK-WB4	BK-WB6	BK-WB8
Max Number	φ13mm*40	/	1	3	5	6
	φ14mm*40	/	1	3	5	5
	φ16mm*40	/	1	3	4	5
	φ17mm*40	/	1	2	4	5
	φ19mm*40	/	1	2	4	5
	φ21mm*40	/	1	2	3	5
	φ23mm*40	/	1	2	3	4
	φ25mm*40	/	/	/	2	2
	φ27mm*40	/	/	/	2	2
	φ30mm*40	/	/	/	1	1
	φ17mm*12	1	4	8	12	15
	φ19mm*12	1	3	5	10	12
	φ21mm*12	/	2	4	8	10
	φ23mm*12	/	2	4	8	10
	φ27mm*12	/	2	3	6	6
	φ30mm*12	/	1	3	5	6
	φ32mm*12	/	1	3	5	5

Thermostatic Water Bath BK-WB Series — professional solution in the Laboratory Bath category

Thermostatic Water Bath BK-WB Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Thermostatic Water Bath BK-WB Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Thermostatic Water Bath BK-WB Series fits easily into existing process lines and IT infrastructure.

Areas of application Laboratory Bath

Laboratory Bath solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Thermostatic Water Bath BK-WB Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Thermostatic Water Bath BK-WB Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
