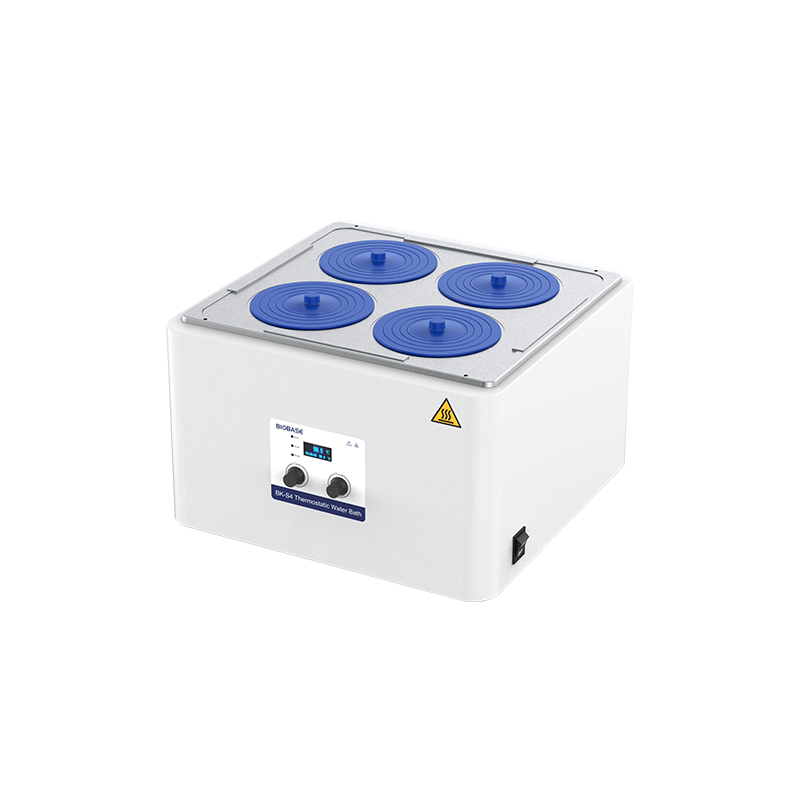

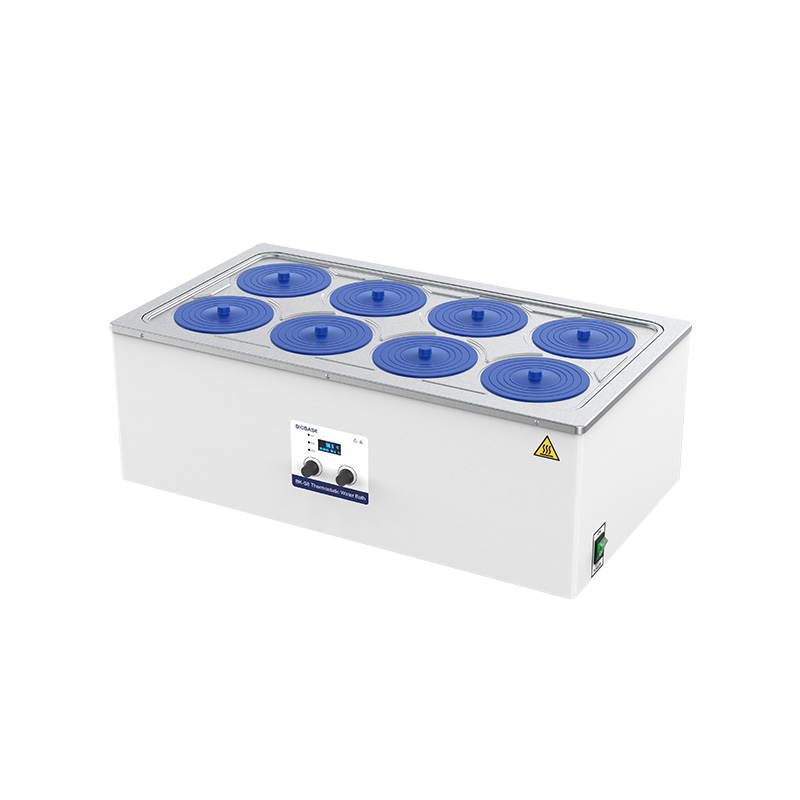

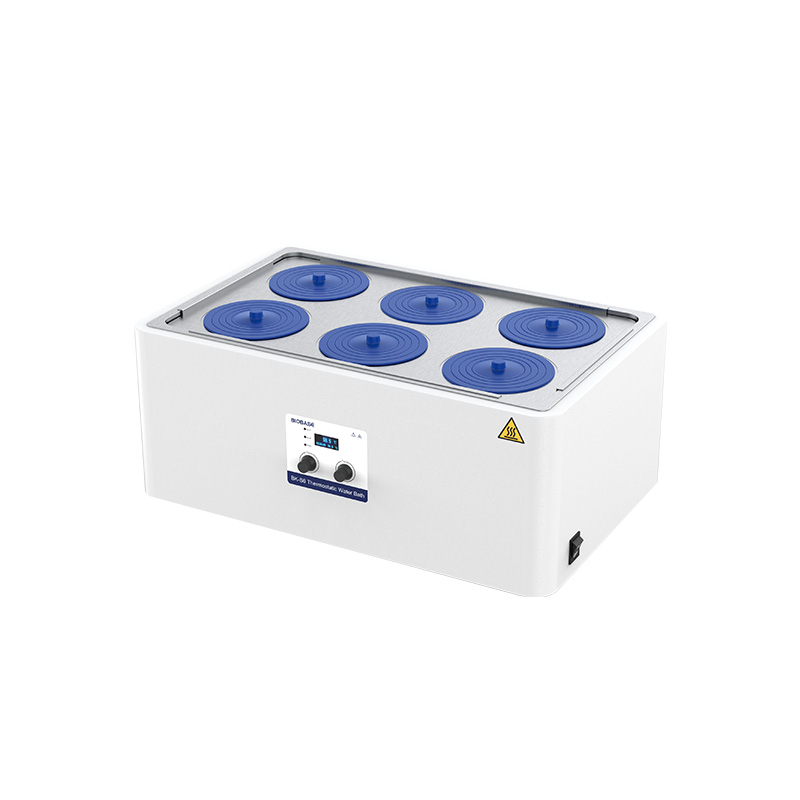

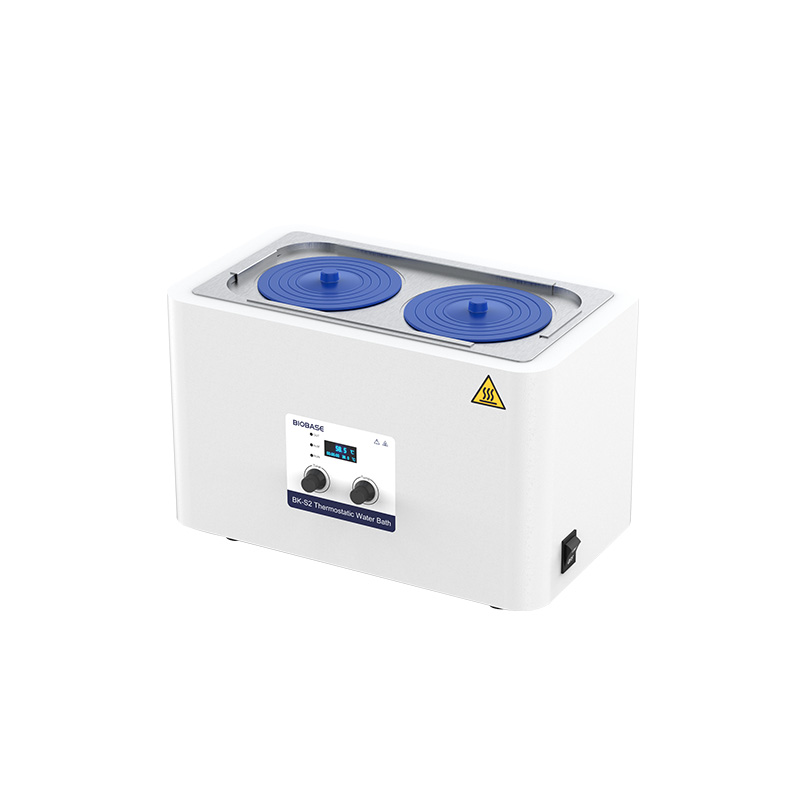

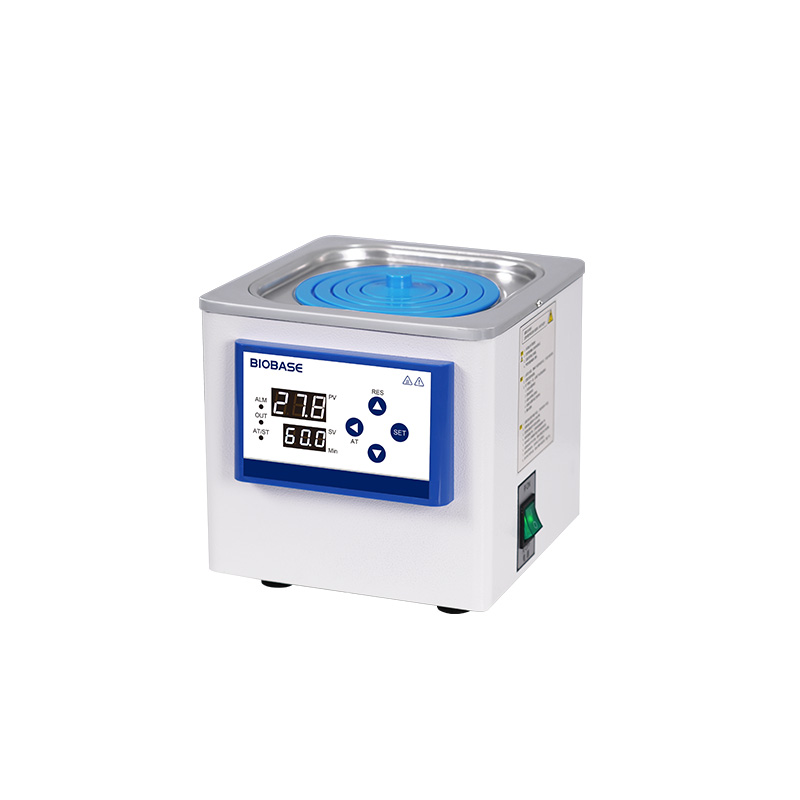

Thermostatic Water Bath 3L 5L 10L 20L 26L

Features:

1. PID temperature control, high temperature precision, with temperature deviation alarm.

2. The water tank is made of 304 stainless steel by one time stamping process, which is resistant to high temperature, corrosion and rust.

3. All-round heating, rapid heating, adjustable lid locking temperature.

4. Adjustable ring cover to meet the needs of different sizes of experimental instruments(inside diameter: φ39mm, φ57mm, φ77mm, 97mm)

Technical Parameters:

Model	BK-S1	BK-S2	BK-S4	BK-S6	BK-S8
Capacity	3L	5L	10L	20L	26L
Temp. Range	RT+5°C~100°C	RT~100℃
Temp. Precision	±0.5℃
Temp. Fluctuation	≤±1℃	±0.5℃
Temp. Uniformity	±0.5℃
Timing Range	1~999min	0~99h59min
Display	LED Display	OLED Display
Anti-dry Protection	Standard
Consumption	300W	600W	1000W	1500W	2000W
Power Supply	AC220V±10%, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(L*W*H)	160*160*120mm	300*150*150mm	325*300*145mm	505*300*150mm	620*315*135mm
External Size(L*W*H)	200*215*200mm	383*236*259mm	383*381*264mm	568*376*259mm	650*365*264mm
Net Weight	2.3kg	4.5kg	6kg	8kg	10kg
Package Size(L*W*H)	260*265*260mm	444*294*324mm	444*444*324mm	634*444*324mm	710*400*285mm
Gross Weight	3kg	4.7kg	6.2kg	8.5kg	13kg

Optional Tube Rack:

Model		BK-S1	BK-S2	BK-S4	BK-S6	BK-S8
Max Number	Φ13mm*40	/	1	3	5	7
	Φ14mm*40	/	1	3	5	6
	Φ16mm*40	/	1	3	4	5
	Φ17mm*40	/	1	3	4	5
	Φ19mm*30	/	1	3	5	6
	Φ19mm*40	/	1	2	4	5
	Φ19mm*50	/	1	2	3	4
	Φ21mm*12	/	1	4	7	8
	Φ21mm*40	/	1	2	4	5
	Φ21mm*50	/	/	2	3	4
	Φ23mm*12	/	1	4	7	8
	Φ23mm*40	/	/	2	2	4
	Φ25mm*40	/	/	/	2	4
	Φ27mm*12	/	1	3	6	7
	Φ27mm*40	/	/	/	2	2
	Φ30mm*12	/	1	3	5	6
	Φ30mm*24	/	1	2	2	3
	Φ30mm*40	/	/	/	1	1
	Φ32mm*12	/	1	3	5	6
	Φ32mm*24	/	/	/	2	2

Thermostatic Water Bath 3L 5L 10L 20L 26L — professional solution in the Laboratory Bath category

Thermostatic Water Bath 3L 5L 10L 20L 26L is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Thermostatic Water Bath 3L 5L 10L 20L 26L

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Thermostatic Water Bath 3L 5L 10L 20L 26L fits easily into existing process lines and IT infrastructure.

Areas of application Laboratory Bath

Laboratory Bath solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Thermostatic Water Bath 3L 5L 10L 20L 26L allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Thermostatic Water Bath 3L 5L 10L 20L 26L you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
