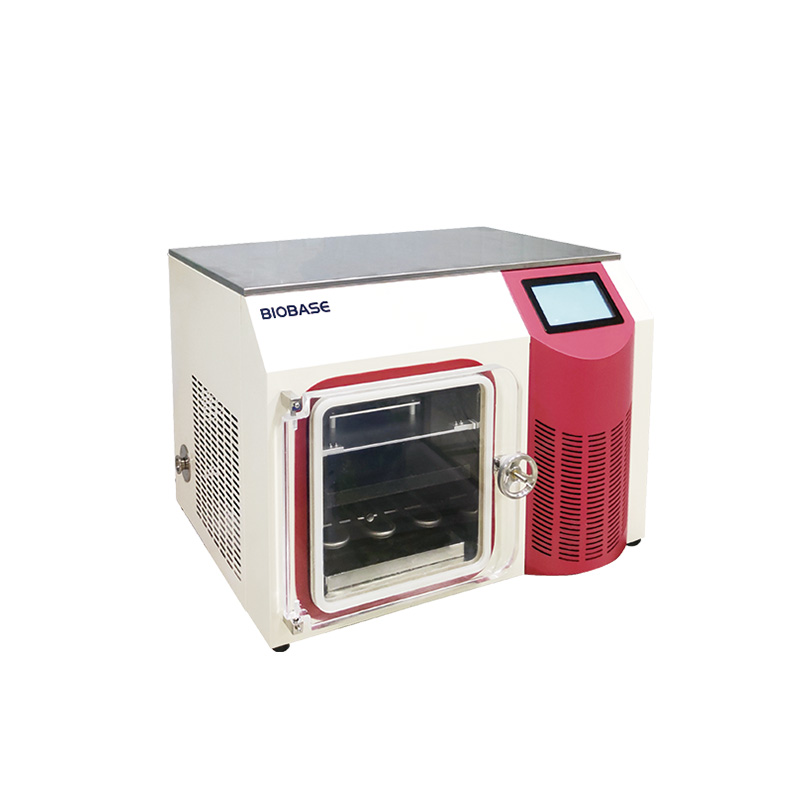

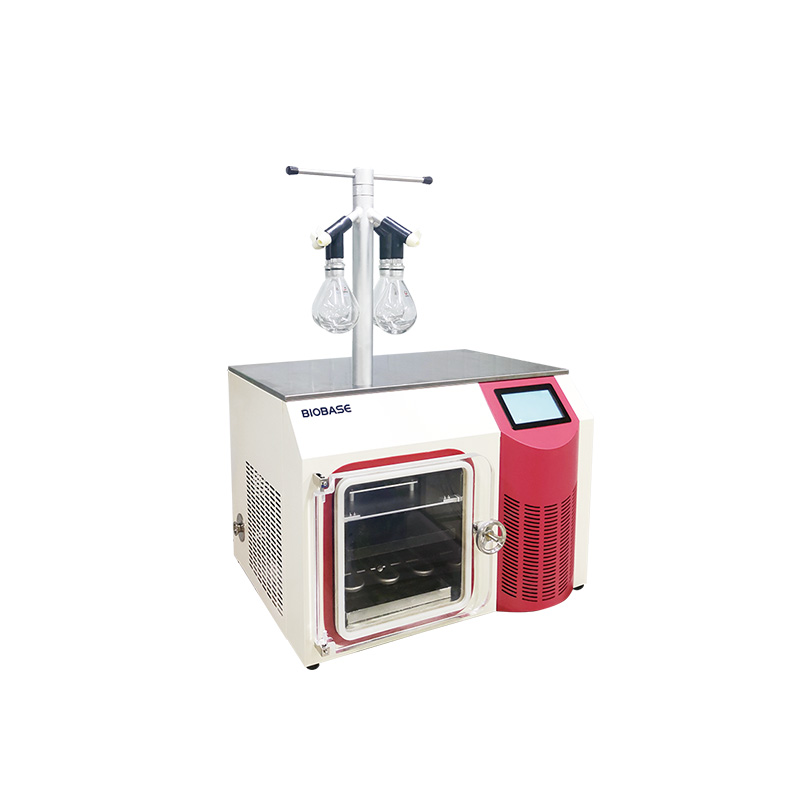

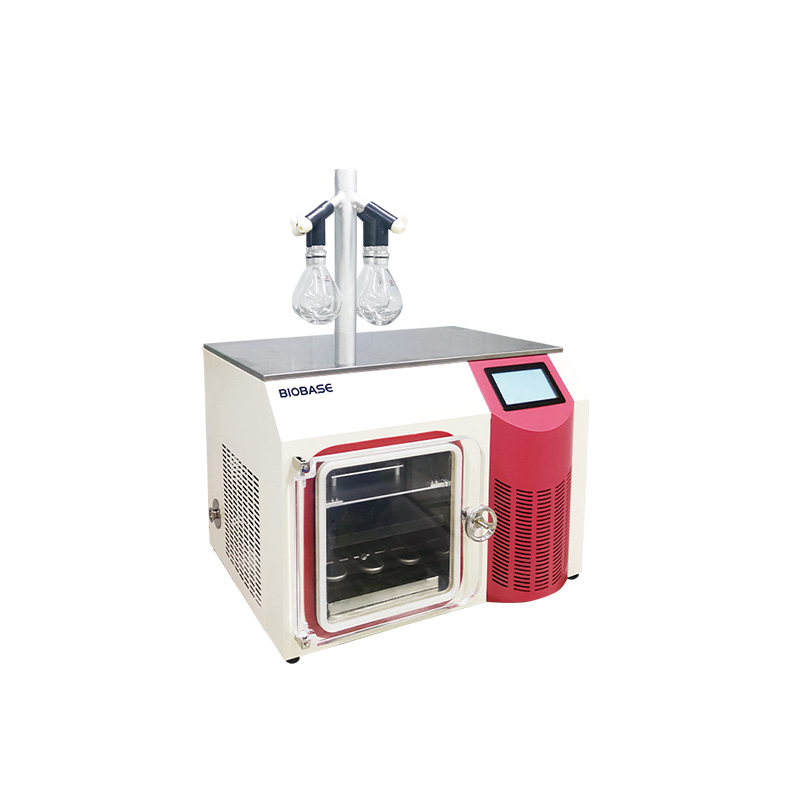

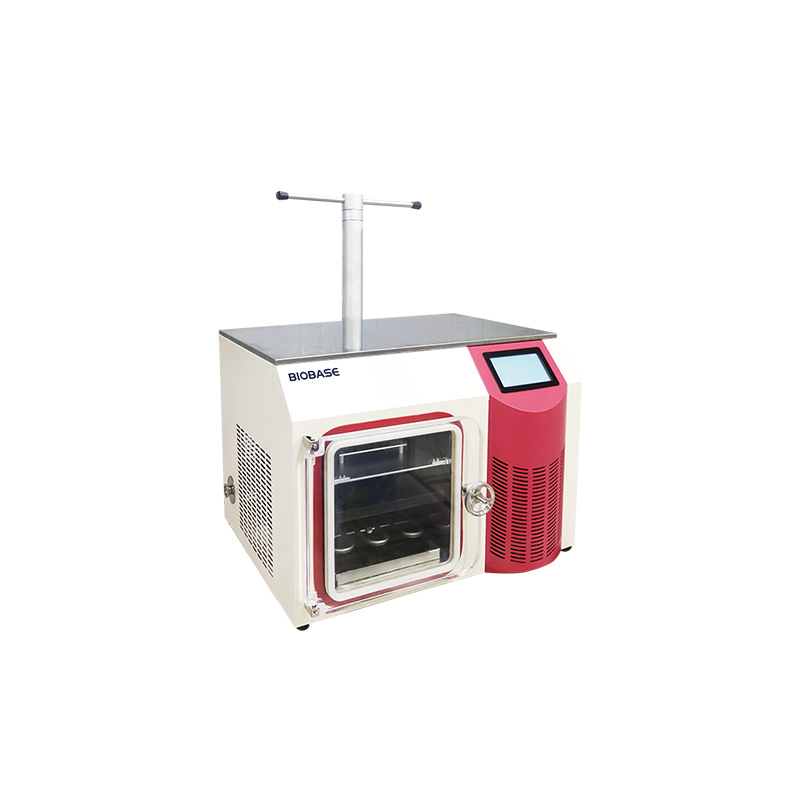

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

Technical Parameters:

Model		BK-FD10ES	BK-FD10EP	BK-FD10ET	BK-FD10EPT
Type		Standard chamber	4 port manifold	Stoppering chamber	Stopping chamber with 4 port manifold
Cold Trap Temp.		-88℃
Shelf Temp.		-60~+70℃
Temp. Uniformity		±1℃
Vacuum Degree		≤0.1Pa
Cold Trap Volume		11L
Freezer Drying Area		0.1m2
Condensing Capacity		3kg/h
Qty. Of Shelf		1
Drying Chamber Size		40L
Material Loading Capacity		3000ml
Total Qty. of Vial	Φ22mm	216
	Φ16mm	400
	Φ12mm	726
Manifold		/	4 pieces	/	4 pieces
USB Interface		Yes
Drying Chamber(Standard)		Transparent Acrylic
Vacuum Pump		Standard
Control System		Microprocessor, touch screen
Power Supply		220/110V, 50/60Hz
Power		2.3kW
Cold Trap Size(Φ*Hmm)		215*190mm
Shelf Size(W*D*H)		270*400*150mm		270*400*120mm
External Size(W*D*H)		820*695*600/995mm		820*695*875/1075mm
Host Package Size(W*D*H)		940*840*990mm
Vacuum Pump Package Size(W*D*H)		600*230*300mm
Gross Weight		180kg	210kg	210kg	220kg

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT — professional solution in the Freeze Dryer category

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT fits easily into existing process lines and IT infrastructure.

Areas of application Freeze Dryer

Freeze Dryer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
