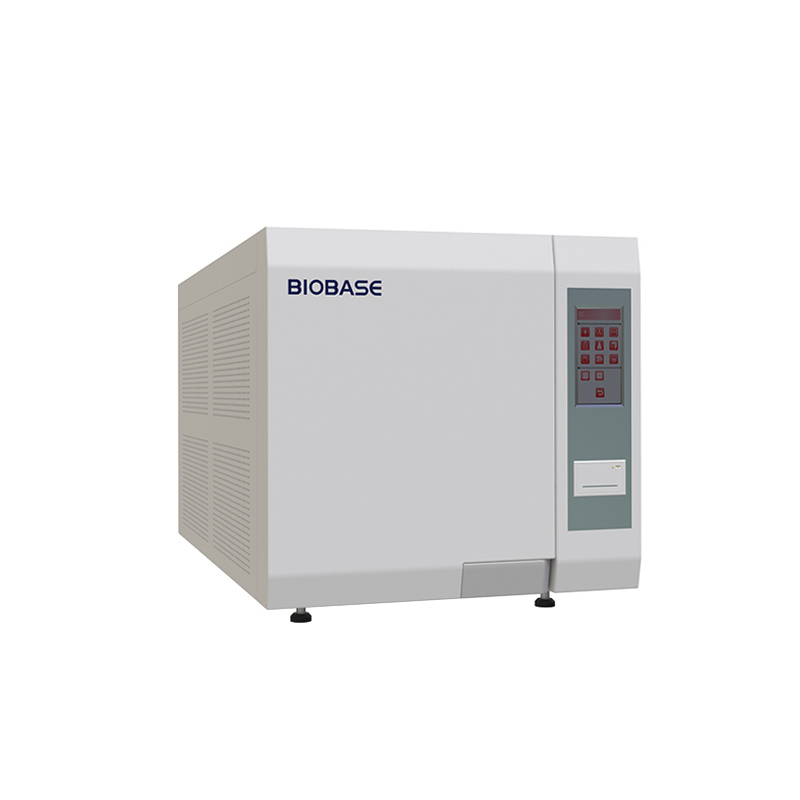

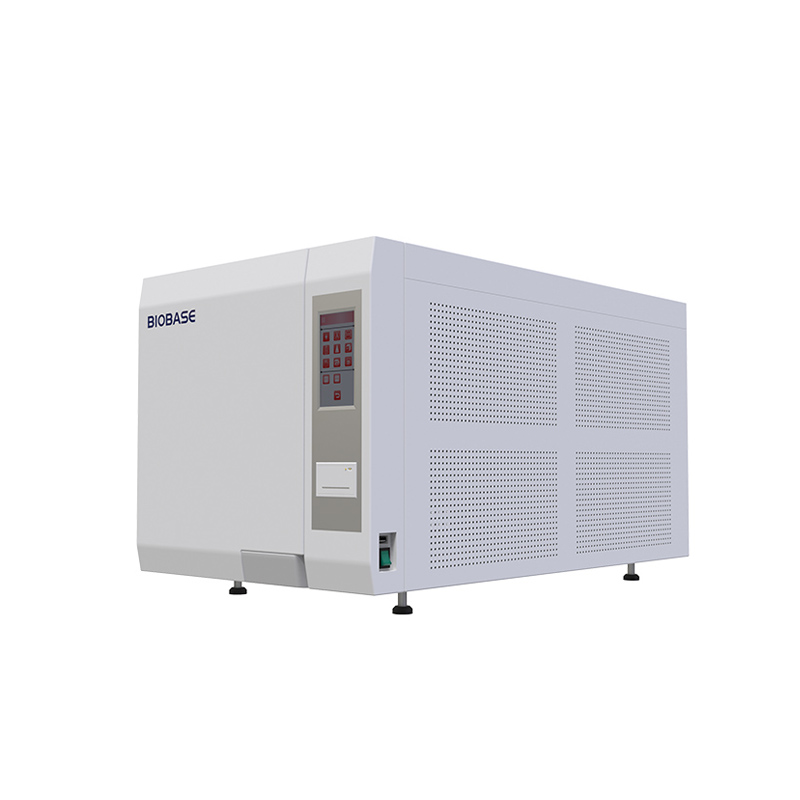

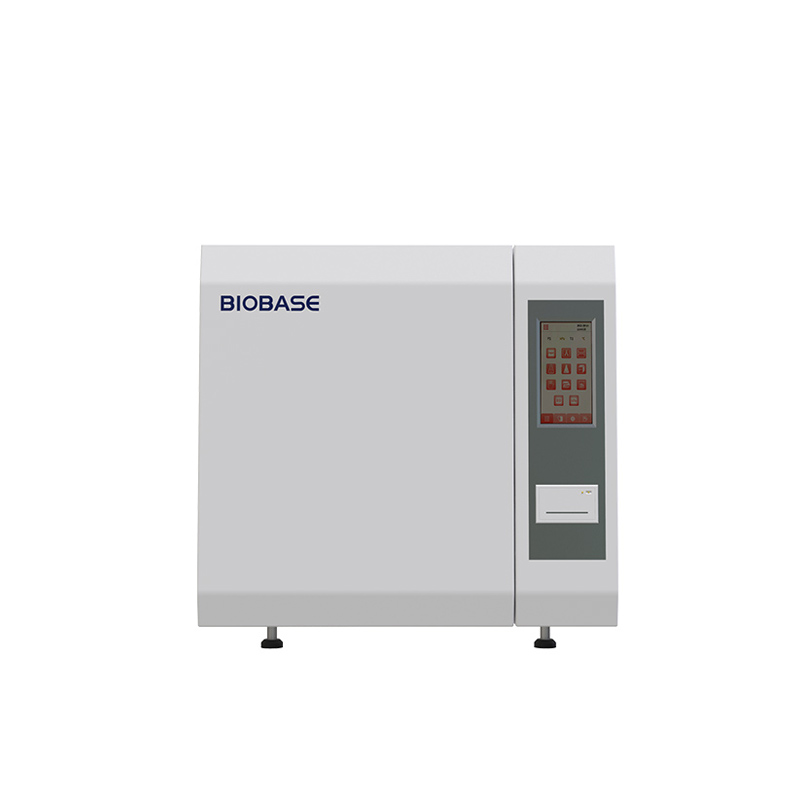

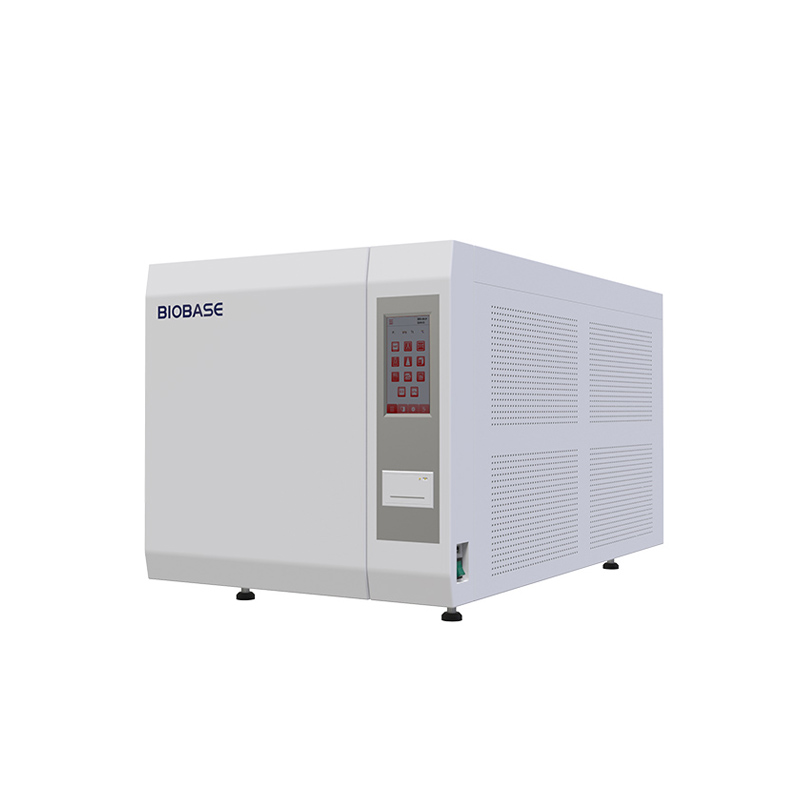

Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B

Features:

1. Brand-new operation interface: The LCD touch screen can display real-time information such as temperature, pressure, time, operating status, fault alarm, and equipment operating curve, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.

2. Multiple safety protection devices: Automatic over-temperature protection device, multiple control and protection of evaporator, door safety interlock protection, double over-pressure protection device, etc.

3. Door structure: BKM-K18/23B autoclave adopts a manual door structure, BKM-Z18/23B autoclave adopts automatic door structure. It is could quick and convenient to operate, and effectively protects the human body and prevents burns.

4. Vacuum system: It adopts high-efficiency vacuum system, low working noise, ultimate vacuum can reach more than -80KPa, fast pumping speed, good dryness of items, and more thorough sterilization.

5. Diversified procedures: There are fast program,packaging program, rubber program, dressing program, liquid program, liquid customization, solid customization and enhance program, as well as B&D testing, vacuum testing program, and appointment program.

6. High-efficiency air filter: 0.22μm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.

7. Recording device: The equipment is equipped with a thermal printer and USB interface as standard, which can record the data of the entire sterilization process in real time.

8. Other functions: Automatic operation of the whole process of preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying.

Technical Parameters:

Model	BKM-K18B	BKM-Z18B	BKM-K23B	BKM-Z23B
Capacity	18L		23L
Door	Manual	Automatic	Manual	Automatic
Display	5-inch LCD touch screen
Max Designed Pressure	0.3MPa
Working Pressure	0.23Mpa
Max Designed Temp.	150℃
Working Temp.	105~134℃
Temp. Precision	0.1℃
Sterilization Time	0~99min
Drying Time	0~99min
Water Tank Capacity	3.5L
Vacuum System	High efficiency vacuum pump
Chamber Material	S30408
Chamber Size	φ250*350mm		φ250*450mm
Altitude	≤2500m
Rack	1 rack with 3 trays
Standard Accessories	Aluminum tray, USB, printer
Optional Accessories	Stainless steel tray
Consumption	3kVA
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional); Wiring Method: Air switch
External Size(W*D*H)	630*485*450mm		680*485*450mm
Net Weight	48kg		53kg
Package Size(W*D*H)	810*610*590mm
Gross Weight	64kg		65kg

Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B — professional solution in the Class B Autoclave category

Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B fits easily into existing process lines and IT infrastructure.

Areas of application Class B Autoclave

Class B Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
