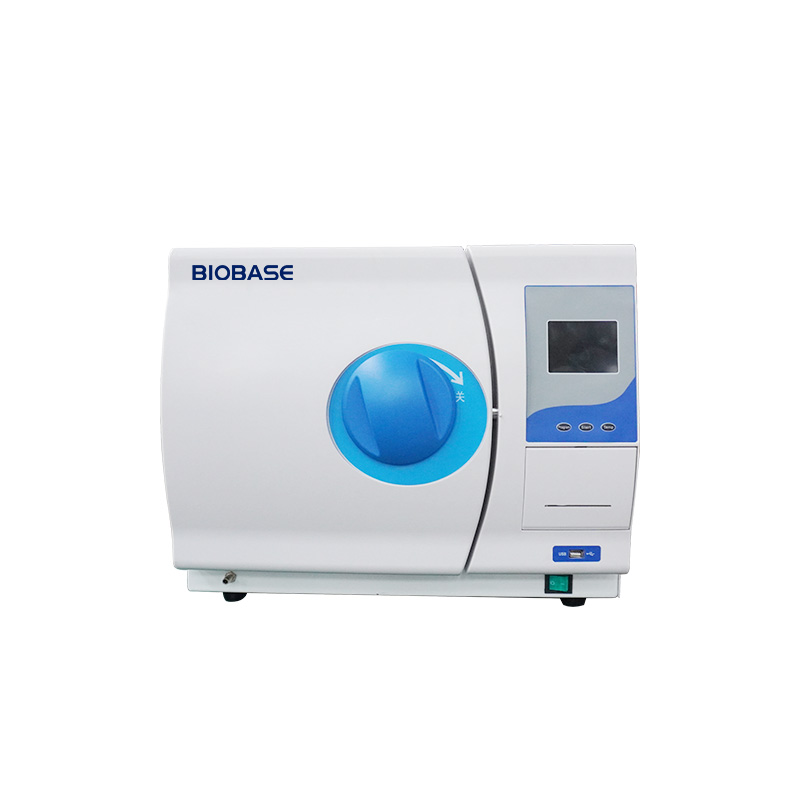

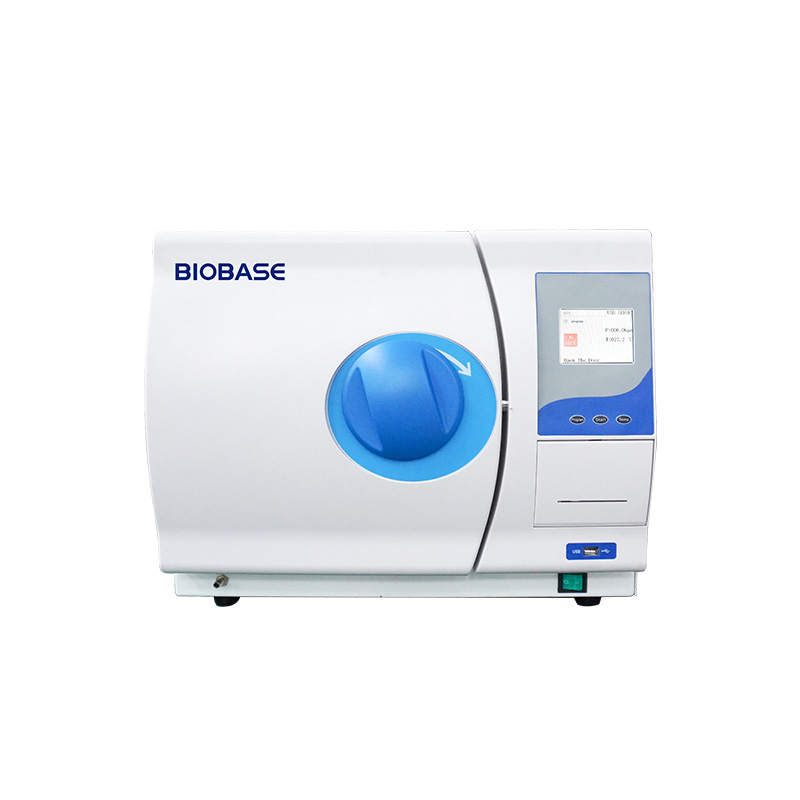

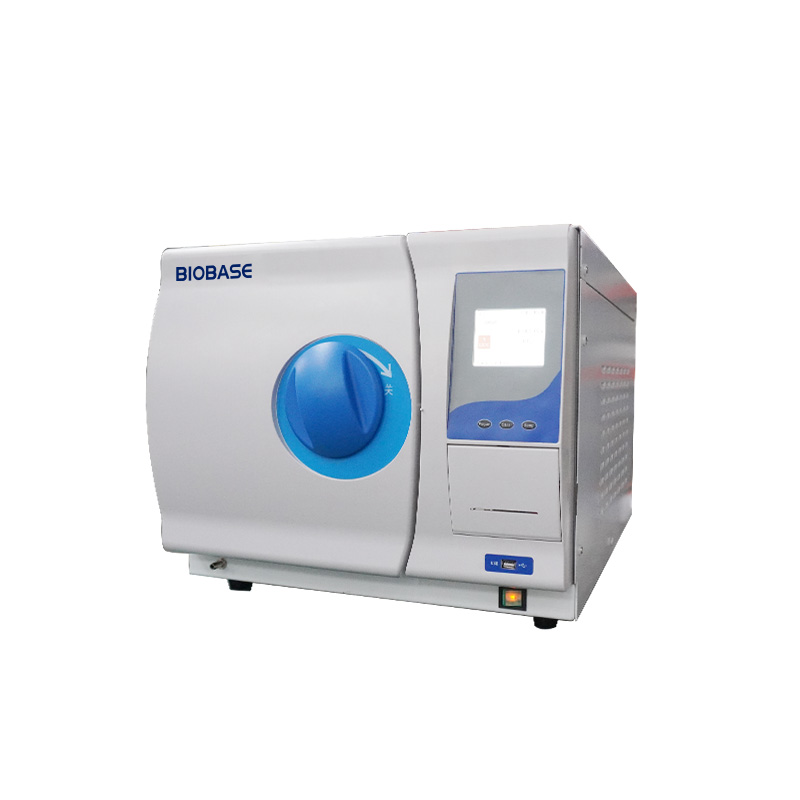

Table Top Autoclave Class N Series

Features:

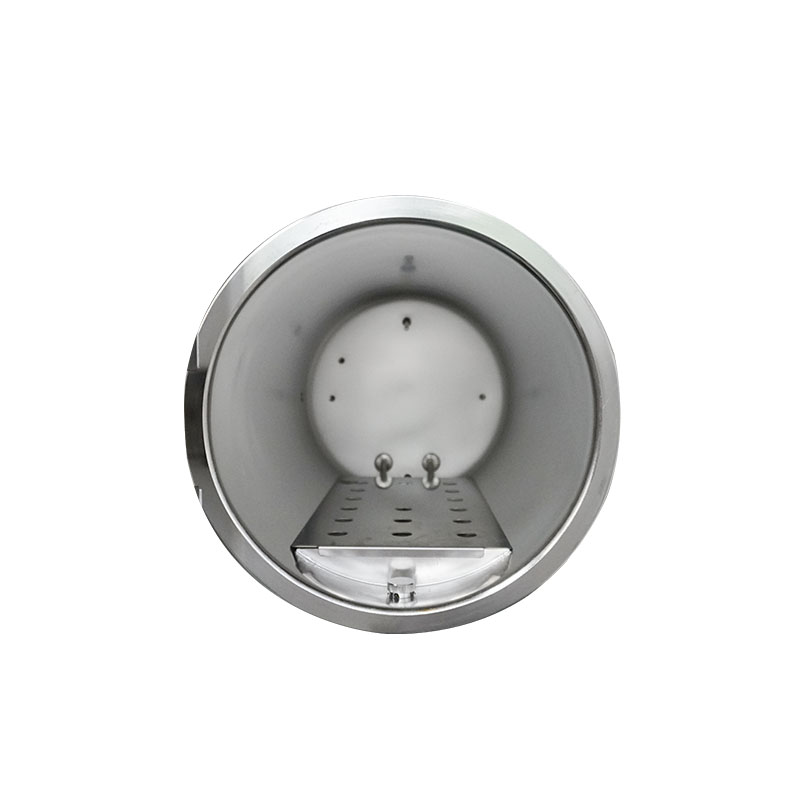

1. High-quality material: the sterilization chamber is made of high-quality S30408 stainless steel electropolished.

2. Steam generation method: the main body is heated, no external steam source is required.

3. Operation interface: 3.5-inch capacitive color display screen is used to display pressure, temperature, time, alarm code and other information in real time, which is convenient for users to observe. When the sterilization cycle is over, a buzzer will sound.

4. Sterilization record: standard USB interface, optional printer, record program data.

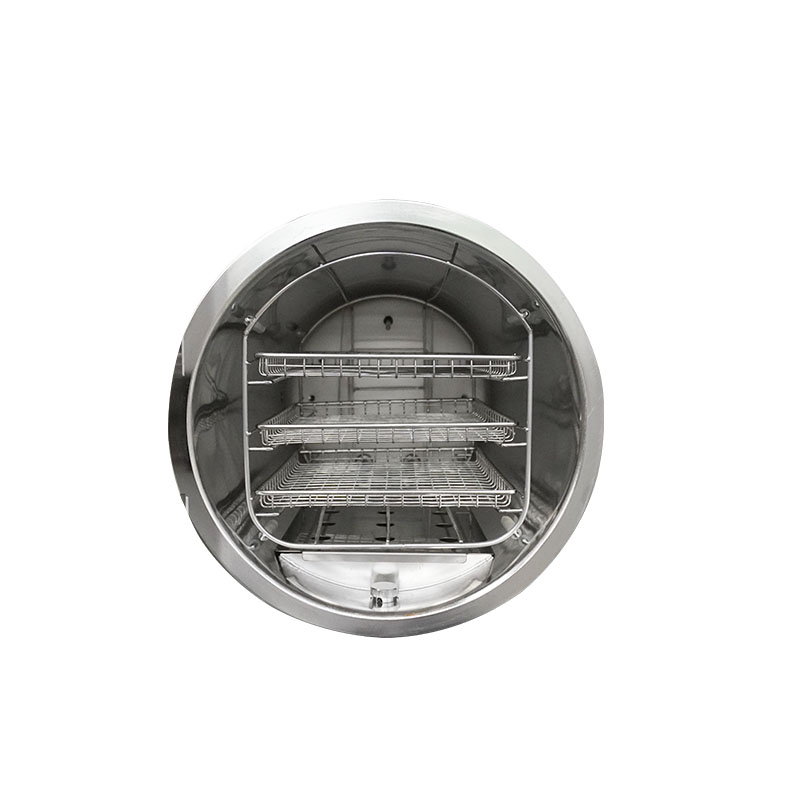

5. New storage rack: increase the utilization space of the sterilization chamber, and the selection space for sterilization load is larger.

6. Control system: controlled by single chip microcomputer, automatic control of heating, sterilization and exhaust, without too much manual operation.

7. One-key start on the operation panel, using mechanical keys, the number of actions≥100,000 times.

8. Two sterilization procedures at 121°C and 134°C are selectable.

Safety Protection:

Over-temperature automatic protection, heating tube anti-dry protection, safety interlock device, double over-voltage protection, over-current leakage safety protection, door detection protection.

Technical Parameters:

Model	BKM-K18N	BKM-K23N
Capacity	18L	23L
Door	Manual
Display	3.5-inch LCD
Max Designed Pressure	0.28Mpa
Working Pressure	0.23Mpa
Max Designed Temp.	150℃
Working Temp.	121/134℃
Temp. Precision	0.1℃
Chamber Material	S30408
Chamber Size	φ250*350mm		φ250*450mm
Altitude	≤2500m
Rack	1 rack with 3 trays
Standard Accessories	Aluminum tray, USB port
Optional Accessories	Stainless steel tray, printer
Consumption	1.6KW
Power Supply	AC220V, 50/60Hz(Standard) AC110V, 50/60Hz(Optional)
External Size(W*D*H)	650*495*410mm	700*495*410mm
Net Weight	32kg		36kg
Package Size(W*D*H)	810*610*590mm
Gross Weight	47kg		50kg

Table Top Autoclave Class N Series — professional solution in the Class N Autoclave category

Table Top Autoclave Class N Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Table Top Autoclave Class N Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Table Top Autoclave Class N Series fits easily into existing process lines and IT infrastructure.

Areas of application Class N Autoclave

Class N Autoclave solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Table Top Autoclave Class N Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Table Top Autoclave Class N Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
