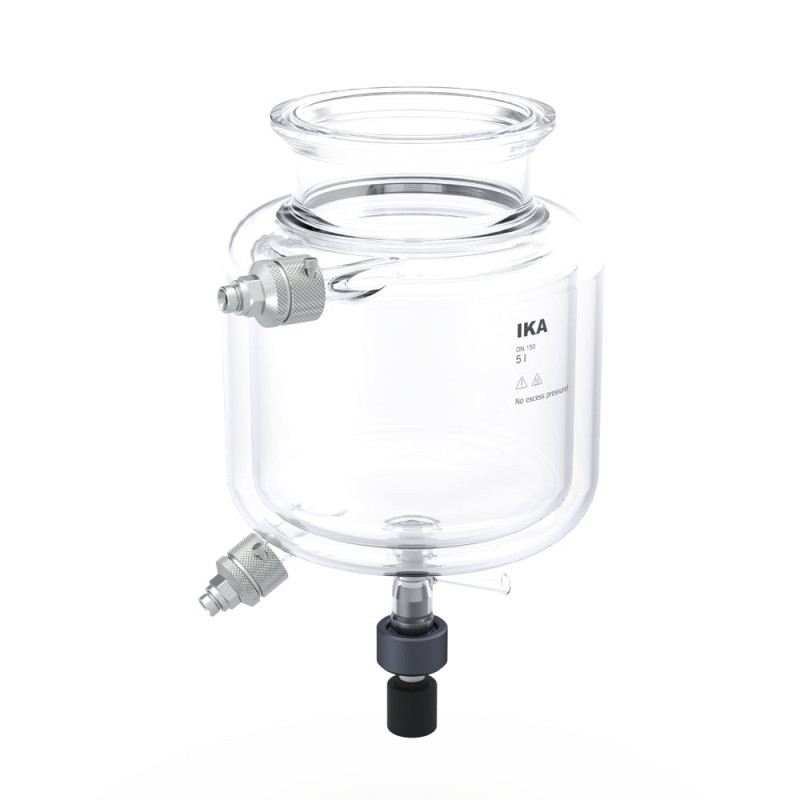

SY 5000 D Reactor vessel

Double-walled reactor vessel with bottom discharge including accessories for the EasySyn reactor system. Volume: 5000 l Flange size: DN 150 Including stainless steel metal adapter M 16x1 (Male) to connect temperature hoses. Scope of delivery: Glasreactor incl. metal adapter Volume [l]: 5 Fill level diameter ratio: 1.24 Fill level at nominal volume [mm]: 165 Vessel inner diameter [mm]: 205 Vessel outer diameter [mm]: 250 Height (room dimension) [mm]: 433 Width (room dimension) [mm]: 303 Depth (room dimension) [mm]: 250 Flange type: acc. DIN 12214 with circular groove Flange dimension: DN150 Flange collar diameter [mm]: 159 Bottom shape: Torispherical head Bottom drain: yes Bottom valve: Safety valve Bottom drain outlet inner diameter [mm]: 10 Bottom drain outlet outer diameter [mm]: 15 Bottom drain outlet length [mm]: 65 Bottom drain shape: straight Tempering jacket filling capacity [L ]: 2.31 Tempering jacket inlet connection: DN 15 (tech-flange) Tempering jacket inlet inner diameter [mm]: 15 Vacuum application: yes Tempering jacket outlet connection: DN 15 (tech-flange) Tempering jacket oulet inner diameter [mm]: 15 Thread closure system: M16x1 Width across flats: WAF 22 Material closure system: stainless steel 1.4404 Reactor vessel material: borosilicate glass 3.3 DIN ISO 3585 Working temperature [°C]: -50 - 200 Useable volume [ml]: 1000 - 5800 Useable volume with temperature probe min. [ml]: 1500 Pressure max.: atmospheric pressure Attainable vacuum [mbar]: 3 Material in contact with medium: borosilicate glass 3.3 DIN ISO 3585, PTFE

SY 5000 D Reactor vessel — professional solution in the IKA®-Werke GmbH & Co. KG category

SY 5000 D Reactor vessel is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why SY 5000 D Reactor vessel

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: SY 5000 D Reactor vessel fits easily into existing process lines and IT infrastructure.

Areas of application IKA®-Werke GmbH & Co. KG

IKA®-Werke GmbH & Co. KG solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing SY 5000 D Reactor vessel allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with SY 5000 D Reactor vessel you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
