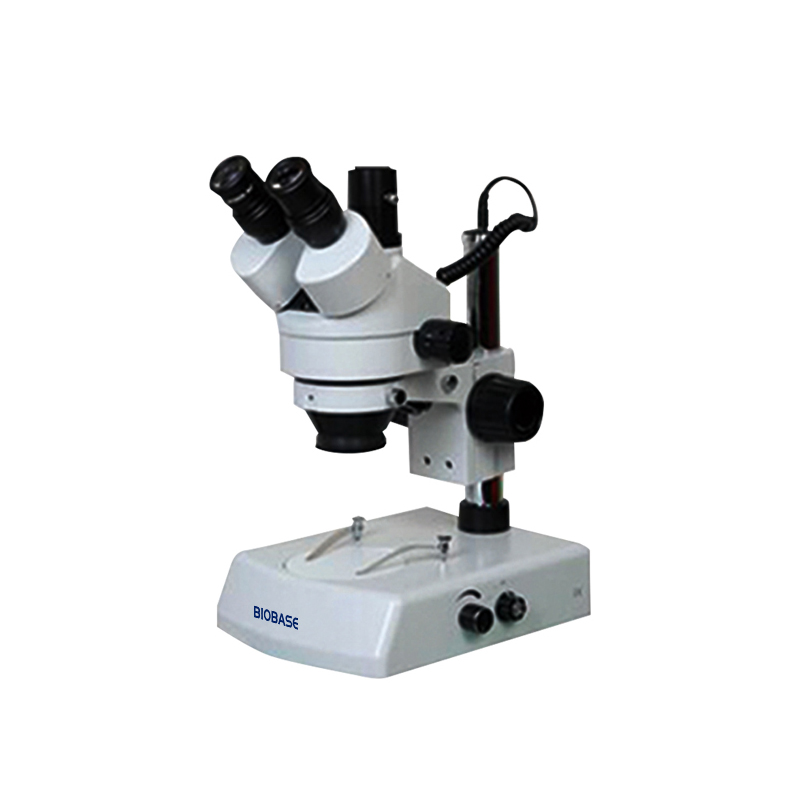

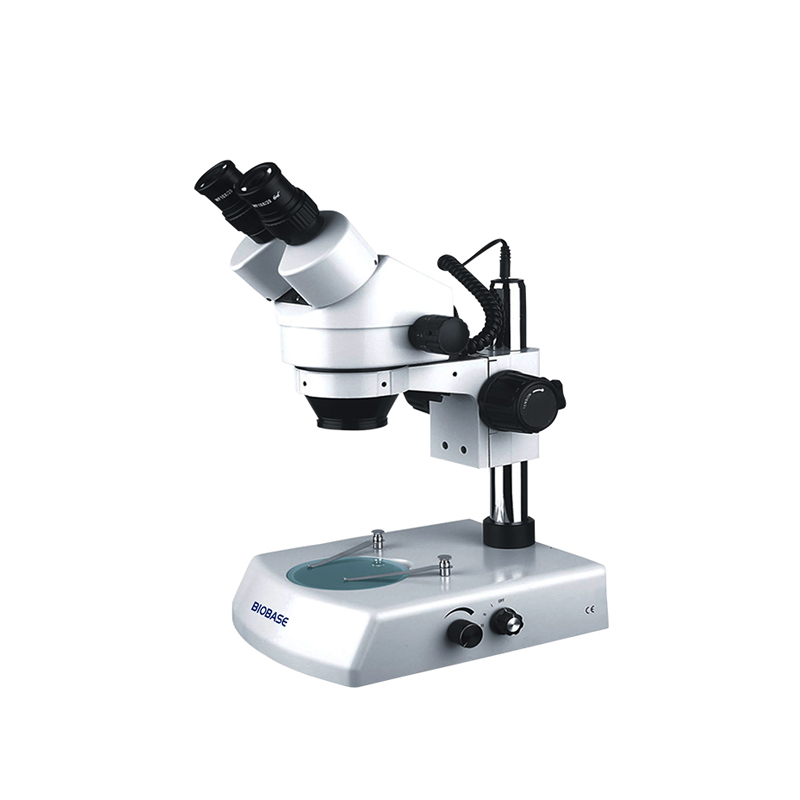

Stereo Zoom Microscope SZM-45 SZM-45T

Technical Parameters:

Model	Specifications	SZM-45	SZM-45T
Viewing Head	Binocular view head inclined at 60°	√
	Trinocular view head inclined at 45°		√
	Digital view head inclined at 45°		√
Eyepiece	High point wide field  adjustable eyepiece WF10X20mm	√	√
Zoom Objective	0.67X~4.5X	√	√
Zoom Ratio	6.7:1	√	√
Auxiliary Objective	0.5X/177mm, 1.5X/47mm, 2X/26mm	√	√
Working Distance	115mm	√	√
Focusing Bracket	Focusing frame adjustment knob	√	√
Interpupillary Distance	55~75mm/52~75mm	√	√
Up Illumination	LED lamp	√	√
Down Illumination	LED lamp	√	√
Power Supply	AC100~240V, 50/60Hz	√	√
Package	Cartoon with foam	√	√
Package Size	mm	500*260*370
Gross Weight	kg	8

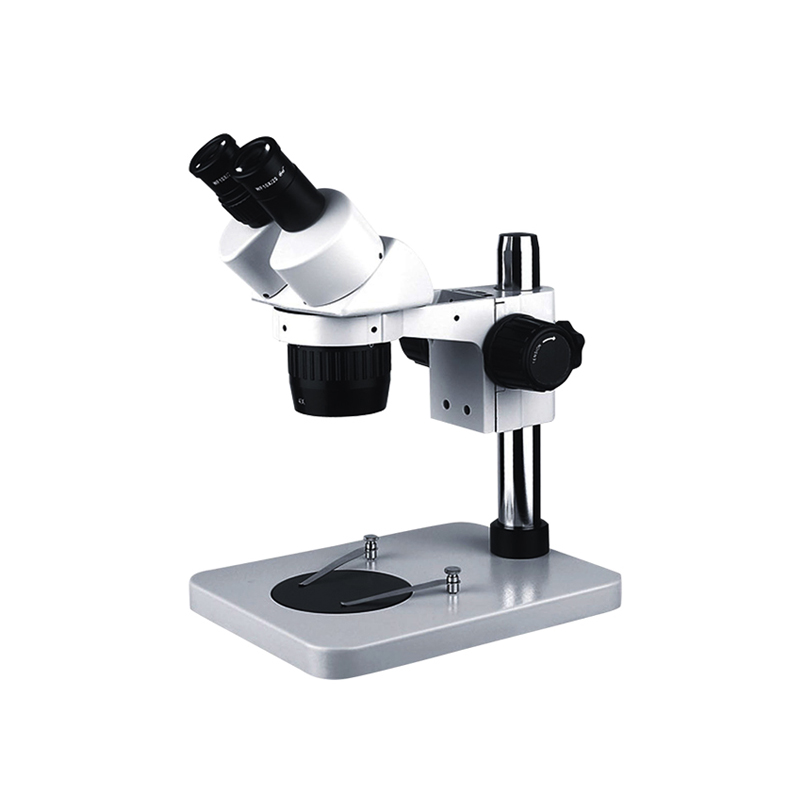

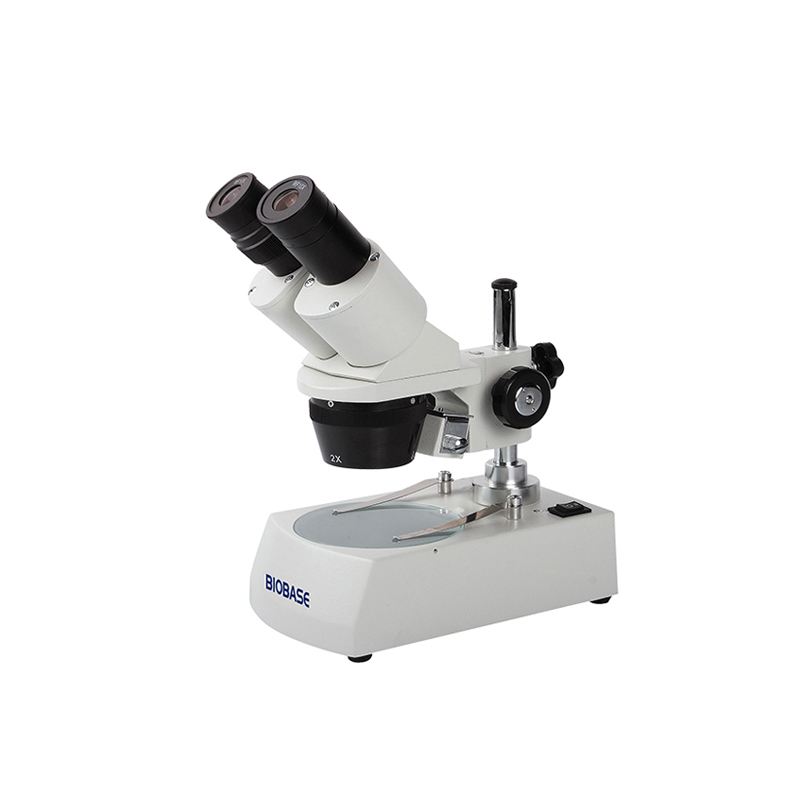

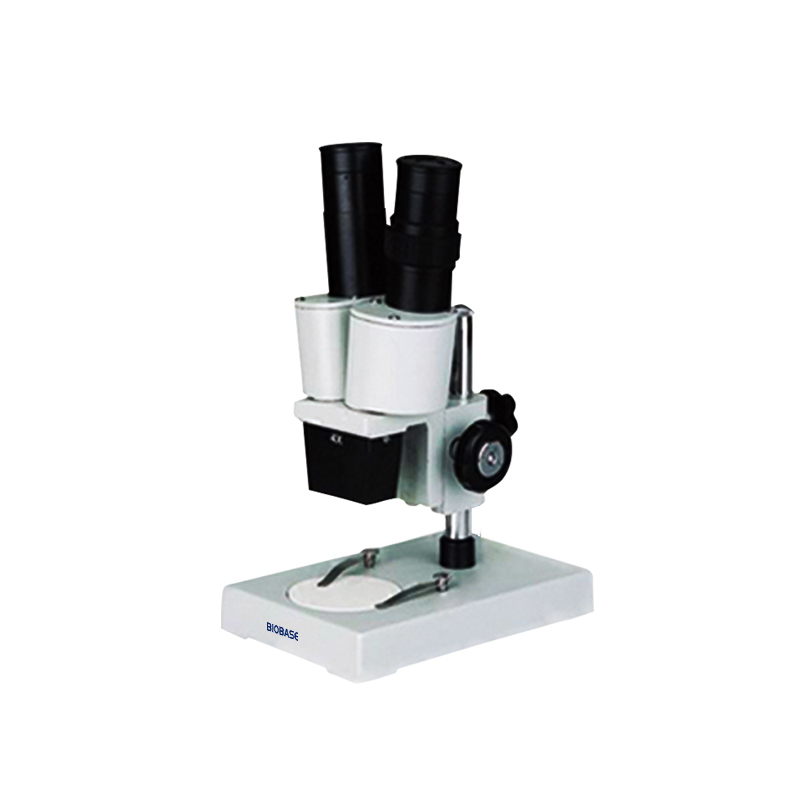

Model	ST-20	ST-40	ST-60
Illumination	Natural light Binocular	Tranilluminator/inclined light	Natural light
View Head And Body	Straight Head	Inclined viewing up-rotatable body	Inclined viewing body 360°rotatable
Objective	2X	2X&4X, 90° rotated	2X&4X, 360° rotated
Working Distance	80mm	57mm	100mm
Eyepiece	WF10X/20
Power Supply	/	AC100~240V, 50/60Hz
Package Size(W*D*H)	300*200*150mm	360*170*290mm	400*250*360mm
Gross Weight	3kg	6kg	8kg

Optional cameras: 5M, 6M, 8M, 10M, 12M, 16M, 18M, 20M(DC2000B)(only for Trinocular microscope).
