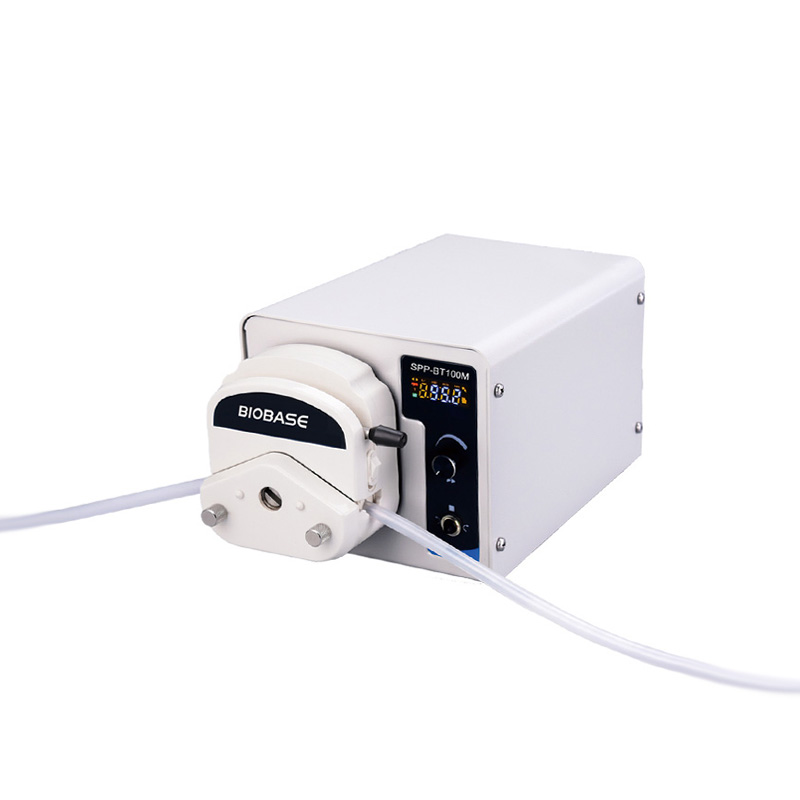

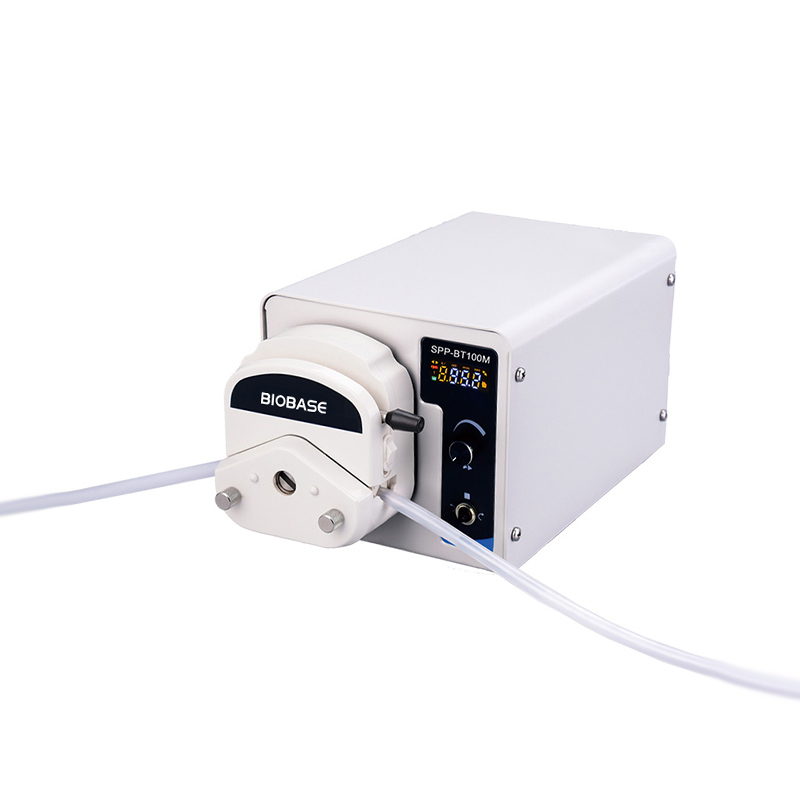

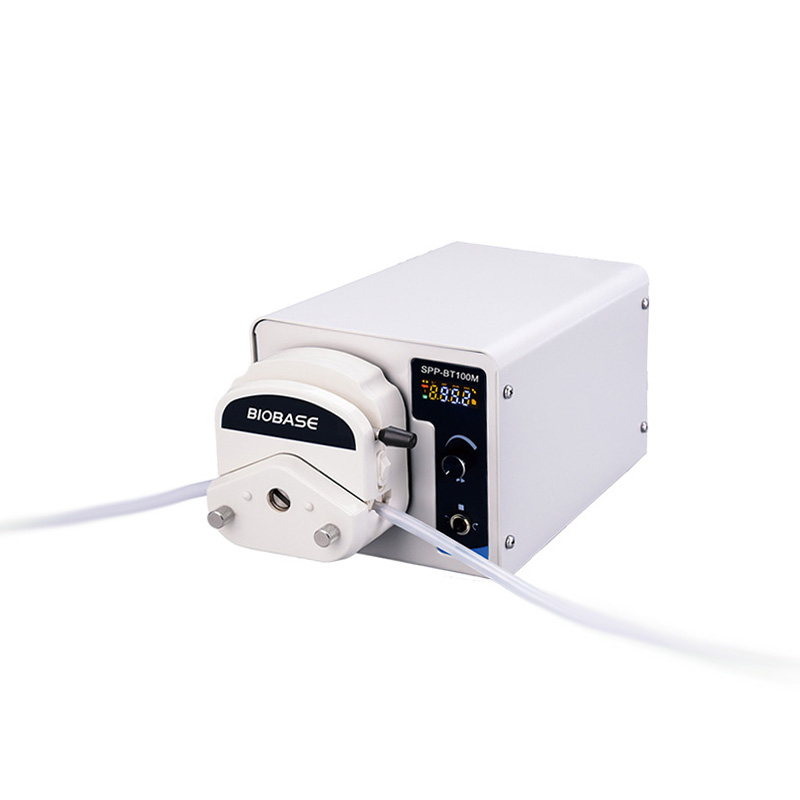

Standard Peristaltic Pump SPP Series

Features:

1. LED display.

2. Support RS485/MODBUS communication protocol, analog control(0~5V, 0~10V, 4~20mA...) foot switch control.

3. Program control.

4. Memory function data will be stored in time after power off.

5. Full speed function one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc.

Technical Parameters:

Model	SPP-BT100M	SPP-BT300M	SPP-BT600M
Pump Head	YZ1515X, YZ2515X, DG series(only SPP-BT100M)
Speed Range	0.1~100rpm(Reversible)	0.1~300rpm(Reversible)	0.1~600rpm(Reversible)
Speed Resolution	0.1rpm
Flow Range	0.0015~380ml/min	0.007~1140ml/min	0.007~2280ml/min
Filling Precision	<±0.5%
Display	4-LED display
Back Suction Speed	10~100rpm	10~300rpm
Optional Accessory	Foot switch
Environmental Conditions	Temperature: 0~ 40°C; Humidity: <80%, no condensation
Consumption	22W	35W	50W
Power Supply	AC110/220V±10%, 50/60Hz
Instrument Size(W*D*H)	234*154*143mm		254*184*150mm
Package Size(W*D*H)	393*243*243mm		403*283*253mm
Gross Weight	5.15kg		5.8kg

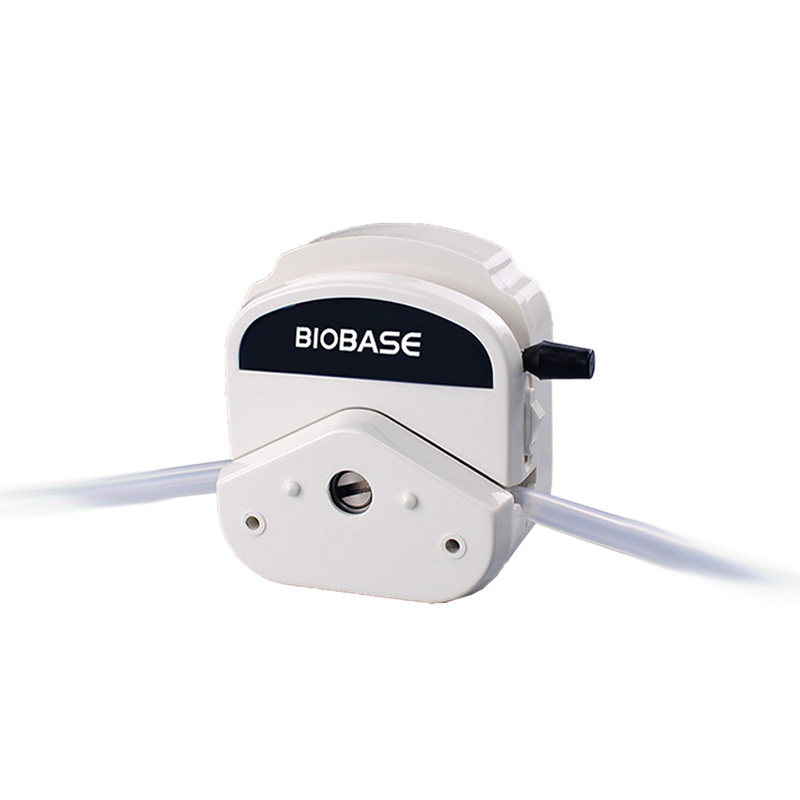

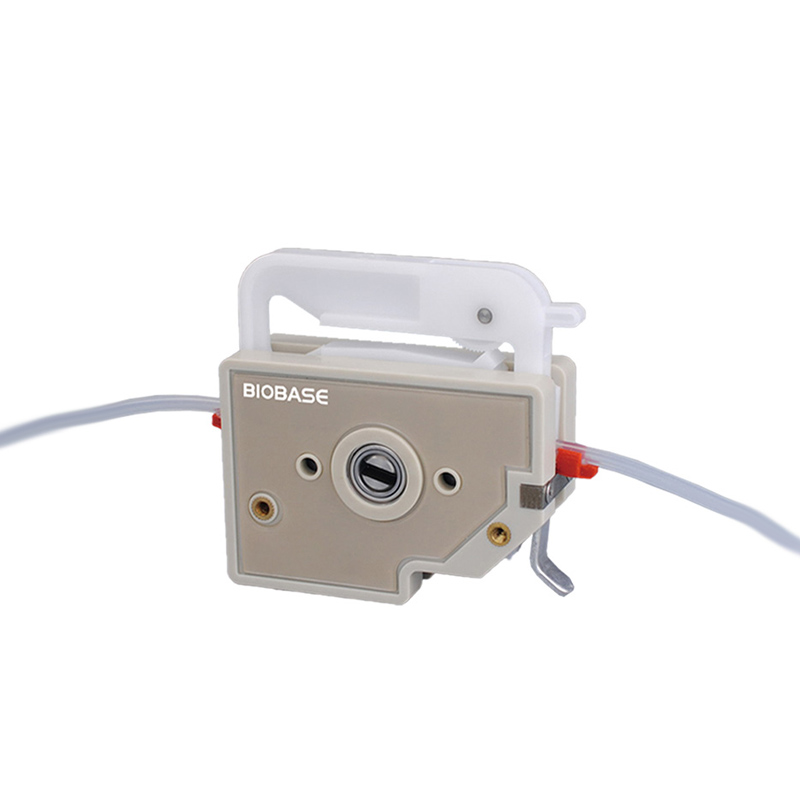

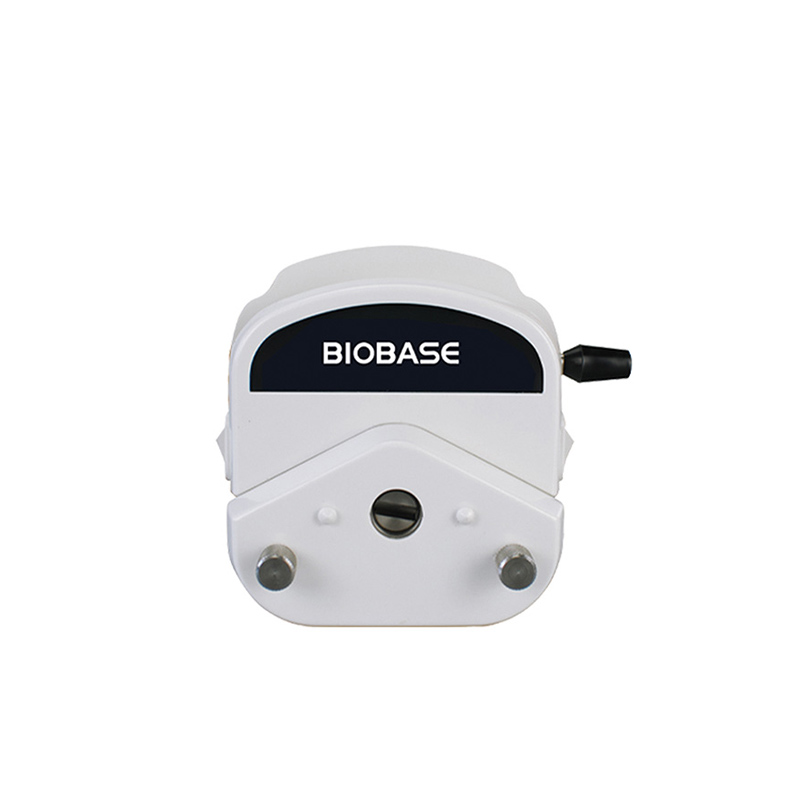

Pump Head:

Pump Parameters:

Standard Peristaltic Pump SPP Series		Model	SPP-BT100M	SPP-BT300M	SPP-BT600M
		Speed Range       Tubing	0.1~100rpm (Reversible)	0.1~300rpm (Reversible)	0.1~600rpm (Reversible)
Pump Head&Single Channel Flow	YZ1515x	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.007~380ml/min	0.007~1140ml/min	0.007~2280ml/min
	YZ2515x	15#, 24#	0.17~290ml/min	0.17~870ml/min	0.17~1740ml/min
	2*YZ1515x	13#, 14#, 19#, 16#, 25#, 17#, 18#	0.007~380ml/min	0.007~1140ml/min	0.007~2280ml/min
	2*YZ2515x	15#, 24#	0.17~290ml/min	0.17~870ml/min	0.17~1740ml/min
	DG-1(6)	0.5*0.8, 1*1, 2*1, 2.4*0.8, 3*1	0.002~36ml/min	/	/
	DG-1(10)		0.0015~27ml/min	/	/
	DG-2(6)		0.002~36ml/min	/	/
	DG-2(10)		0.0015~27ml/min	/	/
	DG-4(6)		0.002~36ml/min	/	/
	DG-4(10)		0.0015~27ml/min	/	/

Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.

Standard Peristaltic Pump SPP Series — professional solution in the Peristaltic Pump category

Standard Peristaltic Pump SPP Series is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Standard Peristaltic Pump SPP Series

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Standard Peristaltic Pump SPP Series fits easily into existing process lines and IT infrastructure.

Areas of application Peristaltic Pump

Peristaltic Pump solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Standard Peristaltic Pump SPP Series allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Standard Peristaltic Pump SPP Series you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
