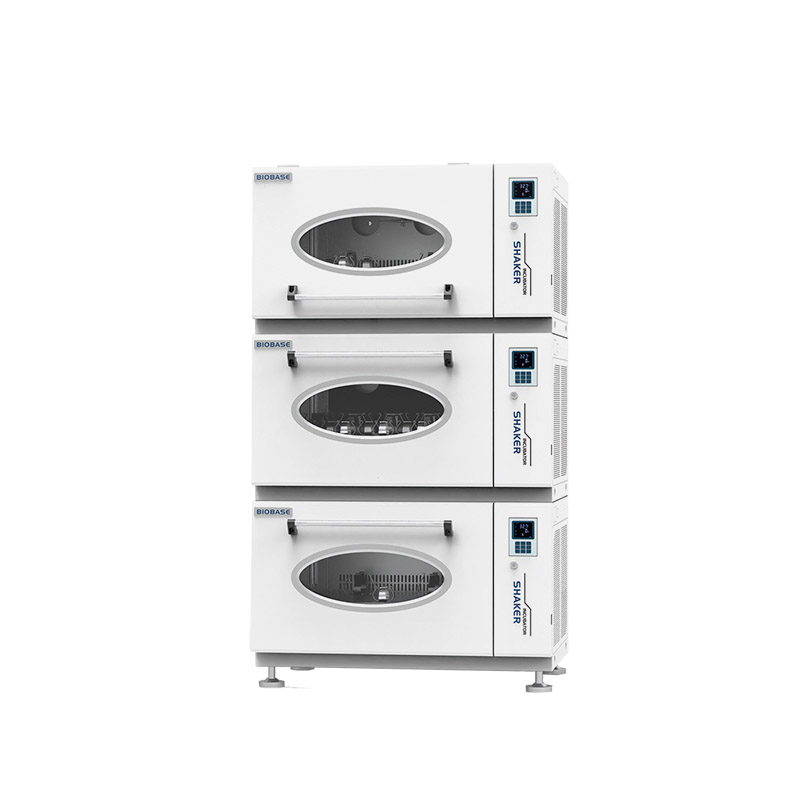

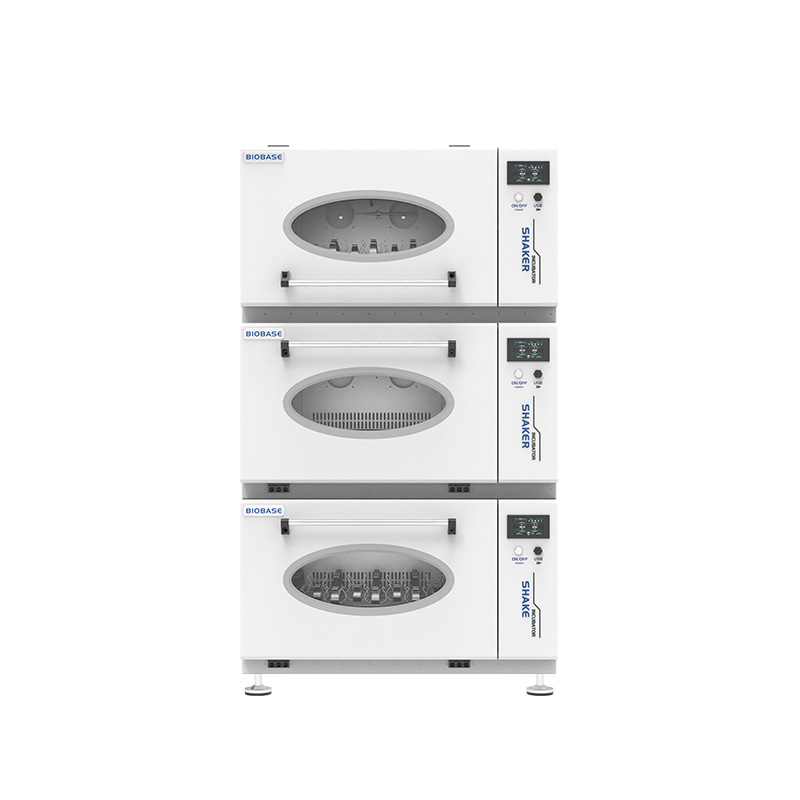

Stacked Large Capacity Shaking Incubator

Features:

1. Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data.

2. High quality brushless DC motor, low vibration, low noise, high efficiency, maintenance free, energy saving, lasting operation.

3. 5 inch touch screen /LCD screen, clear and intuitive interface, easy to operate.

4. With UV disinfection function, the cavity to maintain a clean and sterile environment.

5. LED lighting function, open the door and turn on the light automatically.

6. With power failure recovery function, the equipment can automatically resume operation according to the original program.

7. Electric heating toughened glass perspective window, easy to observe, good temperature insulation effect, anti condensation.

Technical Parameters:

Model	BJPX-SDW10	BJPX-SDW20	BJPX-SDW10-L	BJPX-SDW20-L
Capacity	200L
Temp. Sensor	PT100
Temp. Range	RT+5~60℃	4~60℃	RT+5~60℃	4~60℃
Temp. Fluctuation	≤±0.5℃
Temp. Uniformity	≤±1℃(37℃）
Temp. Precision	0.1℃
Timing Range	0~999h59min		0~999min(h)
Controller	PID
Display	5-inch touch screen		3-inch LCD screen
Circulation Mode	Forced convection
Shaking Mode	Rotary shaking
Drive Mode	Single axis balanced drive type
Vibration Range	Φ26mm
Rotating Speed	30~300r/min
Rotating Accuracy	±1r/min
Shaking Plate Size	720*490mm
Shaking Plate Quantity	1pc
Max. Capacity	250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed)
Standard. Capacity	500ml*24
Lighting Mode	LED lamp*1
Sterilization Mode	UV lamp*2
Refrigerant	/	R290	/	R290
Ambient Temp.	15~35℃
Internal Material	304 stainless steel
External Material	Cold rolled steel sheet
Data Storage	USB data storage and output function
	Standard		Optional
Printer	built-in micro printer(Optional) (Need to be matched with USB data storage and output function)
Safety Function	Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection
Consumption	1500W	2200W	1500W	2200W
Power Supply	AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)	870*590*398mm(Per unit)
External Size(W*D*H)	1150*780*640mm(Per unit)
Package Size(W*D*H)	1345*970*910mm(Per unit)
Net Weight	270kg(Per unit)	300kg(Per unit)	270kg(Per unit)	300kg(Per unit)
Gross Weight	295kg(Per unit)	325kg(Per unit)	295kg(Per unit)	325kg(Per unit)

Optional Accessory：

Model		Specification	Model	Tube Rack	Specification
Flask Clamp	BS-A10	50ml	Tube Rack	BS-A20	54-well, for 10ml centrifuge tube
	BS-A11	100ml		BS-A21	54-well, for 15ml centrifuge tube
	BS-A12	150ml		BS-A22	28-well, for 50ml centrifuge tube
	BS-A13	200ml		BS-A23	24-well, for 100ml centrifuge tube
	BS-A14	250ml		BS-A24	54-well, for 15*150mm tube
	BS-A15	500ml		BS-A25	54-well, for 18*180mm tube
	BS-A16	1000ml		BS-A26	54-well, for 20*200mm tube
	BS-A17	2000ml		BS-A27	32-well, for 25*200mm tube
	BS-A18	3000ml		BS-A28	28-well, for 30*200mm tube
				BS-A50	54-well, for 7ml sampling tube
96-well Plate	BS-A30	130*87*52mm		BS-A51	54-well, for 10ml sampling tube
Clamping Rod Shaking Plate	BS-A40	320*300*70mm(for 50~2000ml conical flask)		BS-A52	54-well, for 20ml sampling tube
				BS-A53	54-well, for 30ml sampling tube

Stacked Large Capacity Shaking Incubator — professional solution in the Shaking Incubator category

Stacked Large Capacity Shaking Incubator is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Stacked Large Capacity Shaking Incubator

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Stacked Large Capacity Shaking Incubator fits easily into existing process lines and IT infrastructure.

Areas of application Shaking Incubator

Shaking Incubator solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Stacked Large Capacity Shaking Incubator allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Stacked Large Capacity Shaking Incubator you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
