Features:
1. Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment.
2. Equipped with multi-angle adjustment device and embedding chuck.
3. With sectioning/trimming, sectioning counting, retraction display(retraction range, feed travel of small hand wheel, feed direction of hand wheel) function.
4. Magnetic removable waste chute, easy to clean.
5. Two-piece storage board, which can place blade embedding box and other related disposable items.
6. Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples.
Technical Parameters:
Model | BK-2238 |
Sectioning Thickness Range | 0~100μm |
Trimming Thickness Range | 0~600μm |
Retraction Range | 0~200μm |
Mini. Sectioning Thickness | 0.25μm |
Precision | ±5% |
Velocity Of Small Hand Wheel | 100~1000μm, adjustable |
Max Specimen Size | 50*70(mm) |
Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 360° |
Power Supply | AC110/220V, 50/60Hz |
Power | 100W |
External Size(L*W*H) | 605*465*340(mm) |
Net Weight | 35kg |
Packing Size(L*W*H) | 725*590*590mm |
Gross Weight | 55kg |

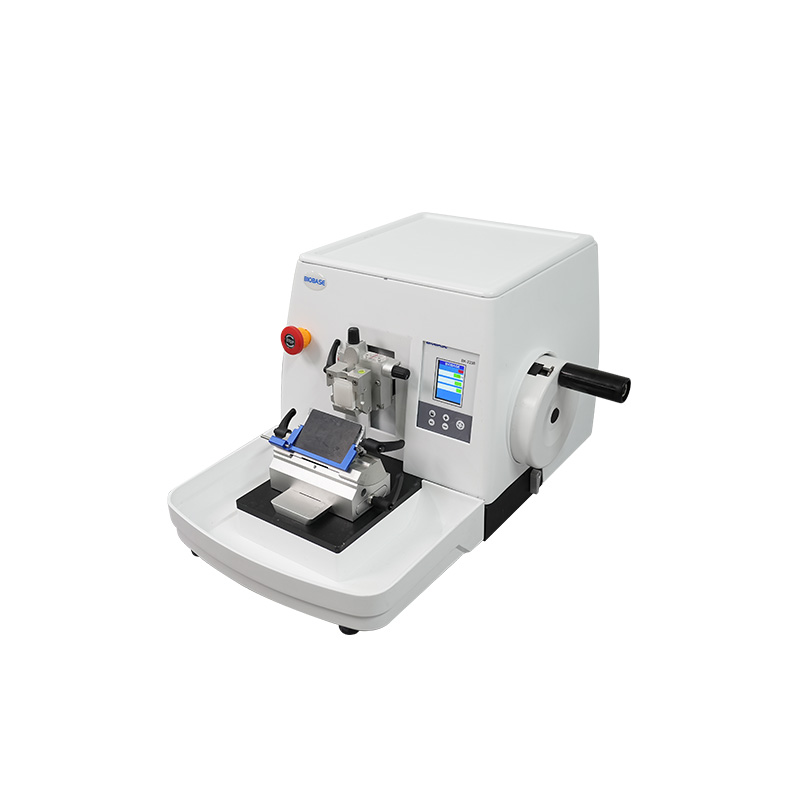

Semi-Automatic Microtome BK-2238 — professional solution in the Microtome category
Semi-Automatic Microtome BK-2238 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Semi-Automatic Microtome BK-2238
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Semi-Automatic Microtome BK-2238 fits easily into existing process lines and IT infrastructure.
Areas of application Microtome
Microtome solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Semi-Automatic Microtome BK-2238 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Semi-Automatic Microtome BK-2238 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Semi-Automatic Microtome BK-2238 to the cart or contact our manager. We will help integrate Microtome into existing processes without downtime and unnecessary costs.
